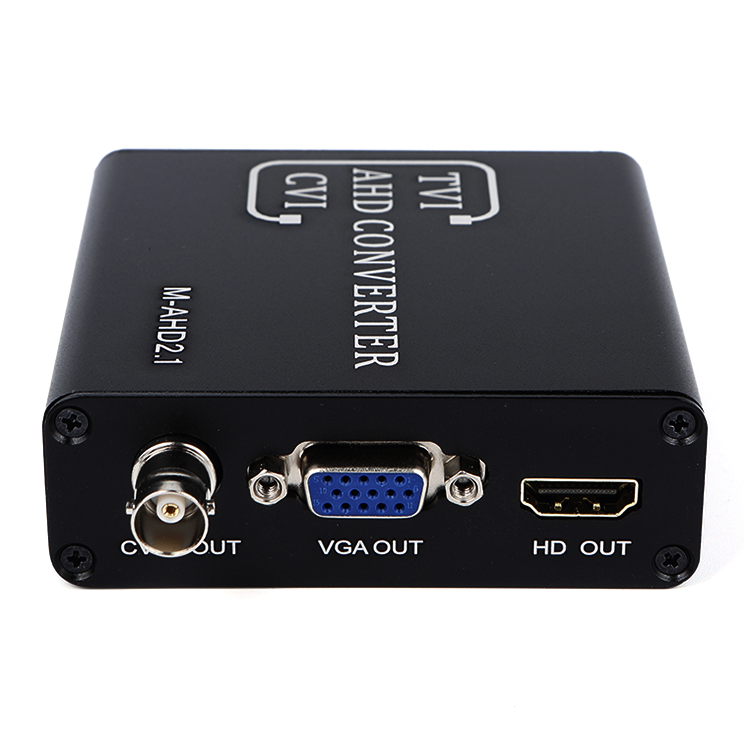

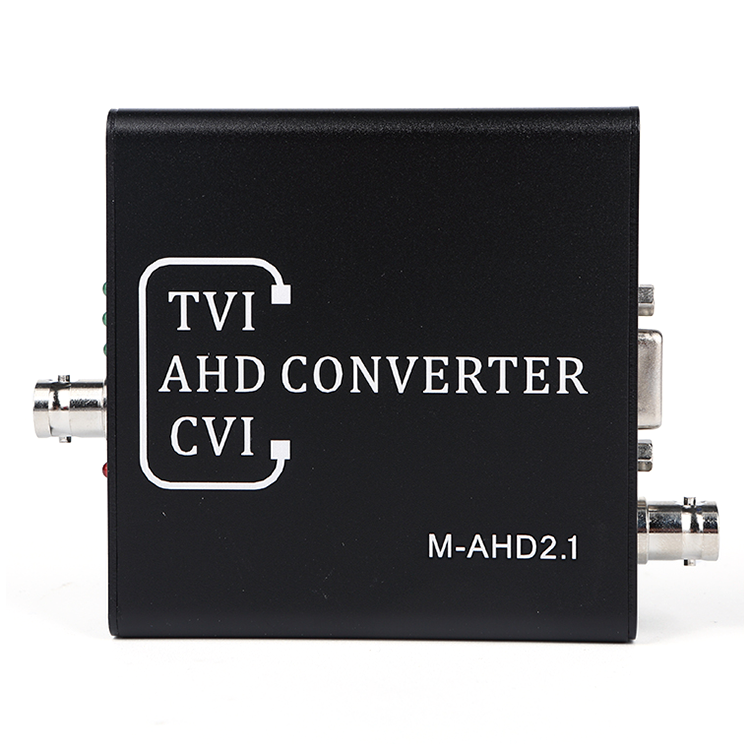

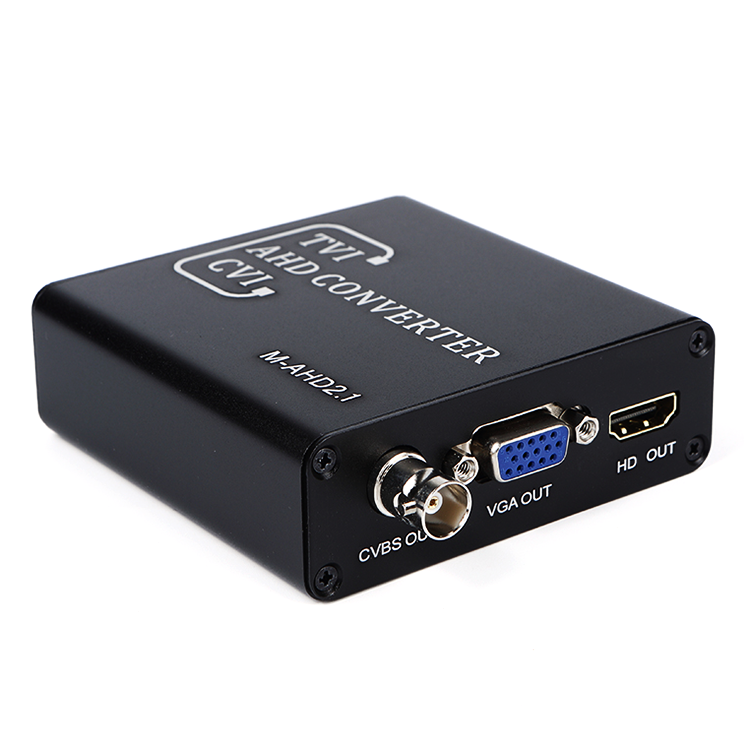

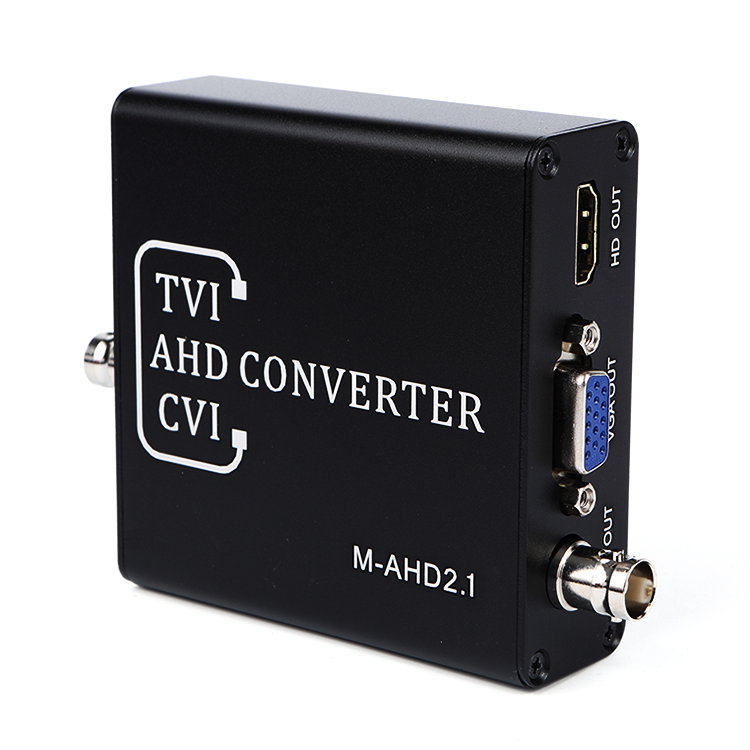

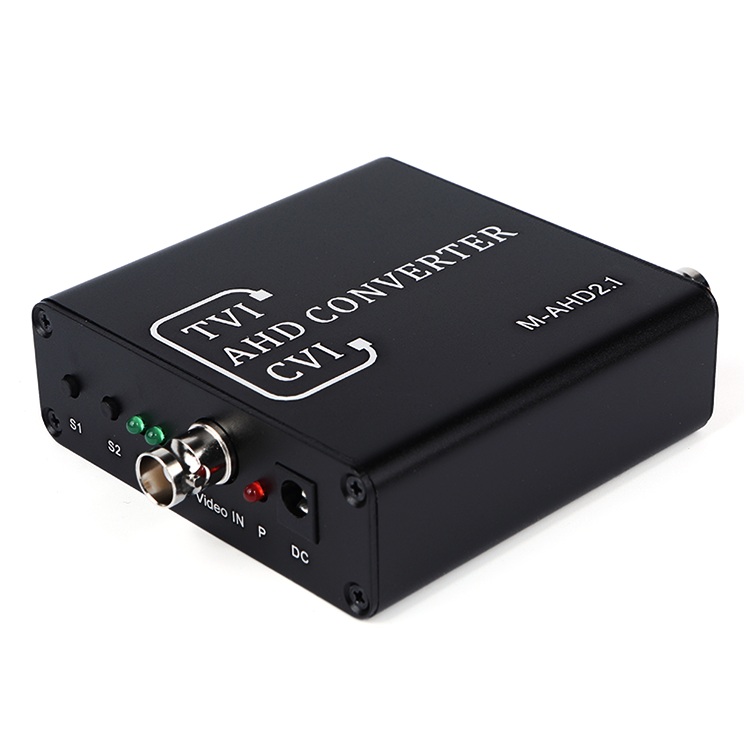

M-AHD2.1 AHD/TVI/CVI/CVBS to HD/VGA/CVBS Converter

5 0 Reviews

The AHD/TVI/CVI/CVBS to HD/VGA/CVBS video converter can convert AHD/TVI/CVI/CVBS video Signal to HD/VGA/CVBS output by digital processing.

It allows you to display any AHD/TVI/CVI/CVBS camera (720P/1080P) directly on any type display monitor such as HD TV by HD, PC Monitor by VGA and even Analog CCTV monitor by CVBS.

Price: $ 34.3

Price: $ 0

Price: $ 34.3

Price: $ 0

Availability:

Quantity:



Buy Now Add to Cart

Model:
M-AHD2.1

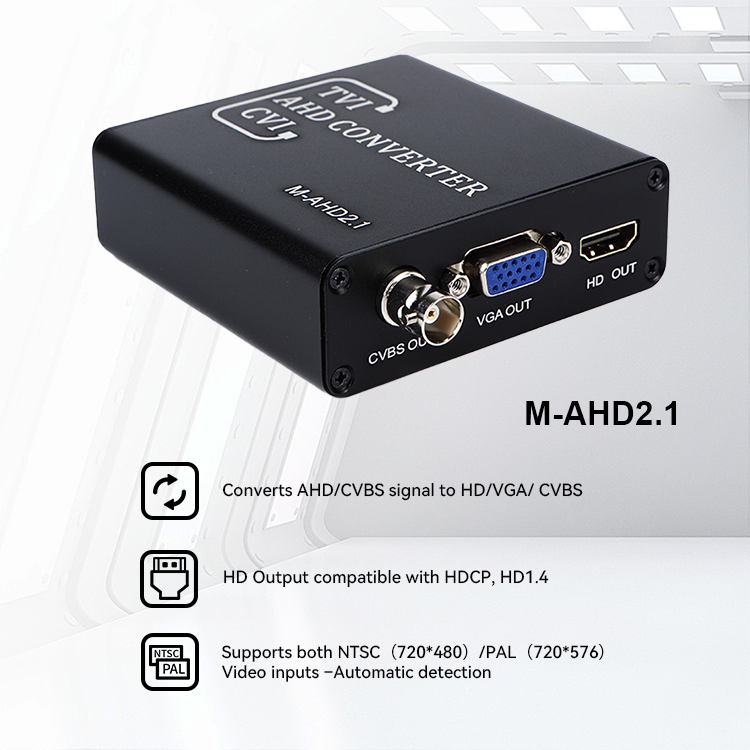

Product Display
Information
Usage

Introduction

The AHD / TVI / CVI / CVBS to HD / VGA / CVBS video converter can convert AHD / TVI / CVI / CVBS video Signal to
HD / VGA / CVBS output by digital processing.

It allows you to display any AHD/TVI/CVI/CVBS camera (720P/1080P) directly on any type display monitor such as
HD TV by HD, PC Monitor by VGA and even Analog CCTV monitor by CVBS.

Features

1. Converts AHD / TVI / CVI / CVBS signal to HD / VGA / CVBS

2. HDMI Output compatible with HDCP, HD1.4

3. HDMI output resolution: 720P@50/60Hz, 1080P@50/60Hz

4. VGA output resolution: 800x600@60Hz, 1024x768@60Hz, 1366x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz

5. Selectable output by physical button on the device

6. Supports both NTSC（720*480）/PAL（720*576） Video inputs –Automatic detection

7. Supports AHD-5MP; TVI-5MP; CVI-2MP

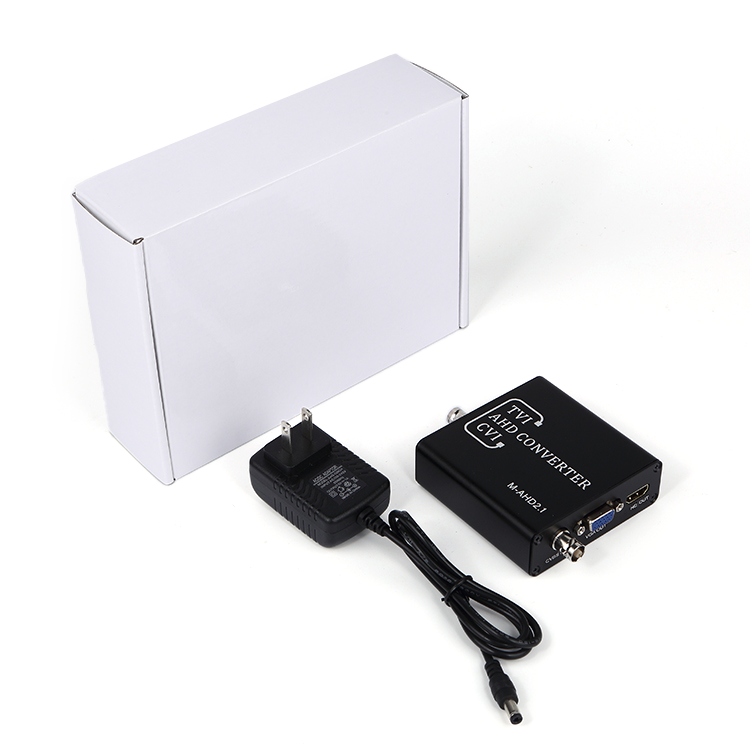

Package

1. Converter x1 pc

2. Power 5V x1 pc

3. User Manual x1 pc

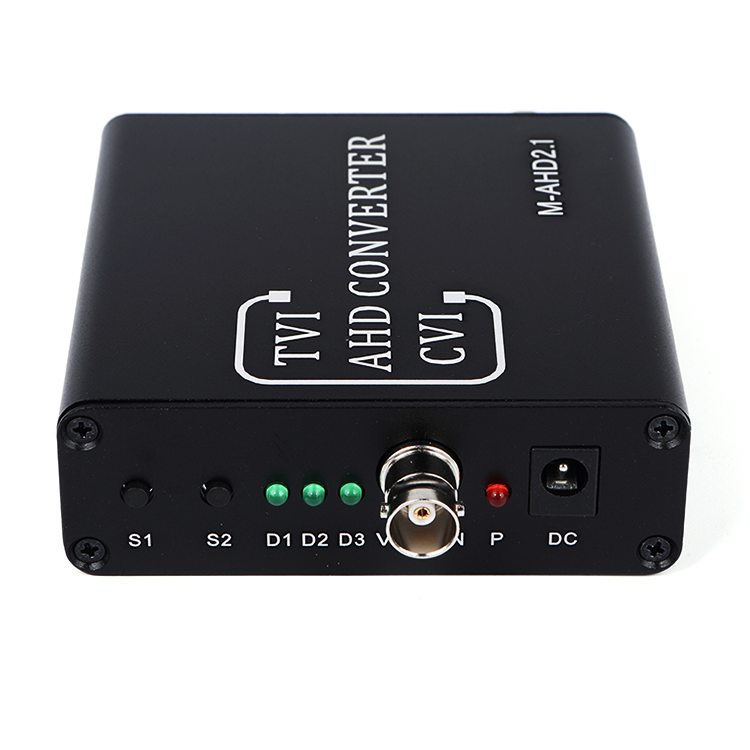

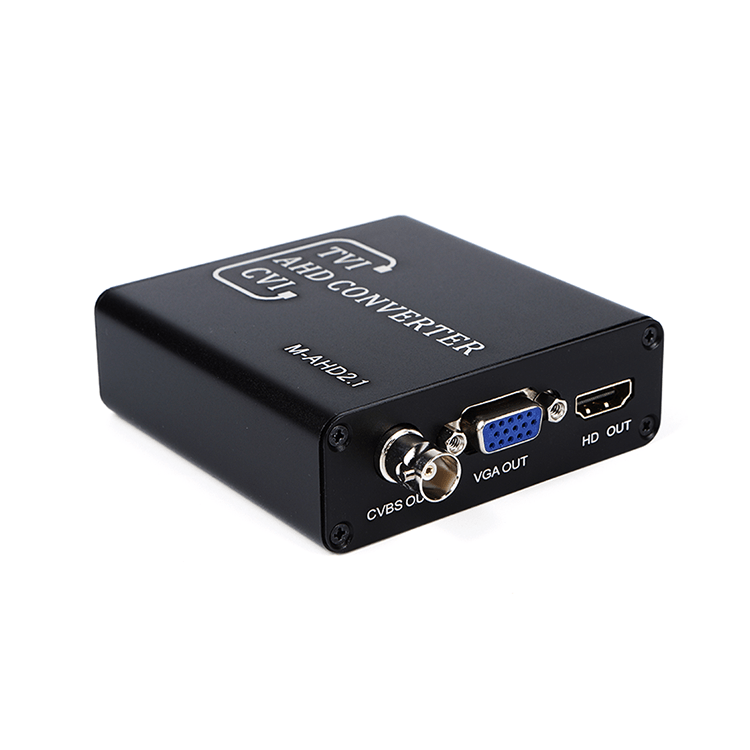

Product interface

Marking	Description
S1	Button - Switch output channel
S2	Button - Switch resolution
D1	HD Indicator
D2	VGA Indicator
D3	AV Indicator
POWER	Power indicator

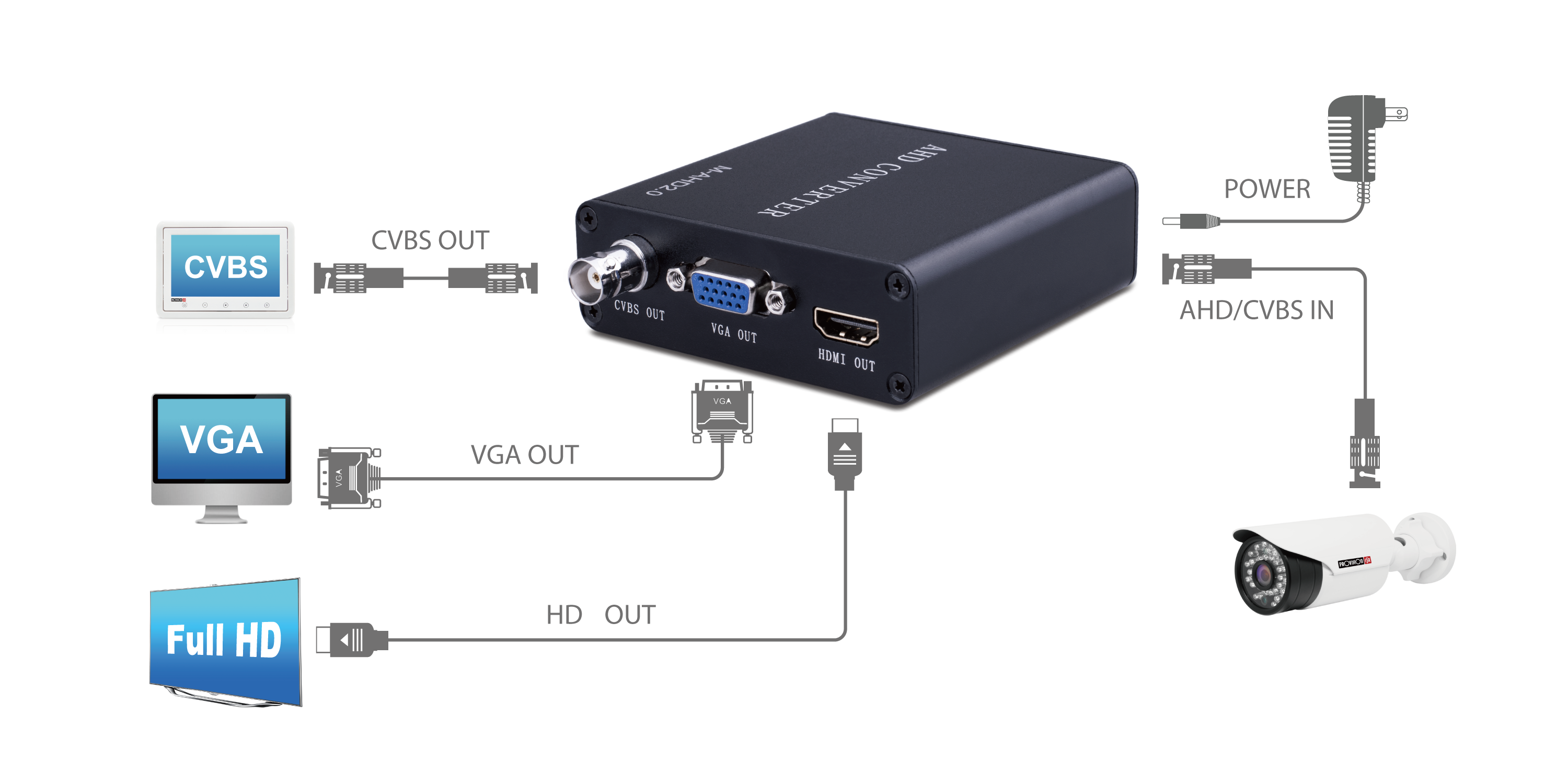

Installation Process:

1.Connect the AHD / TVI / CVI / CVBS Source to the AHD / TVI / CVI / CVBS input using Coax cable.

2.Connect the converter to the HD / VGA / CVBS display.

3.Connect the converter to power source using the supplied power supply

4.Use the S1/S2 button to switch between outputs and resolutions.

Converter AHD TVI CVI CVBS HD VGA
