The HD extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

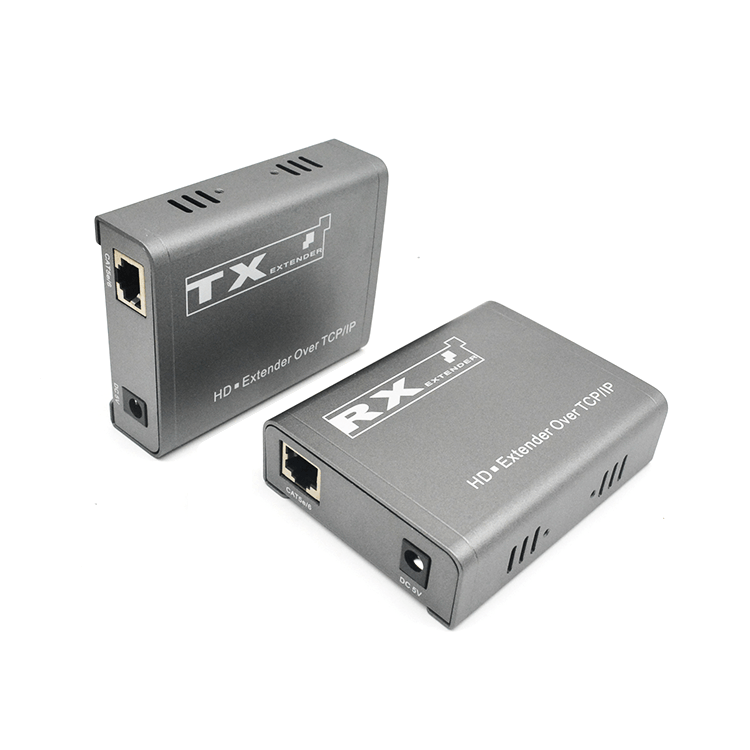

The M-HD250 HD extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Transmits HD video and audio signals up to 250m over a single CAT5e/6 cable
2. Support video resolution up to 1920*1080@60Hz
3. Support IR signal transmission
4. Support over TCP/IP, one to many application with Ethernet switch
5. Compliance with HD 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play
Specification
Parameter
Description
Video
Standards
HD 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920X1080P@60Hz
Connector
HD-A
Impedance
100Ω
IR
Interface
3.5mm seat
Signal direction
Unidirectional
Signal type
Digital
IR frequency
38kHz
UTP
Interface
RJ45
Transmission distance
CAT5e/6---250m
Other
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
95*73*26mm
Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. Power adapter x2 pcs
4. IR TX/RX terminal x 1 set
5. User manual x1 pc
Product Interface
TX (Transmitter) RX (Receiver)
Port name
Description
HD IN/OUT
HD signal input/output
Cat5e/6
RJ45 port connect cat5e/cat6
IR TX/RX
IR signal input/output
DC/5V
Power adapter socket
LED indicator
Description
PWR
Unit power indicator
STA
HD signal indicator
Installation Process
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HD cable between the HDMI input port of transmitter and the HD output port of the video source
3. Connect the HD output port of receiver to the display device with HD cable
4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
