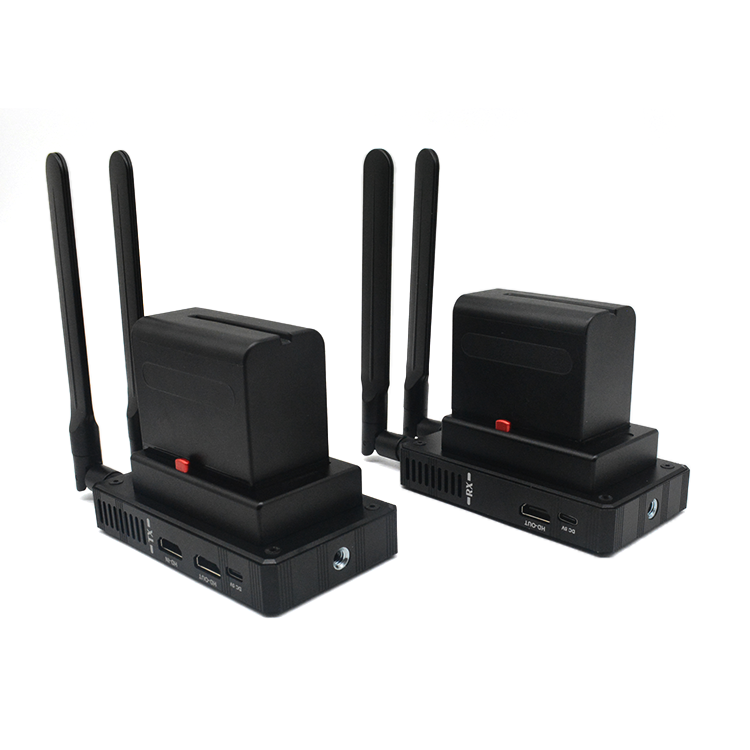

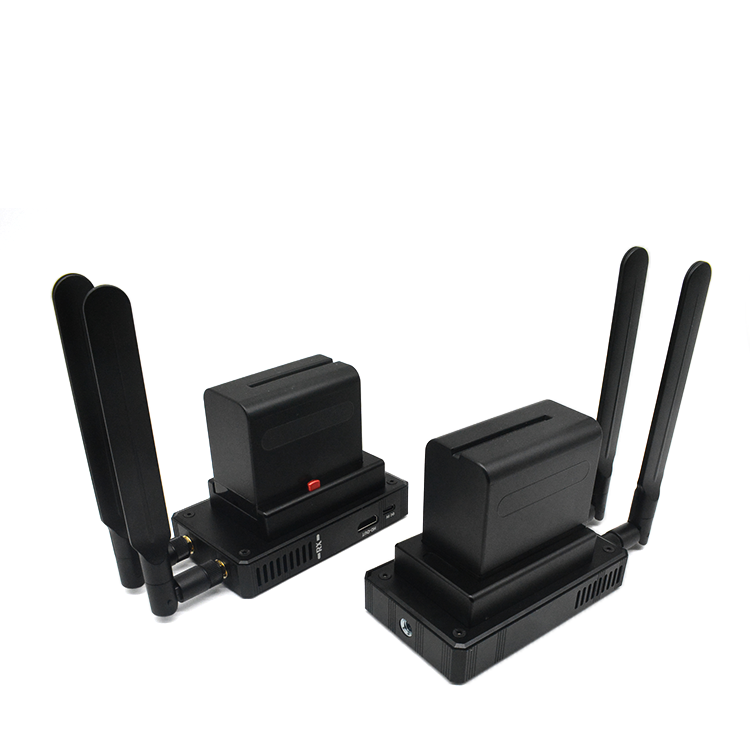

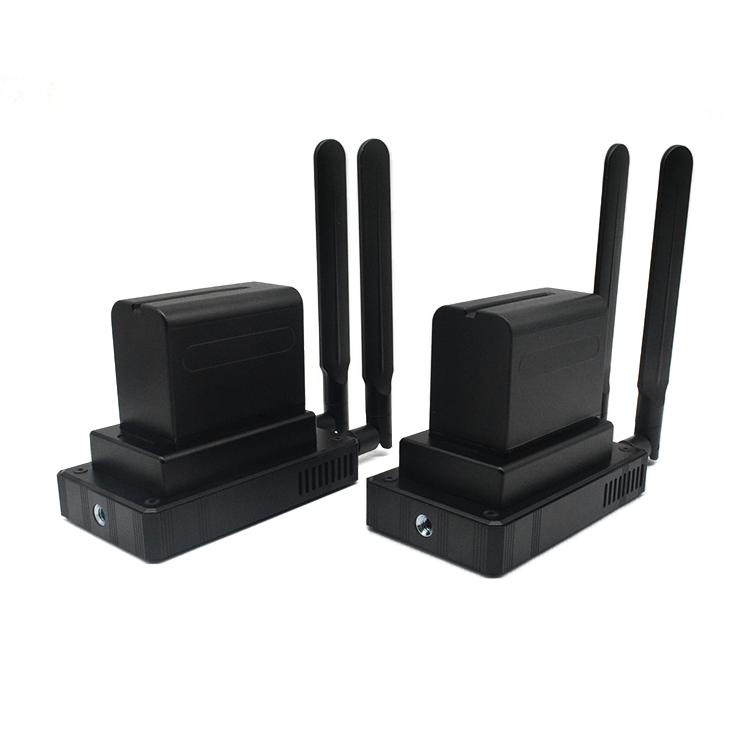

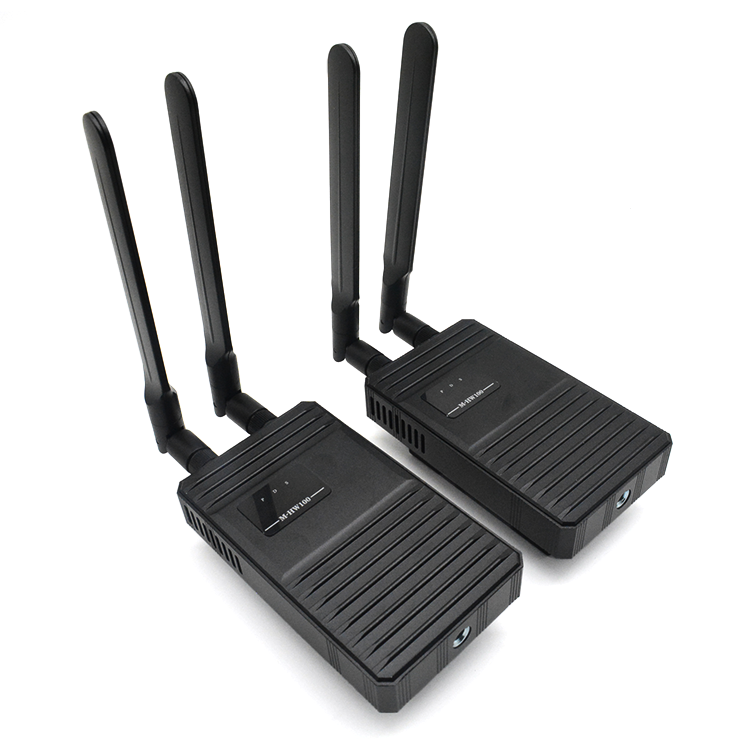

M-HW100 4K Wireless HD Extender

Introduction

M-HW100 4K Wireless HD Extender transmits high-definition audio and 4K video signals through 5.8G wireless
signals, which can adapt to a variety of complex application environments. It can also be equipped with mobile
batteries (optional) to make transmission easier.

The device has excellent image processing and transmission capabilities, making the signal transmission more
smooth and stable. It is a reliable, high-performance and efficient HD signal extension mode.

Features

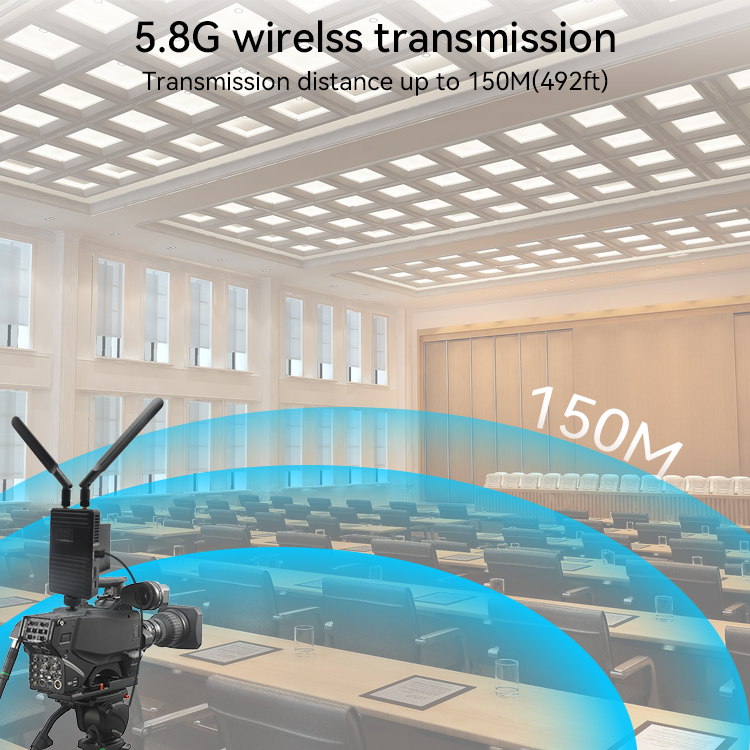

1. Transmit High-Definition video and audio signals over 5.8G wireless up to 150m (492ft)

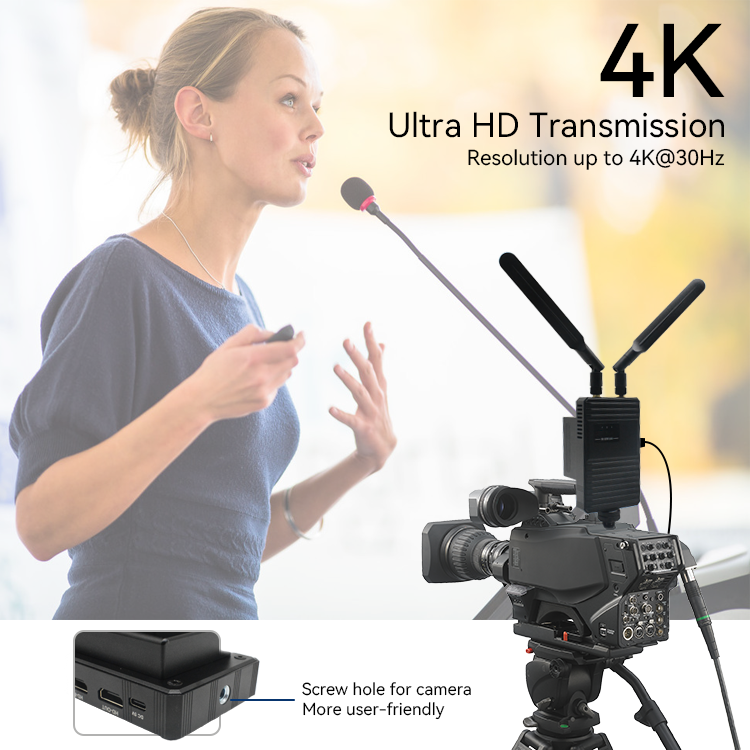

2. Support video resolution up to 4K@30Hz

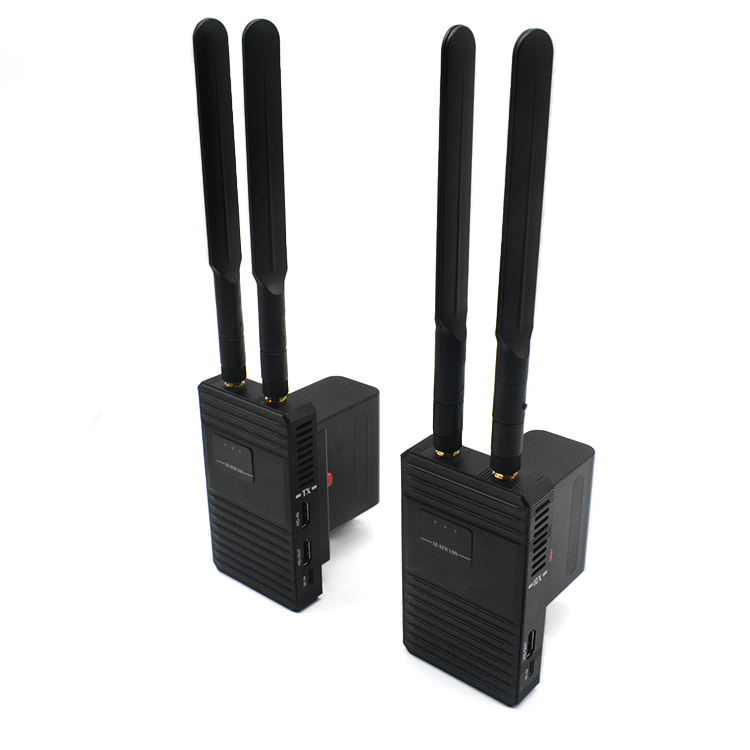

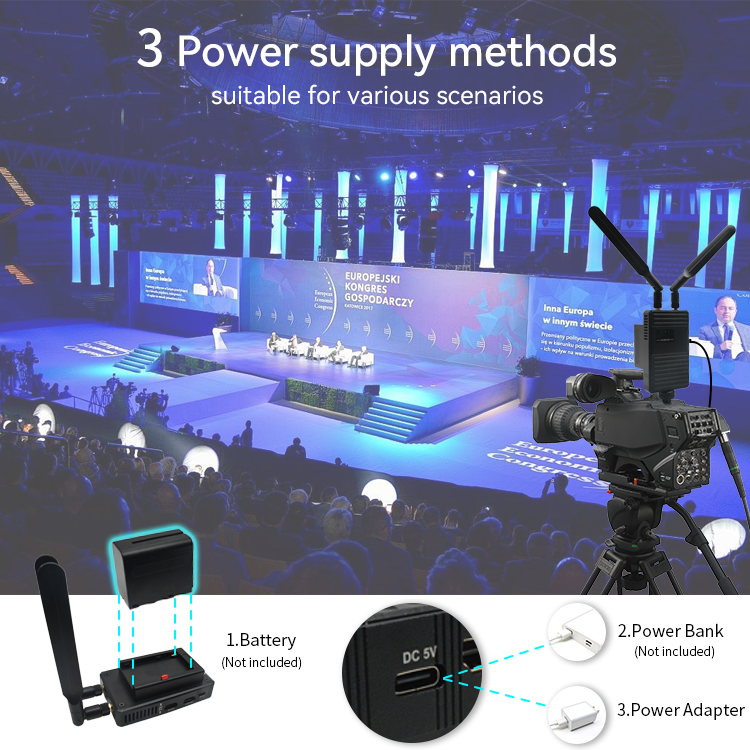

3. Can be equipped with mobile battery

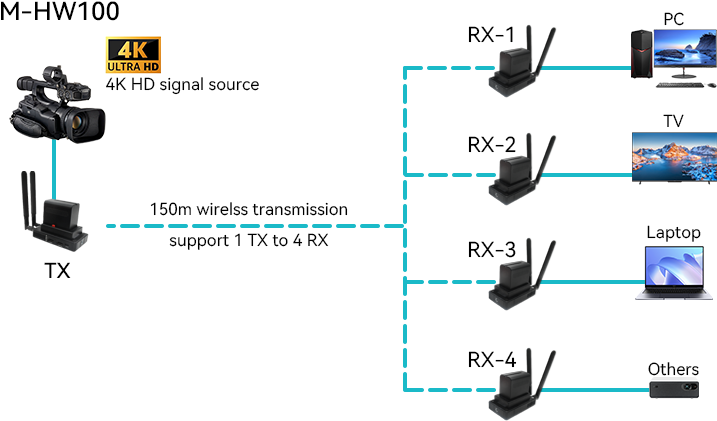

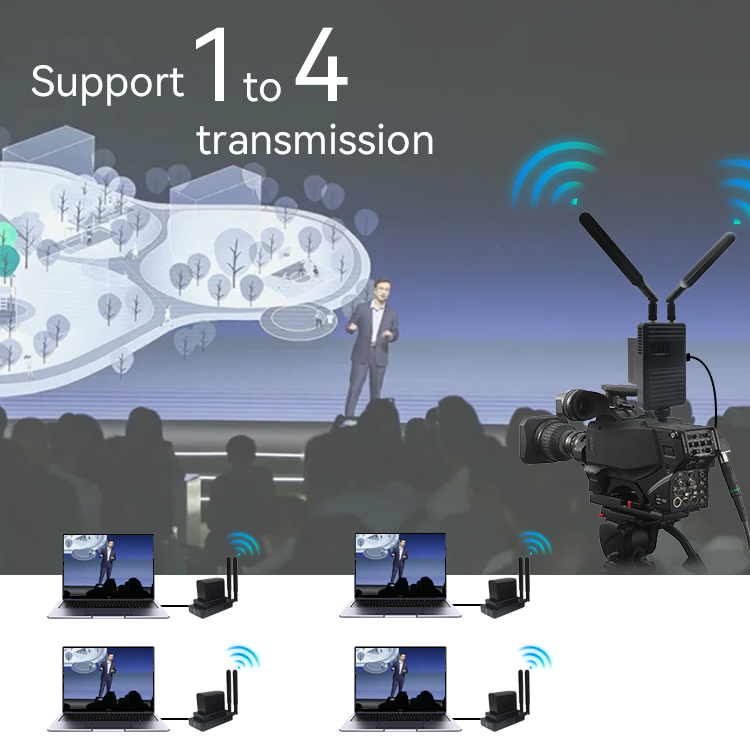

4. Supports one TX and one RX, support one TX and four RX at most

5. The special format H.264 is used to compress and decompress the video, improve the transmission
    efficiency and make the playback more smooth

6. Compliance with HD 1.3 and HDCP 1.2 standard

7. High compatibility, can auto-match source and display device

8. Built-in ESD protection system

9. Simple to install, plug and play

Specification

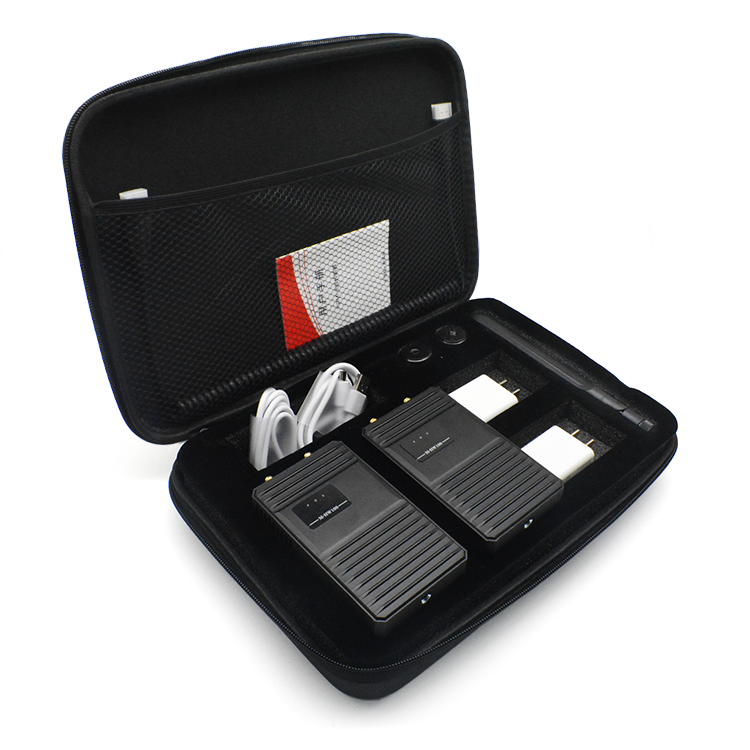

Package

1. HD transmitter                         x1 pc

2. HD receiver                               x1 pc

3. Antenna                                     x4 pcs

4. Power adapter                          x2 pcs

5. HD cable                                    x1 pc

6. User Manual                             x1 pc

*The battery is not included

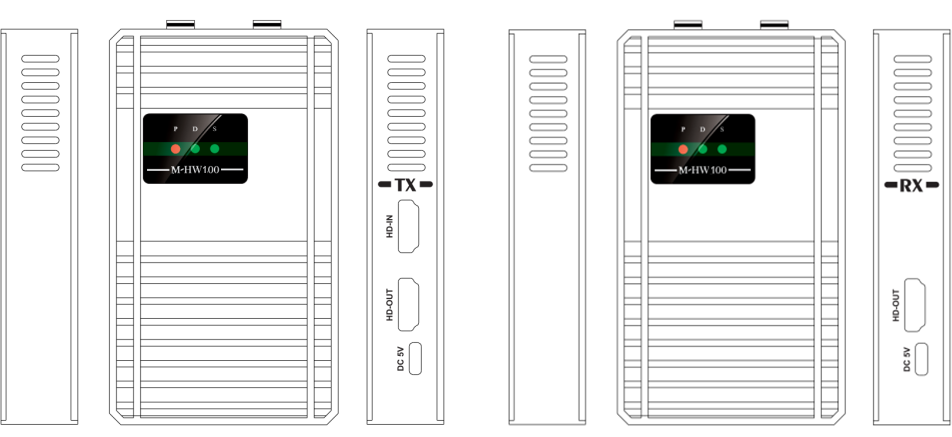

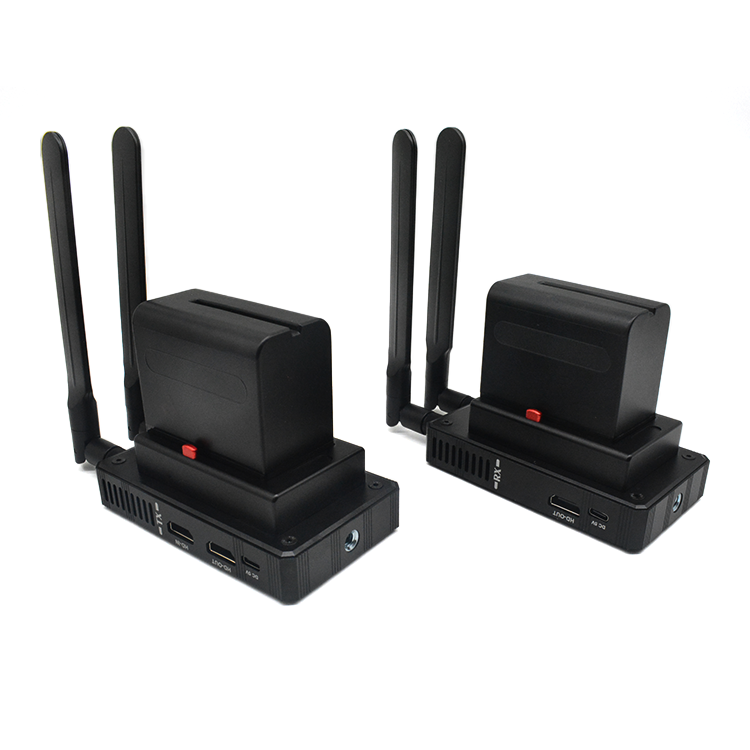

Product Interface

TX                                                                                 RX

TX: Transmitter

RX: Receiver

Installation Process

1. Connect the HD signal source to the HD-IN port of transmitter

2. Connect the HD-OUT port of receiver to the display device (such as HD TV, projector, etc.)

3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

Pairing Mode

a. One to one, paired well before leaving the factory

b. When one to many, you need to pair according to the following steps:

Before pairing, confirm that the previously paired RX is powered off in the same environment(Otherwise,

the pairing will not succeed)

1.Power on TX and RX, wait for 10-20 seconds, P (red light) and D (green light) of TX and RX will be on for a long
   time;

2.Connect the HD cable to the HD-OUT of RX, then connect the other end of the HDMI cable to the HD-IN of TX
   (Note: the HD cable is connected to RX first and then TX);

3.The S (green light) of RX will flash for 2-3 seconds and stay on, then the S (green light) of TX will flash for 2-3
   seconds and stay on, and then the D (green light) of TX will flash continuously.  At this time, pairing is
   successful.
