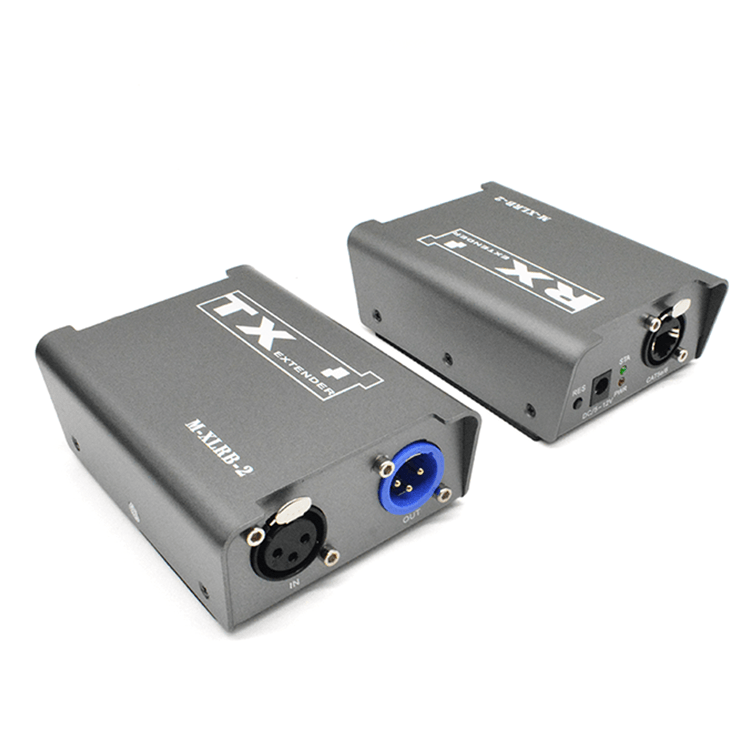

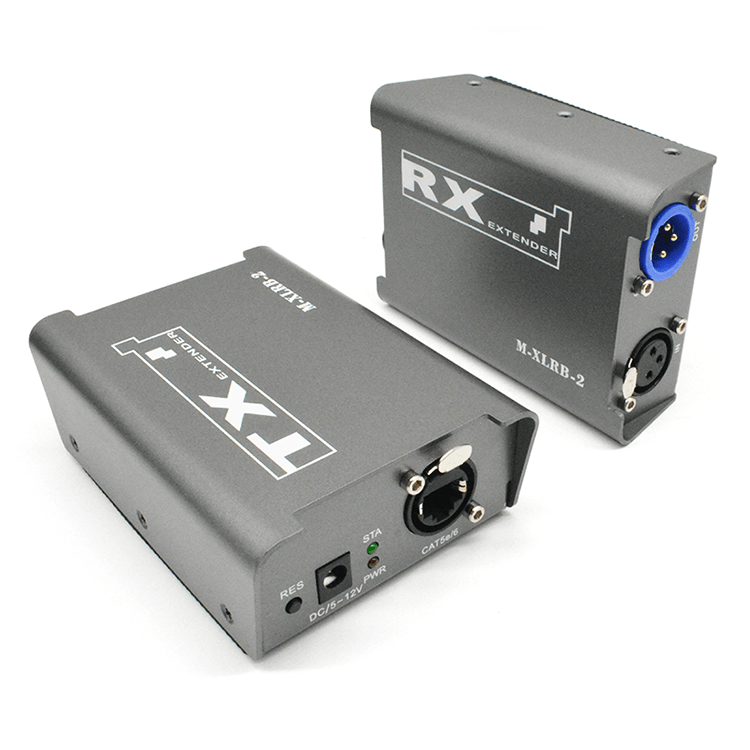

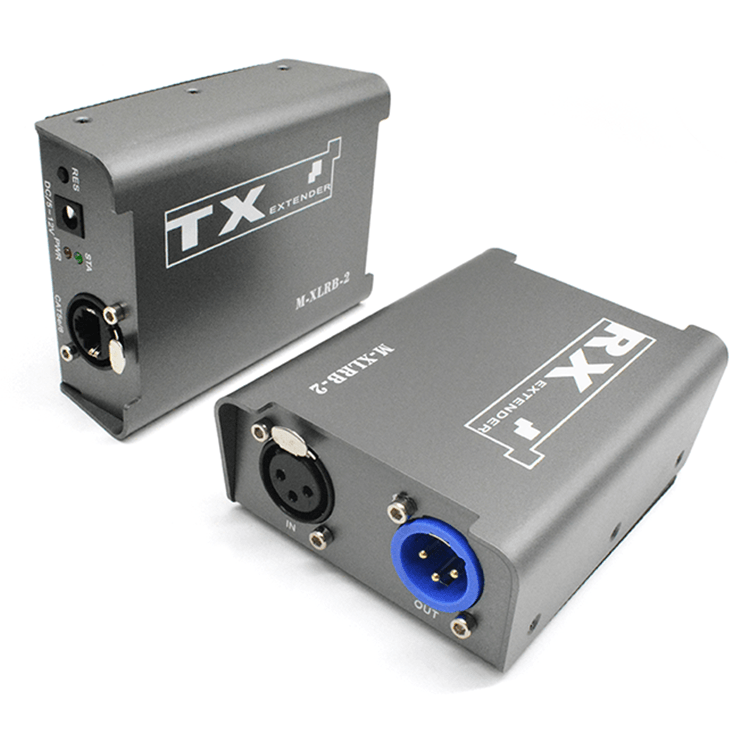

M-XLRB-2 digital one-way audio transmitter can use one Cat6 to transmit one-way bi-directional audio signals, one-to-many distributed audio can also be achieved through switch. Audio signal adopts 24bit / 96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission. This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.
M-XLRB-2 digital one-way audio transmitter can use one Cat6 to transmit one-way bi-directional audio signals,
one-to-many distributed audio can also be achieved through switch. Audio signal adopts 24bit / 96KHz digital
sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal
transmission.
This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large
screen projection video conference, public video broadcasting system, remote multimedia education, teaching
and medical system, military field, flat panel video media advertising demonstration, etc.
Features

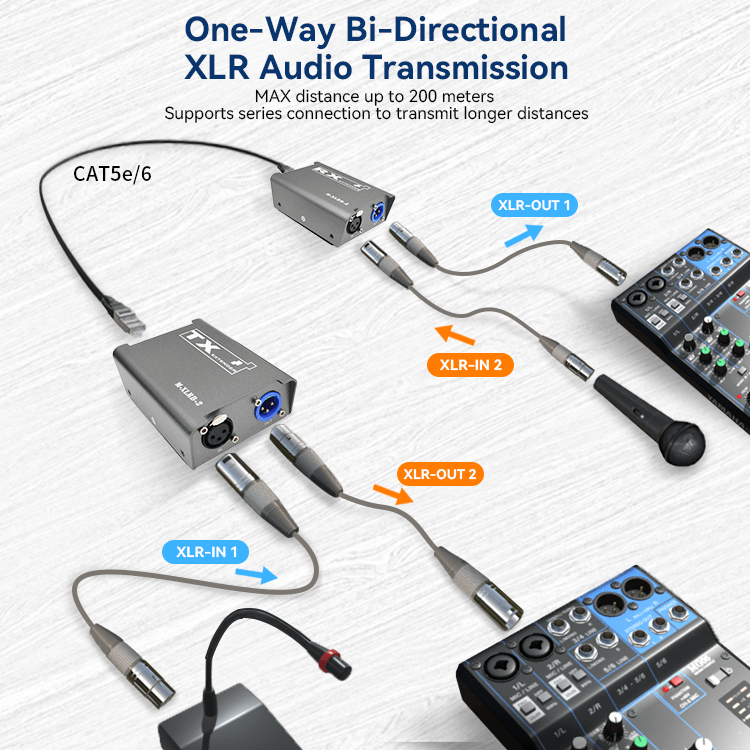

1. One way bi-directional XLR Audio transmission, the MAX distance is 200meters (Supports series connection,
transmit longer distances)
2. High speed digital transmission; No noise; No current sound

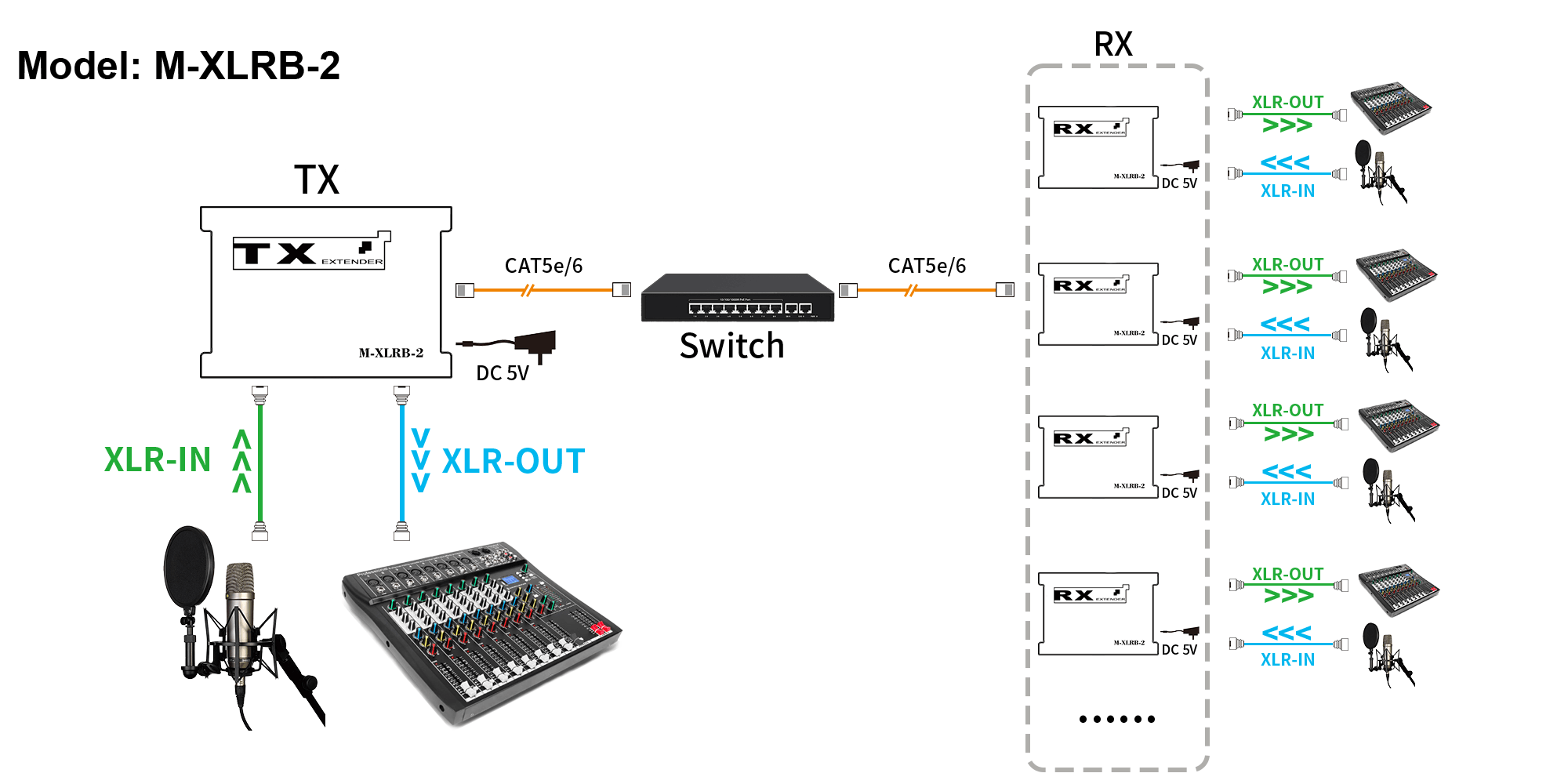

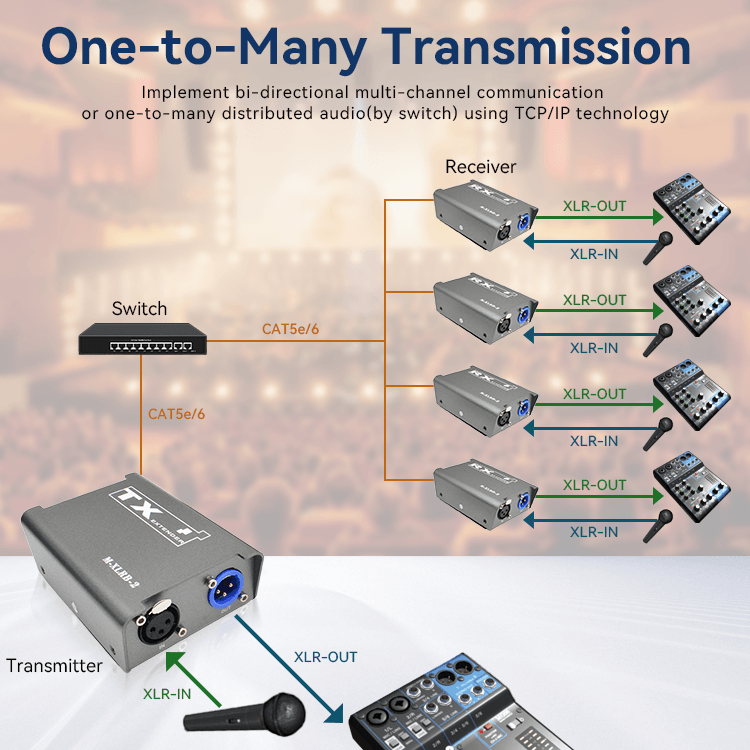

3. Implement bi-directional multi-channel communication or one-to-many distributed audio(by switch) using
TCP/IP technology
4. Ultra-low bit rate with no delay (2ms)
5. Built-in professional audio codec chip, no configuration required, plug-and-play
Specification
Parameter
Description
Specification Description
1-way bi-directional transmit lossless network audio, support 1 to 1/1 to many; support switch; can be transmitted across network segments,Wireless bridge with ultra-low latency
Application
It can be used for audio matrix, digital IP broadcasting, public broadcasting, digital audio conferences, simultaneous interpretation, and can also be installed in amplifiers, mixing consoles, audio front-end……Combined with a wireless bridge, it can also form a wireless audio system
Signal Structure
Input: XLR interface
Output: XLR interface
Distance
The Max distance is 200meters
Sampling Frequency
32KHz-96KHz
Sampling Precision
16bit-24bit
Distortion Rate
<0.12%@(20Hz---20KHz)
150Ω audio source impedance
10KΩ load
0.0011%@1KHz
Cross Talk
<70dB@( 20Hz--20KHz)
100Ω audio source impedance
10KΩ load
< 80dB@1KHz
frequency response
20Hz---20KHz(MIN 16-35KHz)
Max input level
2.5Vpp、Input impedance: 20kΩ
Max output level
2.5Vpp、Input impedance:100Q
CMRR
Signal-to-noise ratio/dynamic range:102dB
Time-Delay
2-120ms(default 4ms)
Signal to Noise Ratio(S/N)
Signals with a MIN frequency of 16~35KHz can be weighted with an S/N greater than 96dB, and the actual max insertion loss is 0.12 dB
Operation Temperature
-20 ℃-80℃
Working Humidity
0-95%（no condensed）
Power
5-12V
Size
115*80*37mm
Package

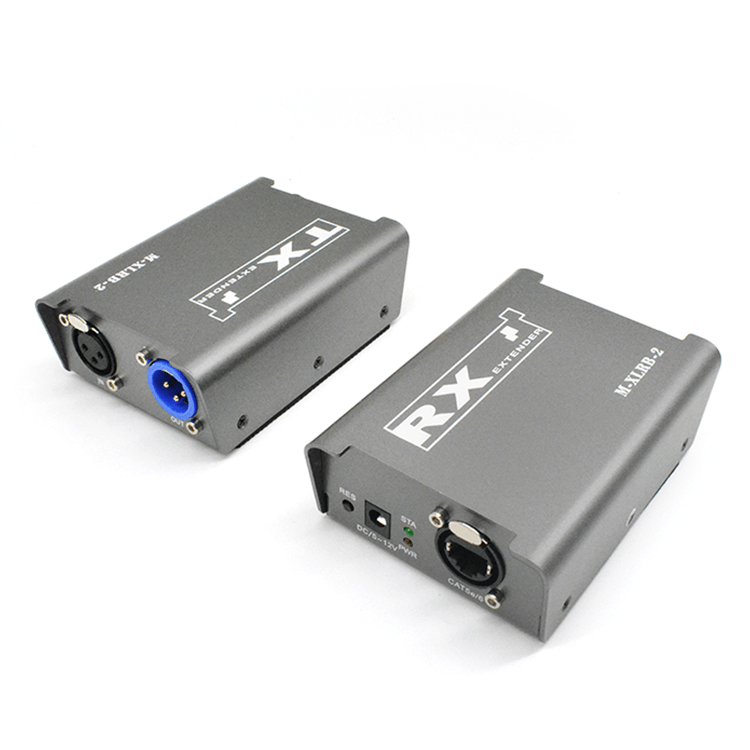

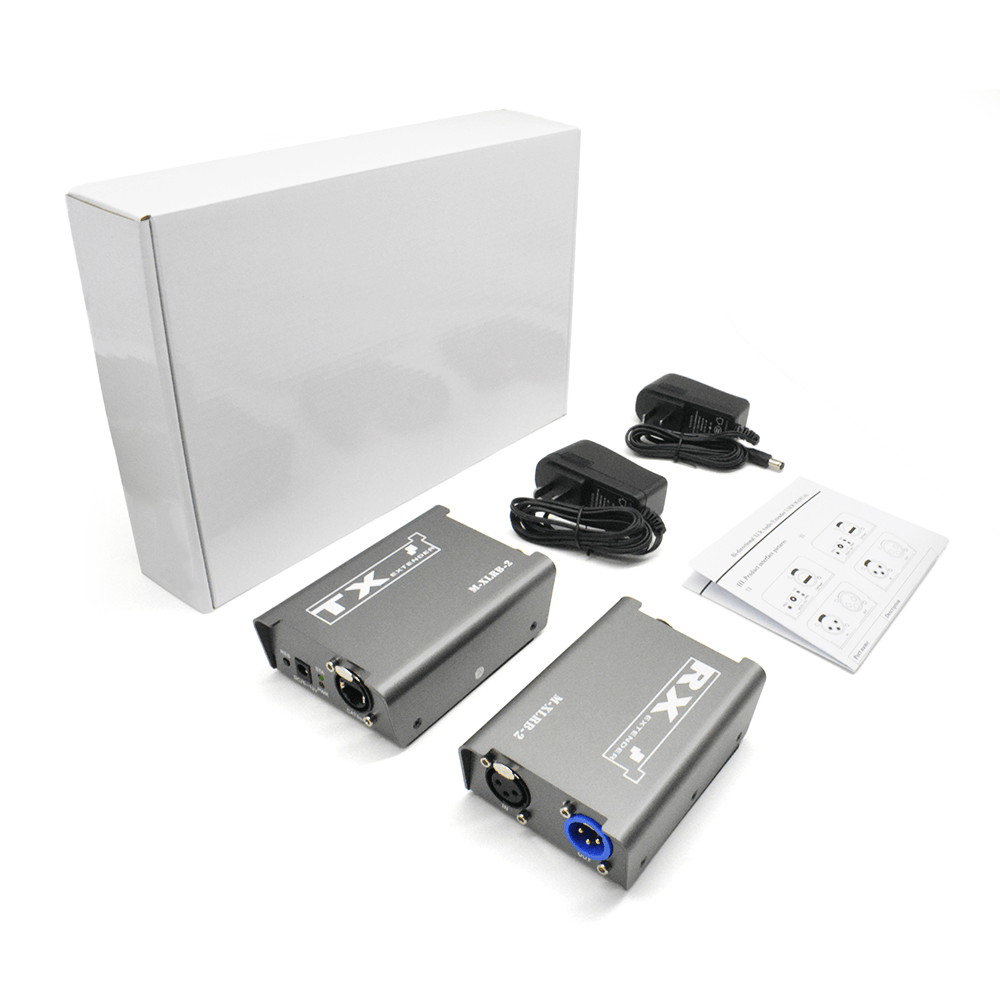

1. XLR transmitter x1 pc
2. XLR receiver x1 pc
3. Power adapter x2 pcs
4. User manual x1 pc

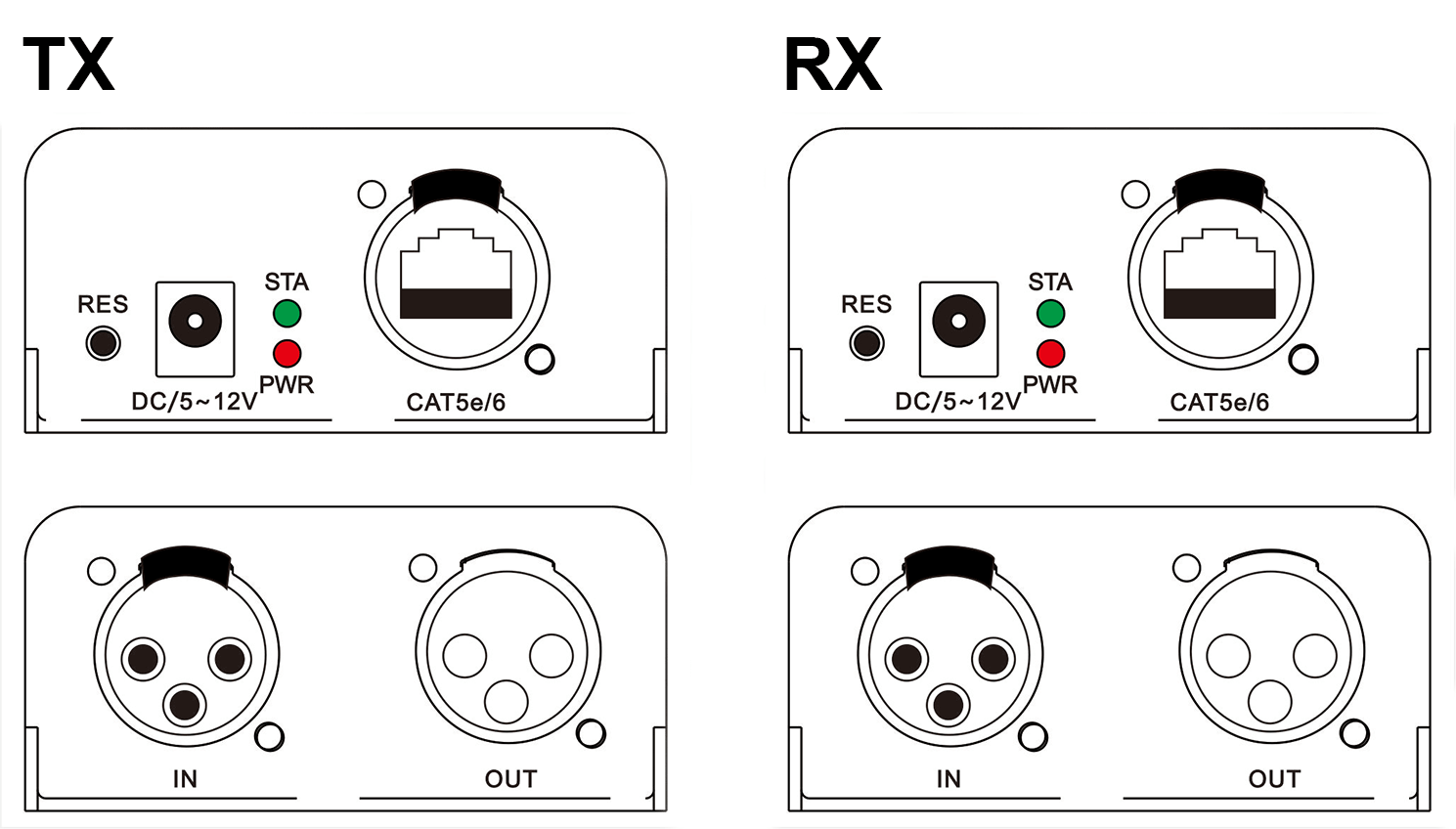

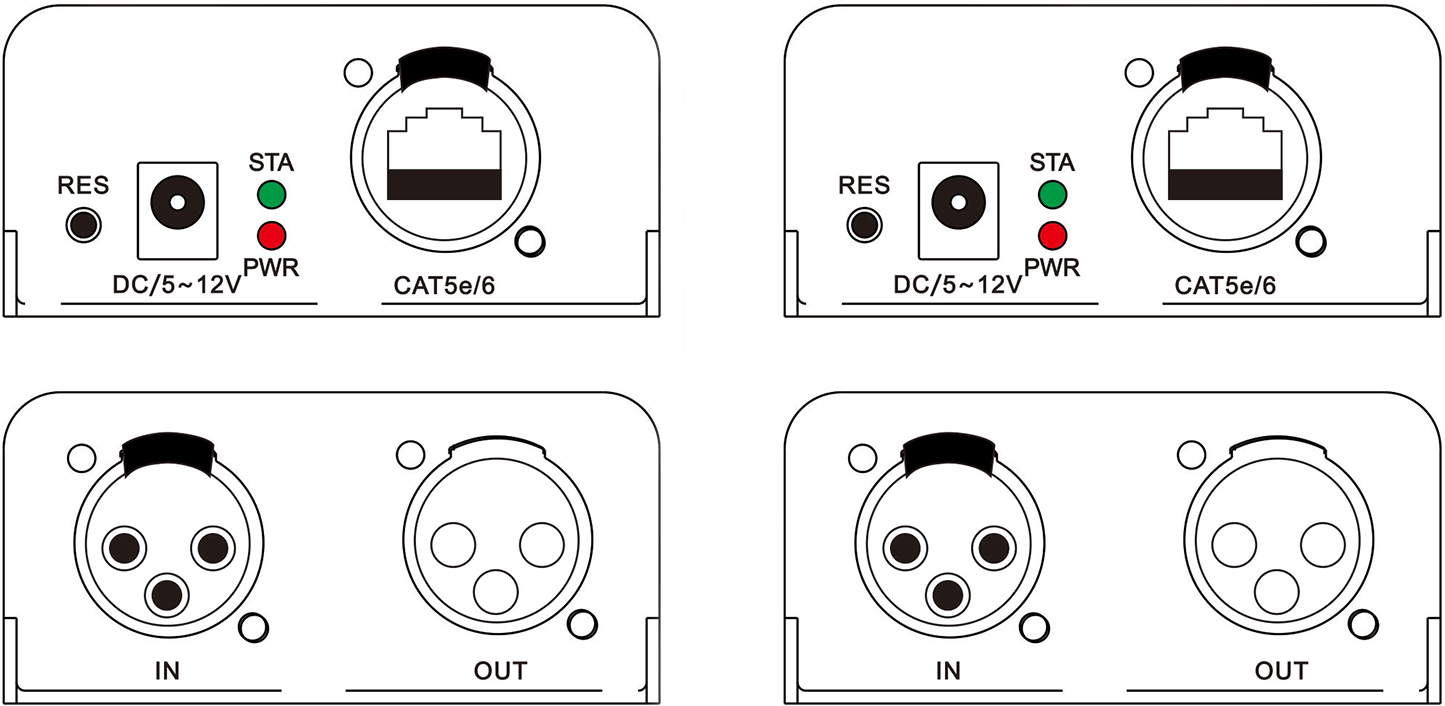

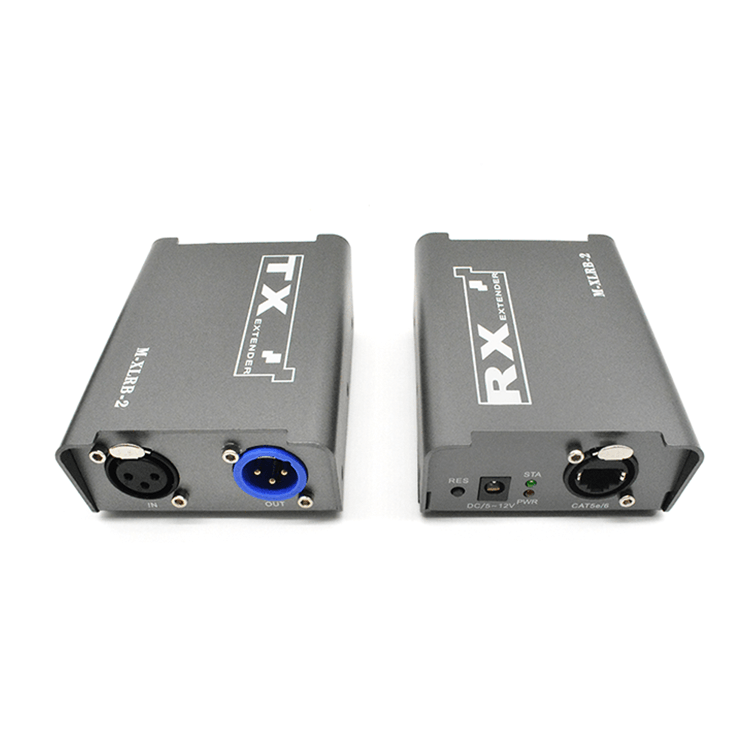

Product Interface
TX: Transmitter
RX: Receiver
Port name
Description
IN
XLR audio signal input
OUT
XLR audio signal output
CAT5e/6
UTP Port
DC/5-12V
Power adapter socket
RES
Reset
LED indicator
Description
PWR
Unit power indicator
STA
Audio signal indicator

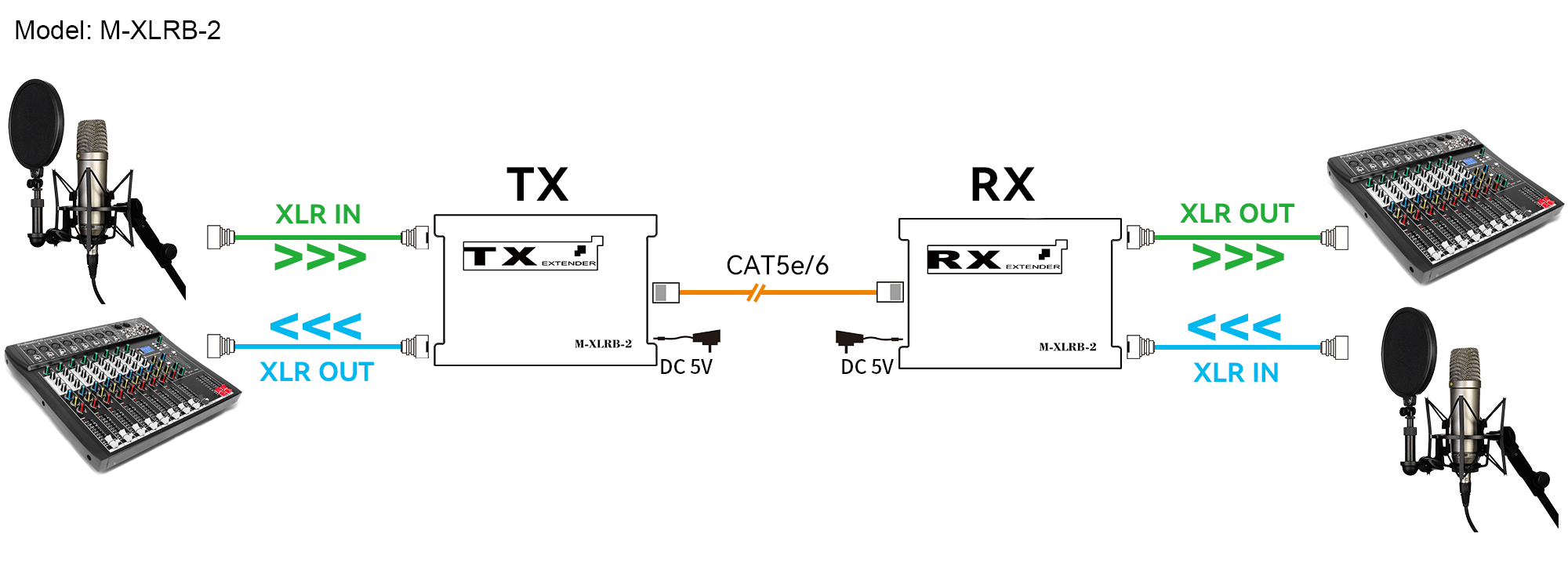

Installation Process
1.Connect the audio signal source to the input or output of XLR Audio extender, Input(XLR female) to another
output(XLR male);
2. Connect the output of XLR Audio extender to audio, amplifier, etc;
3. Connect the transmitter and the receiver using an Network cable; Or connected in series through a switch;
4. Power on Transmitter and Receiver.
IP configuration instructions
Default state: TX default factory IP, RX's IP is automatically assigned by TX
Custom status: Configure IP through the web page, consult local customer service or download from the official
