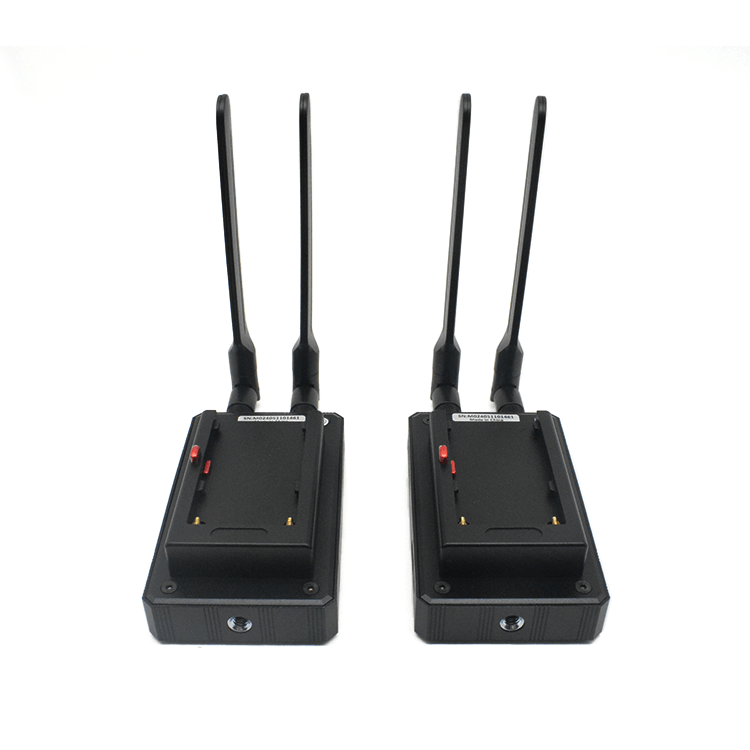

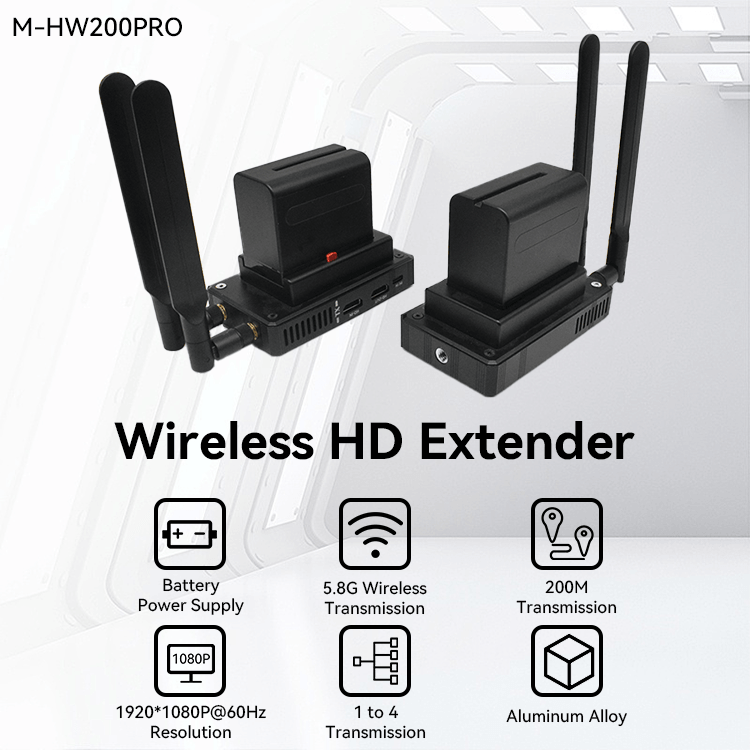

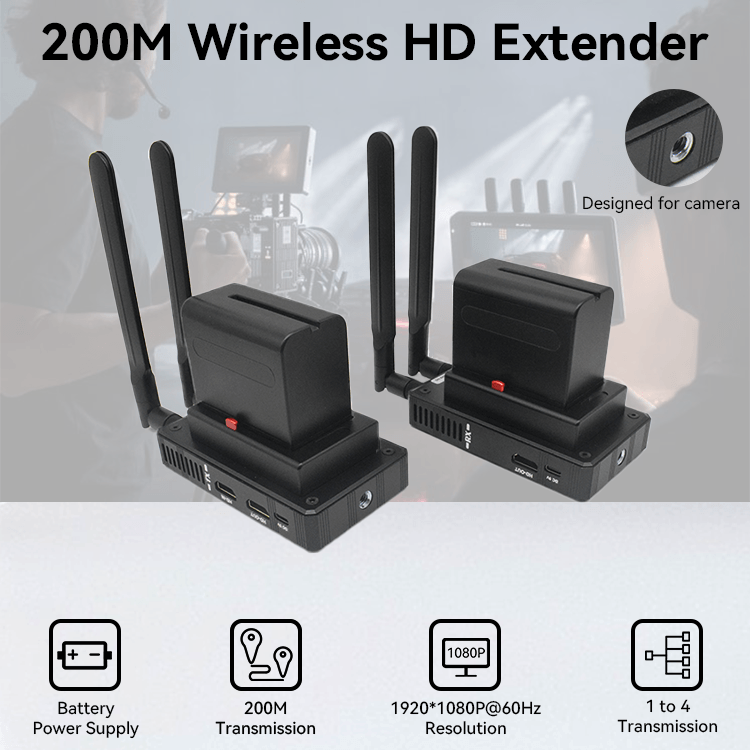

Introduction

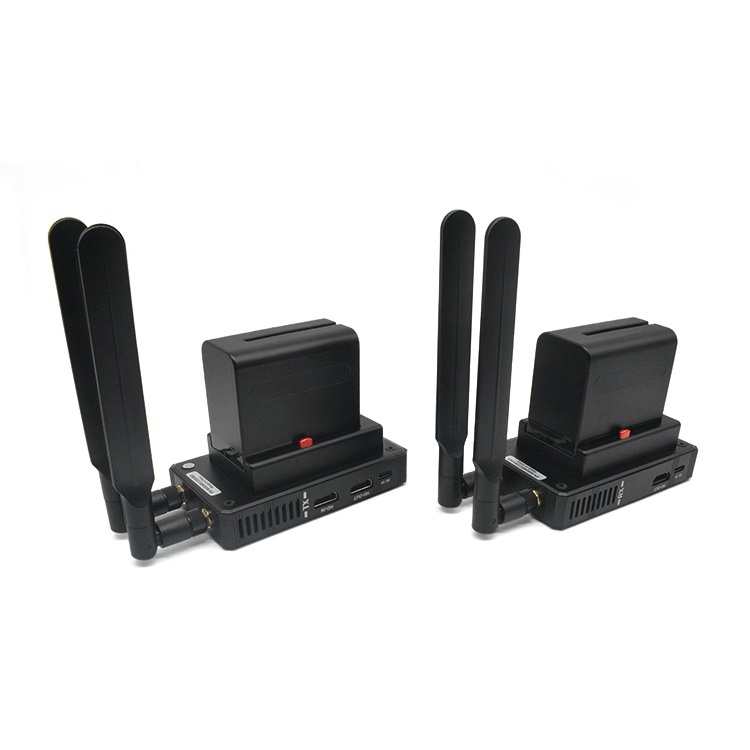

M-HW200PRO Wireless HD Extender transmits high-definition audio and video signals through 5.8G wireless signals,
which can adapt to a variety of complex application environments. It can also be equipped with mobile batteries to
make transmission easier. The device has excellent image processing and transmission capabilities, making the
signal transmission more smooth and stable. It is a reliable, high-performance and efficient HD signal extension mode.
Features
1.Transmits HD video and audio signals up to 250m over a single CAT5e/6 cable

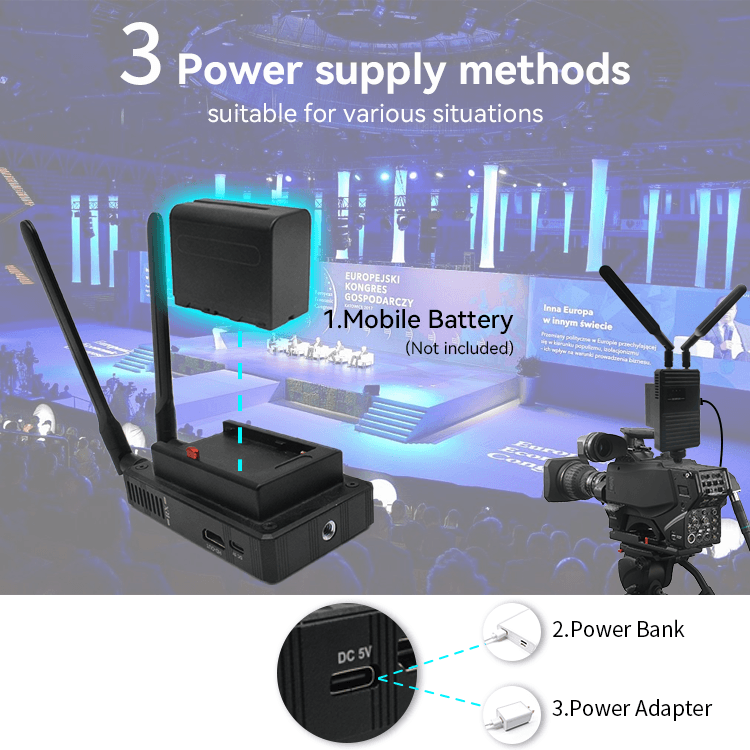

2. Can be equipped with mobile batteries (optional)
3. Support video resolution up to 1920*1080@60Hz
4. Support IR signal transmission
5. Support over TCP/IP, one to many application with Ethernet switch
6. Compliance with HD 1.3 and HDCP 1.2 standard
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Built-in ESD protection system
10. Simple to install, plug and play
Specification

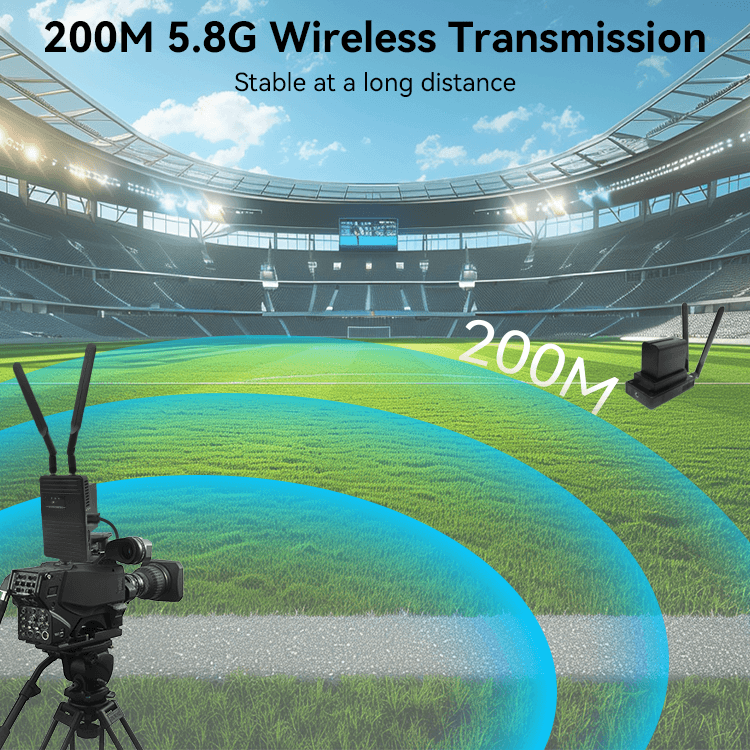

Description | Parameter | |
Video | Standards | HD 1.3; HDCP 1.2 |
Compression format | H.264 | |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080P@60Hz | |
Connector | HD-A | |
Impedance | 100Ω | |
Transmission delay | 0.8 seconds | |
Recommended max HD cable Input/Output distance | ＜5m, when 1920*1080P@60Hz | |
WIFI | RF power | 21dbm |
Wireless standard | 802.11a、802.11n、802.11ac | |
Signal direction | unidirectional | |
Frequency | 5150~5250MHz、5475~5850MHz | |
Transmission distance | 200m in open environment | |
Modulation mode | OFDM | |
Bandwidth | 20MHz | |
Other | Power supply | The power adapter: DC 5V/1A |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 116*68*20mm | |

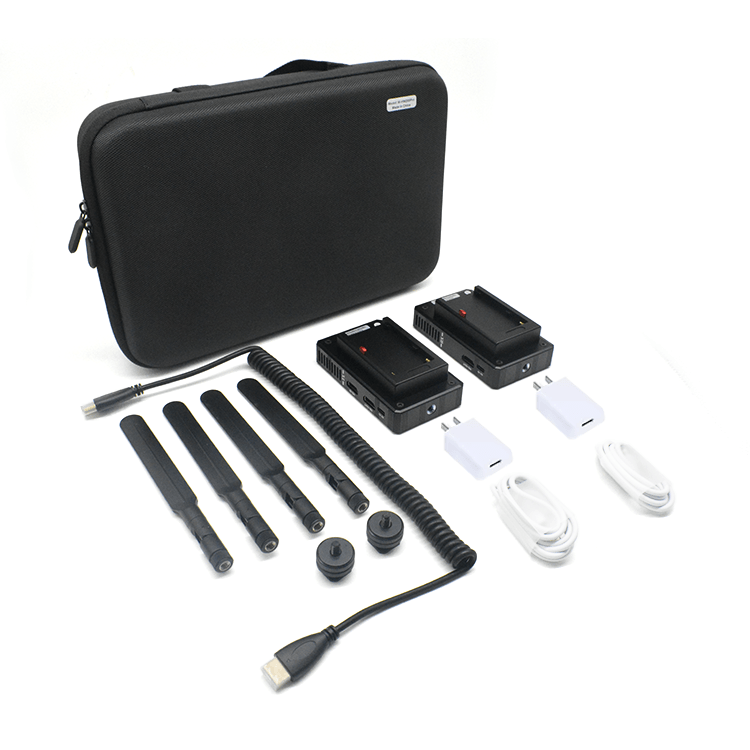

Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. Antenna x4 pcs
4. Power adapter x2 pcs
5. HD cable x1 pc
6. User Manual x1 pc

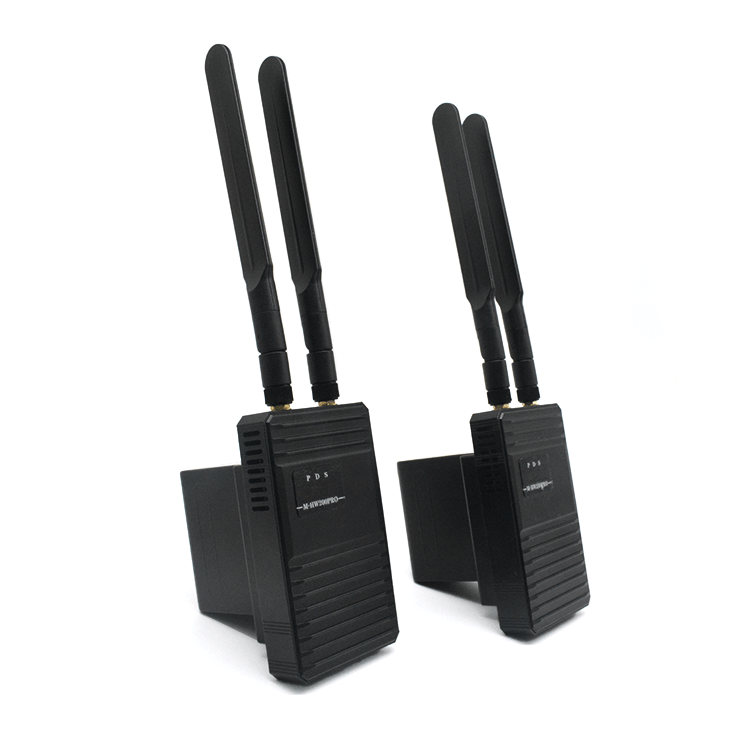

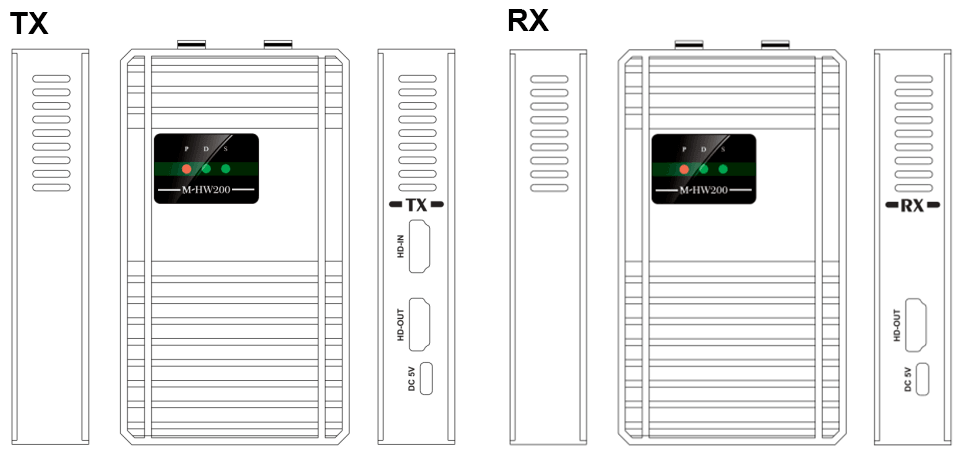

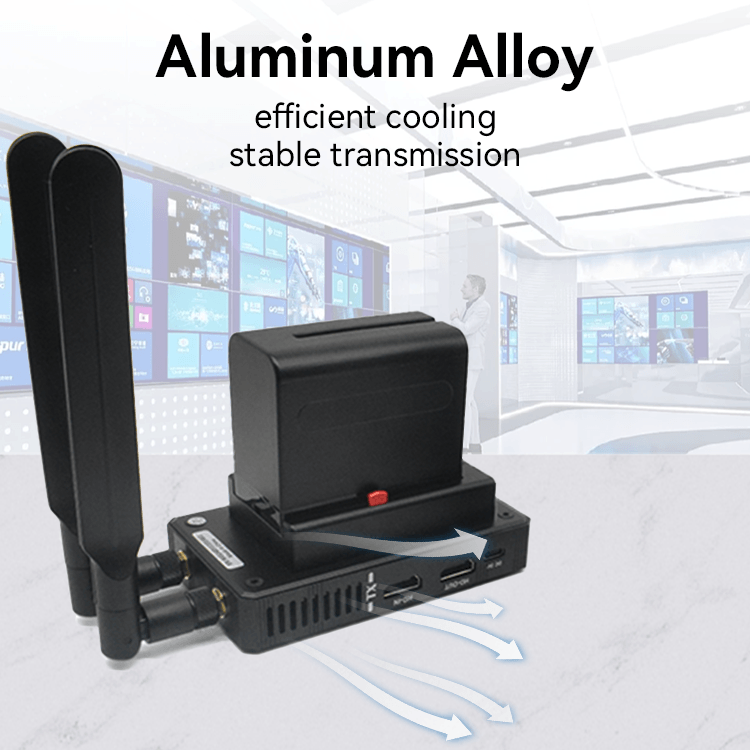

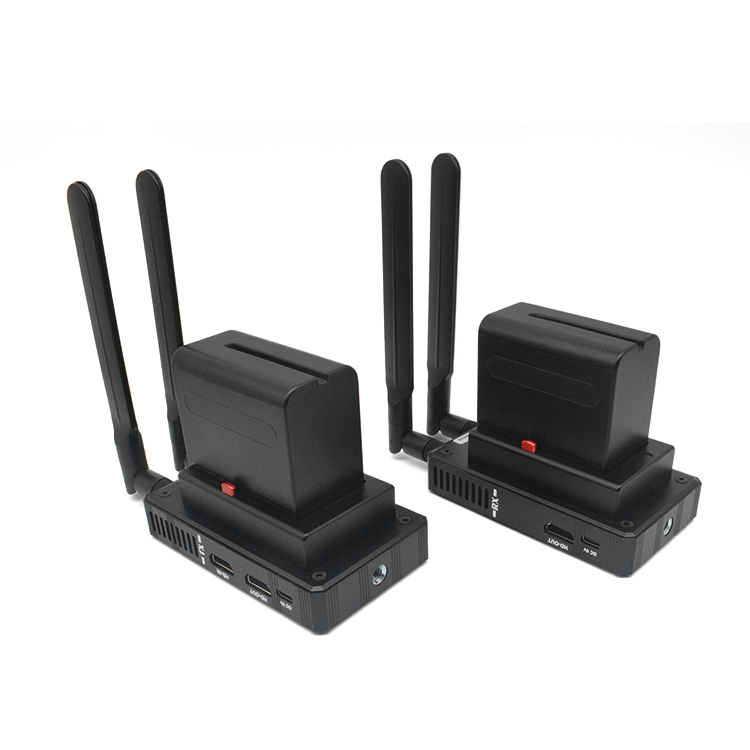

Product Interface
TX: Transmitter
RX: Receiver
Port name | Description |
HD IN/OUT | HD signal input/output |
DC/5V | USB type-C power input |
LED indicator | Description |
D | Connection indicator (flash pairing successful) |
S | HD signal indicator (always on) |
P | Power indicator (always on) |

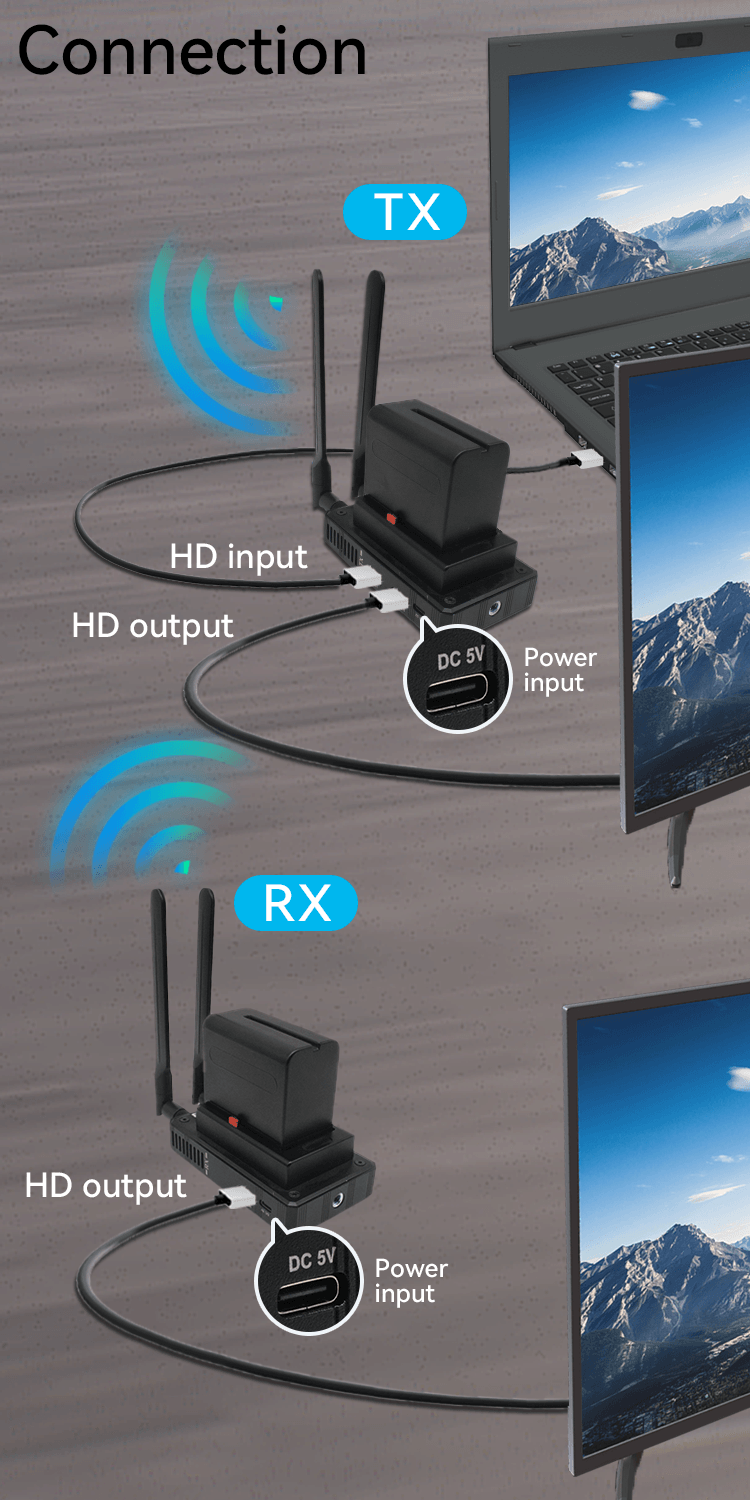

Installation Process
1. Connect the HD signal source to the HD-IN port of transmitter
2. Connect the HD-OUT port of receiver to the display device (such as HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
Pairing Mode
a. One to one, paired well before leaving the factory

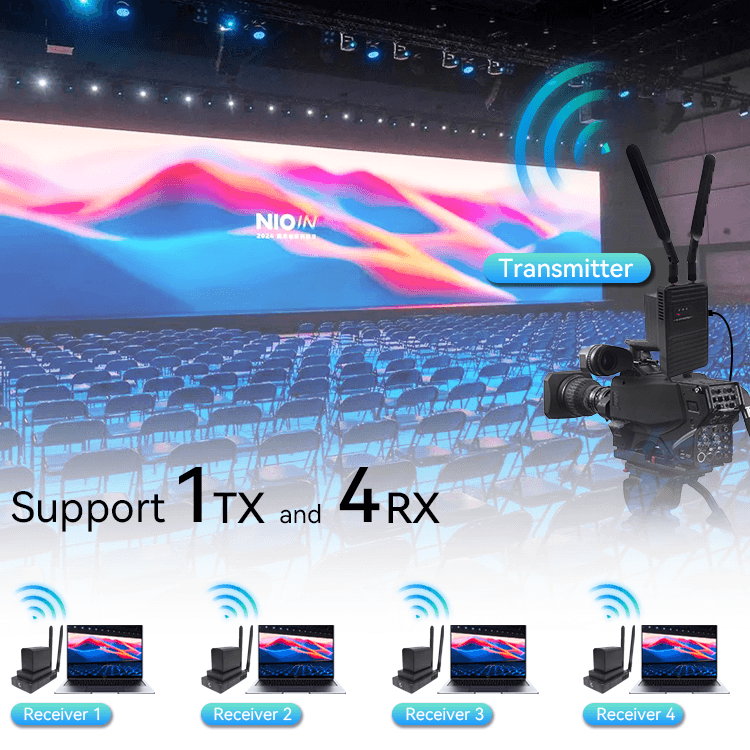

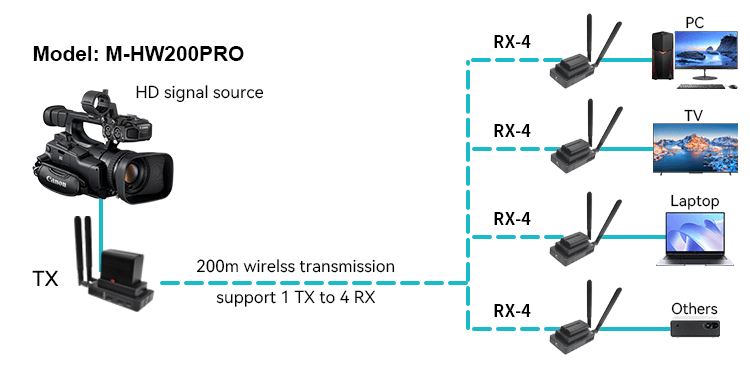

b. When one to many, you need to pair according to the following steps:
Before pairing, confirm that the previously paired RX is powered off in the same environment(Otherwise,
the pairing will not succeed)
1.Power on TX and RX, wait for 10-20 seconds, P (red light) and D (green light) of TX and RX will be on for a long time;
2.Connect the HD cable to the HD-OUT of RX, then connect the other end of the HDMI cable to the HD-IN of TX
(Note: the HD cable is connected to RX first and then TX);
3.The S (green light) of RX will flash for 2-3 seconds and stay on, then the S (green light) of TX will flash for 2-3
seconds and stay on, and then the D (green light) of TX will flash continuously. At this time, pairing is successful.
