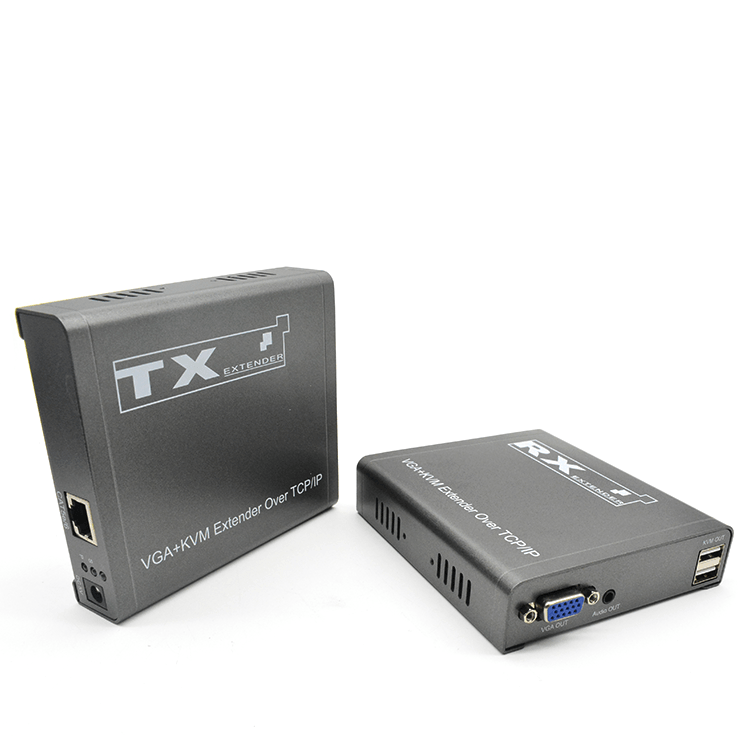

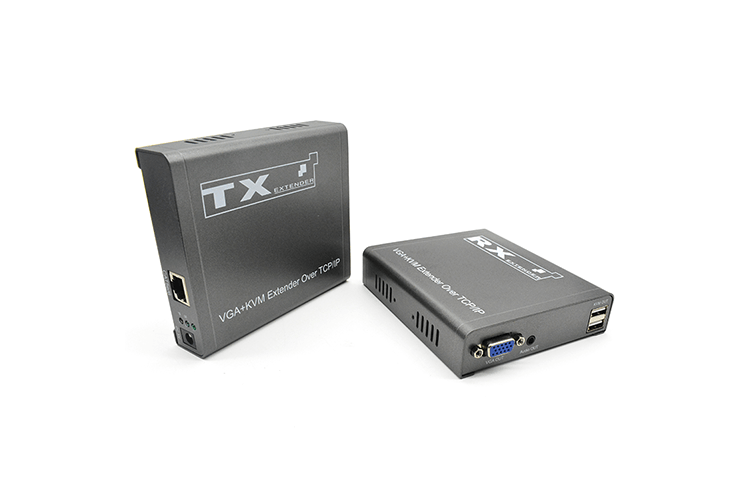

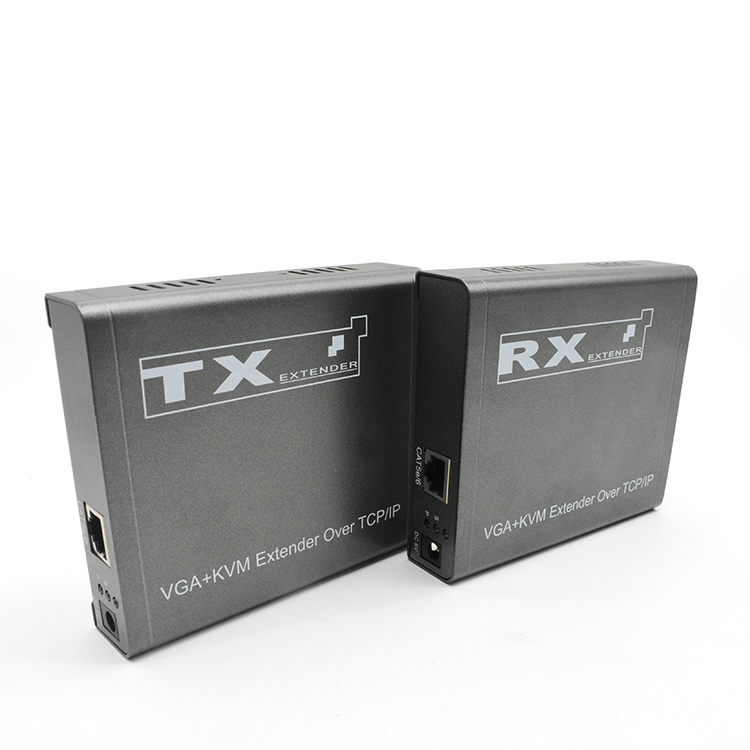

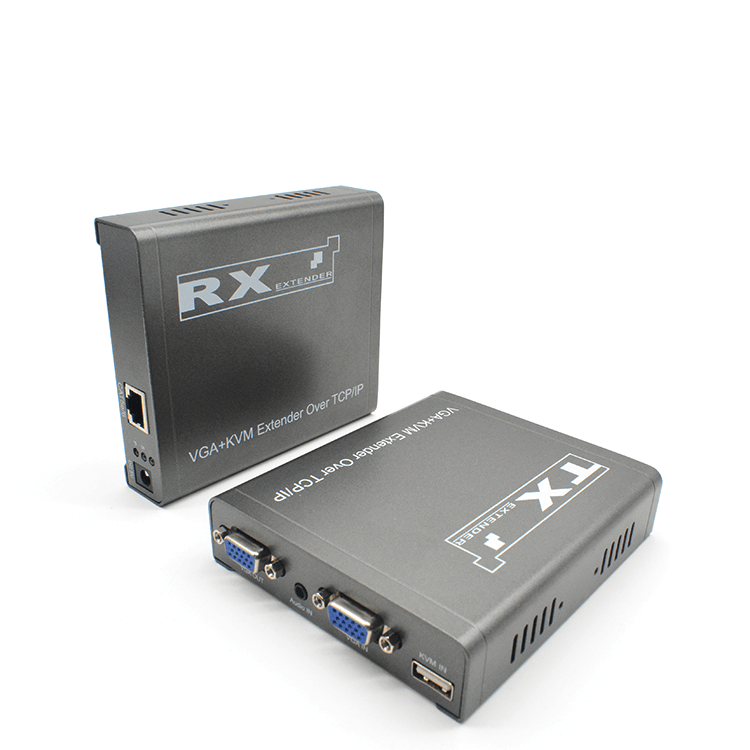

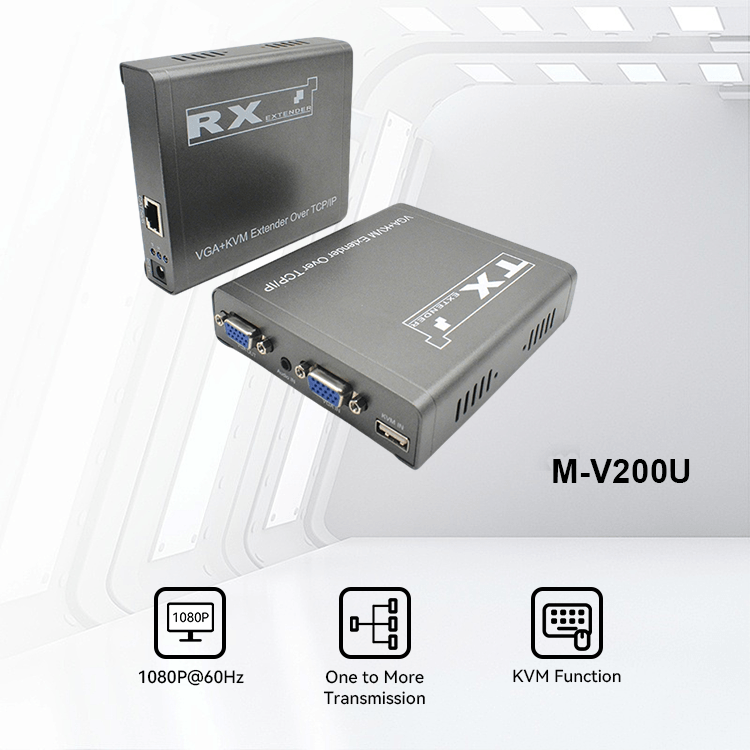

M-V200U VGA Extender over Cat5e/6 with USB and Audio

5 0 Reviews

The extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Price: $ 10

Price: $ 0

Price: $ 10

Price: $ 0

Availability:

Quantity:



Buy Now Add to Cart

Product Display
Information
Usage

Introduction

The extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high

resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications

requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

1. Transmits VGA video and audio signals up to 200 meters over a single Cat5e/6 cable, automatic identification,

no need to adjust the gain

2. Support video resolution up to 1920*1080P@60Hz

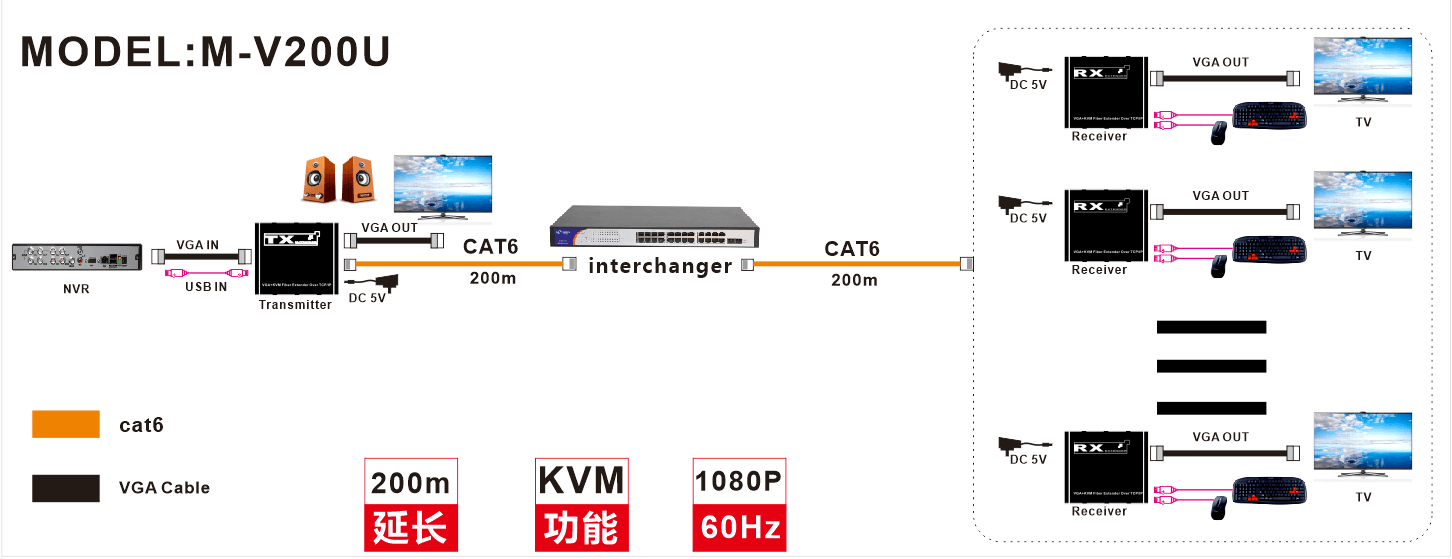

3. Support over TCP/IP, support one TX to more RX

4. Support keyboard and mouse

5. Support Audio input/output

6. Support VGA loop output

7. High compatibility, can auto-match source and display device

8. Built-in automatic adjustment system, make the image smooth, clear and stable

9. Built-in ESD protection system

10. Simple to install, plug and play

Specification

Description		Parameter
Video	Signal type	VGA Signal
	Maximum pixel clock	380MHz
	Maximum data rate	6.75Gbps
	Resolution	640x480@60Hz/800x600@60Hz/1024x768@60Hz/1280x720@60Hz/ 1280x1024@60Hz/1360x768@60Hz/1920x1080@60Hz/1400x1050@60Hz/ 1440x1050@60Hz/1440x900@60Hz/1920x1200@60Hz/1920x1080@60Hz/ 1920x1080i@60Hz/1920x1080@50Hz/1920x1080i@50Hz
	Impedance	75Ω
Audio	Interface	3.5mm seat
Audio	Signal type	Stereo
USB	Interface	PC: USB interface; connect to pc; K/M: connect USB keyboard and mouse;
UTP	Interface	RJ45
UTP	Transmission distance	Cat6-200m MAX
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	12610228mm

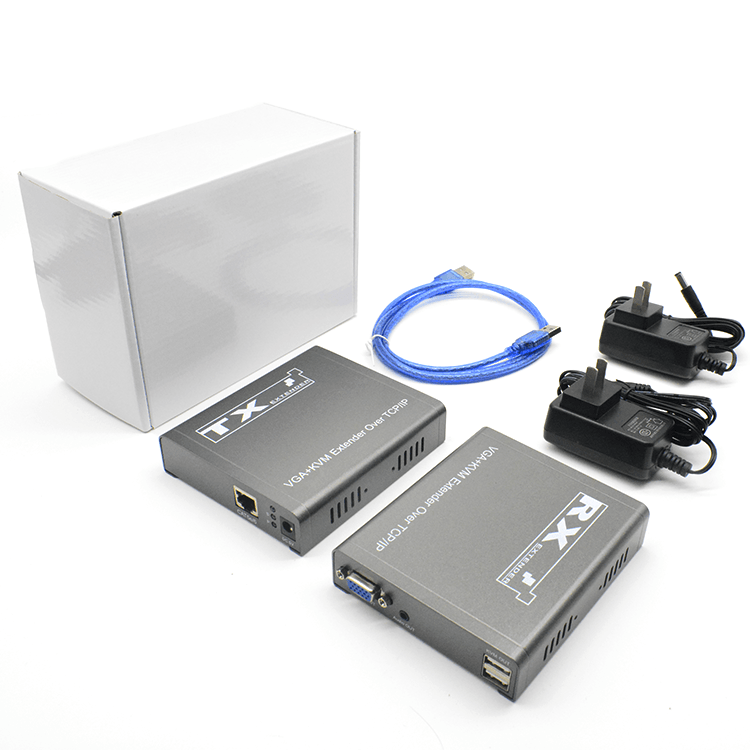

Package

1. VGA transmitter x1 pc

2. VGA receiver x1 pc

3. USB Cable x1 pc

4. Power adapter x2 pcs

5. User manual x1 pc

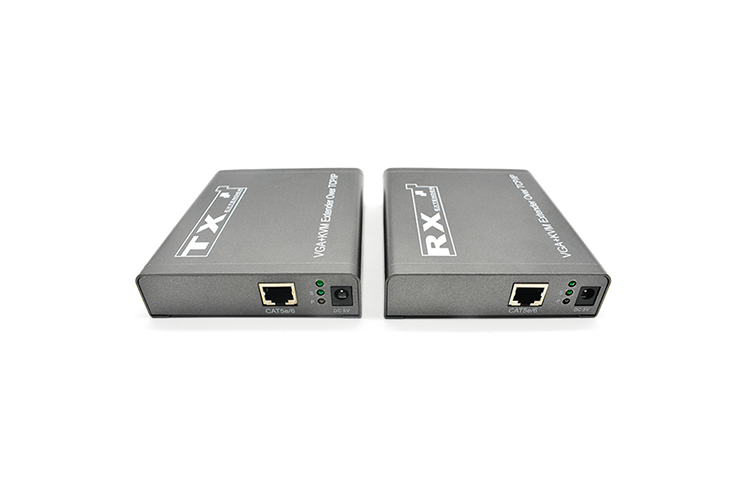

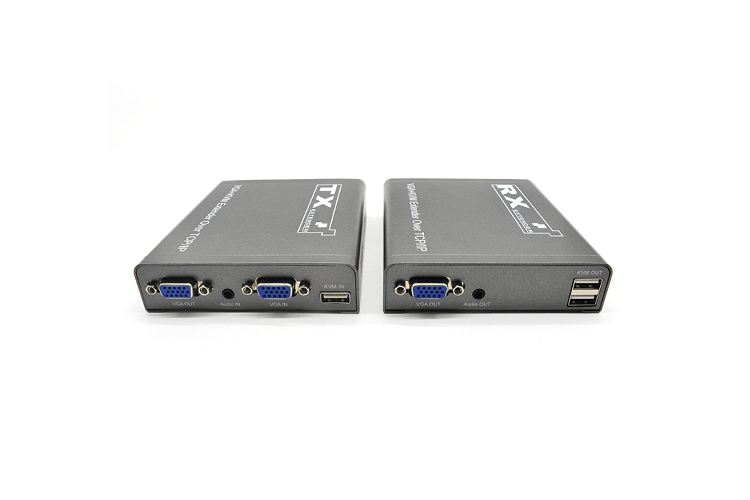

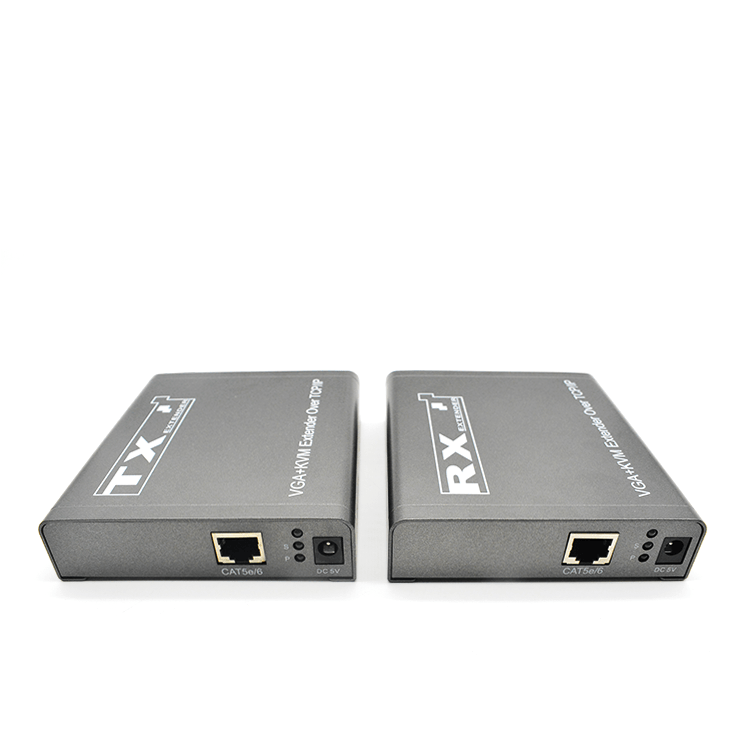

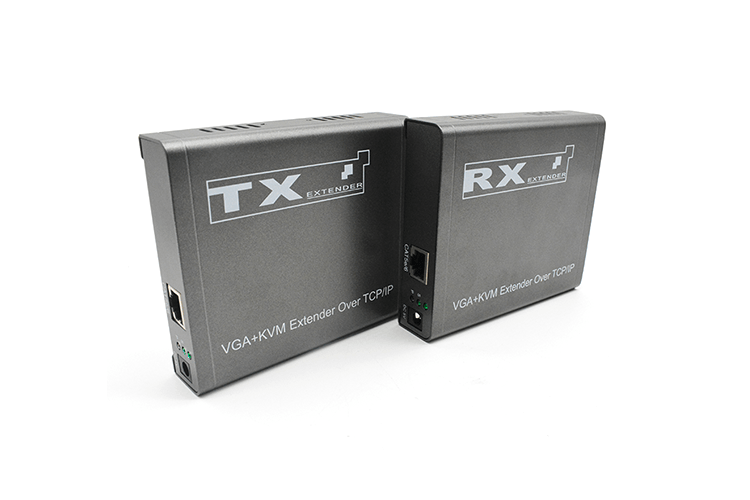

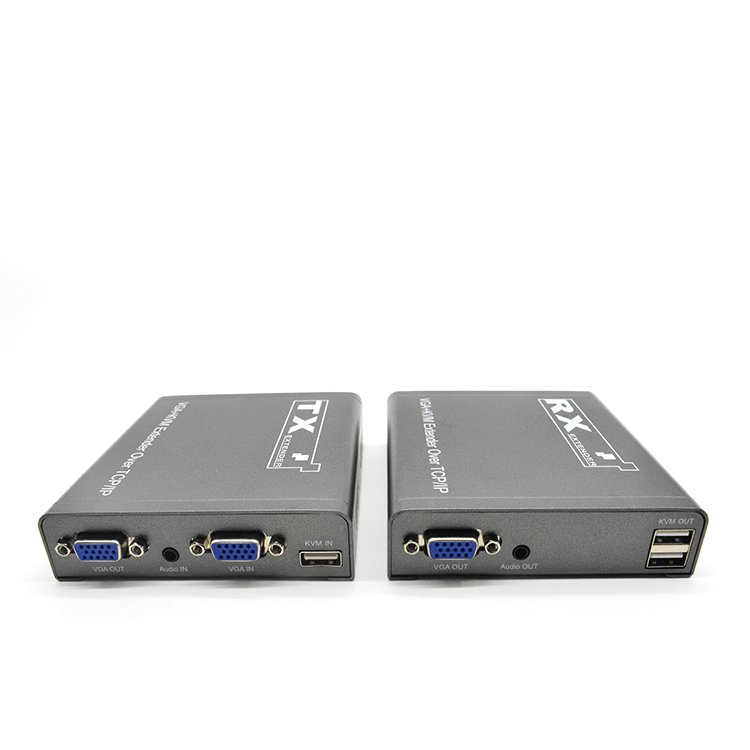

Product Interface

TX: Transmitter

RX: Receiver

Port name	Description
VGA IN/OUT	VGA signal input/output
KVM IN/OUT	USB signal input/output
Cat5e/6	RJ45 port connect cat5e/cat6
Audio IN/OUT	Audio signal input/output
DC/5V	Power adapter socket
ID	Channel switch
LED indicator	Description
P	Unit power indicator
S	VGA signal indicator

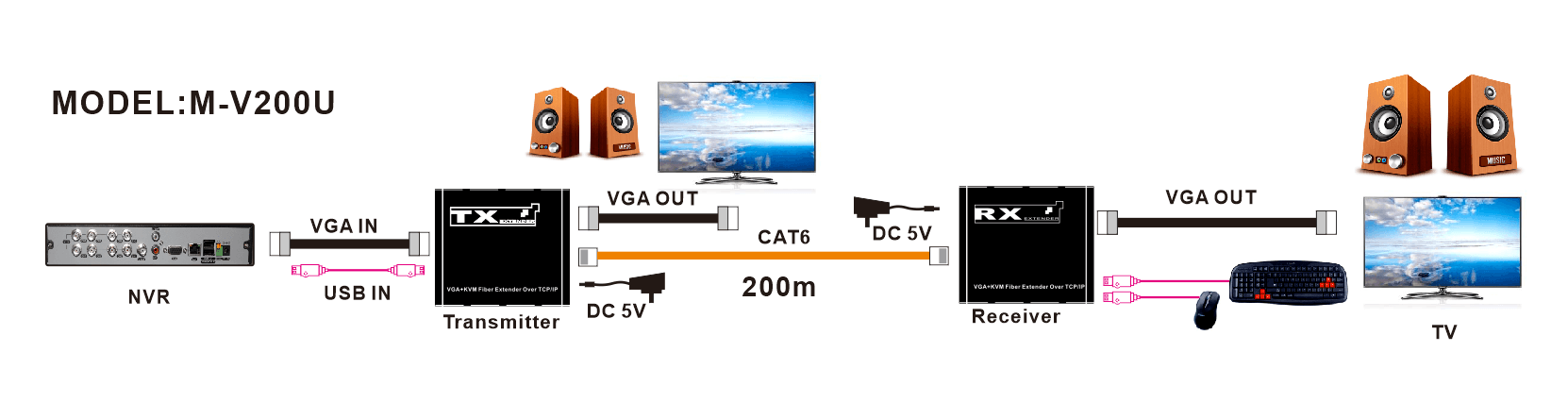

Installation Process

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source

3. Connect the VGA output port of receiver to the display device with VGA cable, Connect the transmitter UTP port

to the receiver UTP port using a single Cat5e/6 cable

4. Connect transmitter PC IN port to PC using mini USB cable

5. Connect USB keyboard and mouse to Receiver K/M port

6. Connect the audio input/output using a 3.5 M/M audio cable

7. Power on Transmitter and Receiver
