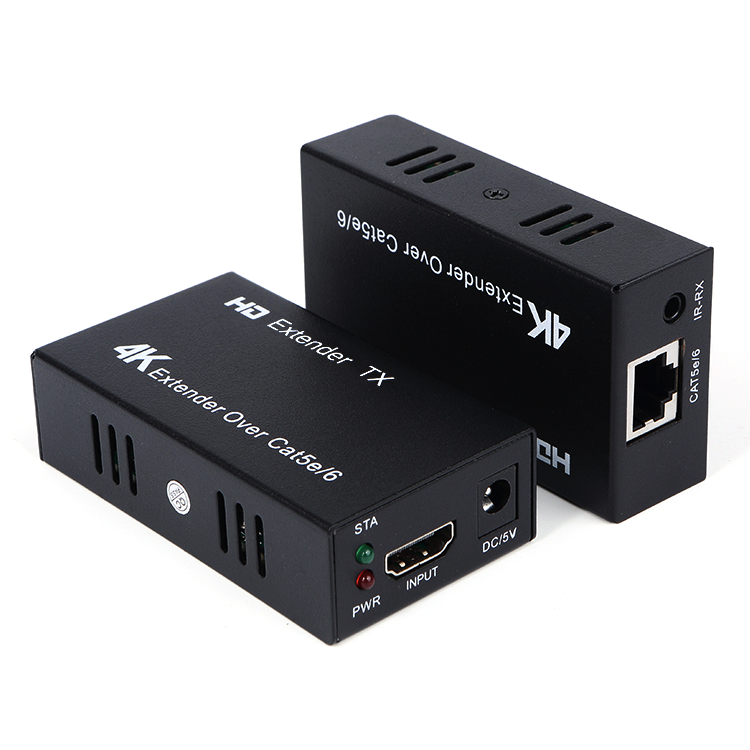

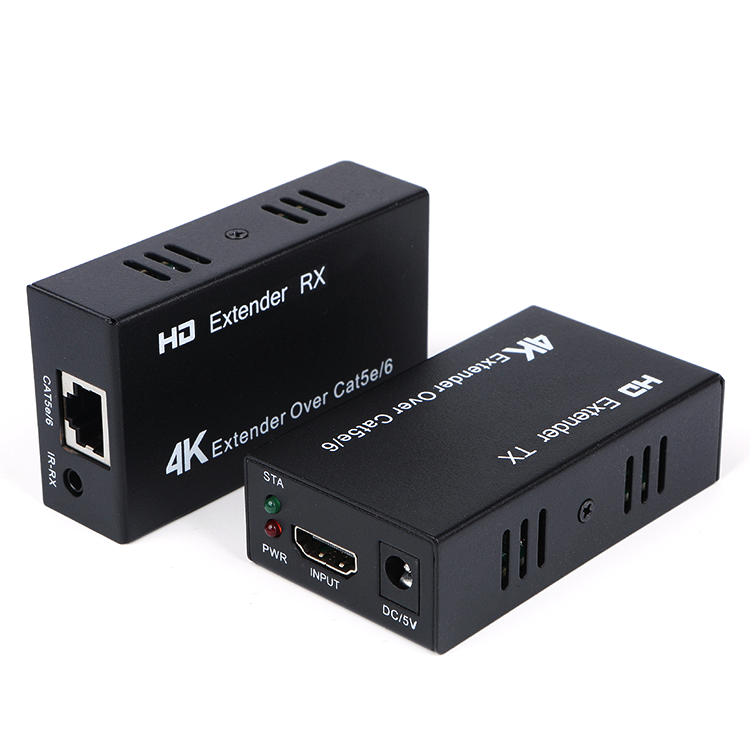

M-HK100A 4K HD Extender over Cat5e/6 with IR Control

5 0 Reviews

This 4K-HD extender can transmit high definition signal of Blue-Ray DVD player, PC and other equipment via Cat5e/6 cable(recommended), support the highest resolution of 4K×2K, 1080P transmission distance up to 100 meters, 4K transmission distance up to 70 meters, support infrared transmission.

The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and other places.

IR Function:	with IR without IR
Availability:

Quantity:

Model:
M-HK100A

Product Display
Information
Usage

Introduction

This 4K-HD extender can transmit high definition signal of Blue-Ray DVD player, PC and other equipment via Cat5e/6
cable(recommended), support the highest resolution of 4K×2K, 1080P transmission distance up to 100 meters,
4K transmission distance up to 70 meters, support infrared transmission.

The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and
other places.

Features

1. Support the Max transmit distance: 1080P up to 100M，4K*2K@30Hz up to 70M

2. Support the highest resolution up to 4K×2K@30Hz

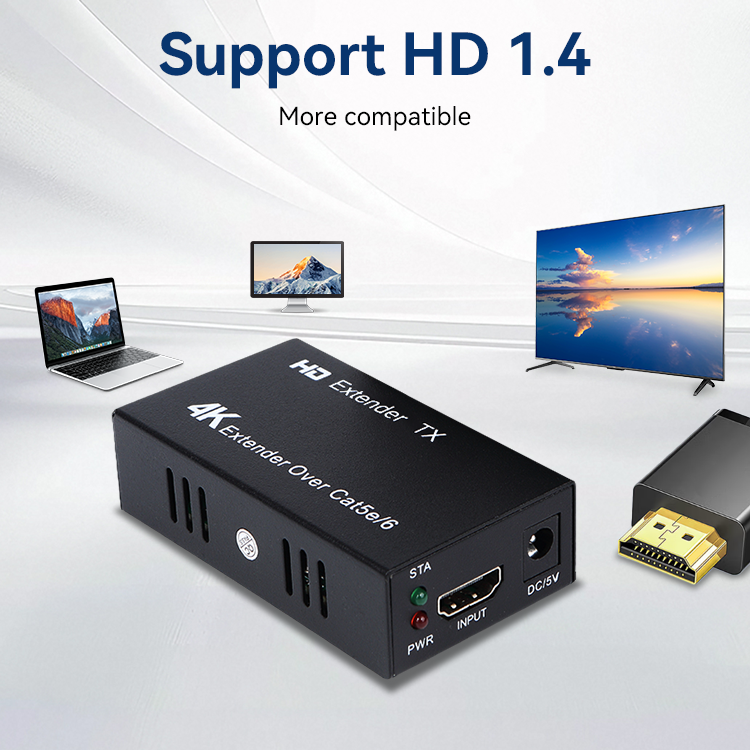

3. Support HD 1.4 version

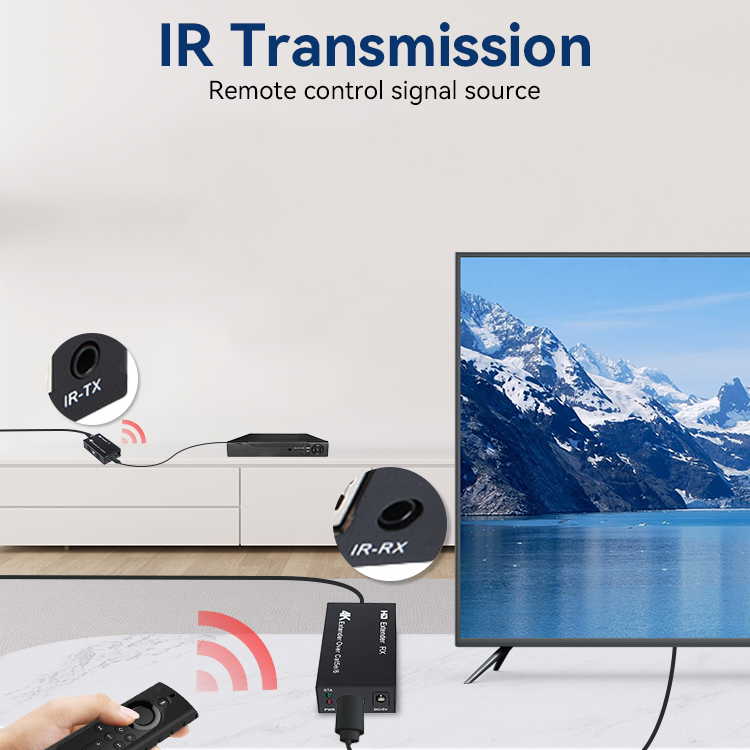

4. Support IR transmission

5. High compatibility, can auto-match source and display device

6. Built-in automatic adjustment system, make the image smooth, clear and stable

7. Built-in ESD protection system

8. Simple to install, plug and play

Specification

Parameter		Description
Video	Standards	HDMI 1.4; HDCP 1.4
	Max bandwidth	340MHz, digital
	Max baud rate	3×3.4Gbps
	Input video signal	0.5-1.5Volts p-p
	Output DDC signal	5Volts p-p(TTL)
	Max Resolution	3840×2160@30Hz（4K@30Hz）
	Connector	HD-A
IR	Interface	3.5mm seat
	Signal direction	Unidirectional
	IR frequency	30-60KHz
UTP	Interface	RJ45
	Transmission distance	1080P: 100M; 4K: 70M
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	814523mm

Package

1. HD transmitter x1 pc

2. HD receiver x1 pc

3. Power adapter x2 pcs

4. IR TX/RX terminal x1 set

5. User manual x1 pc

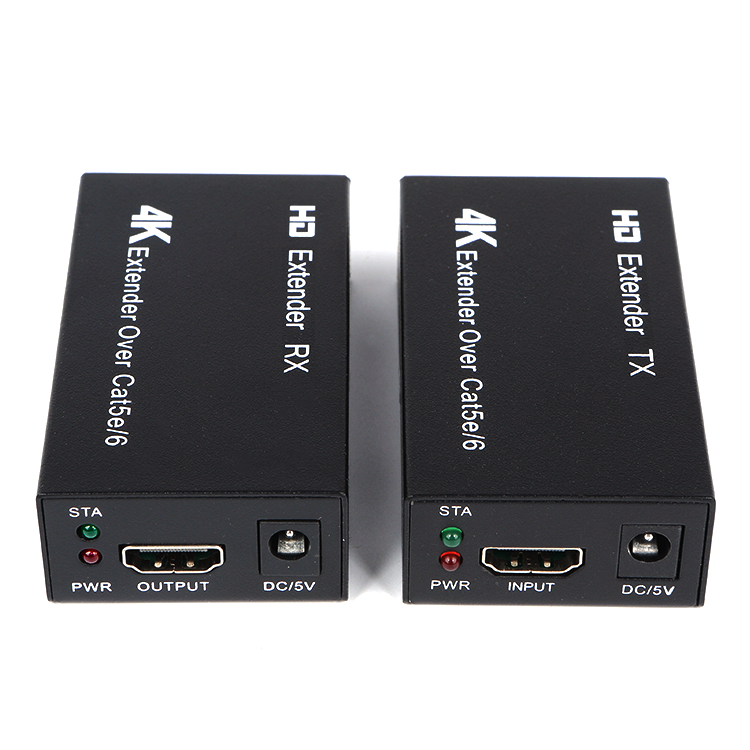

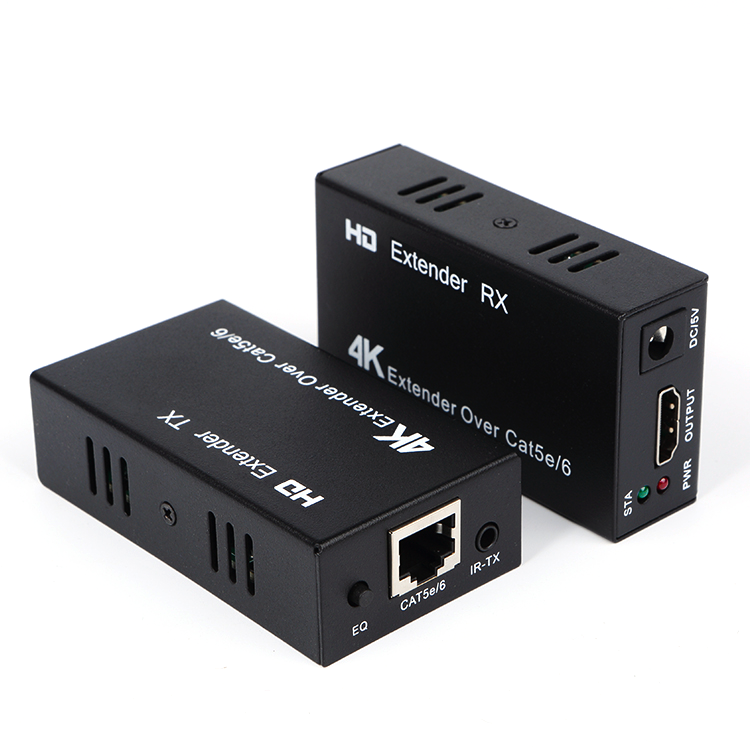

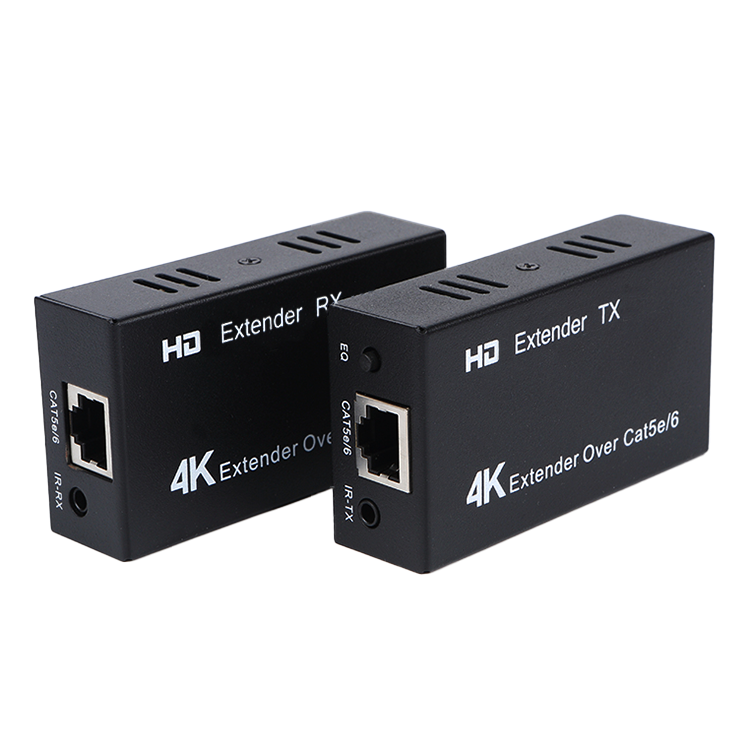

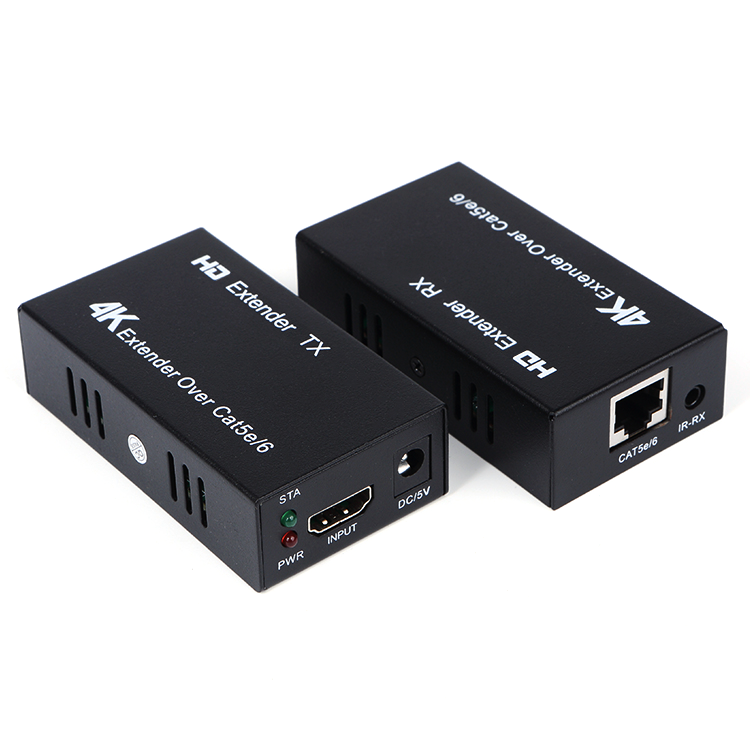

Product Interface

TX RX

TX: Transmitter

RX: Receiver

Port name	Description
HD IN/OUT	HD signal input/output
Cat5e/6	RJ45 port connect cat5e/cat6
IR TX/RX	IR signal input/output
EQ	Switch 4K
DC/5V	Power adapter socket
LED indicator	Description
PWR	Unit power indicator
STA	HD signal indicator

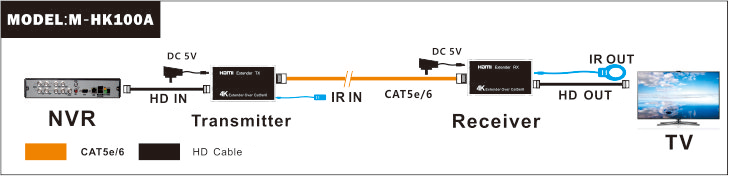

Installation Process

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an HD cable between the HD input port of transmitter and the HD output port of the video source

3. Connect the HD output port of receiver to the display device with HD cable

4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.

4K Video Extender HD Extender CAT5e/6 IR control extender HD 1.4
