M-DPK10 transmits high-definition video signals over long distances through optical fiber, support learning EDID passthrough function; support audio separation output. This product transmits DP high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, which greatly improves the compatibility of the device. This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.
M-DPK10 transmits high-definition video signals over long distances through optical fiber, support learning EDID passthrough function; support audio separation output. This product transmits DP high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, which greatly improves the compatibility of the device.
This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high- definition digital advertising, etc.
Features
1. Transmit DP video and audio signals over long distances through optical fiber, up to 20 kilometers;
2. DP video signal resolution can reach up to 4K@60Hz (4:4:4/4:2:2:/4:2:0);
3. The data transmission rate can reach up to 18Gbps (TMDS 6Gbps / 3 channels);
4. Support audio separation output;
5. Support DP1.4 and HDCP 1.4/2.2/2.3 standards;
6. Support EDID learning, improve compatibility, match signal sources and display devices for automatic storage;
7. Built-in automatic equalization system, the picture is smooth, clear and stable;
8. Built-in ESD electrostatic protection circuit to protect system safety in all aspects
9. Support 5-12V power supply
10. The working temperature range is from -40 ºC to 85 ºC, and the maximum junction temperature can reach 125 ºC.
Specification
Description
Parameter
Video
Standards
DP1.4; HDCP 2.2/2.3/1.4
DP pixel clock
340MHz，all-digital
DP port bandwidth
total bandwidth 10.8Gbps (TMDS 6Gbps / 3 channels)
Resolution
3840X2160@60Hz(4：4：4)
backward compatibility
Video port
DP Port
DP port Impedance
100Ω
Audio
Interface
3.5mm Stereo audio socket
Audio format
44.1K, 48K, 96K, 176K, 192K
Signal Type
Stereo
Fiber optic
Fiber Type
Single fiber single mode
Dual fiber single mode
Wavelength
TX-1330nm
RX-1270nm
TX/RX-1310nm
Fiber Interface
LC
Transmitted optical power
-6～0dBm
Transmission distance
20KM
Transmission rate
10Gbps
Laser type
DFB CWDM
Other
Power supply
Power Adapter：DC5~ 12V
Power dissipation
MAX 10W
Temperature
-40℃ ~ +85℃
Humidity
5% ~ 90%
Dimension
94*72*25mm
Warranty
1 year free warranty
Package
1. DP transmitter x1 pc
2. DP receiver x1 pc
3. 10G optical module x1 pair
4. Power adapter x2 pcs
5. User Manual x1 pc

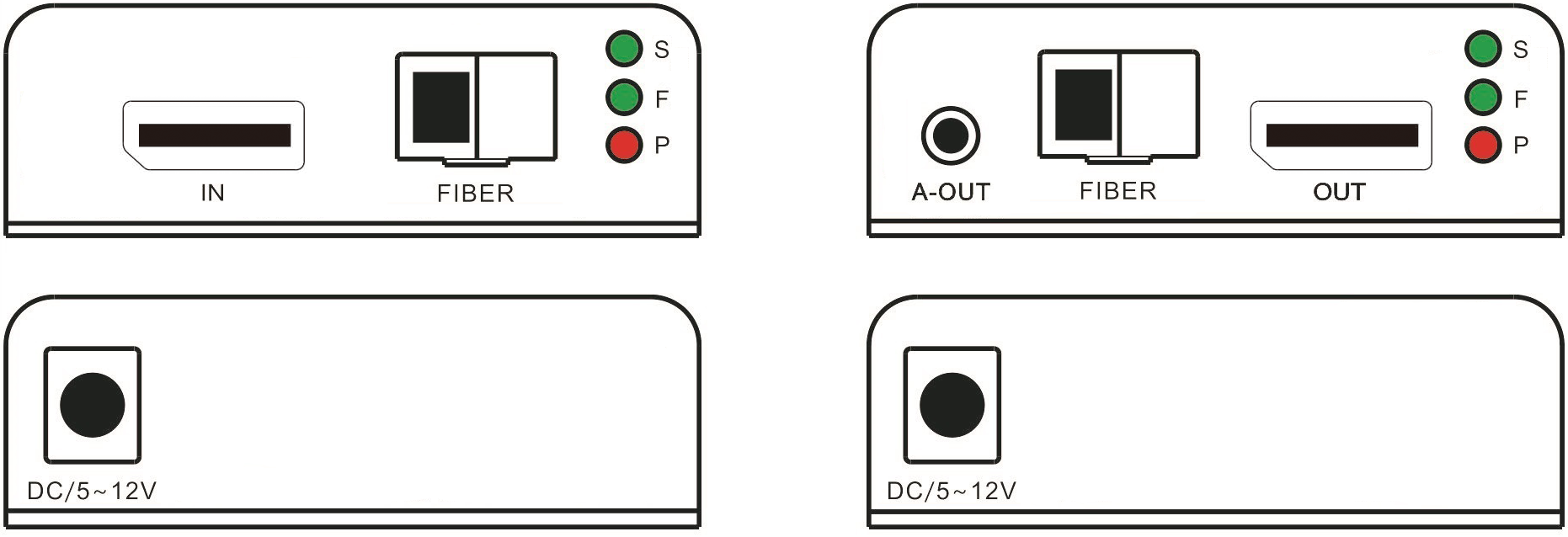

Product Interface
TX: Transmitter
RX: Receiver
Port name
Description
IN/OUT
DP signal input/output
Fiber
Fiber Interface（LC）
A-OUT
3.5mm audio output
DC/5~12V
Power adapter input
LED indicator
Description
P
Power light
S
On（Working），off（No input/output）
F
Flashing quickly (communication in progress), off (fiber optic not communicating)
Installation Process
1. Connect the DP signal source to the DP input port of the TX
2. Connect the DP OUT of the RX to the display device
3. Use an optical fiber cable to connect the optical fiber port of TX and RX
4. Connect the TX and RX to the power supply. When the indicator light P/S is always
