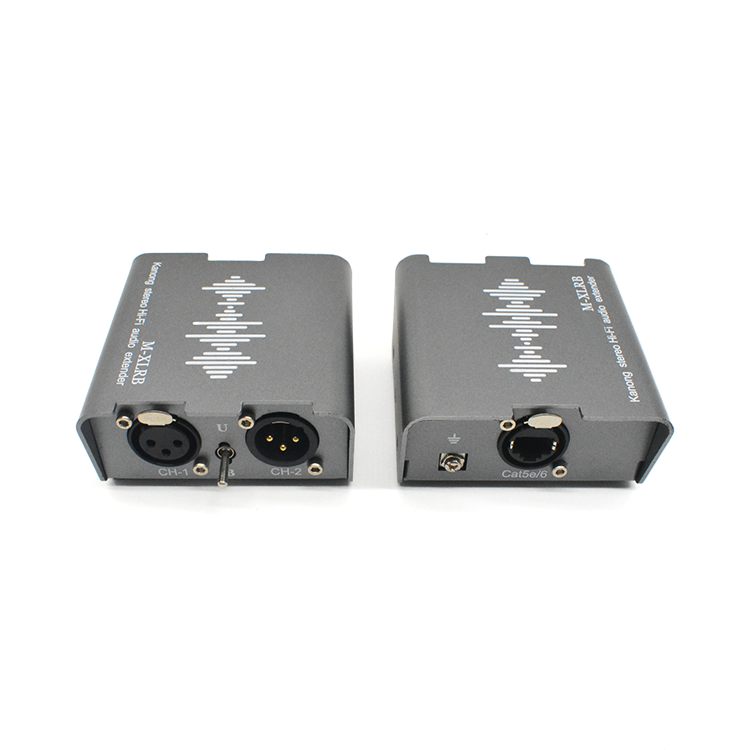

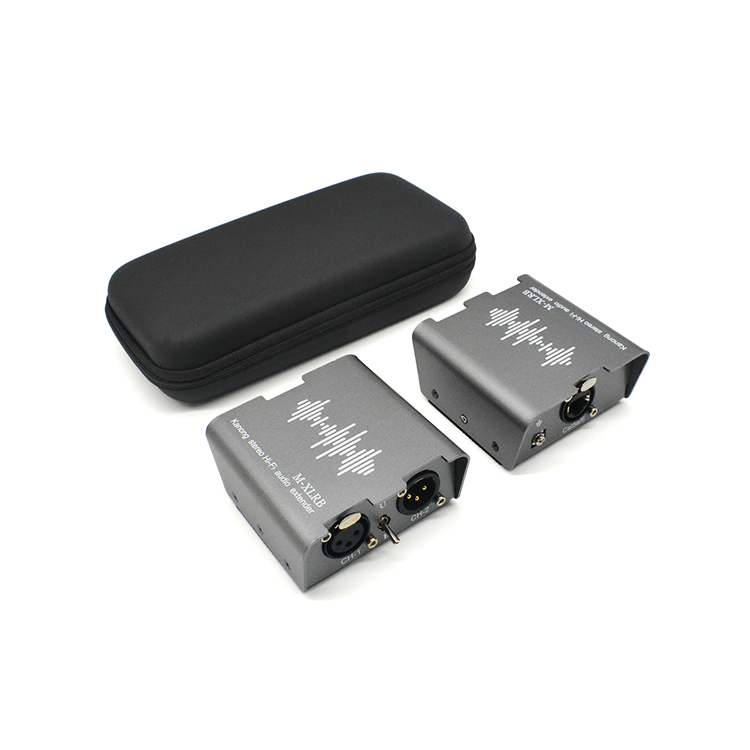

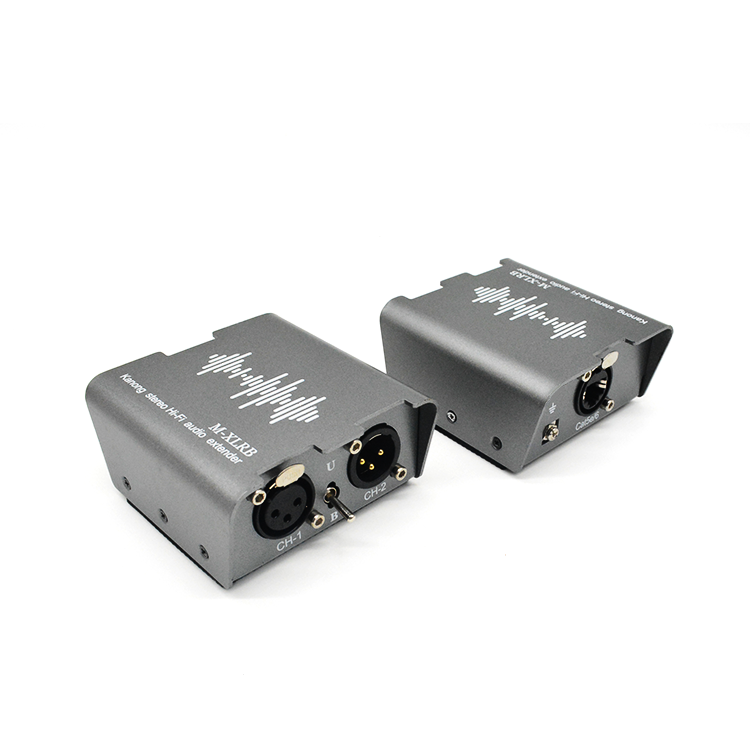

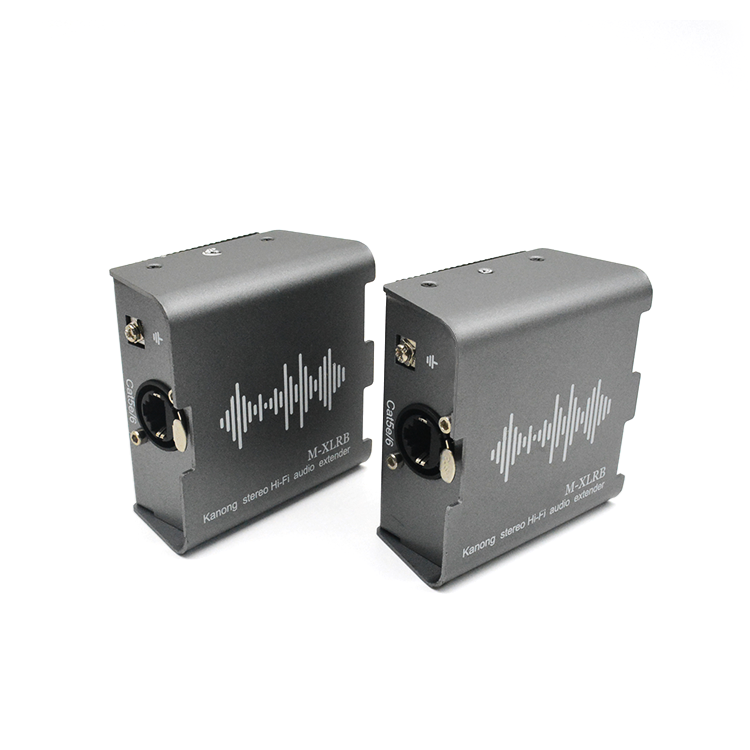

M-XLRB Dual Cannon(XLR) Stereo Audio Extender over Cat5e/6
50 Reviews
The Dual Cannon(XLR) Stereo high fidelity audio transmission (M-XLRB) is a MIC stereo high fidelity audio signal twisted pair extension. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.
The Dual Cannon(XLR) Stereo high fidelity audio transmission (M-XLRB) is a MIC stereo high fidelity audio signal twisted pair extension. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.
The equipment adopts balanced characteristic impedance conversion transmission and analog audio spread spectrum isolation technology. It has strong anti-interference and EMI capabilities. It can effectively solve equipment distortion and audio noise caused by long audio transmission line or ground potential difference loop current, and eliminate audio bottom noise. The product is suitable for extended application fields with different distances.
Features

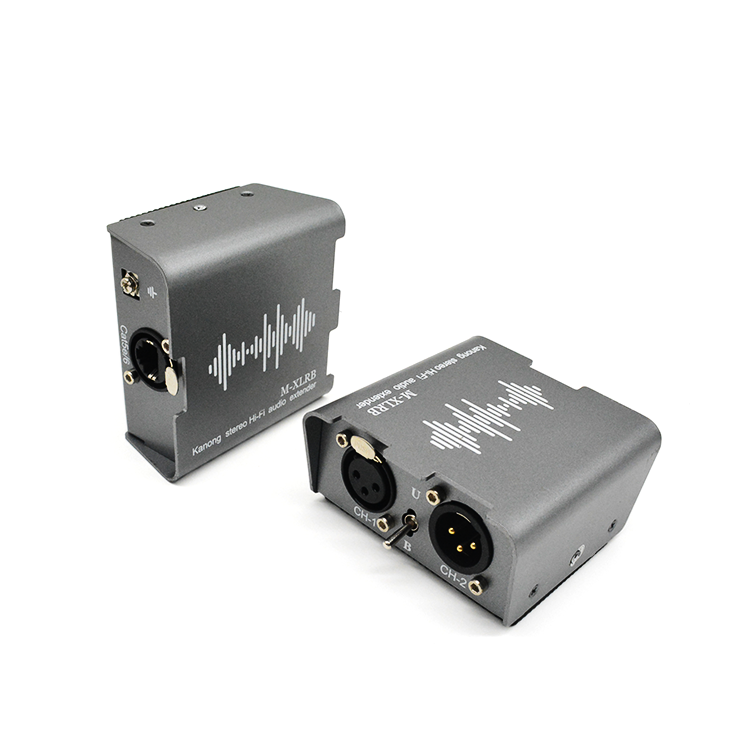

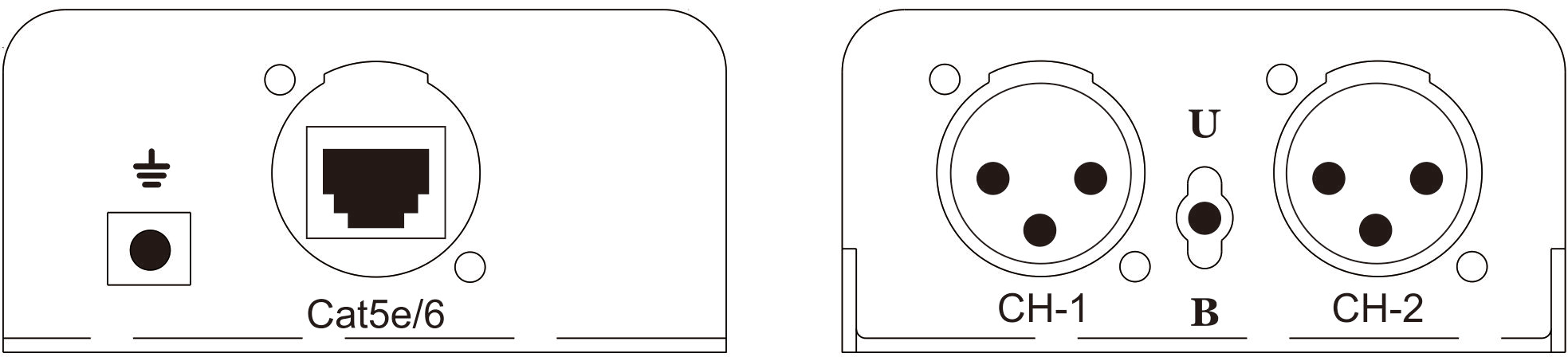

1. Dual Cannon (XLR) MIC audio twisted pair transmission

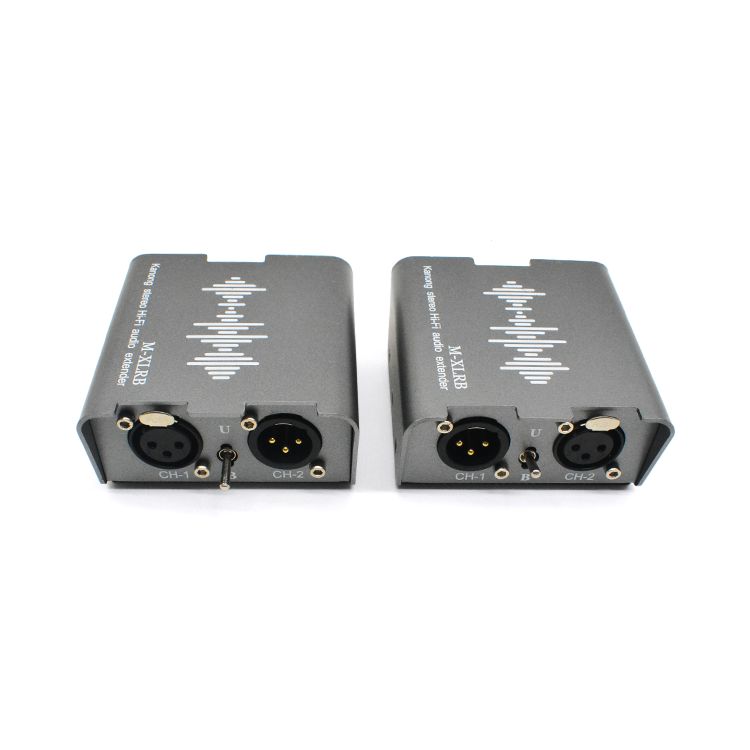

2. Balanced and unbalanced switching transmission mode is adopted, with strong resistance to common mode interference

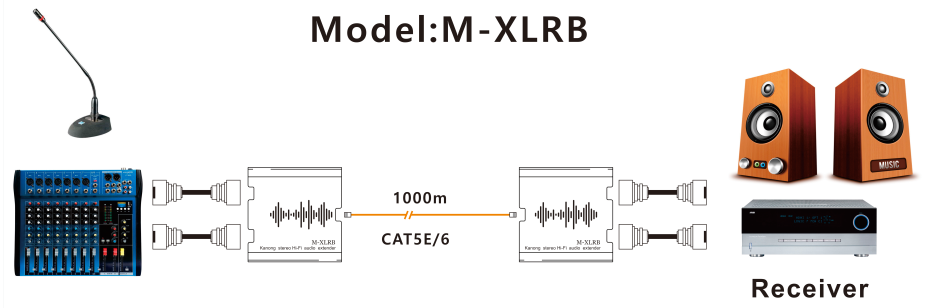

3. High fidelity stereo audio transmission distance can be up to 1000m
4. Special audio spread spectrum isolation technology is adopted

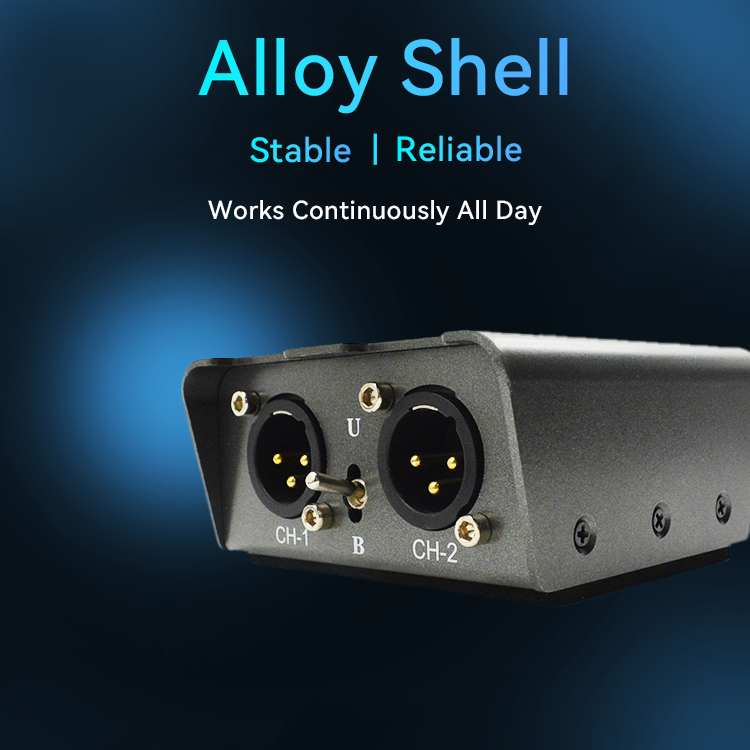

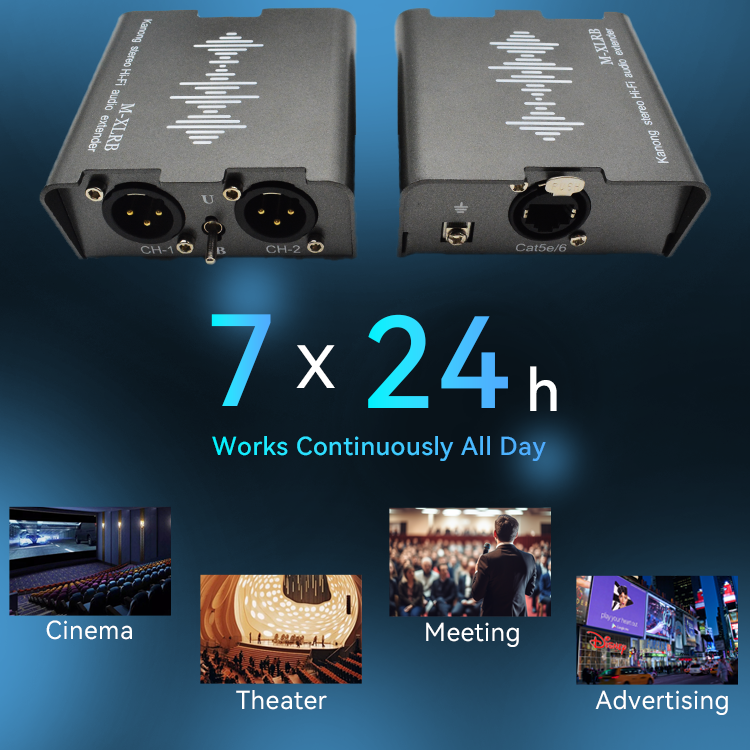

6. Works continuously all day, stable and reliable performance
7. No power required
8. Audio matrix switcher, audio distributor, audio distribution amplifier, booster, sound, microphone, home theater, DVD disc, video recorder, camera, mixer device, and other commercial or consumer analog devices
Specification
Parameter
Description
Devices
1. High fidelity distribution display, digital set top box
2. Hi-Fi home theater, large screen projection video conference
3. Public video broadcasting system, distance multimedia education, classroom medical treatment
4. High fidelity flat panel video media advertising transmission demonstration
