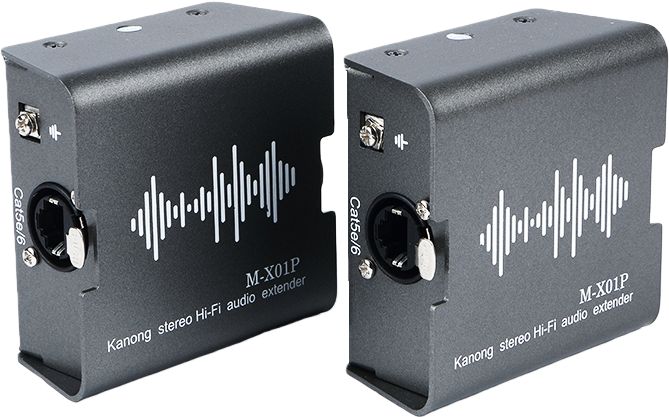

M-X01P Cannon Audio extender is a unbalanced audio signal twisted pair extender, the product has high fidelity isolation and anti-interference capability, and it supports passive or active microphone (48V Phantom electricity synchronization) transmission.
This product can be applied to high fidelity audio equipment, such as game player, set-top box, HI-FI home theater, video conference, public video broadcasting system, multimedia education, medical care, and flat video media advertising transmission demonstration.
M-X01P Cannon Audio extender is a unbalanced audio signal twisted pair extender, the product has high fidelity isolation and anti-interference capability, and it supports passive or active microphone (48V Phantom electricity synchronization) transmission.
This product can be applied to high fidelity audio equipment, such as game player, set-top box, HI-FI home theater, video conference, public video broadcasting system, multimedia education, medical care, and flat video media advertising transmission demonstration.
The product uses especial balance characteristic impedance conversion transmission and audio analog audio spread spectrum isolation technology, it has anti-interference and EMI capabilities.
It can solve the problems of super length audio input line or ground electricity position which caused by equipment distortion and audio noise, and elimination of audio background noise, the said products are suitable for all kinds of different distance extender applied area.
Features
1. One way Cannon MIC audio twisted pair transmission.
2. Unbalanced switching transmission mode is adopted with strong resistance to common mode interference.
3. Support passive or active microphone (48V magic synchronization), transmission distance up to 268m.
4. Special audio spread spectrum isolation technology is adopted.
6. No power required, works continuously all day, stable and reliable performance
7. Audio matrix switcher ,audio distributor ,audio distribution amplifier, booster, sound, microphone, home theater, DVD disc, video recorder, camera, mixer device, and other commercial or consumer analog devices.
NOTE: 48V Phantom electricity dialing switch state; Wrong use ways will be able to destroy mic-phone, This equipment does not have 48V Phantom electricity supply; It only support 48V phantom electricity transmission.
Specification
Parameter
Description
Applied range
High fidelity distribution display, set top box, HI-FI home theater, big screen video meeting, republic video broadcast system, Distance multimedia education, classroom and hospital, Military field, HDMI video media advertise transmission display
band width
20Hz - 20KHz
Peak value of input signal
1.25Vp-p
Input and output impedance
600 Ω minimum (signal source )
Insert loss
＜2dB
Signal reflectivity
＞15dB
CMRR
＞60dB
Phantom synchronous transmission distance
268 meters
Signal structure
Audio: Pins 1(R) & 2(T),Pins 7 & 8(Overhang)
Power: Pins 4 & 6(48V),Pins 3 & 5(GND)
Standard twisted pair characteristics
Characteristic impedance: 100Ω
Distributed capacitance: 20 pf/ft
Reduce: 6.6 dB/305m @1 MHz
Interface characteristics
1 XLR connector
1 RJ45 internet port
Temperature
Working temperature: 0-55°C
Store temperature: -20°- 85°C ,
Humidity: 0-95%
Shell Material
Iron shell
Packing Size
185*132*85mm
Weight
600g

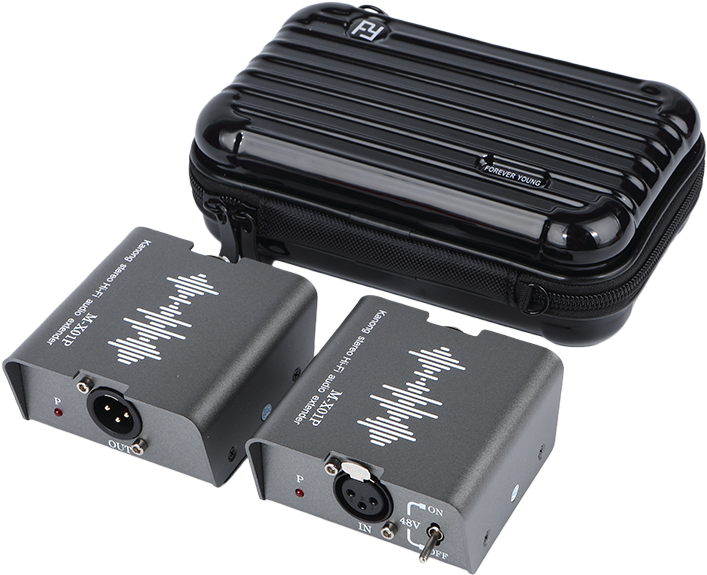

Package
1. Transmitter x1 pc
2. Receiver x1 pc
3. User Manual x1 pc

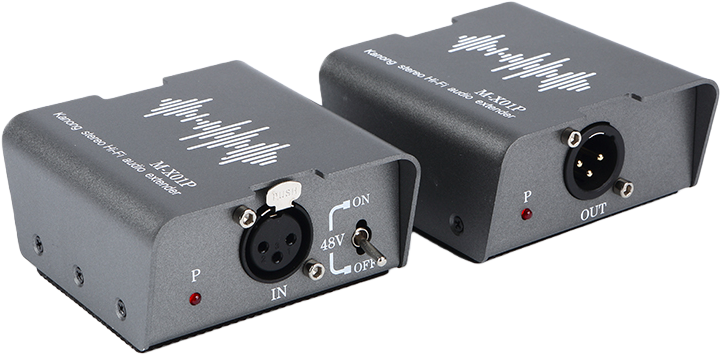

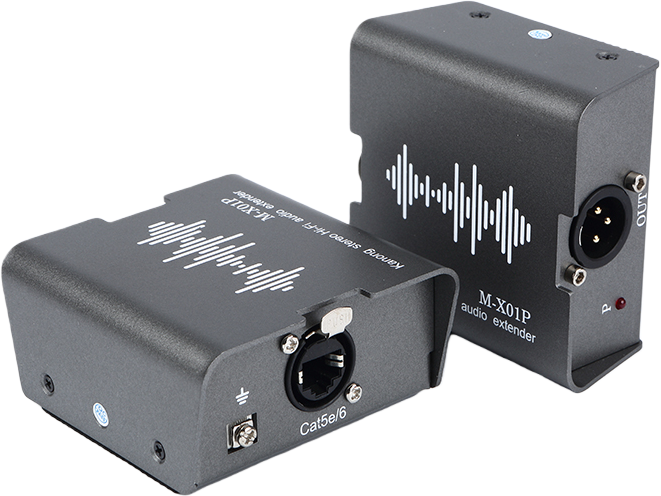

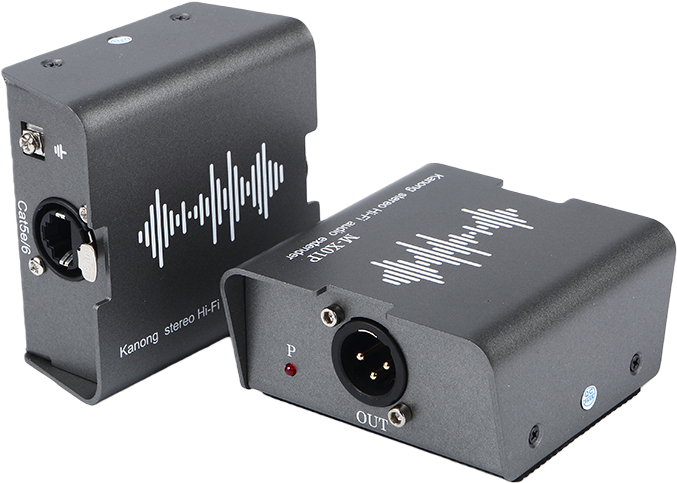

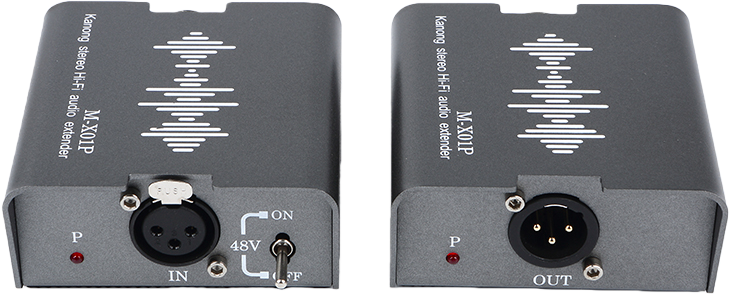

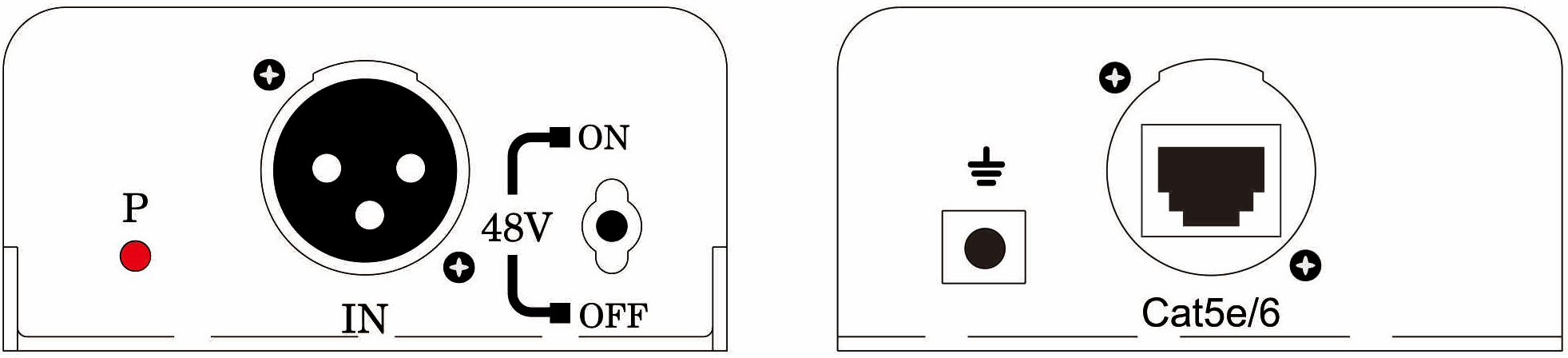

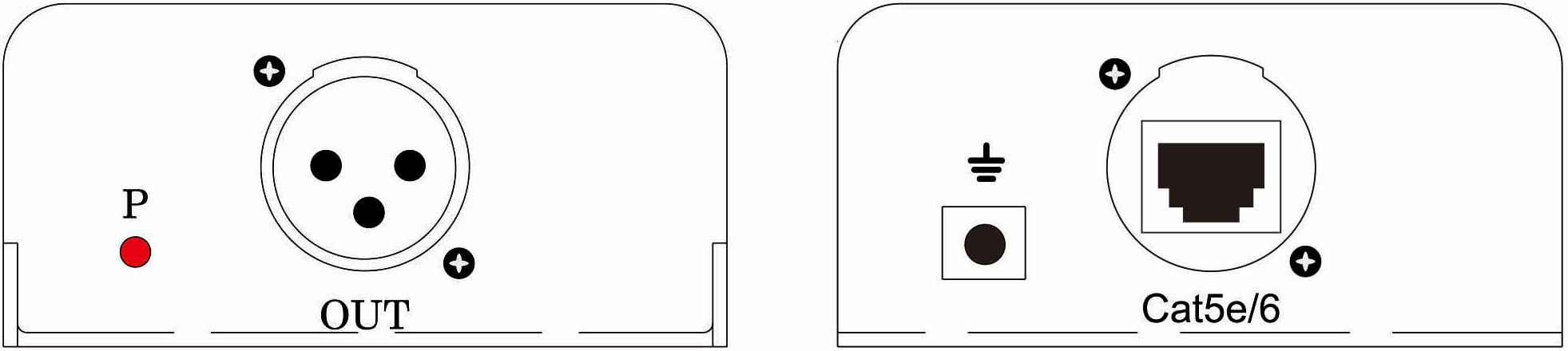

Product Interface
TX
RX
TX: Transmitter
RX: Receiver
Port Name
Function Description
Cat5e/6
RJ45 port
IN/OUT
Cannon audio port
P
Power light
48V/ON
Open 48V output(Please note microphone if support 48V phantom electricity or not)
48V/OFF
Close 48V output

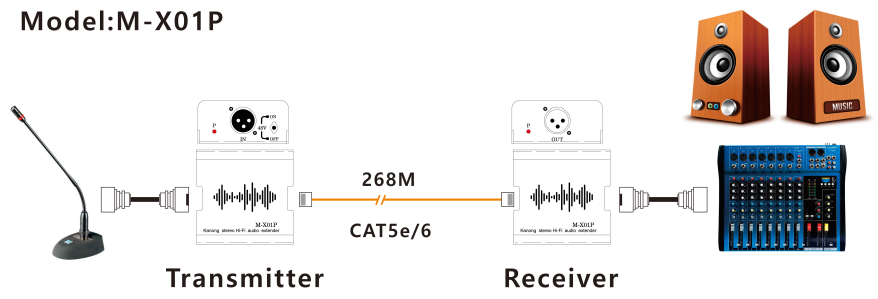

Connection
NOTE: 48V Phantom electricity dialing switch state; Wrong use ways will be able to destroy mic-phone, This equipment does not have 48V Phantom electricity supply; It only support 48V phantom electricity transmission.
