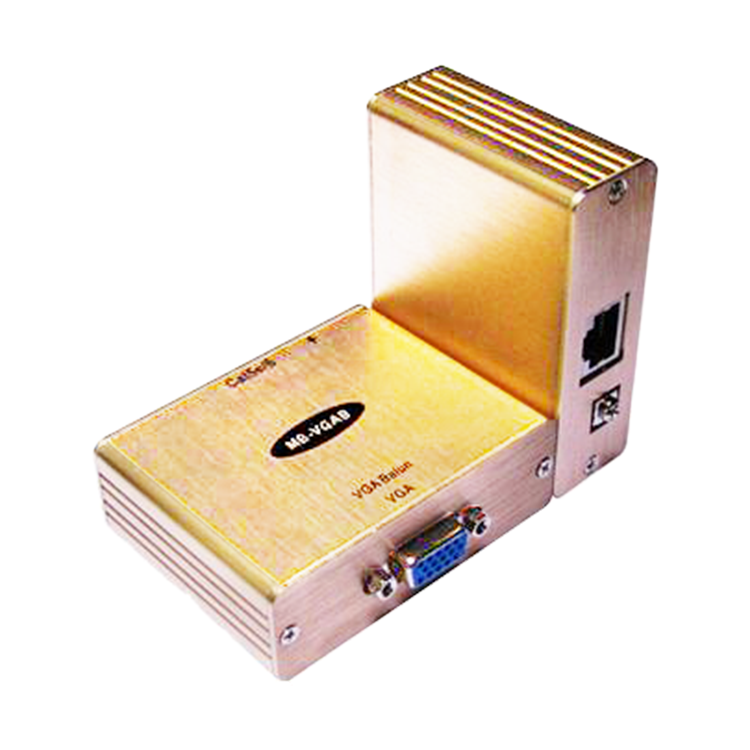

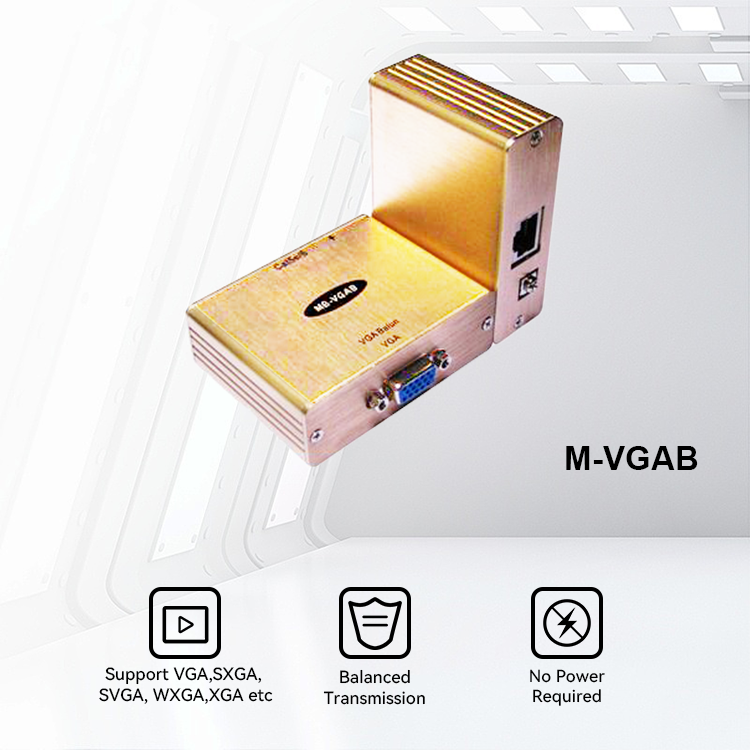

M-VGAB
Introduction
The VGA Balun eliminates costly, allowing a VGA source to be connected to a VGA monitor via 4-pair Cat5e/6
twisted pair cable. In order to ensure a commons signal ground, shielded twisted pair is highly recommended.
Used in pairs, the VGA Balun allows VGA video to be transmitted up to 350ft (107m) via Cat5e/6 at 800 x 600
resolution. The VGA Balun works in conjunction with PCs, laptops, plasma, LCD monitors and DLP projectors.
Features
Up to 250 ft (76m) @ 1024 x 768
Cat5e/6 STP cable highly recommended*
No power required
Saves conduit space
Quicker moves, adds and changes
Specification
Environment | VGA. VESA VP&D 1.0, VIP ver 2.0. |
Devices | CRT and flat-screen LCD monitors, plasma screens laptops, PCs, multimedia projectors |
Transmission | Transparent to the user. |
Bandwidth | DC to 60MHz |
Input Signals | Video: 1.1Vp-p Horizontal sync: TTL standard. 300kHz max. bandwidth Vertical sync: TTL standard. 300kHz max. bandwidth |
Insertion Loss | Less than 3 dB per pair over the frequency range. |
Common Mode Rejection (CMMR) | 15kHz -60dB max 100kHz to 10MHz -40dB max 100MHz -20dB max |
Video Differential Gain | +/- 2% |
Video Differential Phase | +/- 2% |
Connectors | RJ45 shielded HD15 Plug |
Max. Distance via Cat5e/6 Twisted Pair | VGA: 640x480 pixels (15MHz) 450ft (137m) SXGA: 1280x1024 pixels (100MHz) 200ft (61m) SVGA: 800x600 pixels (30MHz) 350ft (107m) WXGA:1366x768 pixels 180ft (55m) XGA: 1024x768 pixels (60MHz) 250ft (76m) |
RJ45 Pin Configuration Reverse Polarity Sensitive | R Video (Red) Pin 1 (+) Pin 2 (-) Balanced Horiz Sync Pin 3 G Video (Green) Pin 4 (+) Pin 5 (-) Balanced Vert Sync Pin 6 B Video (Blue) Pin 7 (+) Pin 8 (-) Balanced |
Cable | In order to ensure a common signal ground, Cat5e/6 shielded twisted pair (STP) is highly recommended. Unshielded twisted pair (UTP) may be used only when there is full signal ground continuity between the VGA source and the VGA display. |
Impedance | Input: RGB 75 ohms (HD15) Unbalanced Output: RGB 100 ohms (RJ45 shielded) Balanced Horizontal and vertical sync: TTL standard |
Temperature | Operating: 0℃ to 55℃ degrees Celsius Storage: -20℃ to 85℃ Humidity: Up to 95% non-condensing |
Enclosure | Aluminum alloy |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) |
Weight(packaging) | 230g |
Applications
Boardroom systems, classroom projection systems
Digital signage, custom residential AV, DVR monitor extension
Medical display systems
Package
1. VGA Balun x2 pcs
2. User Manual x1 pc
Installation Process
1. Plug your VGA cable coming from your PC into the Transmit Baluns HD15 connector.
2. Secure the cables using the lock down screws.
3. Make a similar connection between the Receive Baluns HD15 connector and your display.
4. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination
