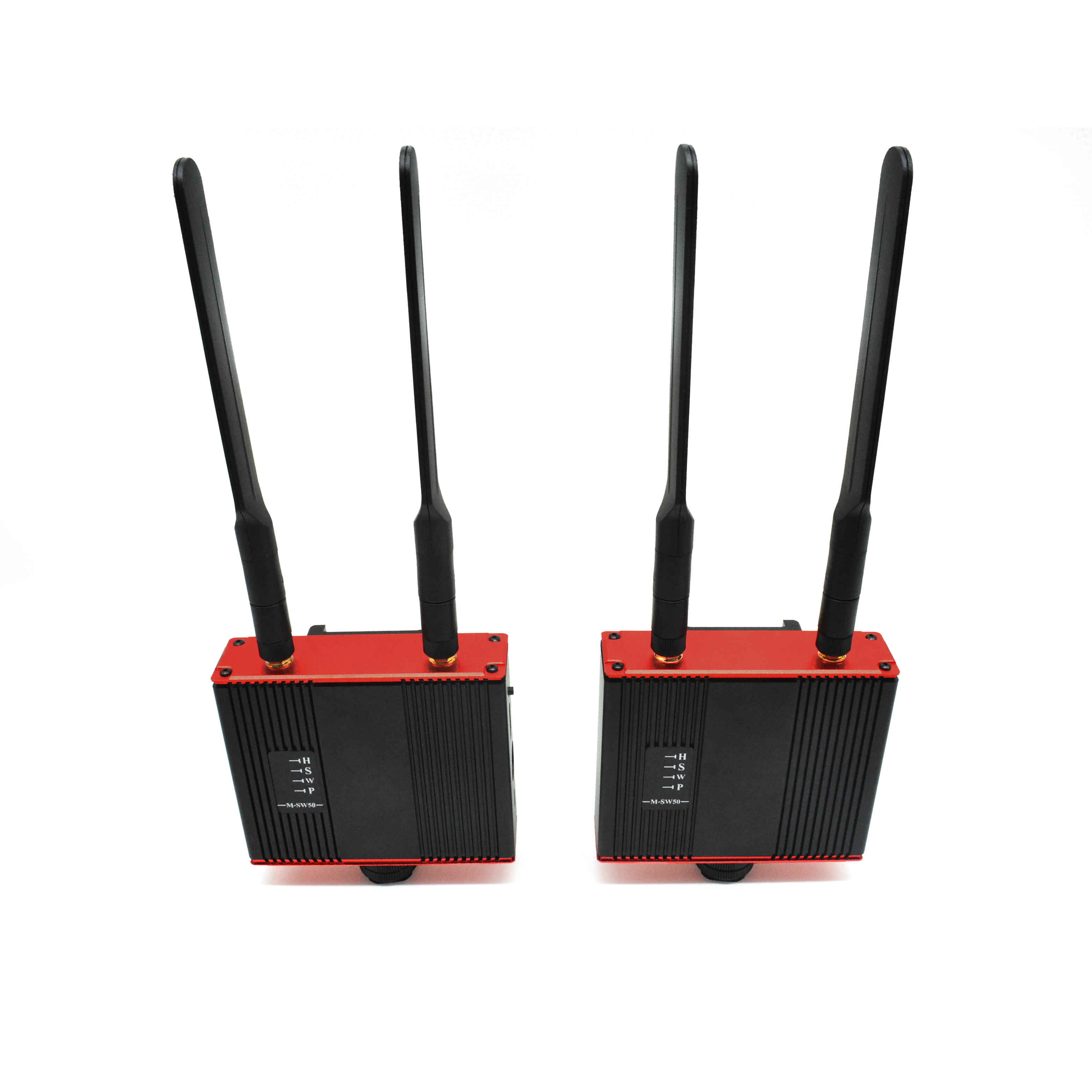

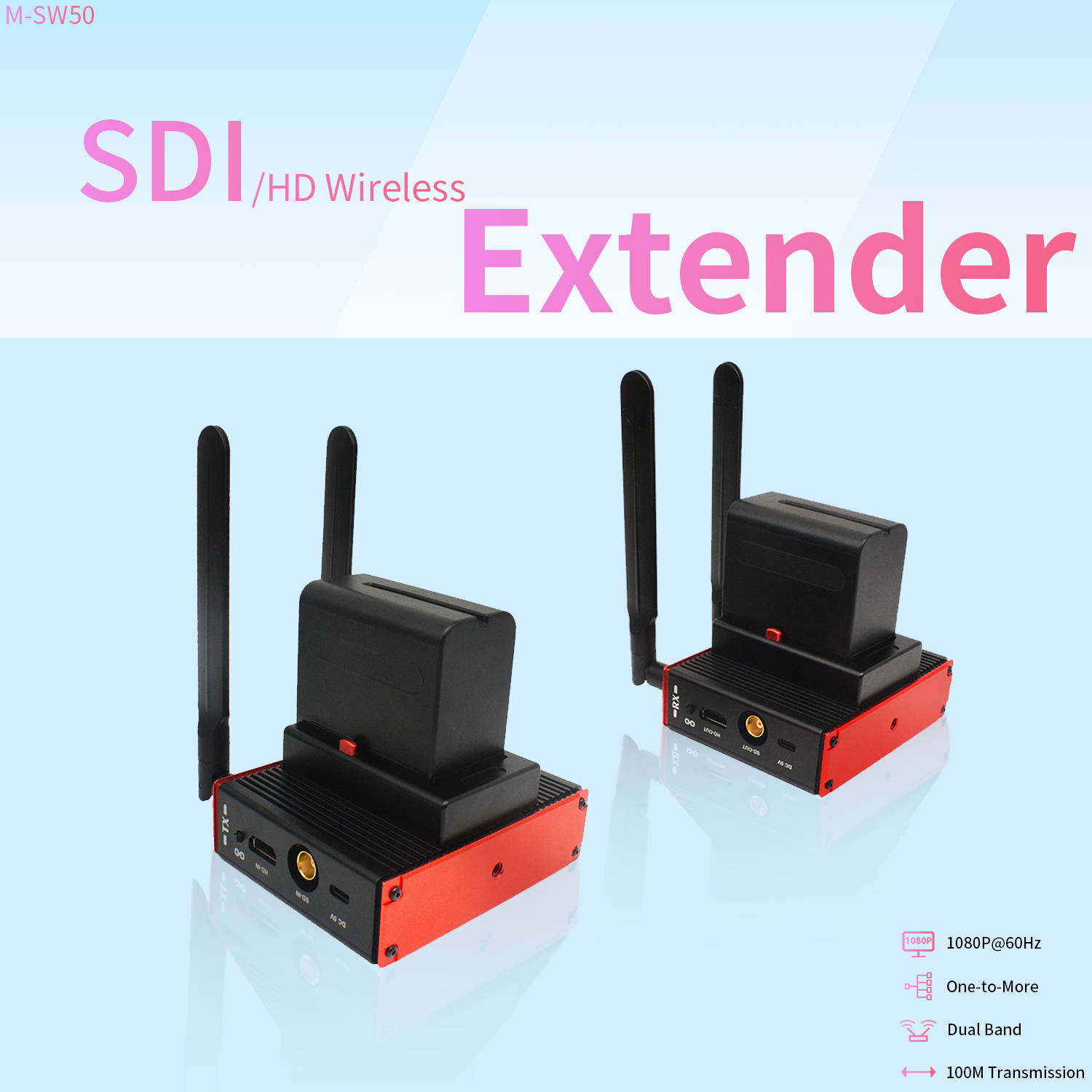

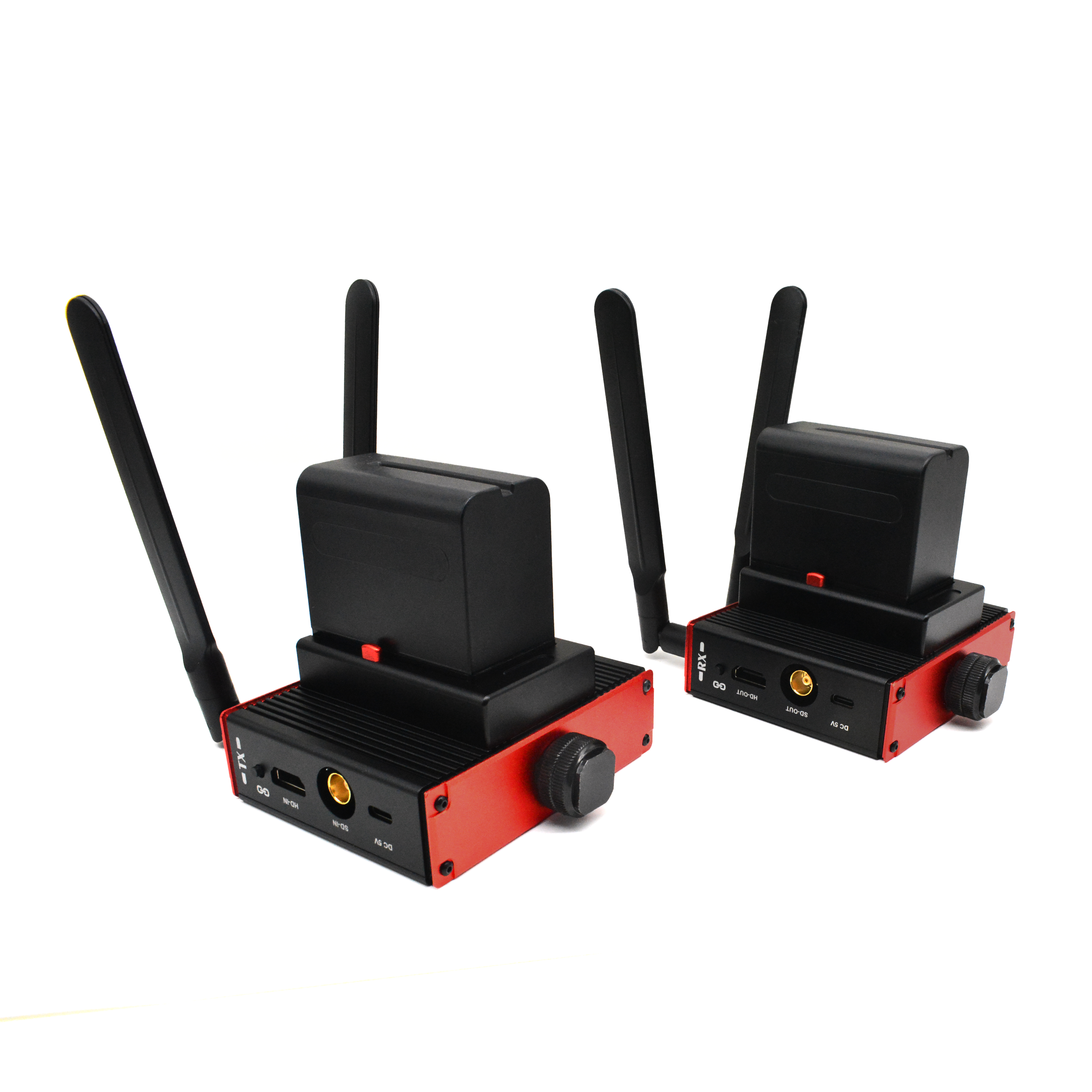

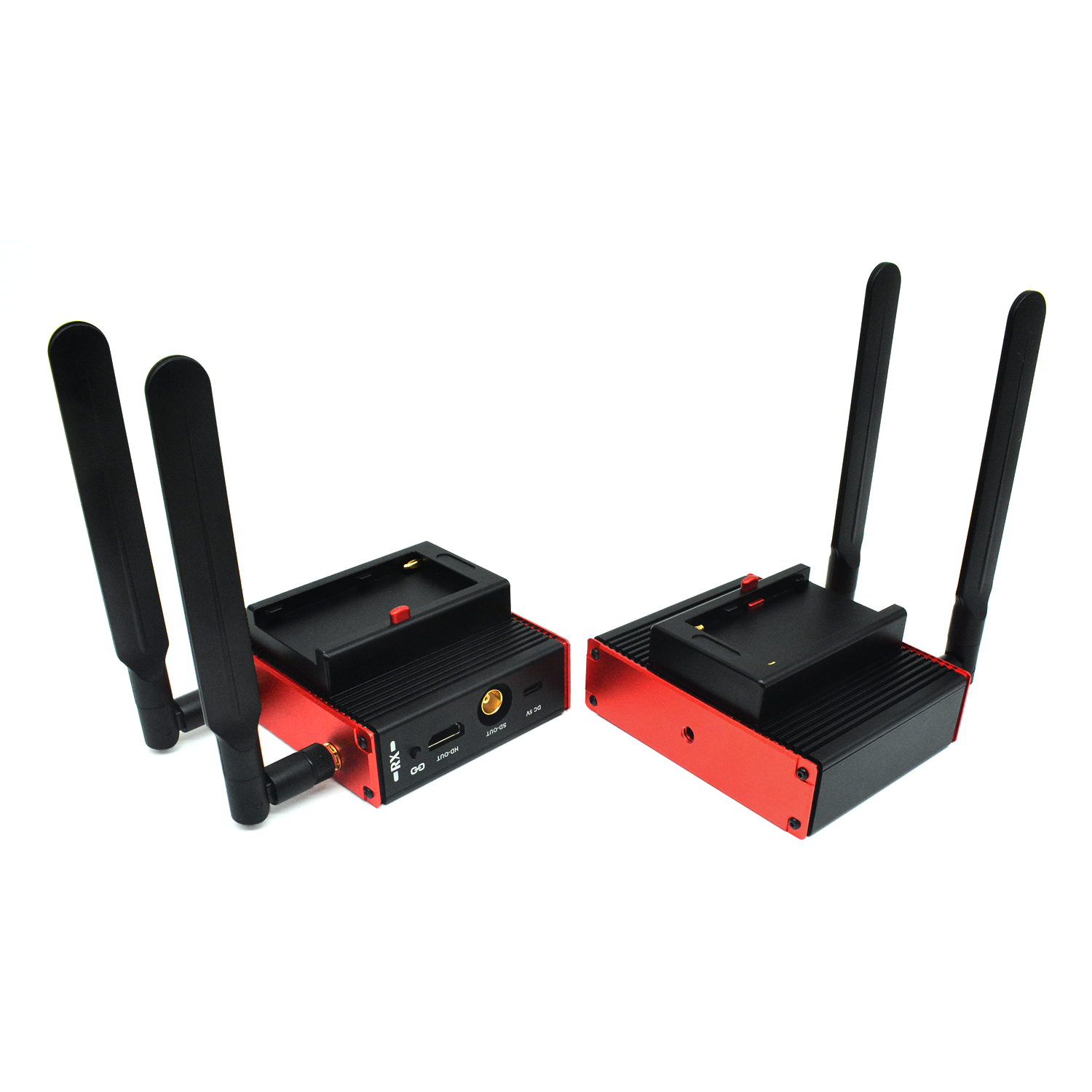

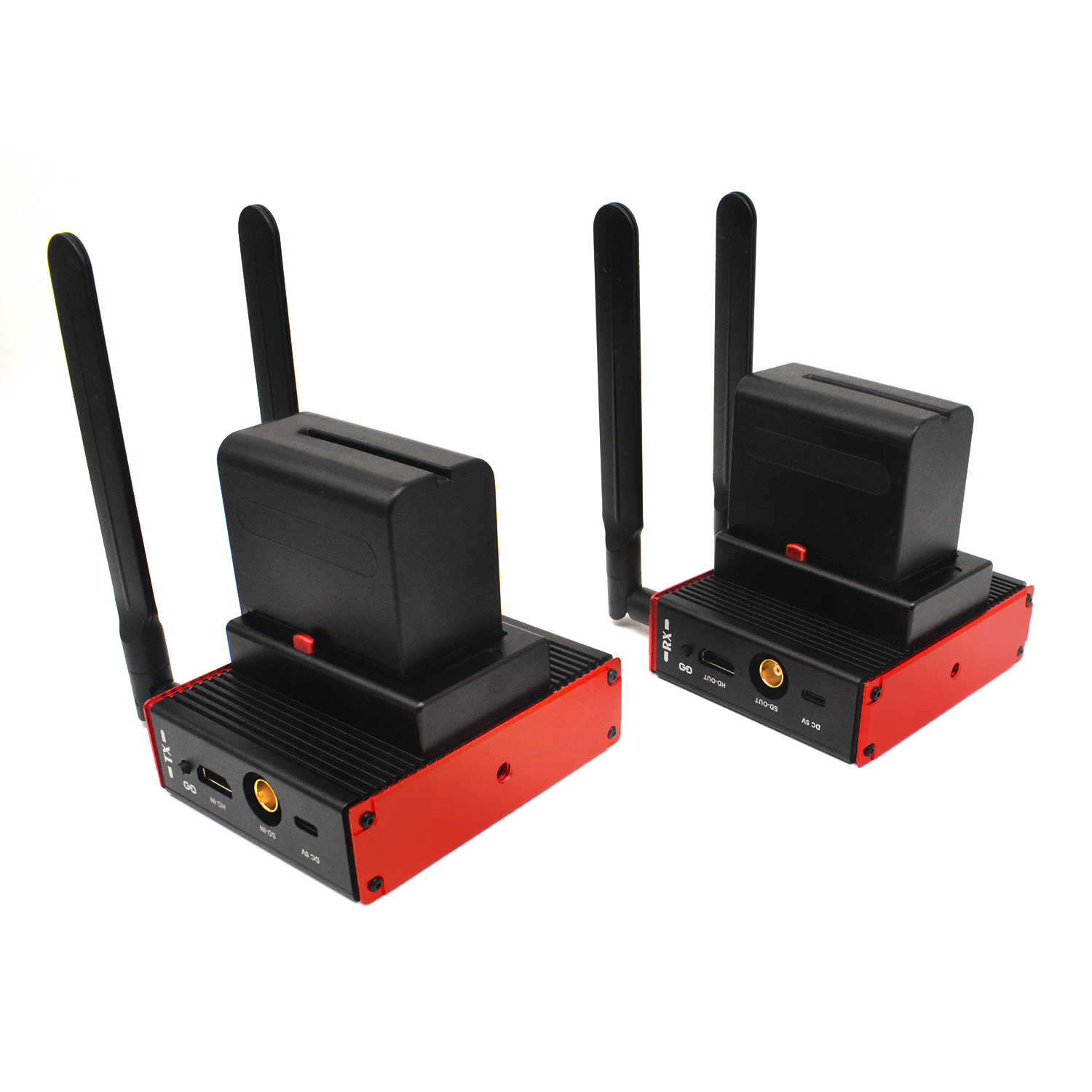

M-SW50 1080P SDI/HD Wireless Extender

Introduction

M-SW50 Wireless SDI/HD Extender transmits high-definition audio and video signals through Dual band
(2.4G/5.8G) wireless WIFI signals, which can adapt to a variety of complex application environments.

The device has excellent image processing and transmission capabilities, making the signal transmission more
smooth and stable. It is a reliable, high-performance and efficient SDI/ HD signal extension mode.

Features

1. Transmit SDI/ HD video and audio signals over Dual band(2.4G/5.8G) wireless up to 100m (328ft)

2. Support video resolution up to 1920*1080P@60Hz

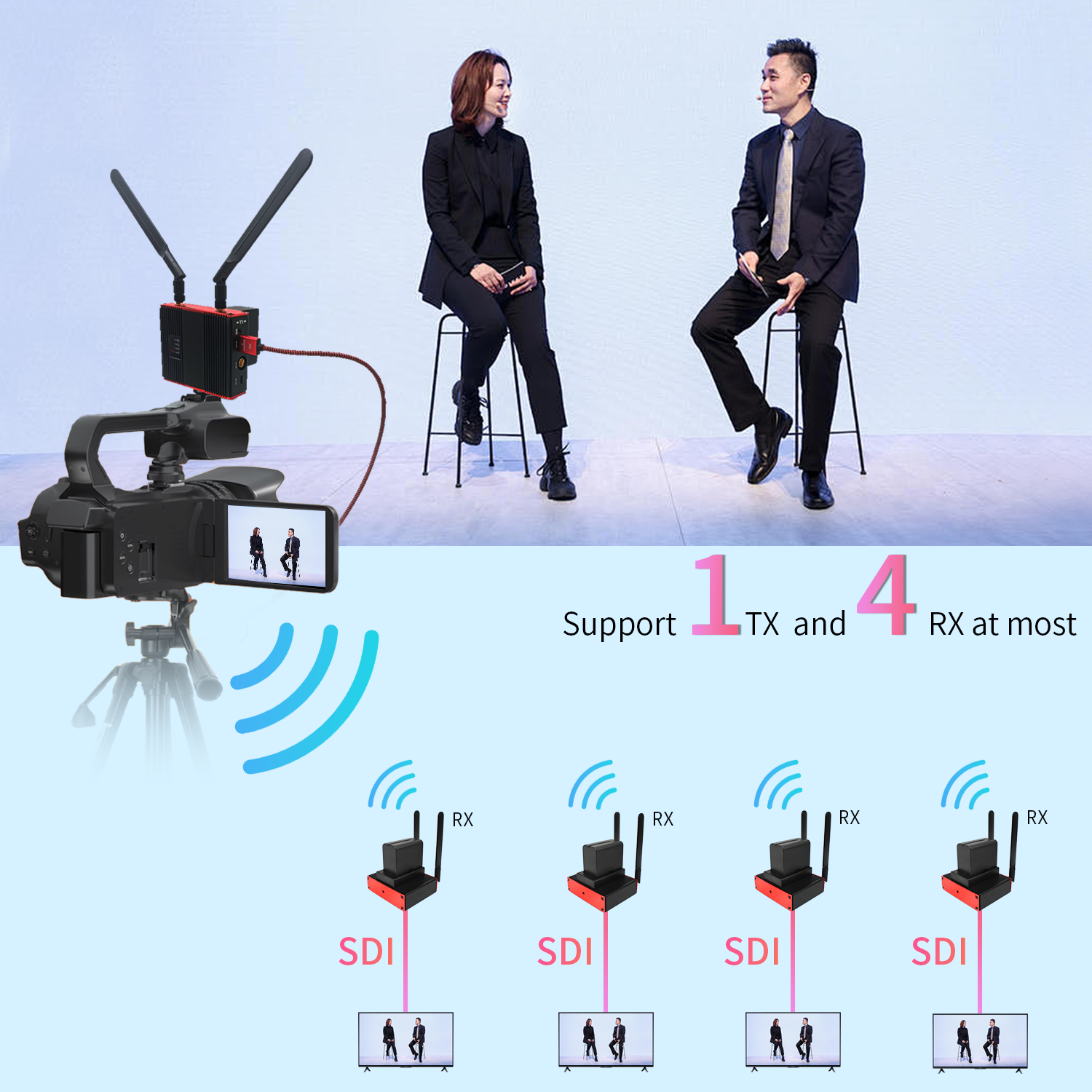

3. Supports one TX and one RX, support one TX and four RX at most

4. The special format H.265 is used to compress and decompress the video, improve the transmission
    efficiency and make the playback more smooth

5. Transmission stream: 4Mbps~8Mbps

6. Adopting GENNUM video processing technology, it has higher compatibility

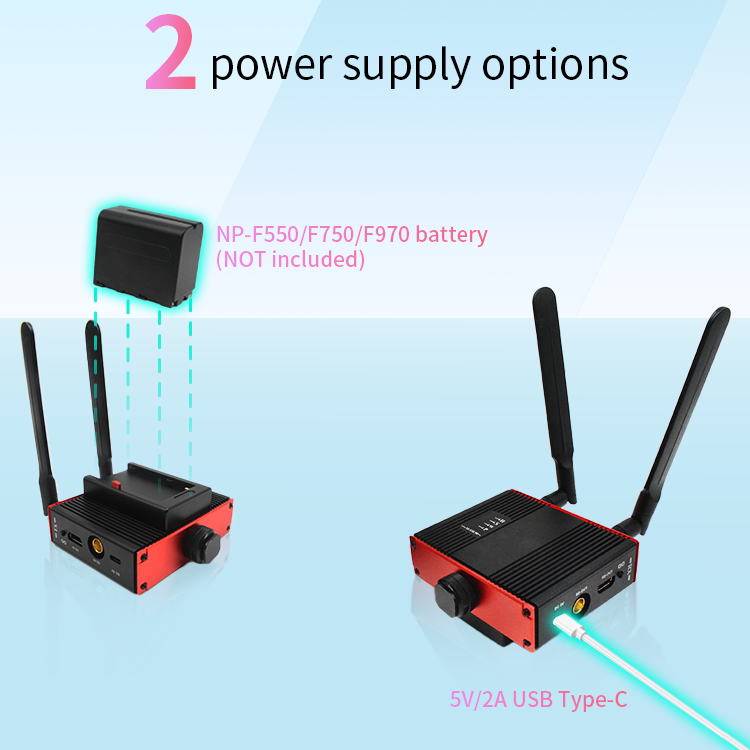

7. Support NP-F series battery: NP-F550 (2400mAh); NP-F750(4400mah)； NP-F970(6600mah)

8. Built-in ESD protection system

9. Simple to install, plug and play

Specification

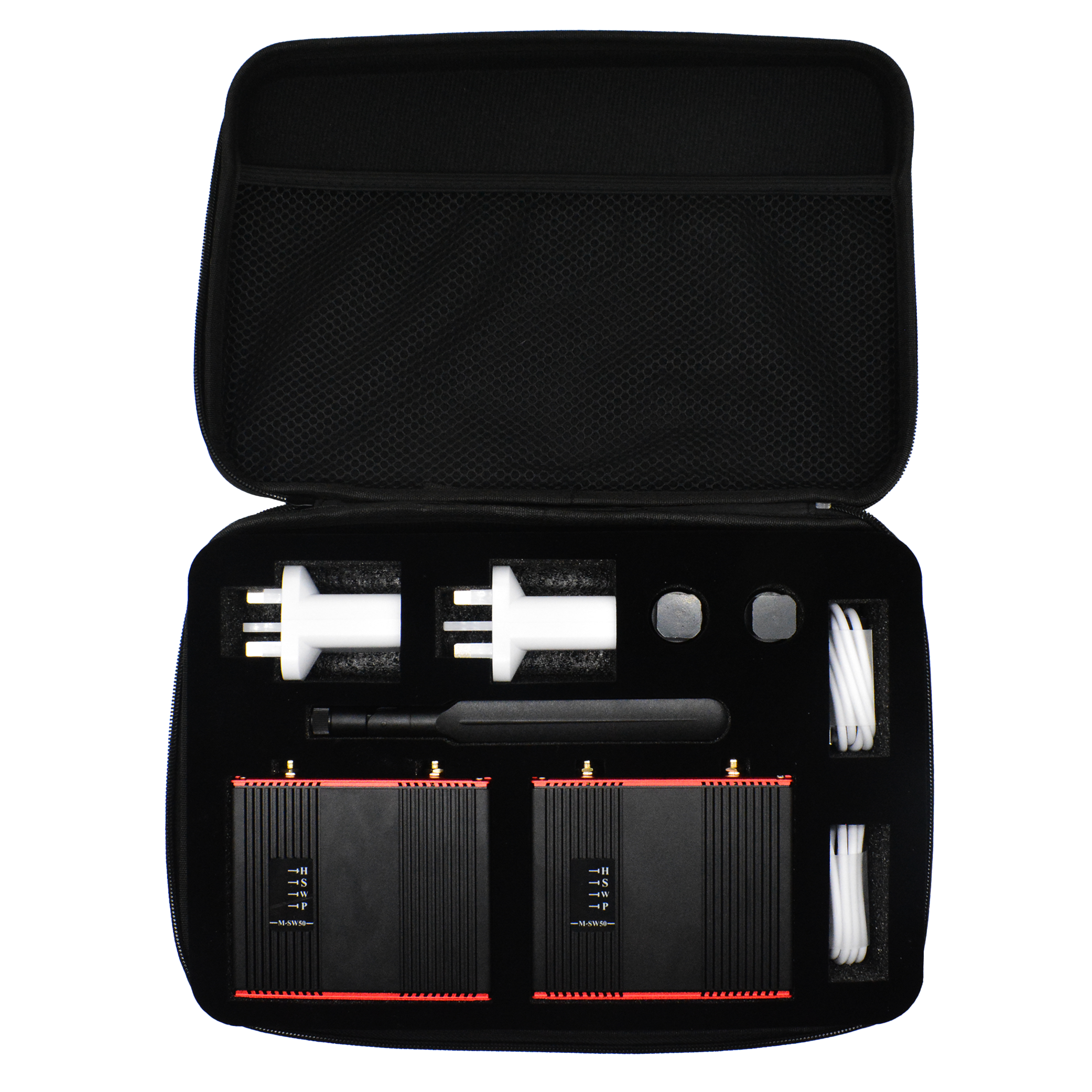

Package

1. Transmitter                         x1 pc

2. Receiver                               x1 pc

3. Antenna                               x4 pcs

4. Power adapter                    x2 pcs

5. SDIcable                               x1 pc

6. User Manual                        x1 pc

*The battery is not included

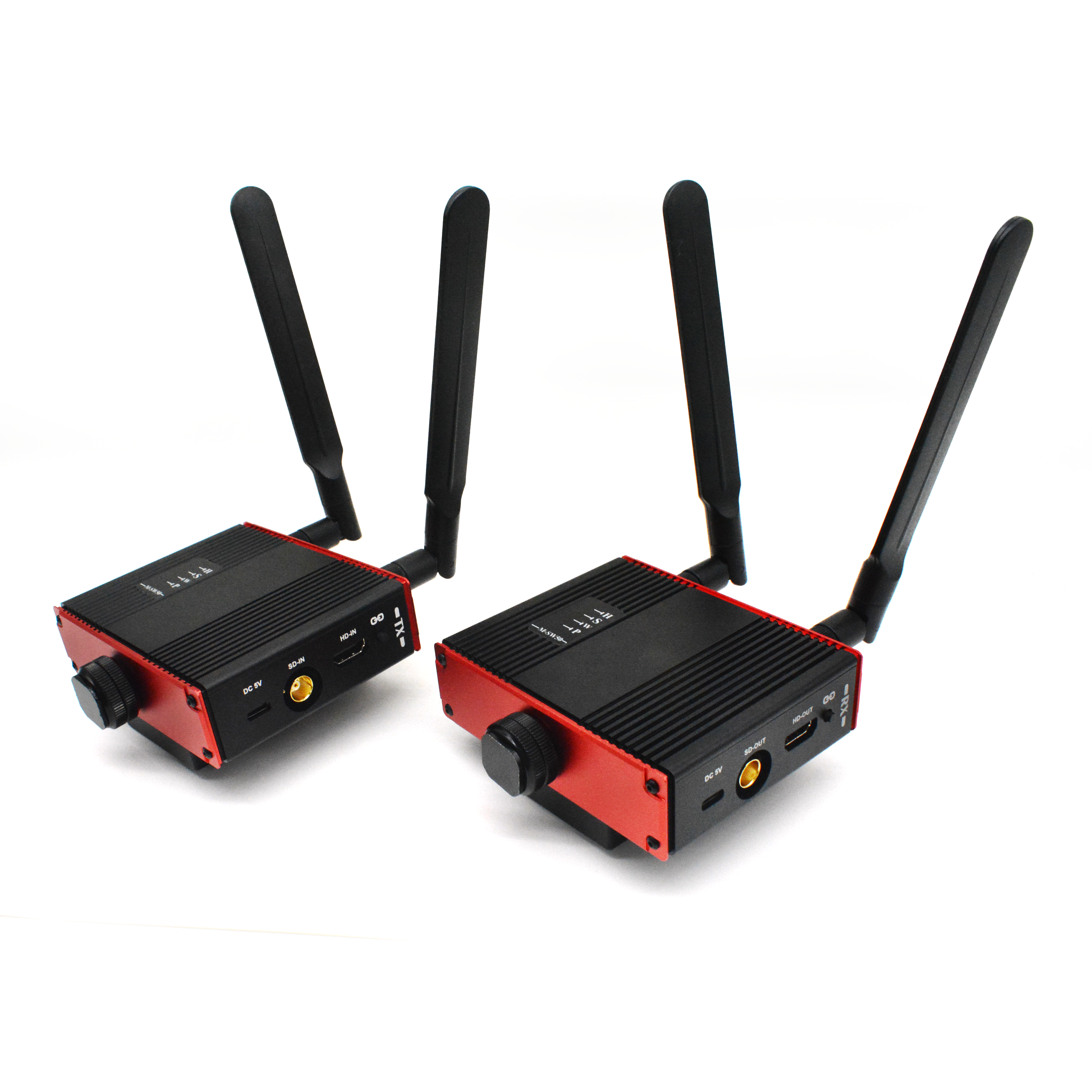

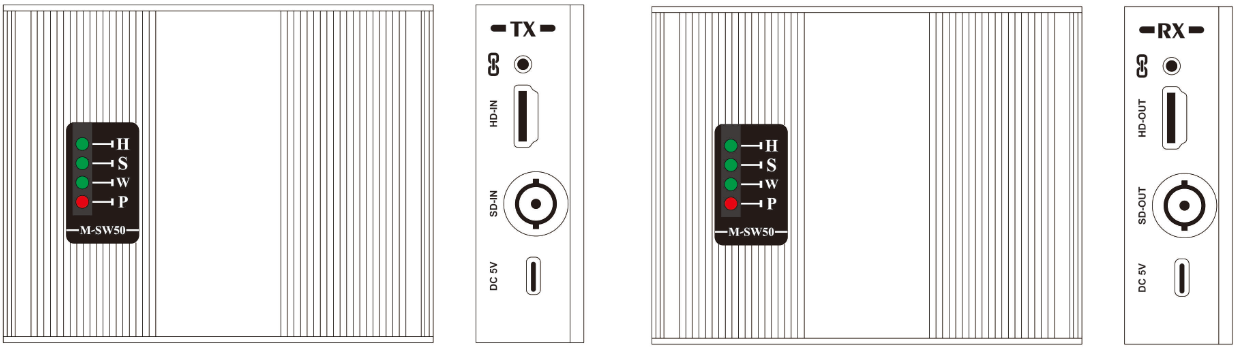

Product Interface

TX                                                                               RX

TX: Transmitter

RX: Receiver

Port name	Description
SD IN/HD IN/SD OUT/HD OUT	SDI/HD signal input/output
DC/5V	USB type-C power input
	Pairing/channel switching
LED indicator	Description
H (HD)	HD signal indicator (always on)
D (SDI)	SDI signal indicator (always on)
W (WIFI)	WIFI signal indicator (Flash: Connection successful；always on：Not connected)
P	Power indicator (always on)

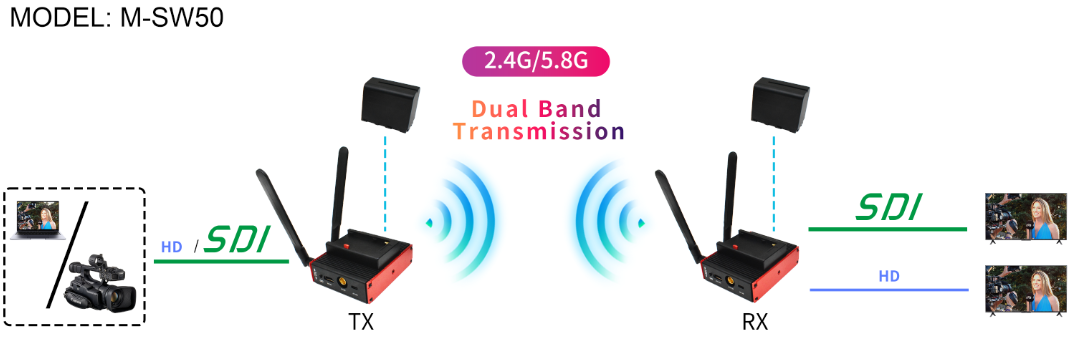

Installation Process

1. Connect TX to the power supply, both P/W lights up; Connect SDI/HDMI signal source (can only recognize
    one signal; default SDI input)

2. Connect RX to the power supply, both P/W lights up; Connect SDI/HDMI display device, support SDI/HD
    output at the same time

3. Connect TX and RX, when the indicator light P stays on, the light W flashes rapidly, the corresponding S/H
    light is on, the system is working normally.

Pairing mode

a. One to one, paired well before leaving the factory

b. When one to many, you need to pair according to the following steps:

1. Power on TX and RX, wait for 10-20 seconds, P (red light) and W (green light) of TX and RX will be on for a
    long time; When powered on, press the pairing keys of TX and RX separately until the W light flashes quickly.

2. Connect the HD cable between the HD-OUT of RX and the HD-IN of TX (Note: the HD cable is connected to
    RX first and then TX); At this time, the W (green light) of RX will change from flashing to stay on, and the W
    (green light) of TX will flash, pairing is successful.

3. When pairing, the W of RX keeps flashing for more than 5 seconds, which may indicate pairing failure.
    Please power off and re-pair.

4. Note: After successful pairing, power on again and normal connection for use.

Trouble shooting

a. When RX and TX are not connected to WIFI signals, it will show "Searching TX";

b. When TX is connected to RX, but TX does not detect HDMI input signal, it will show "Check TX’s input
    signal"；

c. When the resolution is not supported, it will show "Not supported, change source resolution!".
