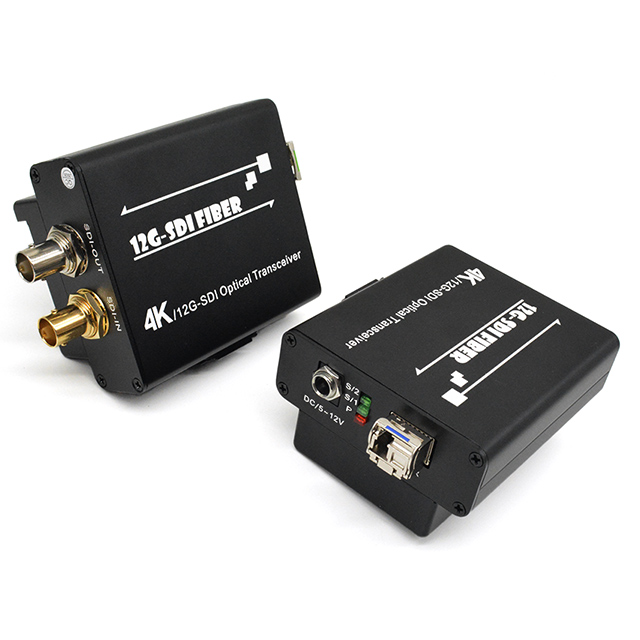

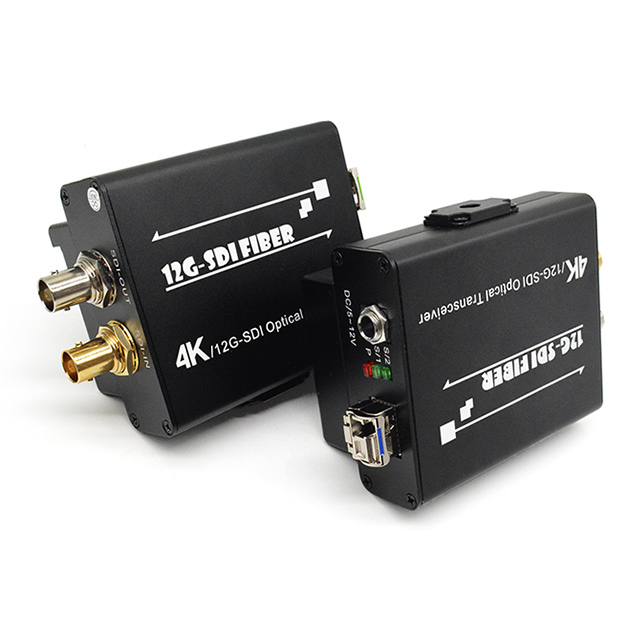

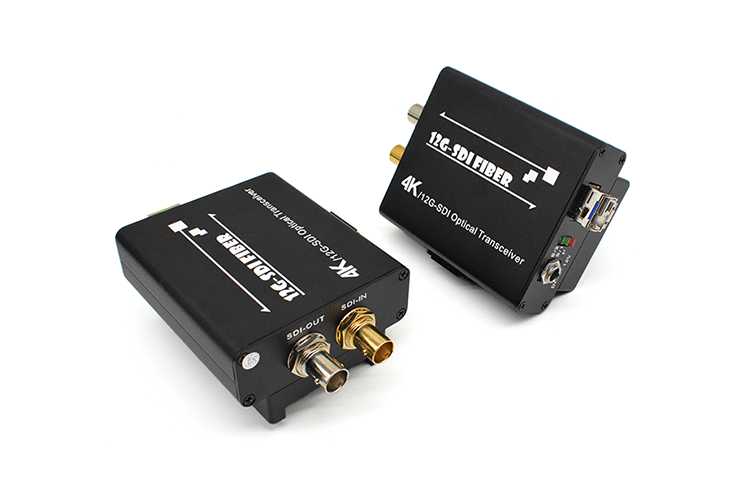

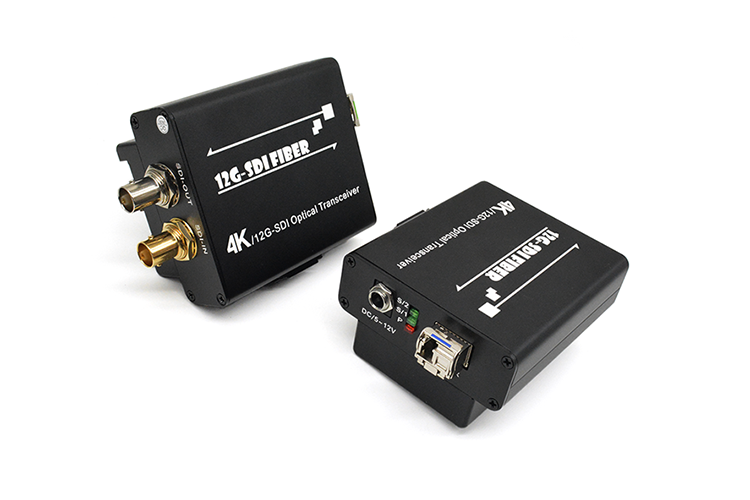

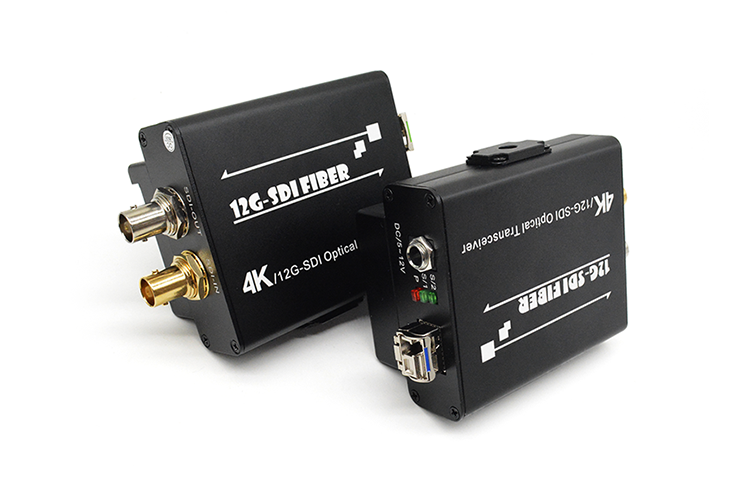

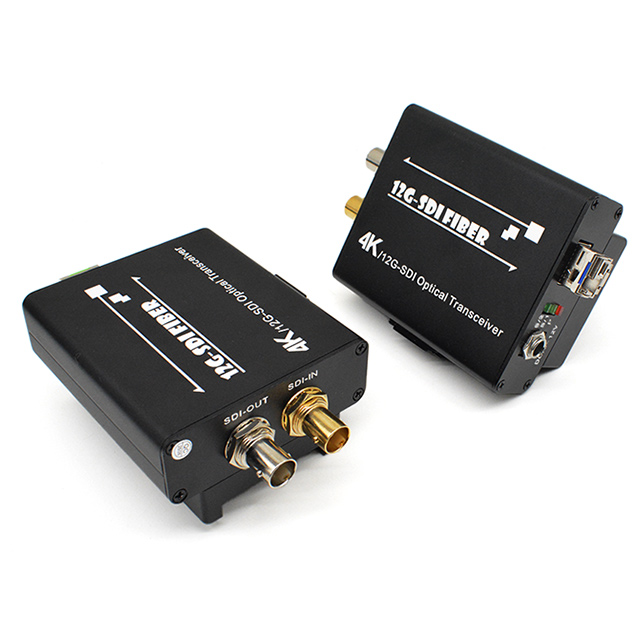

M-SD200A PRO 4K/12G Bi-directional SDI Fiber Extender
50 Reviews
The M-SD200A PRO fiber extender transmits 4K/12G SDI signal over long distances via a single fiber, support 16-channel embedded audio synchronization function; The multi-rate 12G-SDI interface is compatible with all SD, HD and Ultra HD formats and devices, up to 2160P@60Hz, including Class A and Class B devices.
The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low cost optical cable widely used in computer networks to transmit SDI. It can also be equipped with moblie batteries (optional).
The device has excellent image processing and output capabilities, enabling signal transmission smoother and more stable, it is a reliable, high-performance, Efficient 4K/12G-SDI signal extension method.
The M-SD200A fiber extender transmits 4K/12G SDI signal over long distances via a single fiber, support 16-channel embedded audio synchronization function; The multi-rate 12G-SDI interface is compatible with all SD, HD and Ultra HD formats and devices, up to 2160P@60Hz, including Class A and Class B devices.
The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low cost optical cable widely used in computer networks to transmit SDI.
The device has excellent image processing and output capabilities, enabling signal transmission smoother and more stable, it is a reliable, high-performance, Efficient 4K/12G-SDI signal extension method.
Features
1. Long-distance transmission of 4K/12G-SDI video and audio signals through optical fiber, up to 20KM
2. HD video signal resolution up to 2160P@60Hz

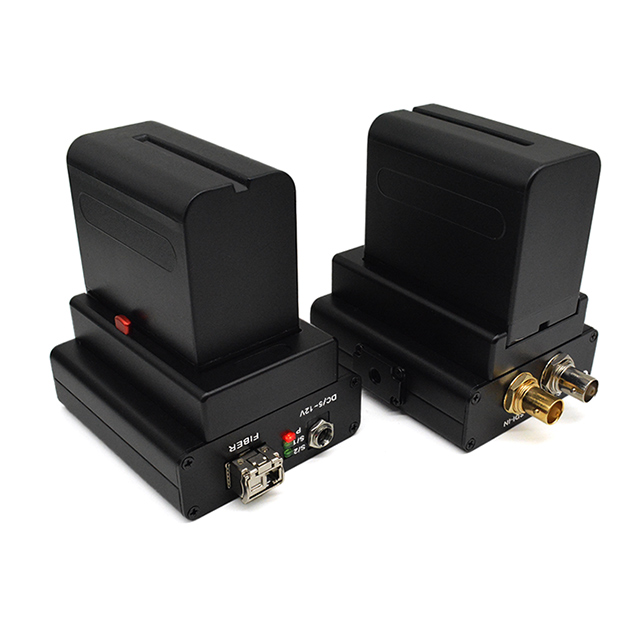

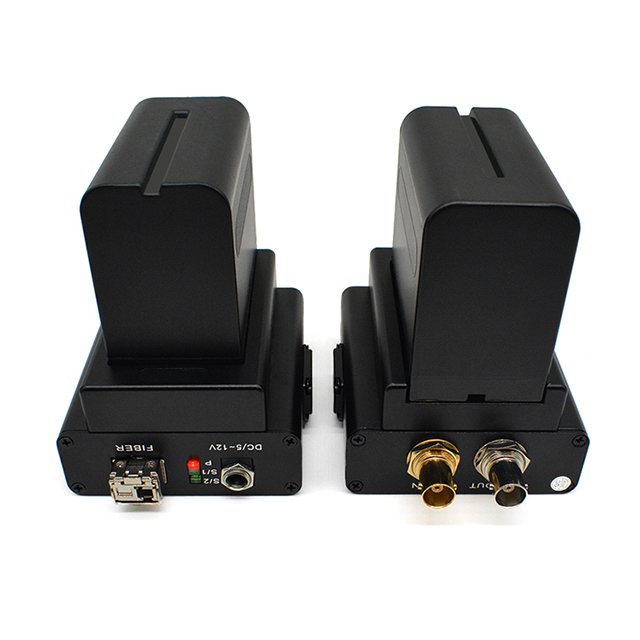

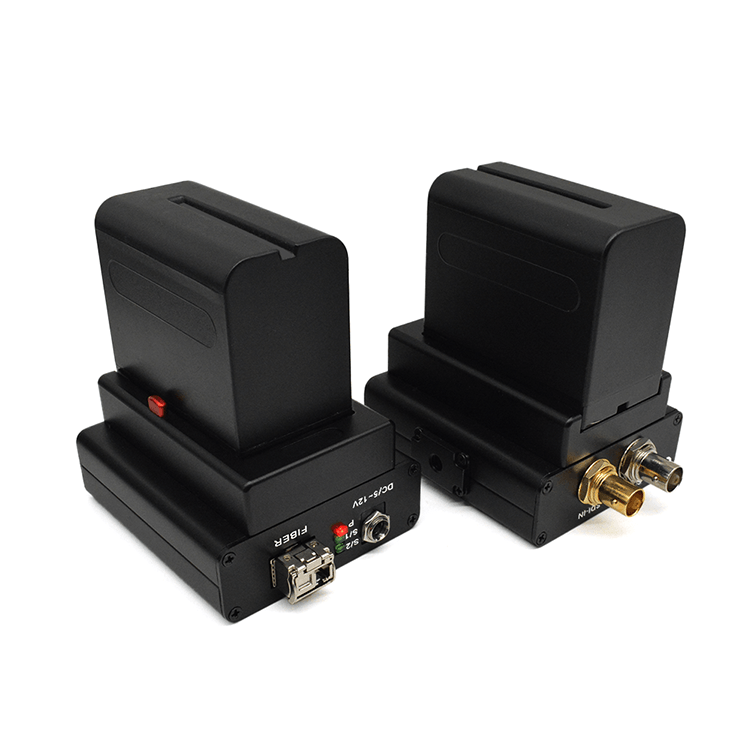

3. Support mobile battery (optional)
3. Support all-digital lossless transmission, 16-channel embedded audio and video synchronous transmission
4. Supports bidirectional transmission of 4K/12G-SDI audio and video signals
5. Support PAL/NTSC; Strong compatibility, can automatically identify and configure a variety of display modes
6. Supports plug and play and hot swap
7. Built-in automatic balancing system, the picture is smooth, clear and stable
8. Built-in ESD electrostatic protection circuit, all-round protection system
9. Easy to install, plug and play, no setup required
Specification
Parameter
Description
Video
Technical specifications
SMPTE Standards
Video bit rate
Max12 GB/s
Interface
BNC
Input/output cable specifications
≤10m（Belden 1694A Cable standard）
Video input/output impedance
75Ω
Video input/output voltage
1Vpp,Minimun：0.5Vpp/Max：1.5Vpp
SD Video format
525i59.94NTSC、625i50PAL
HD video format
720P50;720P59.94;720P60、
1080P23.98;1080P24;1080P25
1080P29.97;1080P30;1080P50
1080P59.94;1080P60;1080PsF23.98；
1080PsF24;1080PsF25;1080PsF29.97；
1080PsF30;1080i50;1080i59.94;1080i60
2K and 4K video format
2K DCI 23.98P/24P/25P;
23.98PsF;/24PsF/25PsF;
4K 23.98P/24P/25P/29.97P/30P/50P/
59.94P/
4K 60P;4K DCI 23.98P/24P/25P
Fiber
Fiber interface
LC interface
Fiber type
Single mode single fiber
Wave length
Single mode 1310nm；1270nm
Max transmission distance
Max distance up to 20KM
Other
Power supply
DC 5~12V/1A
Power dissipation
MAX 5W
Temperature
Operating: -20℃ ~ +70℃
Humidity
Operating: 0 ~ 90%
Mean time between failures
≥100000 hour
Size
82*57*27mm

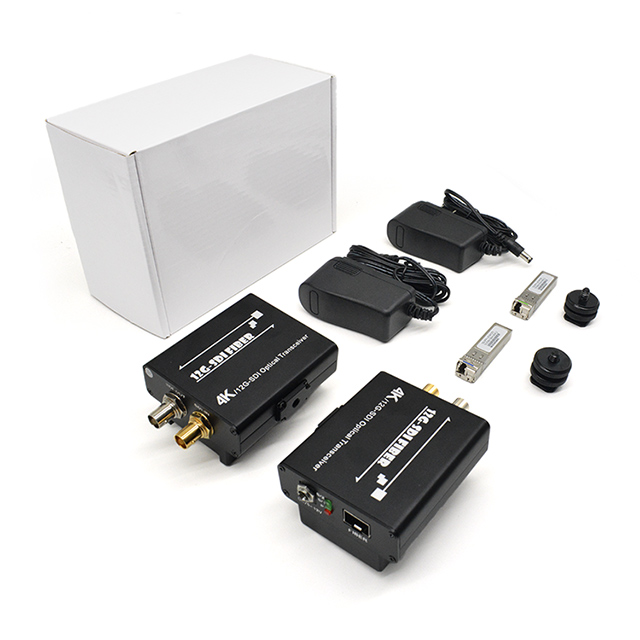

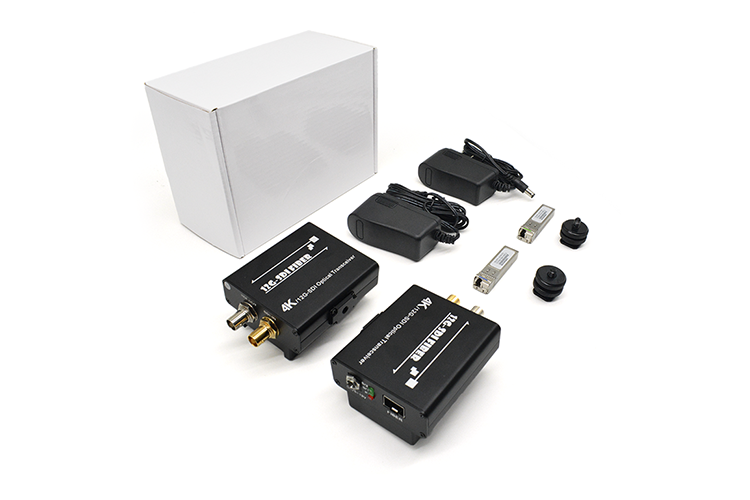

Package
1. SDI Extender transmitter x1 pc 2. SDI Extender receiver x1 pc 3. power adapters x2 pcs 4. User manual x1 pc

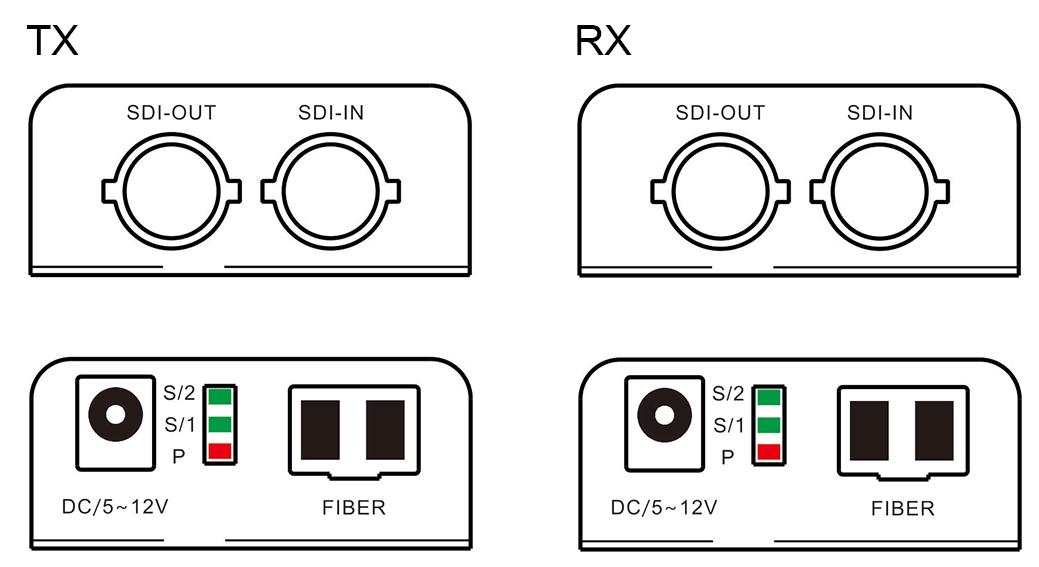

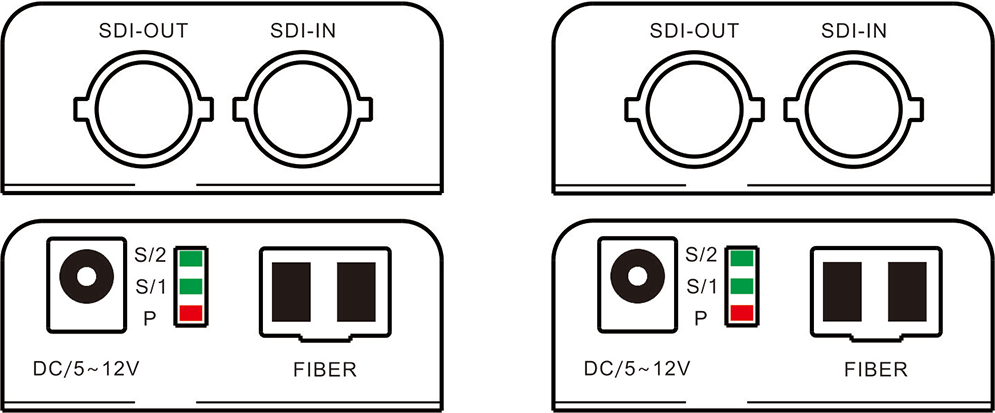

Product Interface
TX: Transmitter
RX: Receiver
Port name
Description
SDI IN/OUT
SDI signal input/output
Fiber
Fiber Interface（LC）
DC/5~12V
Power adapter socket
LED indicator
Description
PWR
unit power indicator
S/1
SDI input indicator Light (Long on: working normally)
S/2
Fiber optic communication indicator light (Long on: working normally)

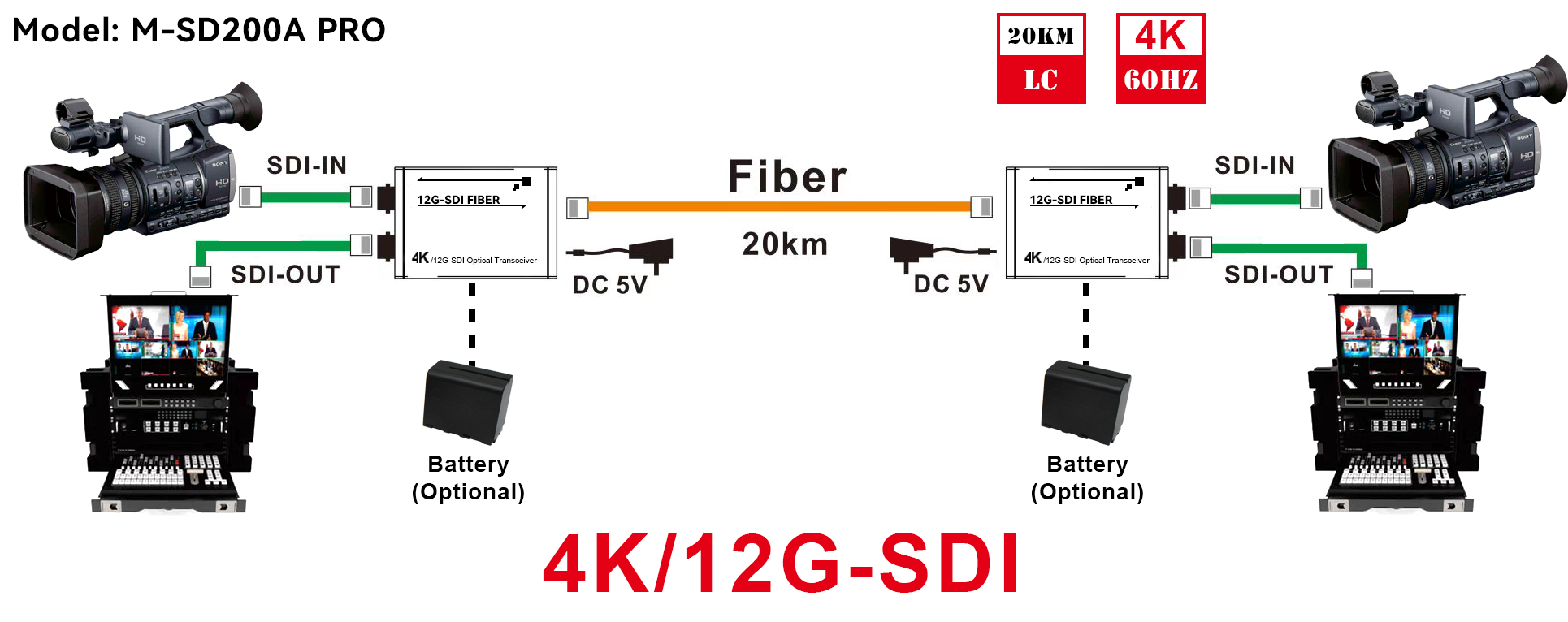

Installation Process:
1. Connect the SDI signal source to the SDI extender transmitter; Input port (SDI IN)
2. Connect the SDI extender receiver to a display device (e.g., SDI matrix, live stream,monitor, etc.)
3. Use single-mode optical fiber to connect the optical fiber interface of the sending end and the receiving end
4. Connect the sending end and the receiving end to the power supply. When the indicator lights on normally, the system runs normally
Troubleshooting
1：The red light (PWR) is not on or the brightness is low; Check whether the power adapter worksproperly.
2：When the green light (S/1) is not on; Check whether the signal source is started or has no output; Lighting indicates normal operation.
3：When the green light (S/2) is not on; Check whether the optical fiber module is in normal contact; No signal coming from the optical fiber module, green light (S/2) is not on; Long lighting indicates that the extender work properly.
4：If there is no image display, check whether the display has selected the correct channel input.
