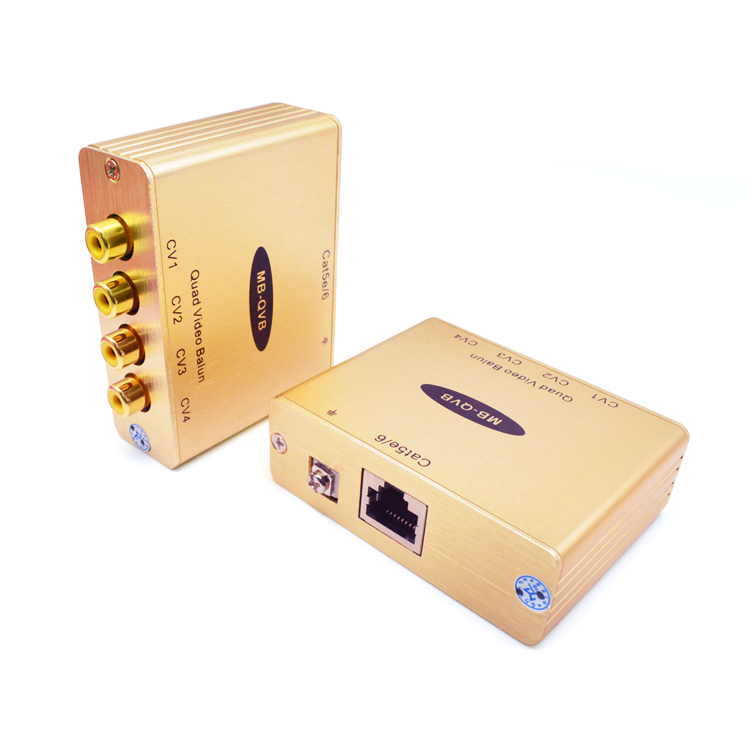

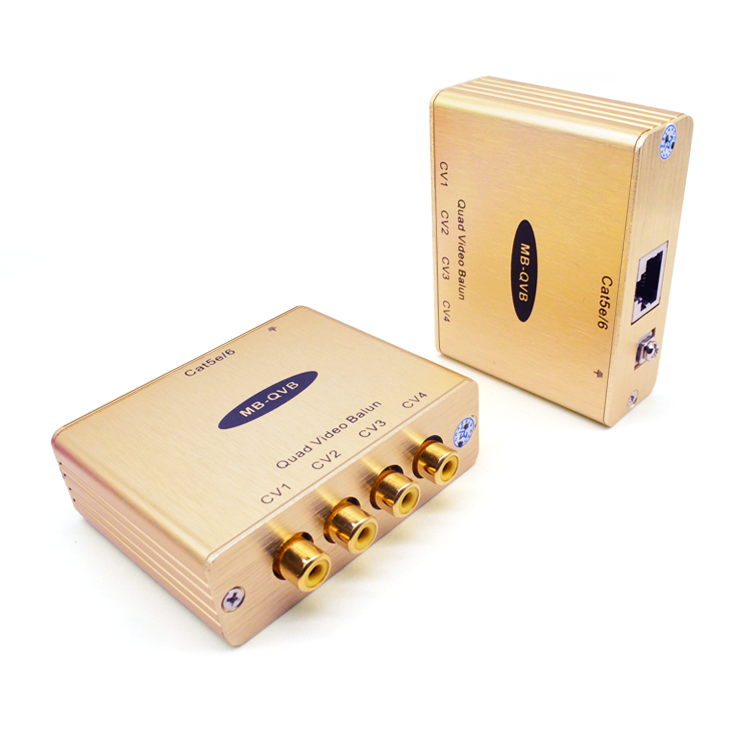

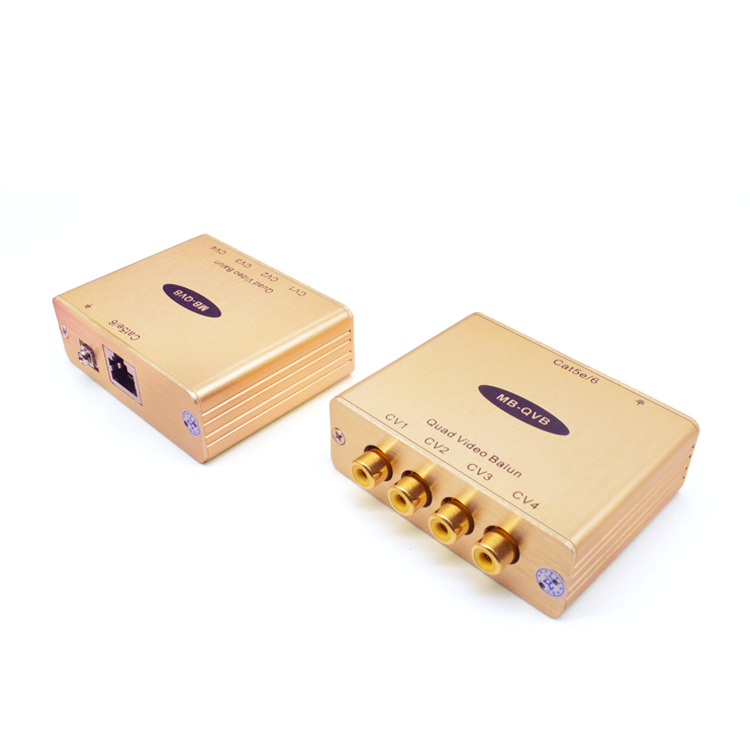

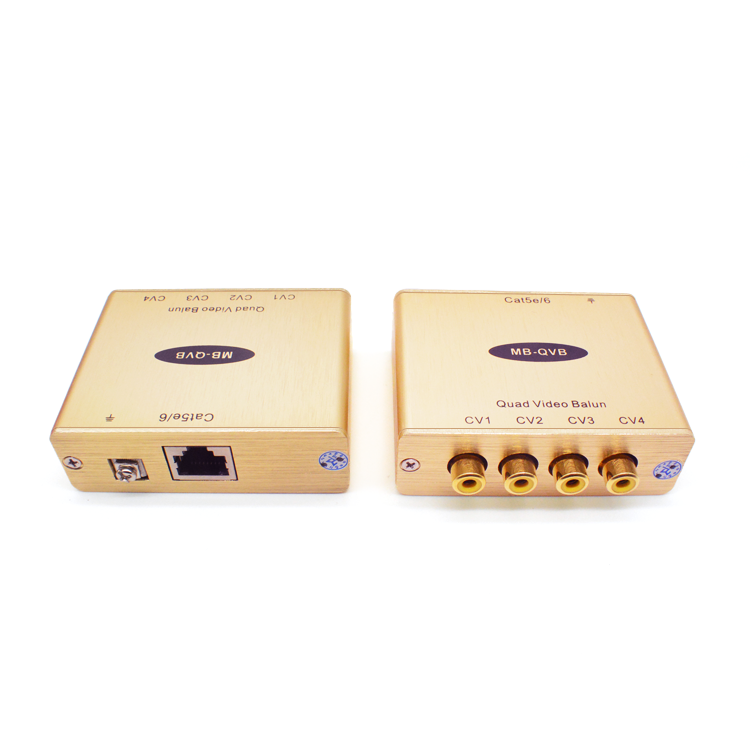

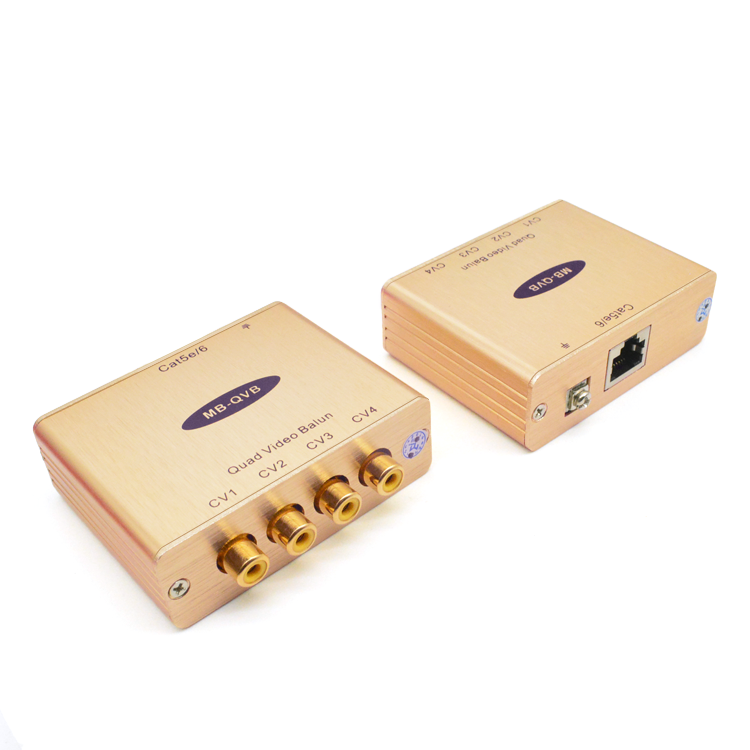

The Quad Video Balun allows up to four composite video signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
Used in pairs, the Quad Video Balun allowing video equipment to be connected via space-efficient and cost-effective Category 5/6 twisted pair cable.
The Quad Video Balun supports NTSC, PAL, SECAM video formats for classroom video, commercial and Home video systems, hospital video training,video conferencing, podium presentation Systems and video kiosks applications and so on.
The Quad Video Balun allows up to four composite video signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
Used in pairs, the Quad Video Balun allowing video equipment to be connected via space-efficient and cost-effective Category 5/6 twisted pair cable.
The Quad Video Balun supports NTSC, PAL, SECAM video formats for classroom video, commercial and Home video systems, hospital video training,video conferencing, podium presentation Systems and video kiosks applications and so on.
Features
Supports NTSC, PAL, SECAM video

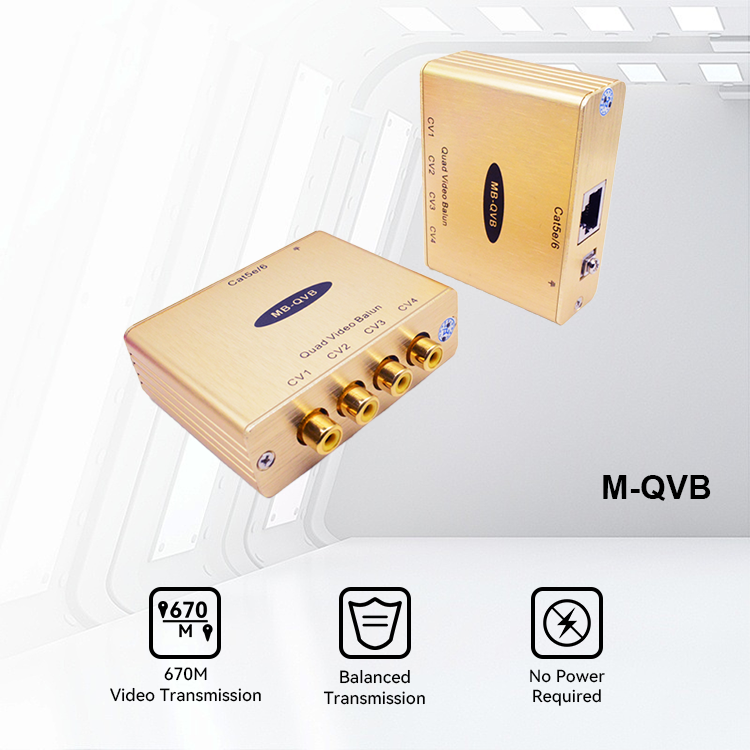

Composite video up to 2,200 ft (670m) via Cat5e/6
Cost-efficient cabling
Quicker moves, adds and changes
Specification
Environment
Composite video. NTSC, PAL, SECAM.
Devices
DVD players, cable boxes, video distribution amplifiers, security video cameras, digital video recorders and other composite video equipment.
Transmission
Transparent to the user.
Bandwidth
0-6 MHz, 3 dB roll off
Maximum Input
1.1Vp-p
Impedance
75 ohms
Insertion Loss
Less than 3 dB per pair over the frequency range from DC to 6 MHz
Return Loss
Greater than 15 dB over the frequency range from DC to 6 MHz
Common Mode Rejection Ratio
Greater than 40 dB over the frequency range
Max. Distance Color via
Cat 5E/6 UTP/STP Cable
2,200 ft (670 m)
Pin Configuration (RJ45)
Video 1: Pins 7 (R) & 8 (T) Video 2. Pins 3 (R) & 6 (T)
Video 3: Pins 4 (R) & 5 (T) Video 4: Pins 1 (R) & 2 (T)
Cable: Cat 5E/6 UTP/STP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors
Four RCA-F connectors for Composite video
RJ45 for twisted pair
Temperature
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Aluminum alloy
Dimensions(packaging)
155mm*80mm*30mm (including one pair of Balun)
Weight(packaging)
240g
Applications
Security video, classroom video, commercial
Home audio/video systems, hospital video training,
Video conferencing, podium presentation systems and video kiosks.

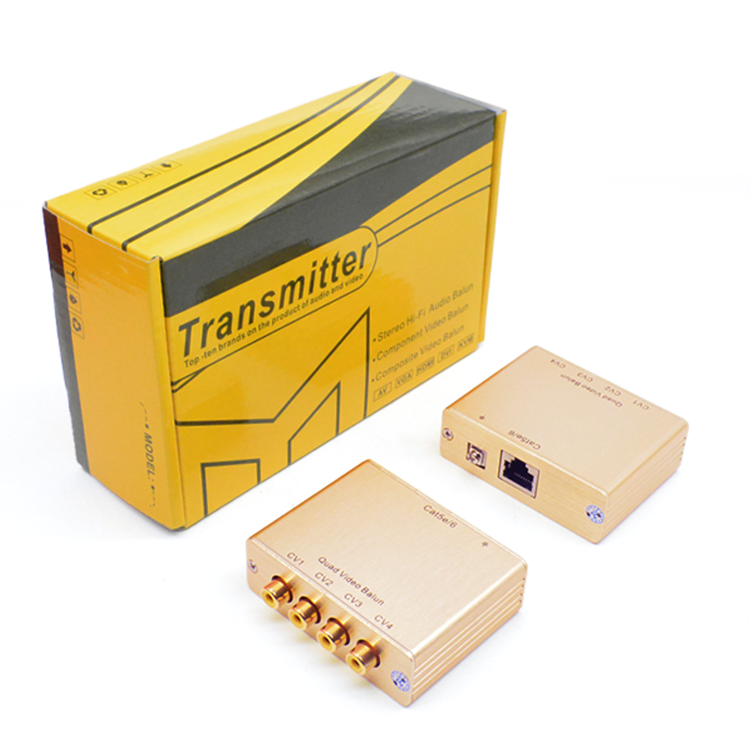

Package
1. Audio Balun x2 pcs
2. User Manual x1 pc

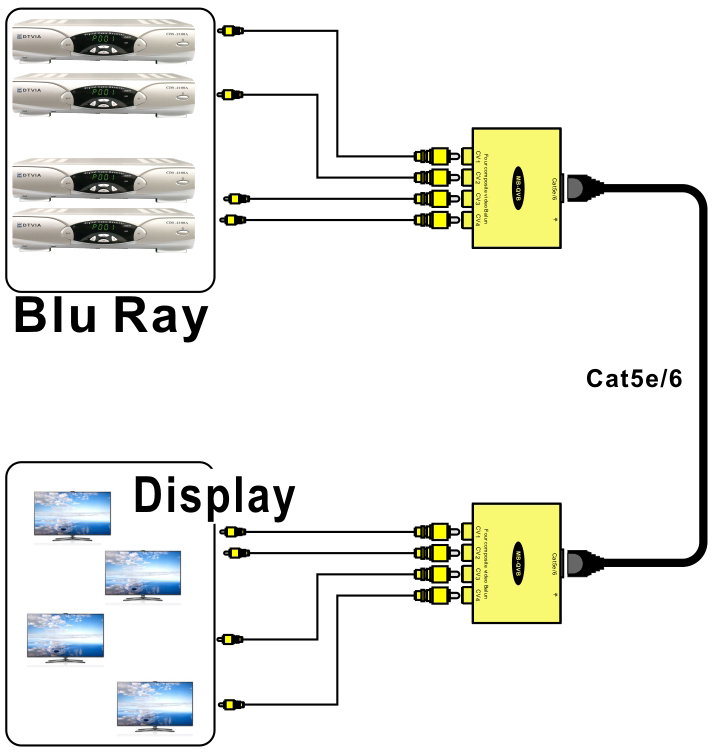

Installation Process
1. Plug the RCA connectors of the transmit Balun into the Videooutputs of the source component you wish to transmit.
2. Plug the Video connectors from the receive Balun intoyour desired input component.
3. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.
