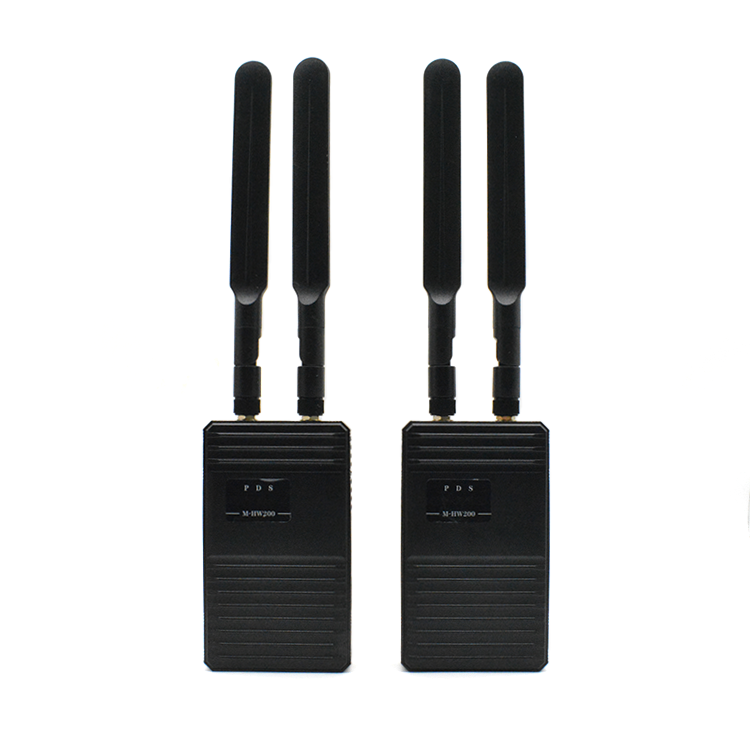

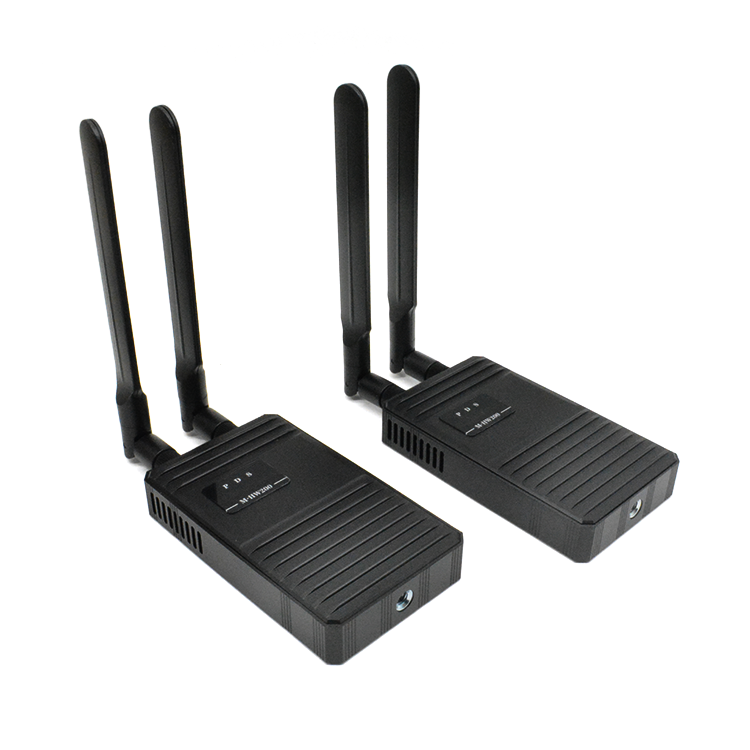

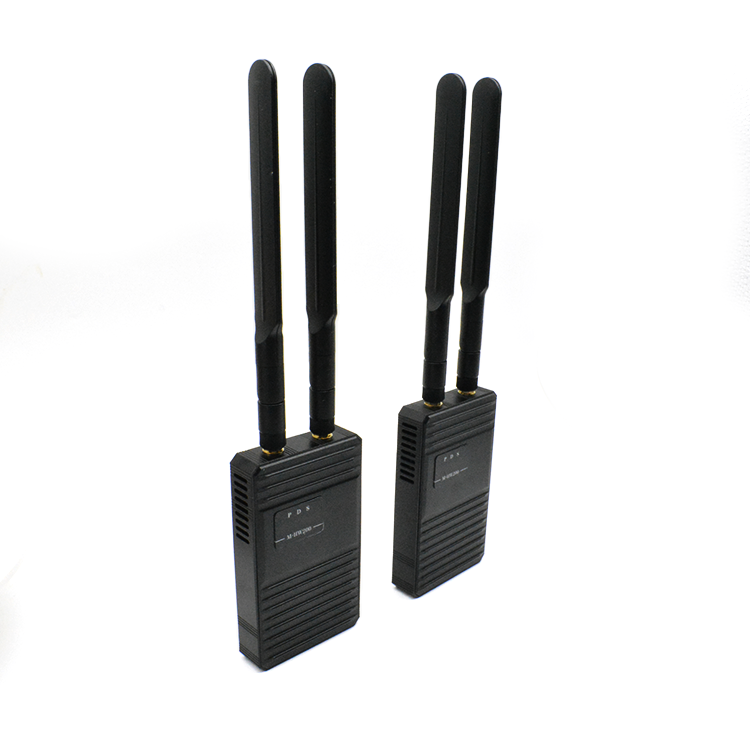

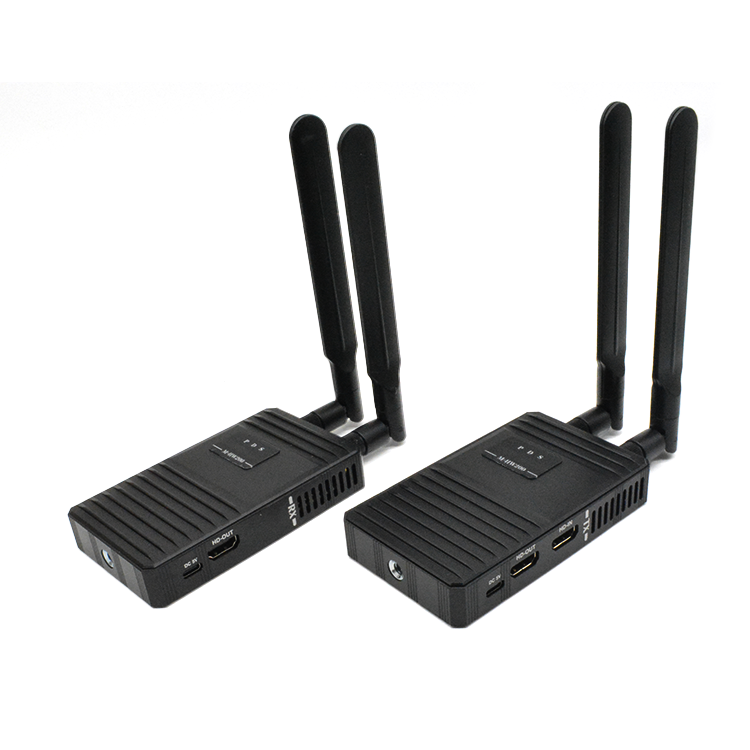

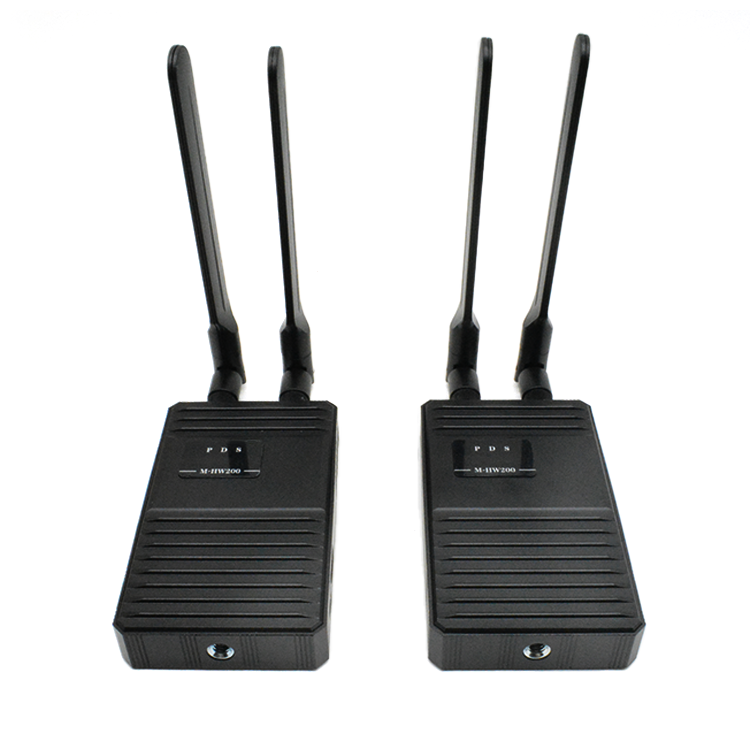

M-HW200 features a compact and durable casing with built-in ESD protection. It adopts stable 5.8G wireless transmission, supports 1-to-4 expansion, and comes pre-paired for easy plug-and-play use.
The complete set includes transmitter, receiver, antennas and adapters, suitable for home theater, conference and live streaming scenarios.
M-HW200 Wireless HD Extender transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments.
The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient High-Definition signal extension mode.
Features
1. Transmit High-Definition video and audio signals over 5.8G wireless up to 200m (656ft)
2. Support video resolution up to 1920*1080P@60Hz
3. Supports one TX and one RX, support one TX and four RX at most
4. The special format H.264 is used to compress and decompress the video, improve the transmission efficiency and make the playback more smooth
5. Compliance with HD 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in ESD protection system
8. Simple to install, plug and play
Specification
Description
Parameter
Video
Standards
HD 1.3; HDCP 1.2
Compression format
H.264
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920X1080P@60Hz
Connector
HD-A
Impedance
100Ω
Transmission delay
0.08 seconds
Recommended max HD cable Input/Output distance
＜5m, when 1920*1080P@60Hz
WIFI
RF power
21dbm
Wireless standard
802.11a、802.11n、802.11ac
Signal direction
unidirectional
Frequency
5150~5250MHz、5475~5850MHz
Transmission distance
200m in open environment
Modulation mode
OFDM
Bandwidth
20MHz
Other
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
116*68*20mm

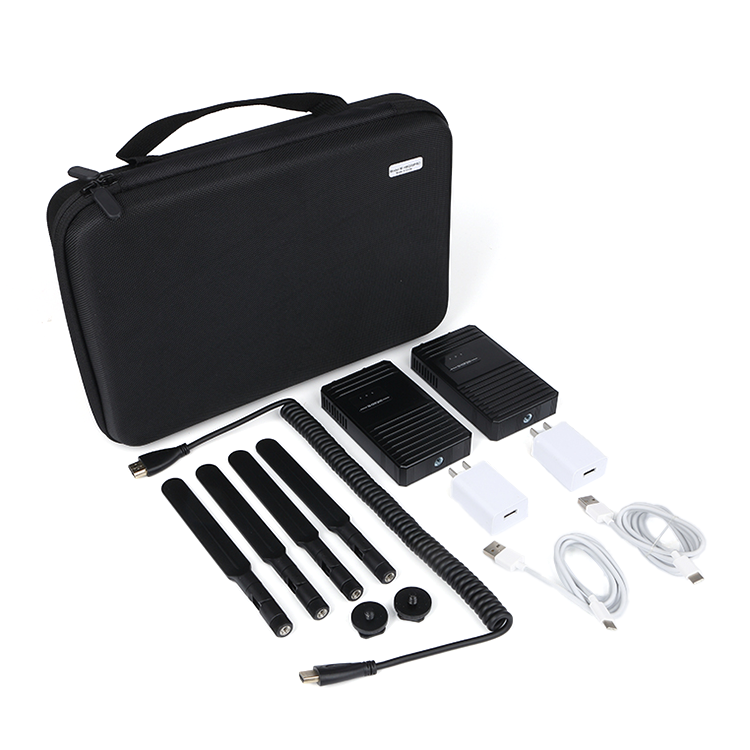

Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. Antenna x4 pcs
5. HD cable x1 pc
4. Power adapter x2 pcs
6. User manual x1 pc

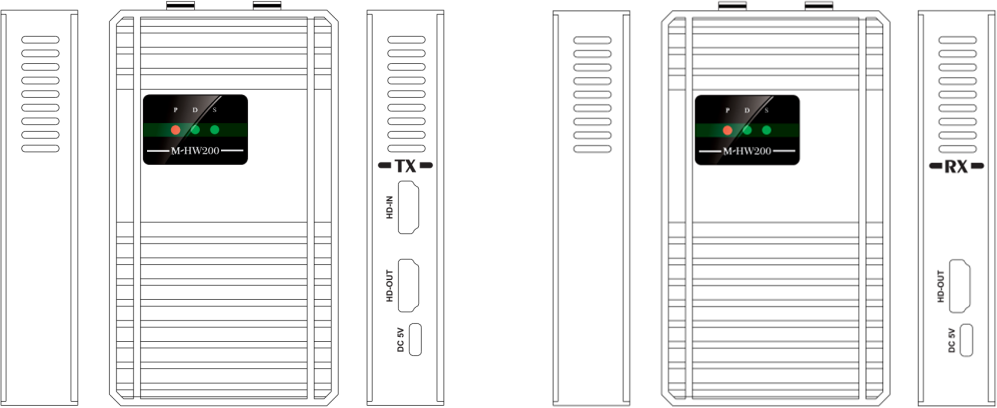

Product Interface
TX (Transmitter) RX (Receiver)
Port name
Description
HD IN/OUT
HD signal input/output
DC/5V
USB type-C power input
LED indicator
Description
D
Connection indicator (flash pairing successful)
S
HD signal indicator (always on)
P
Power indicator (always on)
Installation Process
1. Connect the High-Definition signal source to the HD-IN port of transmitter
2. Connect the HD-OUT port of receiver to the display device (such as HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
