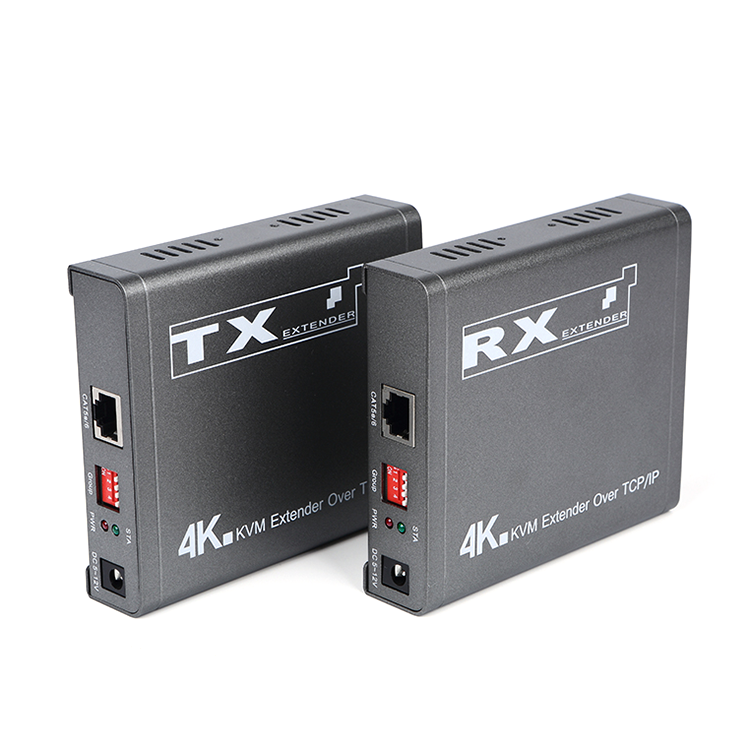

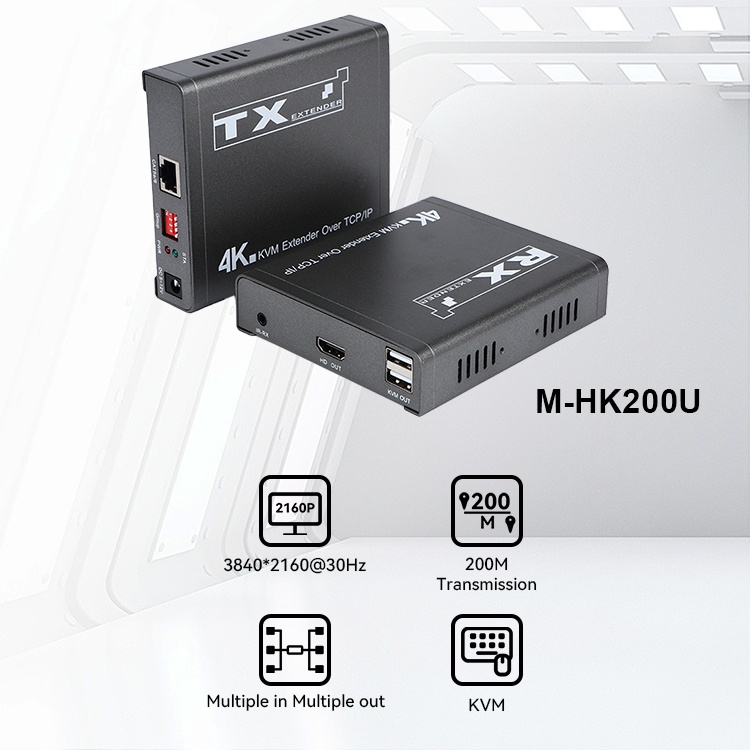

M-HK200U HD+KVM Extender over Cat5e/6

Introduction

This HD extender adopts the standard Ethernet TCP/IP protocol, with H.265 technology made of a high quality
network extender.

It has long distance transmission of high-definition audio and video signals through a single network cableand
and can be achieved by Ethernet network one-to-many, many-to-many, many-to-one applications, at the same
time, the attached infrared extension function makes remote control more convenient.

The device has excellent image processing and transmission capabilities, so that the signal transmission is more
smooth and stable, is a cost-effective HD signal network extension transmission mode.

Features

1. HD video and audio signals are transmitted over long distances of up to 200 meters over a network cable

2. High definition video signal resolution up to 3840*2160@30Hz;

3. Using H.265 technology to compress and decompress video, effectively improve the transmission efficiency,
    ensure the smooth playback;

4. Compatible with HD 1.4 standard；

5. Comply with HDCP 1.4 standard - high bandwidth digital content protection technology；

6. can easily control the remote equipment;

7. Supports KVM, mouse, and keyboard control;

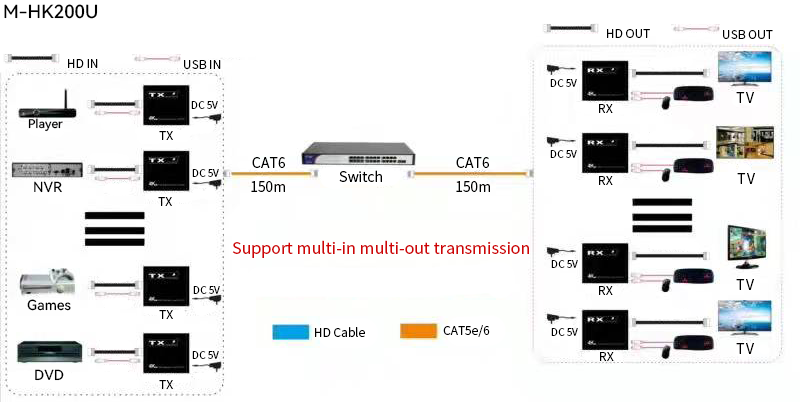

8. 1 to 1 is supported. 1 to many; Multi - in multi - out transmission with different requirements；

9. Built-in automatic balancing system, picture smooth, clear, stable;

10. Built-in ESD electrostatic protection circuit, all-round protection system safety;

11. Easy to install, plug and play, no need to set；

Specification

Package

1. HD extender transmitter                                 x1 pc

2. HD extender receiver                                       x1 pc

3. Power adapter                                                   x1 pc

4. Infrared transmitting and receiving heads   x2 pcs

5. Instruction manual                                            x1 pc

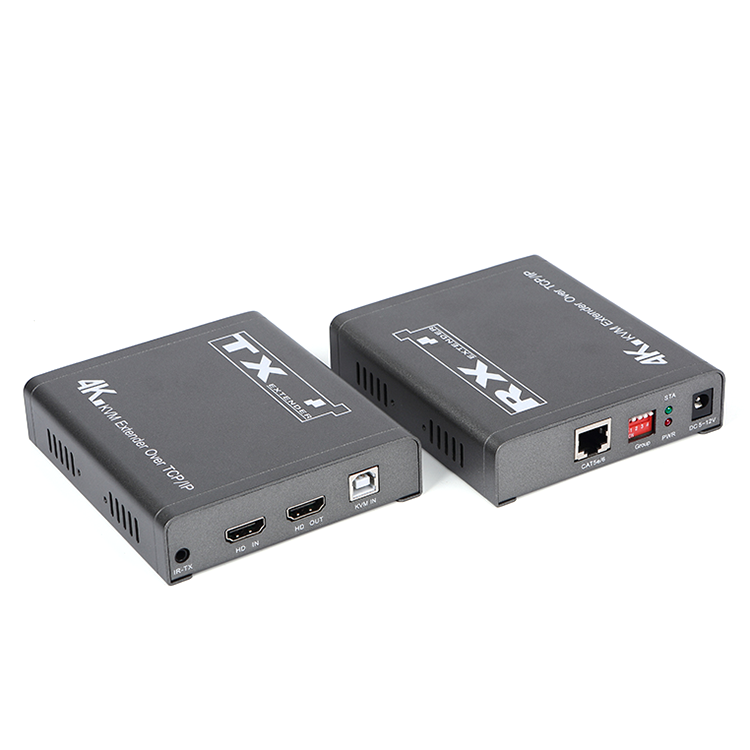

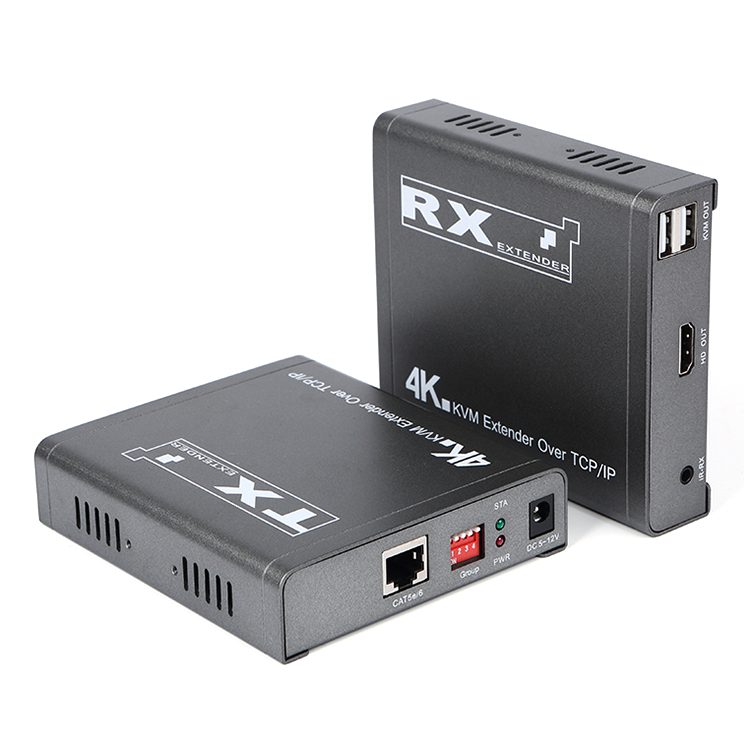

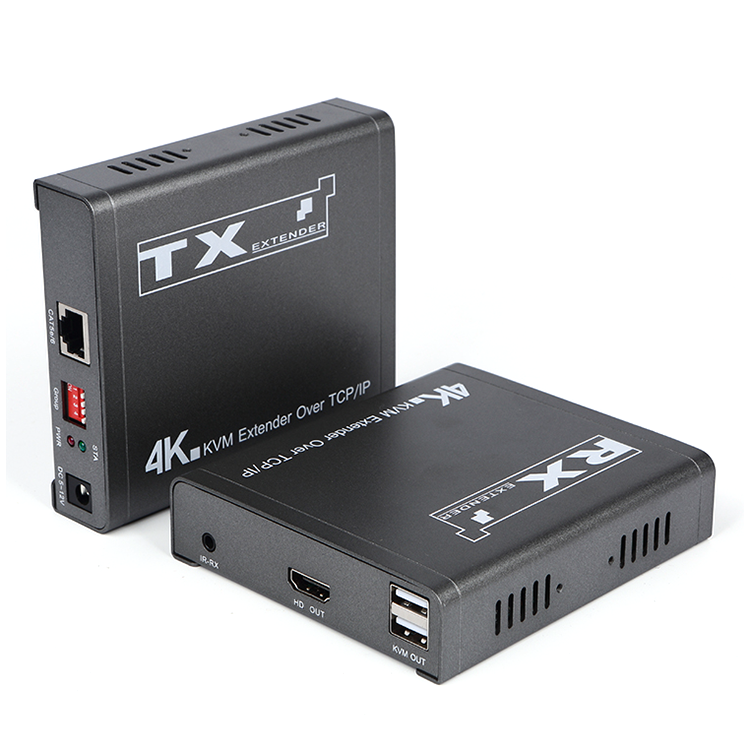

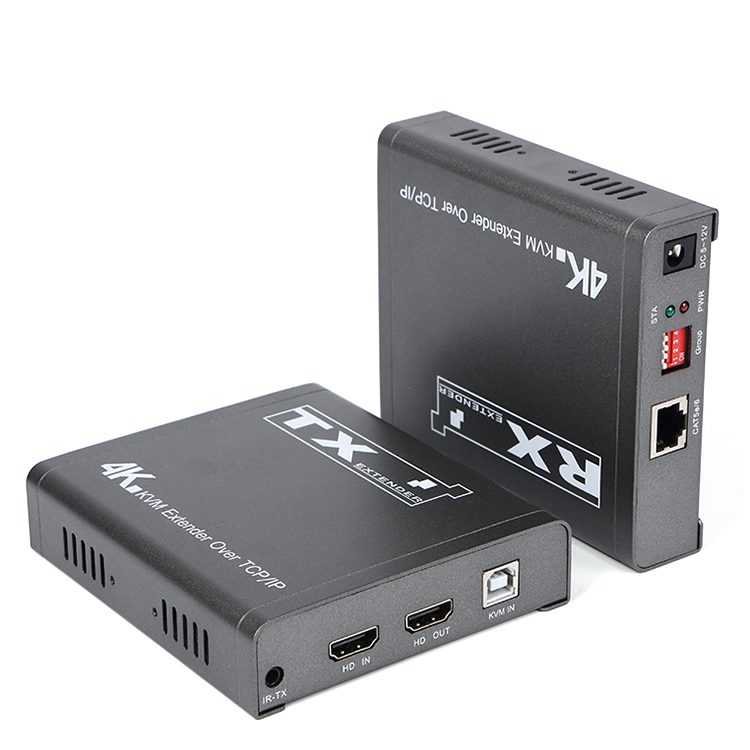

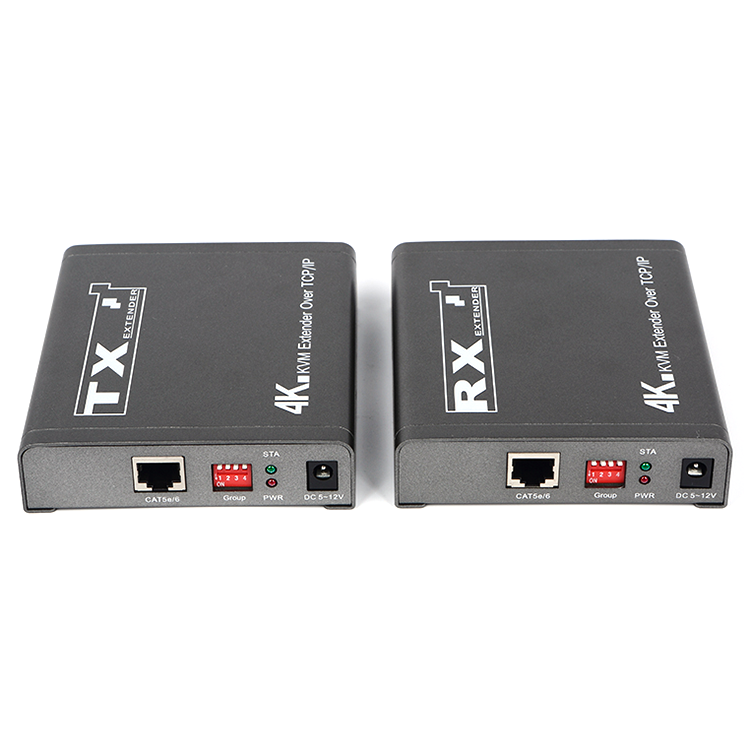

Product Interface

TX: Transmitter

RX: Receiver

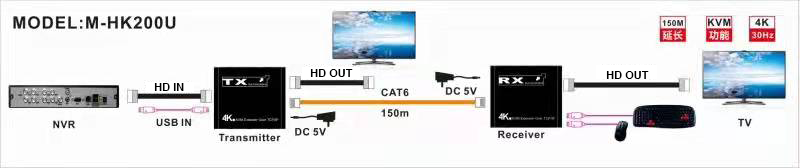

Installation Process

1. Connect the HD signal source to the sender of the HD extender

2. Connect the HD extender receiver to the display device (e.g. HD TV, splice screen, etc.)

3. Use Class 5 network cables or Class 6 network cables to connect thenetwork interface between the sending
    end and the receiving end

4. Configure the infrared backcontrol function: Connect the infrared transmitting line to the transmitting end
    of the extender, and connect the infrared receiving line to the receiving end of the extender. Align the
    infrared transmitting head with the infrared receiving port of the device to be controlled

5. Connect the sending end and the receiving end to the power supply. When the indicator lights on normally,
    the system runs normally.
