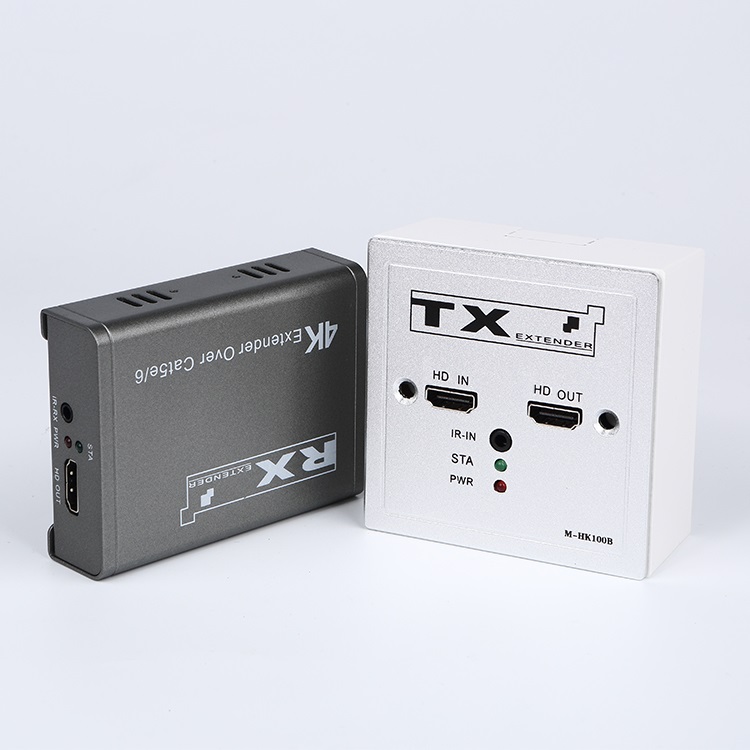

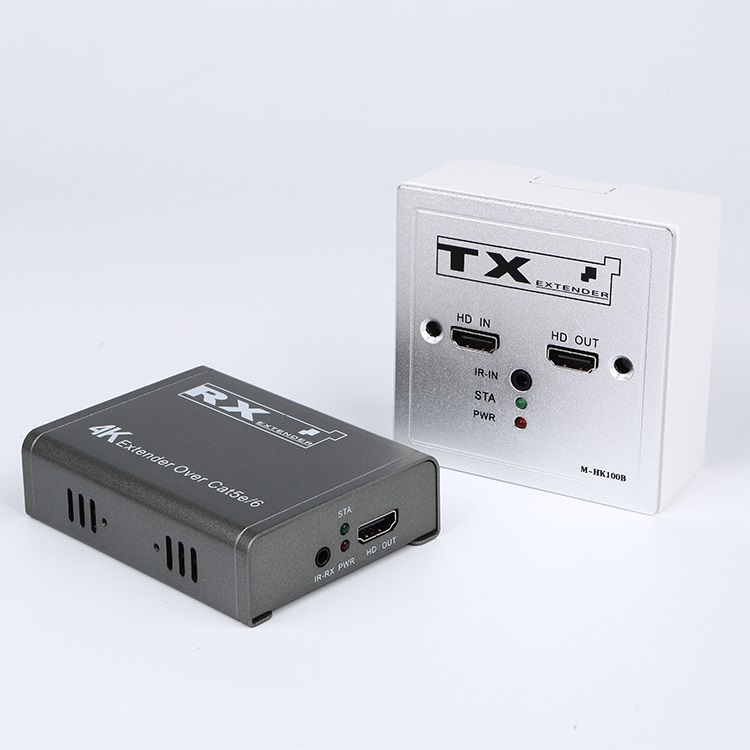

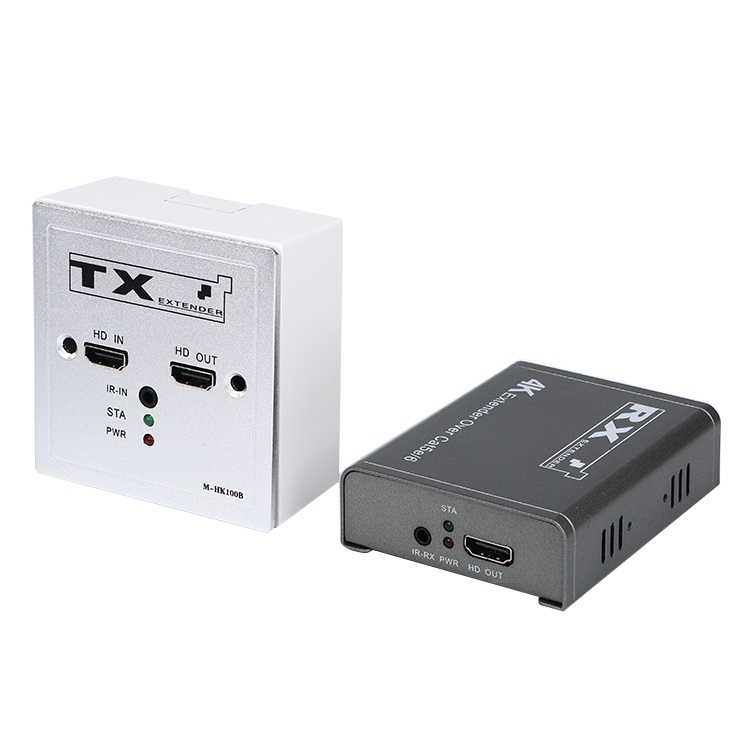

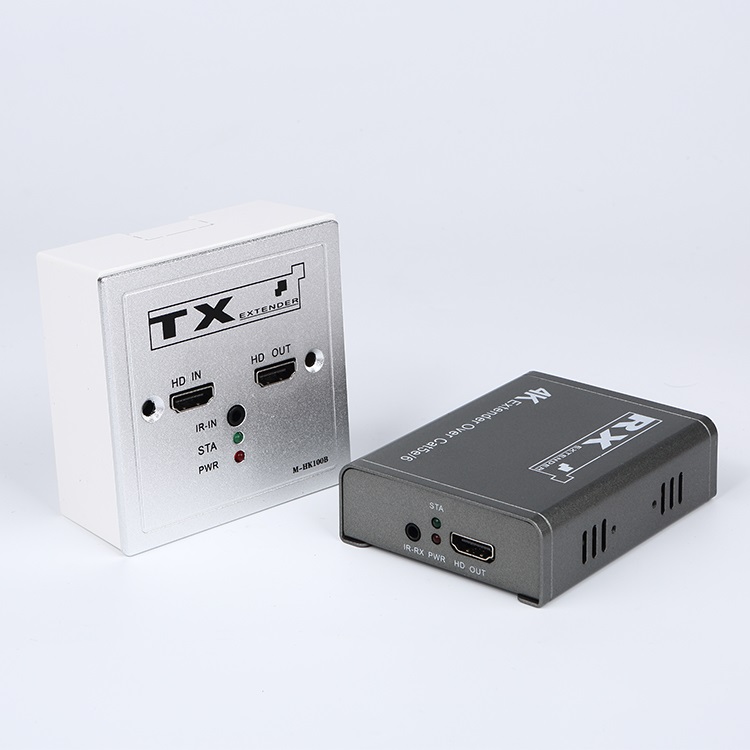

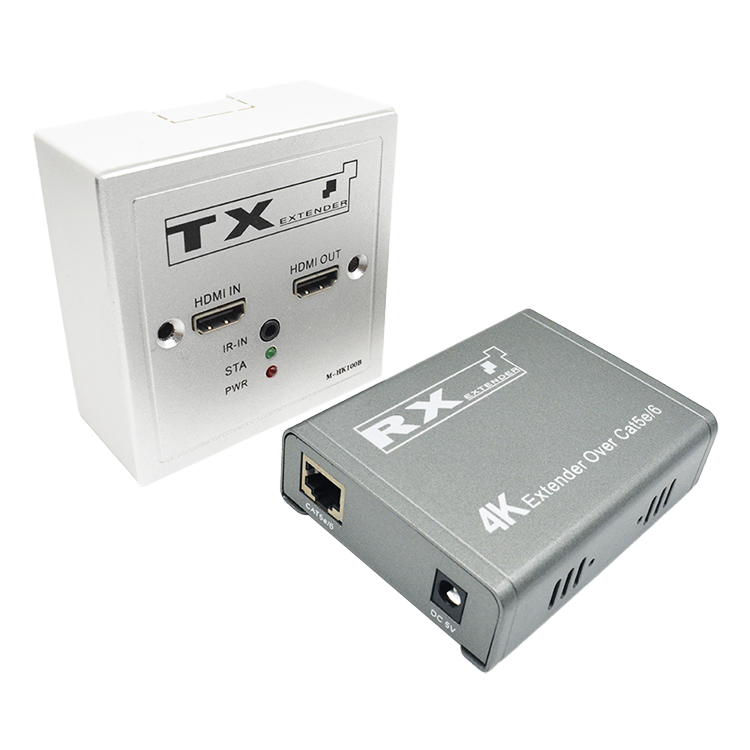

M-HK100B 4K@30Hz 100M Plug & Play Wall Plate Video Signal Extender
50 Reviews
This 86- wall plate transmitter adopts a compact 86*86mm standard design for easy wall-mounted installation. It features a sturdy structure with built-in ESD protection for stable long-term use. Supporting 4K@30Hz ultra-clear signal transmission up to 100 meters via Cat5e/6 cables, it also integrates IR control and loop output functions. With auto-matching and plug-and-play design, it is widely used in conference halls, commercial projects and multimedia systems. We support wholesale and bulk orders for global distributors.
This 4K-HD extender can transmit high definition signal of Blue-Ray DVD player, PC and other equipment via Cat5e/6 cable(recommended), support the highest resolution of 4K×2K, 1080P/4K transmission distance up to 100 meters, support infrared transmission, support loop output. The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and other places.
Features
1. Support the Max transmit distance: 1080P/4K up to 100M
2. Support the highest resolution up to 4K×2K@30Hz
3. Support HD 1.4 version
4. Support IR transmission
5. Support loop output
6. High compatibility, can auto-match source and display device
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play
Specification
Parameter
Description
Video
Standards
HD 1.4； HDCP 1.4
Maximum pixel clock
340MHz，digital
Maximum data rate
10.2Gbps
Max Resolution
3840×2160@30Hz（4K@30Hz）
Connector
HD-A
Impedance
100Ω
IR
Interface
3.5mm seat
Signal direction
Unidirectional
IR frequency
30-60KHz
UTP
Interface
RJ45
Transmission distance
1080P/4K: 100M
Other
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
86*86MM

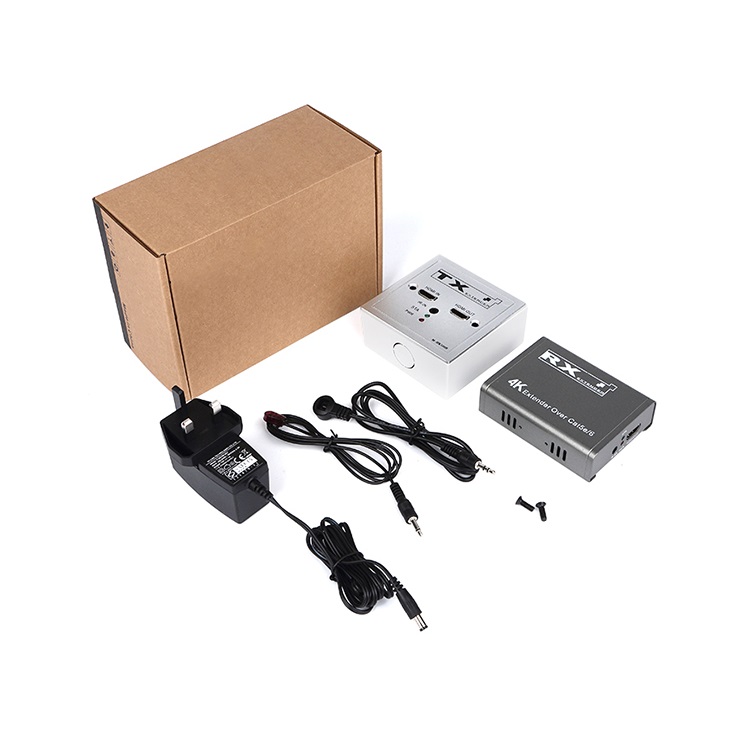

Package
1. HD transmitter x1 pcs
2. HD receiver x1 pcs
3. Power adapter x1 pcs
4. IR TX/RX terminal x 1 set
5. User manual x1 pcs

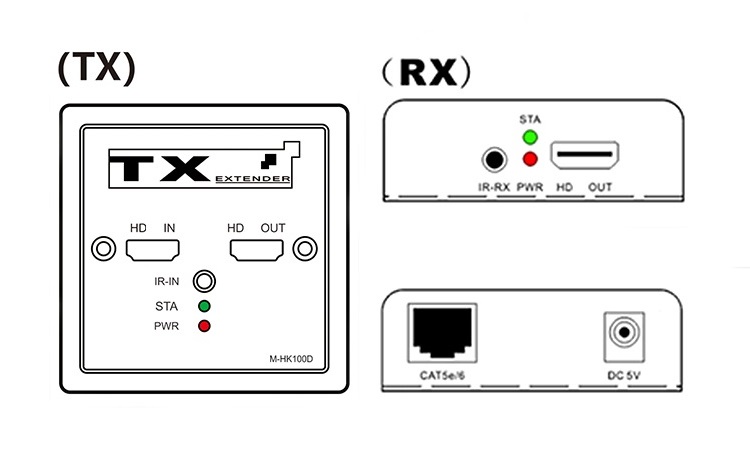

Product Interface
TX: Transmitter
RX: Receiver
Port name
Description
HD IN/OUT
HD signal input/output
Cat5e/6
RJ45 port connect cat5e/cat6
IR TX/RX
IR signal input/output
DC/5V
Power adapter socket
LED indicator
Description
PWR
unit power indicator
STA
HD signal indicator

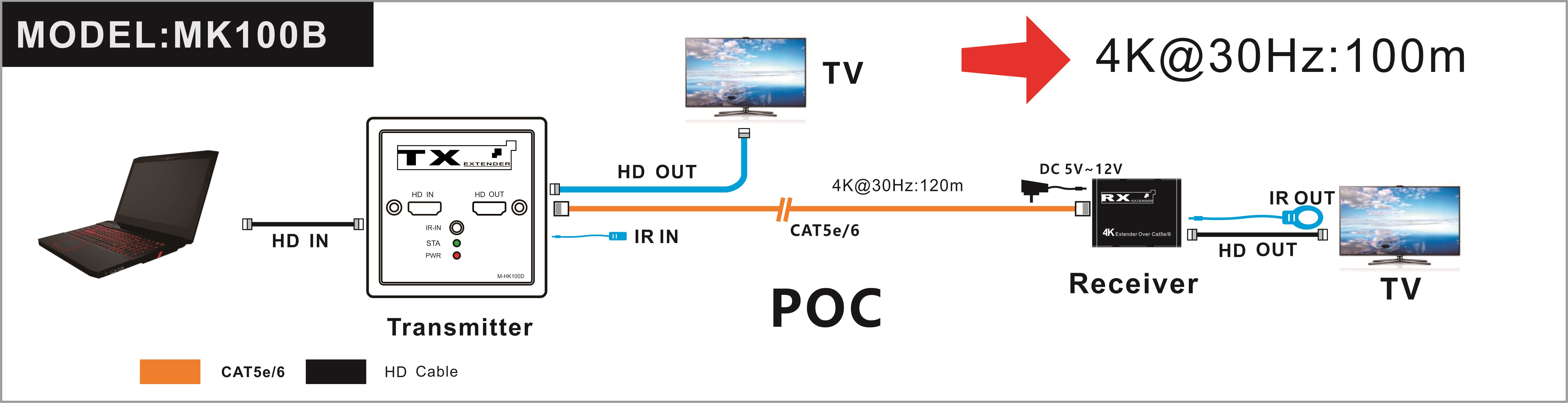

Installation Process
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HD cable between the HD input port of transmitter and the HD output port of the video source
3. Connect the HD output port of receiver to the display device with HD cable
4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
