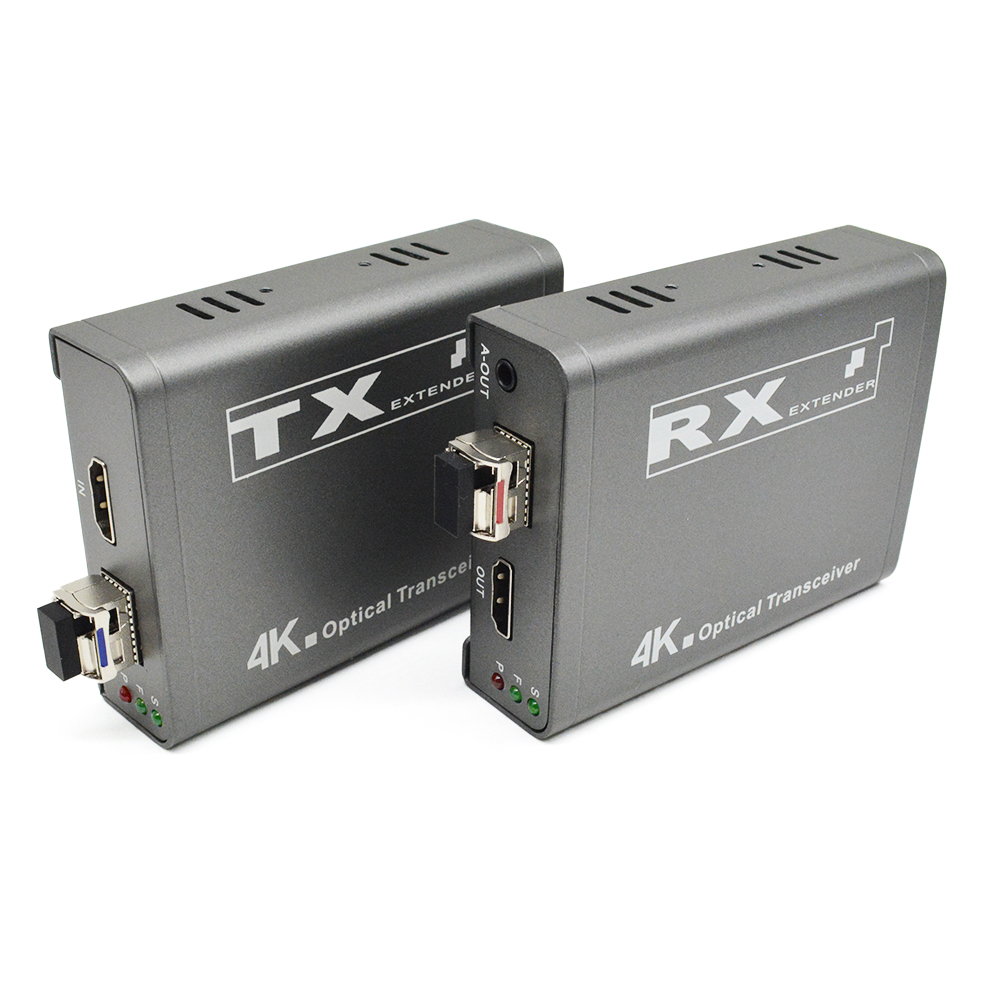

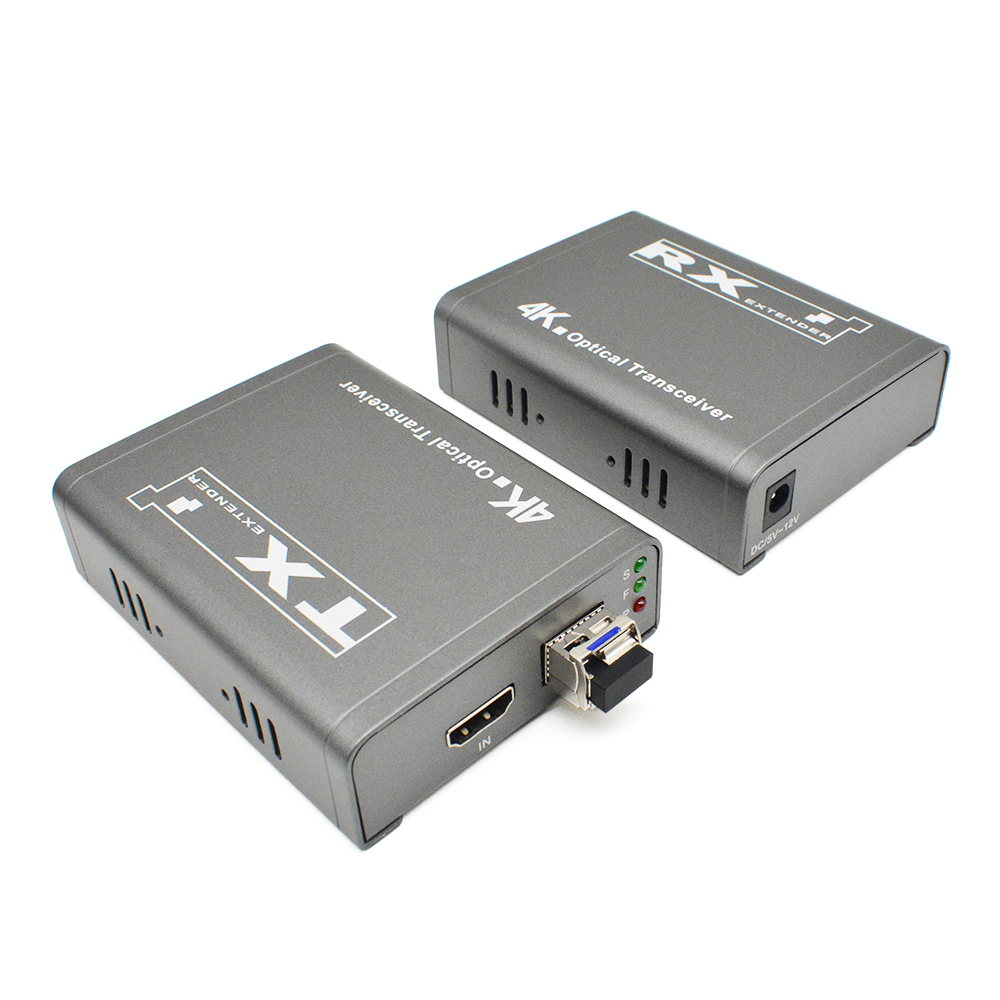

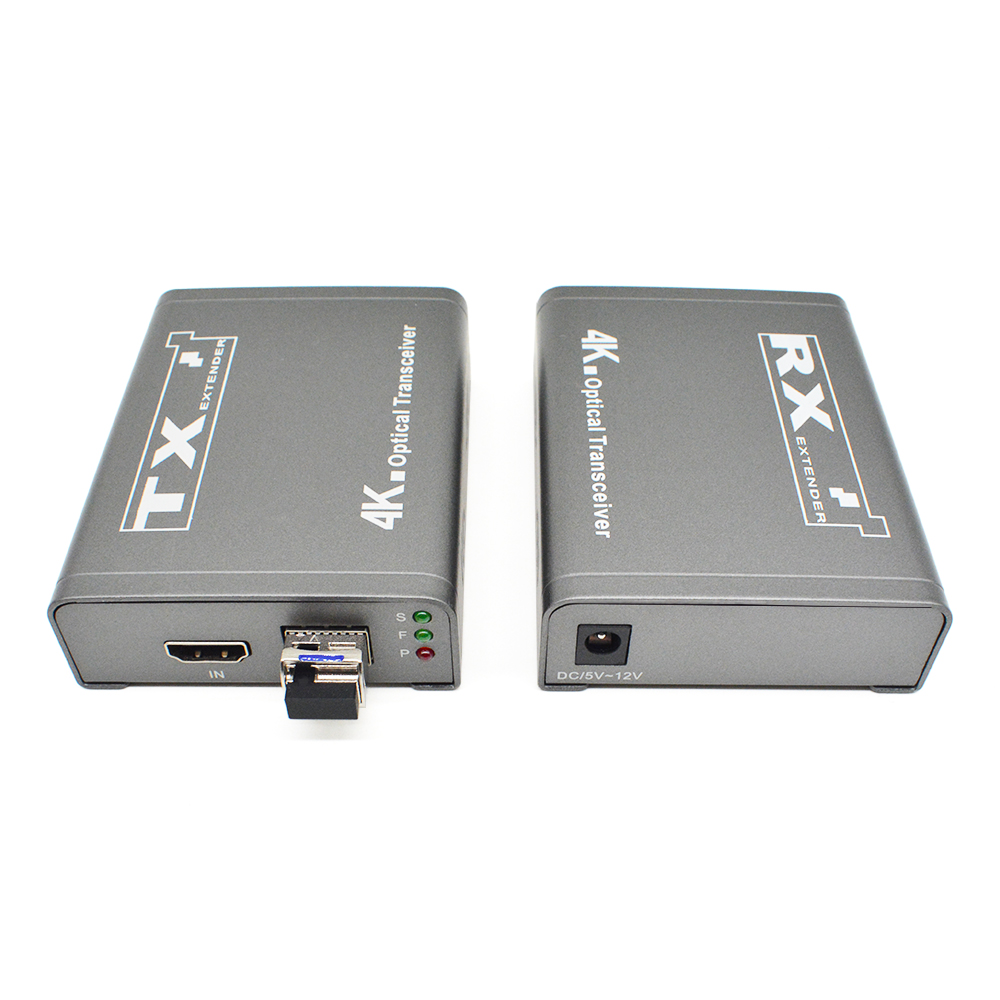

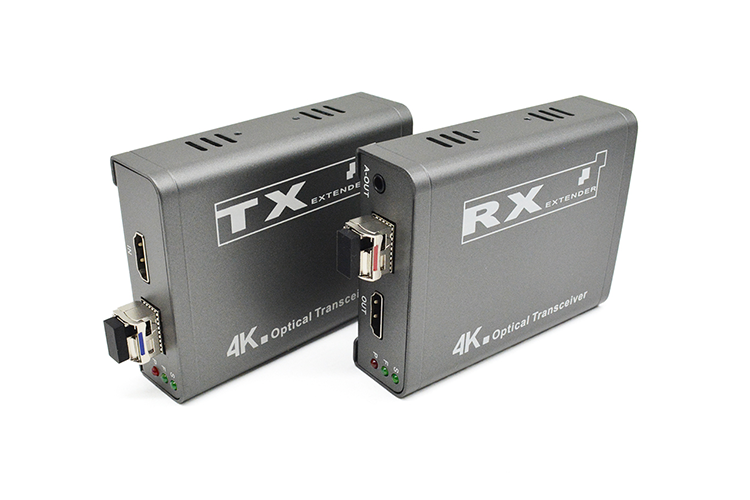

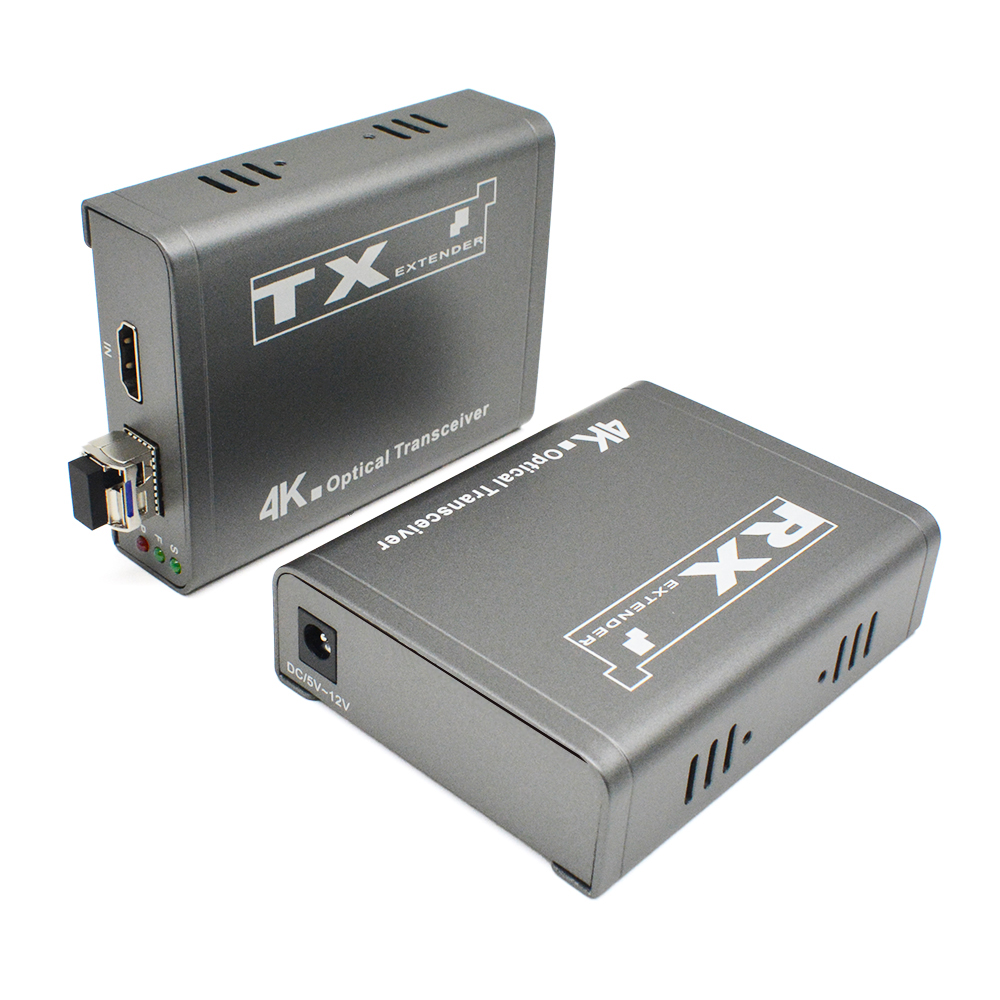

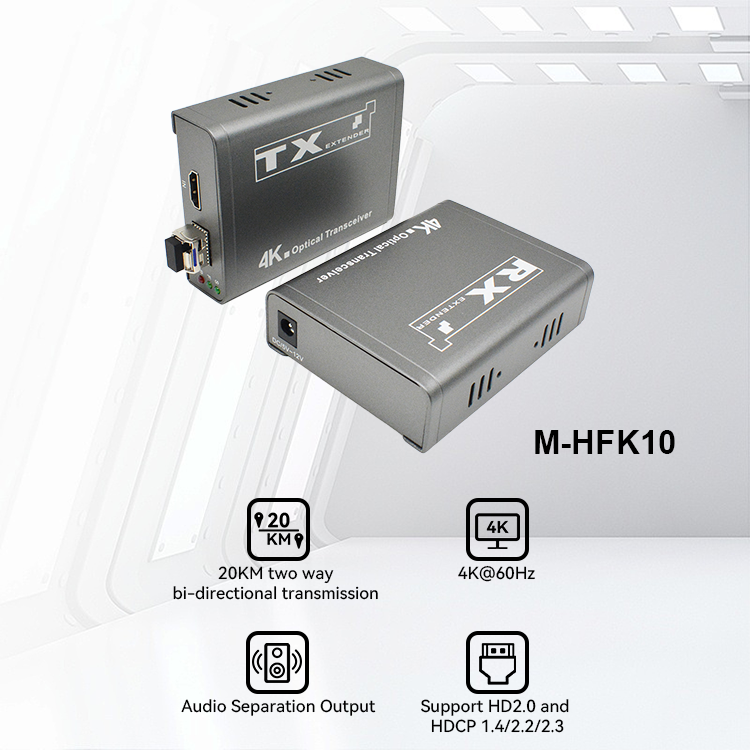

M-HFK10 transmits high-definition video signals over long distances through optical fiber, support learning EDID pass through function; support audio separation output. This product transmits HD high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, which greatly improves the compatibility of the device.
This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.
M-HFK10 transmits high-definition video signals over long distances through optical fiber, support learning EDID pass through function; support audio separation output. This product transmits HD high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, which greatly improves the compatibility of the device.
This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.
Features
1. Transmit HD video and audio signals over long distances through optical fiber, up to 20 kilometers;
2. HD video signal resolution can reach up to 4K@60Hz (4:4:4/4:2:2:/4:2:0);
3. The data transmission rate can reach up to 18Gbps (TMDS 6Gbps / 3 channels);
4. Support audio separation output;
5. Support HD 2.0 and HDCP 1.4/2.2/2.3 standards;
6. Support EDID learning, improve compatibility, match signal sources and display devices for automatic storage;
7. Built-in automatic equalization system, the picture is smooth, clear and stable;
8. Built-in ESD electrostatic protection circuit to protect system safety in all aspects
9. Support 5-12V power supply
10. The working temperature range is from -40 ºC to 85 ºC, and the maximum junction temperature can reach 125 ºC
Specification
Description
Parameter
Video
Standards
HD 2.0; HDCP 2.2/2.3/1.4
HD pixel clock
340MHz，all-digital
HD port bandwidth
total bandwidth 10.8Gbps (TMDS 6Gbps / 3 channels)
Resolution
3840X2160@60Hz(4：4：4)
backward compatibility
Video port
HD-A Port
HD port Impedance
100Ω
Audio
Interface
3.5mm Stereo audio socket
Audio format
44.1K, 48K, 96K, 176K, 192K
Signal Type
Stereo
Fiber optic
Fiber Type
Single fiber single mode
Dual fiber single mode
Wavelength
TX-1330nm
RX-1270nm
TX/RX-1310nm
Fiber Interface
LC
Transmitted optical power
-6～0dBm
Transmission distance
20KM
Transmission rate
10Gbps
Laser type
DFB CWDM
Other
Power supply
Power Adapter：DC5~ 12V
Power dissipation
MAX 10W
Temperature
-40℃ ~ +85℃
Humidity
5% ~ 90%
Dimension
94*72*25mm
Warranty
1 year free warranty

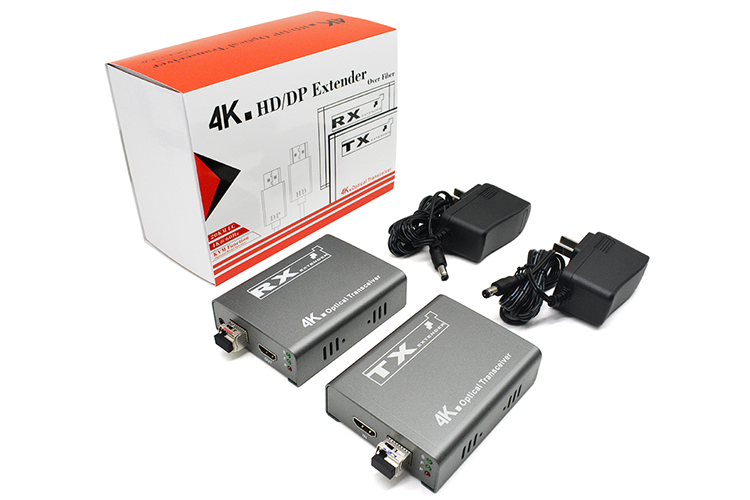

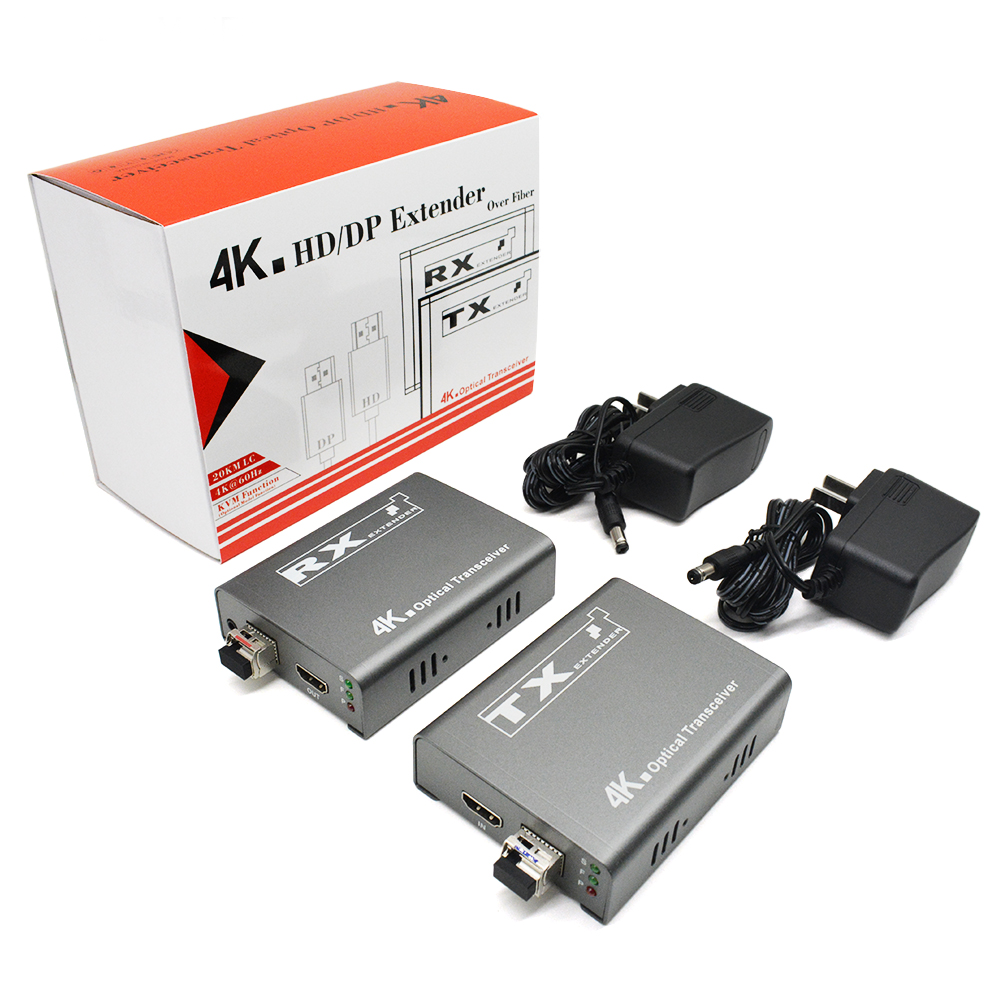

Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. 10G optical module x1 pair
4. Power adapter x2 pcs
5. User Manual x1 pcs

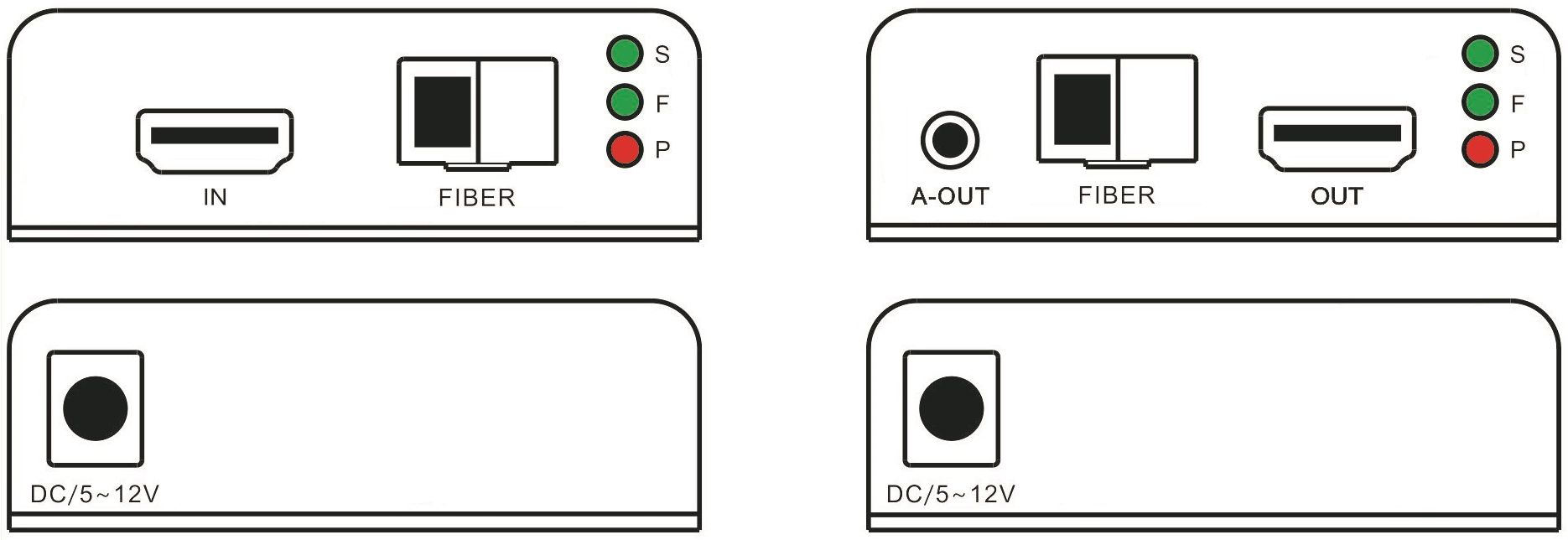

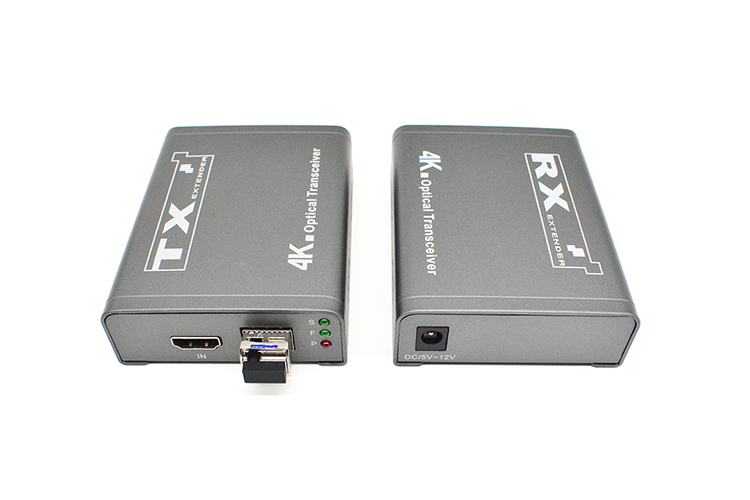

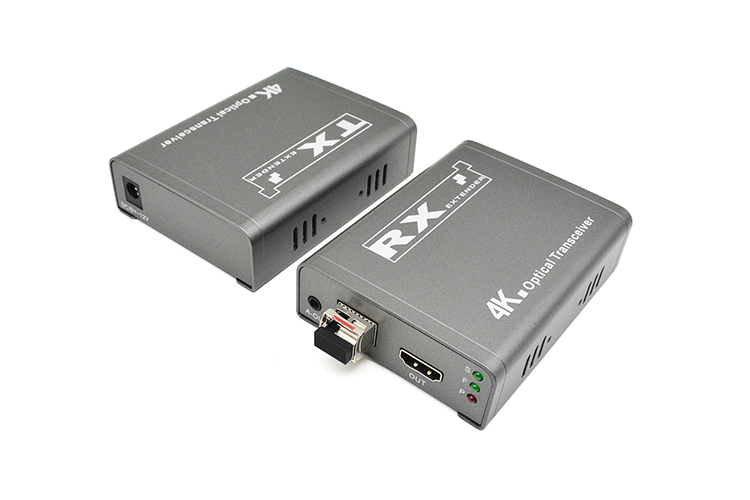

Product Interface
TXRX
TX: Transmitter
RX: Receiver
Port name
Description
IN/OUT
HD signal input/output
Fiber
Fiber Interface（LC）
A-OUT
3.5mm audio output
DC/5~12V
Power adapter input
LED indicator
Description
P
Power light
S
On（Working），off（No input/output）
F
Flashing quickly (communication in progress), off (fiber optic not communicating)

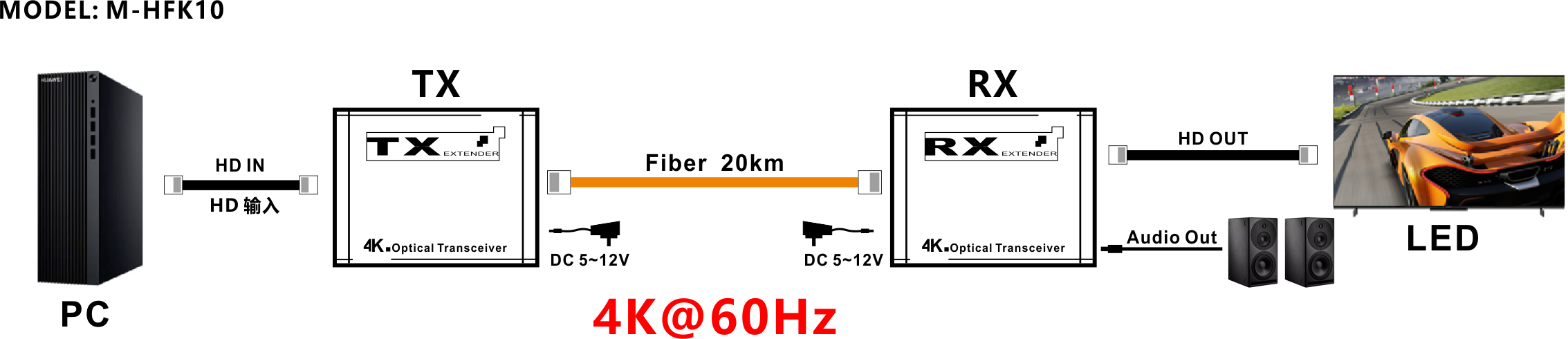

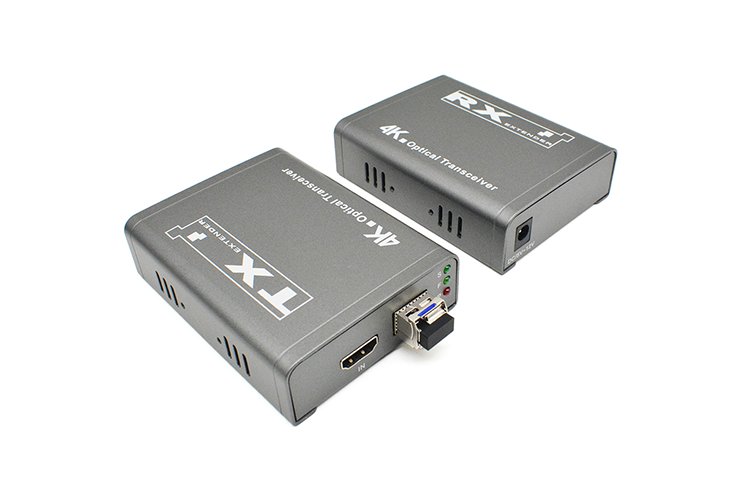

Installation Process
1. Connect the HD signal source to the HD input port of the TX
2. Connect the HD OUT of the RX to the display device
3. Use an optical fiber cable to connect the optical fiber port of TX and RX
4. Connect the TX and RX to the power supply. When the indicator light P/S is always on, light F flashes quickly, it is working.
Troubleshooting
1. The red light (P) is not bright or the brightness is low, Check whether the power adapter is normal
2. The green light (S) is not on, Check if the signal source has started or output; The green light stays on indicates regular work
3. The green light (F) is not on, check if the fiber optic module is plugged in properly and if the fiber optic cables are working properly; (F)Flashing light indicates regular work
The M-SD200A fiber extender transmits 4K/12G SDI signal over long distances via a single fiber, support 16-channel embedded audio synchronization function; The multi-rate 12G-SDI interface is compatible with all SD, HD and Ultra HD formats and devices, up to 2160P@60Hz, including Class A and Class B devices. The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low cost optical cable widely used in computer networks to transmit SDI. The device has excellent image processing and output capabilities, enabling signal transmission smoother and more stable, it is a reliable, high-performance, Efficient 4K/12G-SDI signal extension method.
M-HW200Pro Wireless HD Extender transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. It can also be equipped with mobile batteries to make transmission easier. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI signal extension mode.
M-HFK20U transmits high-definition video signals over long distances through optical fiber, supports KVM or RS232 function, and can operate remote devices using keyboard and mouse or RS232. This product transmits HDMI high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, it supports KVM signal or RS232(optional), independent audio transmission, and supports local loop output, which reduces costs for users while ensuring signal stability. This model has a built-in learning EDID function, which greatly improves the compatibility of the device. This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.
The HD extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
The HD Splitter 1x4 uses a single HD source, accessing to multiple HD sinks.The splitter allows one HD device to be split easily to two HD compatible monitors or projectors. The splitter can also be placed at the end of a long HD cable to regenerate the HD signal. The HD Resolution up to 3840x2160/30Hz.
This DVI Extender allows you to extend your DVI signal over standard Network cable. While DVI cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative. This DVI Extender enables you to extend DVI signal to remote display unit to a maximum of 30 meters over Ethernet cable.
The HD to AHD/TVI/CVI video converter can convert HD video Signal to AHD/TVI/CVI output by digital processing. It makes the video signal more compatible with monitoring/matrix devices, resulting in clearer and more stable images. This converter converts HD signals to AHD/TVI/CVI signals, which are connected to monitoring/matrix/LCD TV through AHD/TVI/CVI interfaces. It is easy to operate and can achieve high-definition lossless transmission up to 400 meters using 75-3 coaxial lines, breaking the transmission limit of existing high-definition video transmission technologies. It can achieve low-cost, long-distance, no delay, high efficiency, anti-interference, and easy to implement million pixel high-definition video transmission.
M-AF04 digital four-way audio optical transmitter can use one optical fiber to transmit four-way audio signals. Audio signal adopts 24bit / 96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission. This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.
M-XLRB-2 digital one-way audio transmitter can use one Cat6 to transmit one-way bi-directional audio signals, one-to-many distributed audio can also be achieved through switch. Audio signal adopts 24bit / 96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission. This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.
The extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
ShenZhen MYBOX Technology Co., Ltd, is a R&D oriented designer and manufacturer for high denition Video & Audio data transmission equipment over UTP(Unshielded Twisted Pair).
