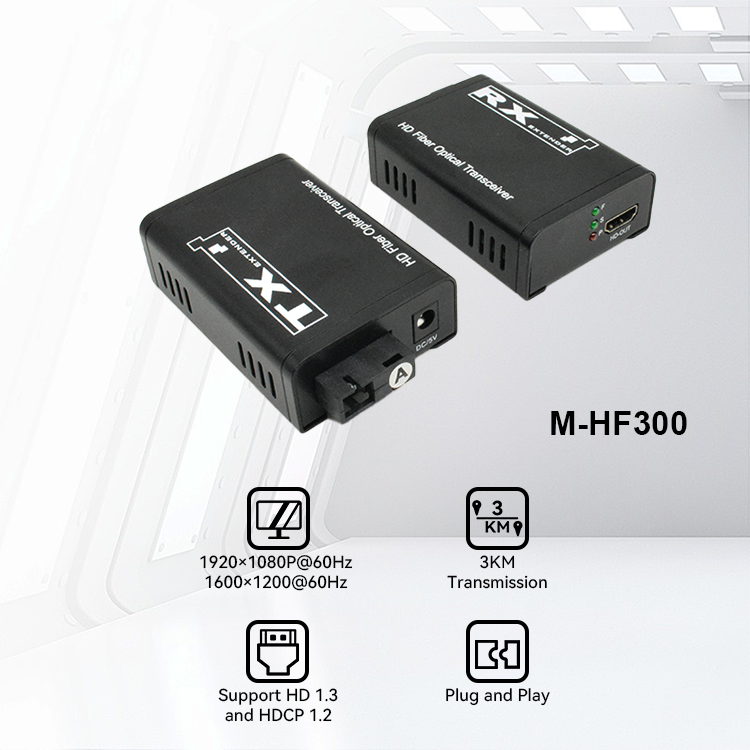

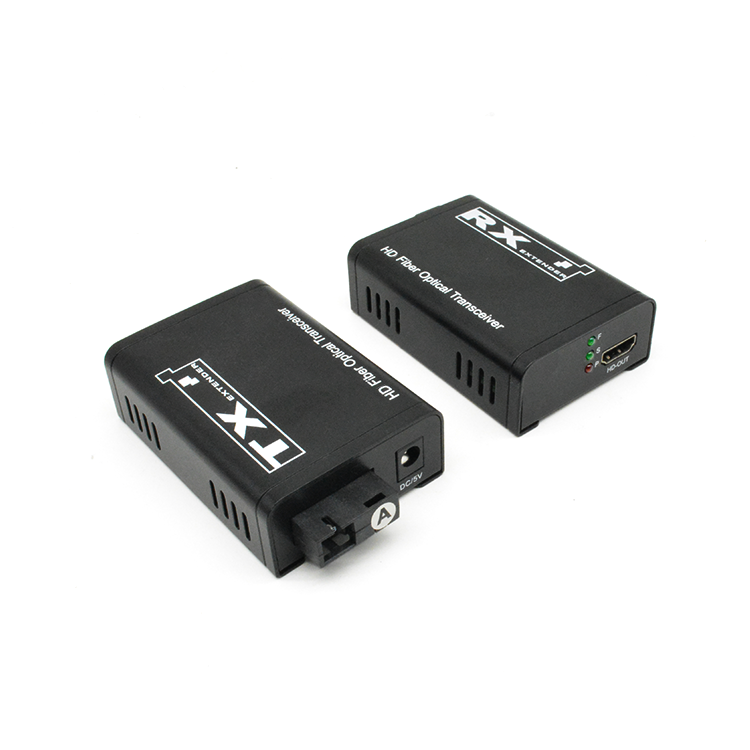

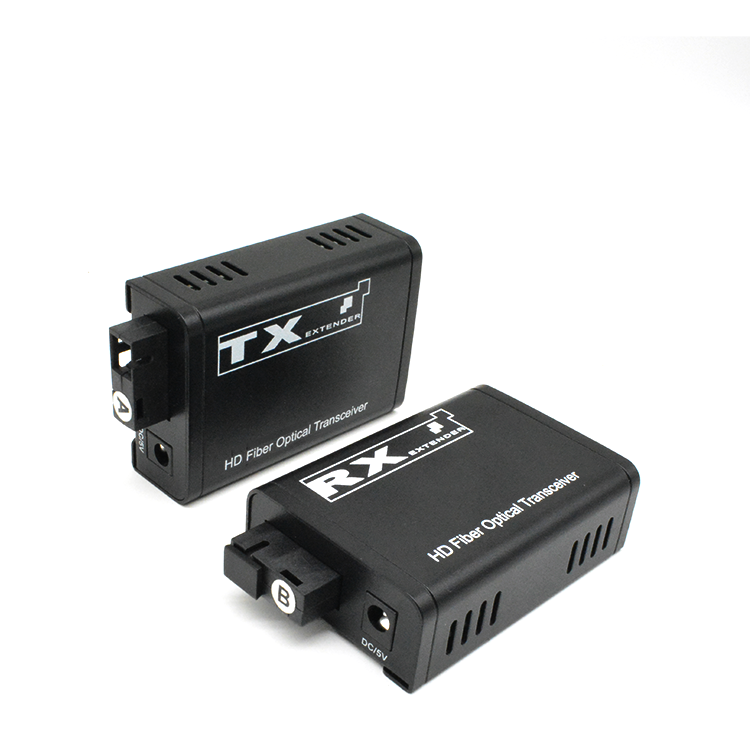

M-HF300 HD Fiber Extender

5 0 Reviews

The extender M-HF300U provides extension of HD signals long distances over a single Fiber, it supports loop output and embedded audio
input & output.

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Price: $ 36.32

Price: $ 0

Price: $ 36.32

Price: $ 0

Availability:

Quantity:



Buy Now Add to Cart

Model:
M-HF300

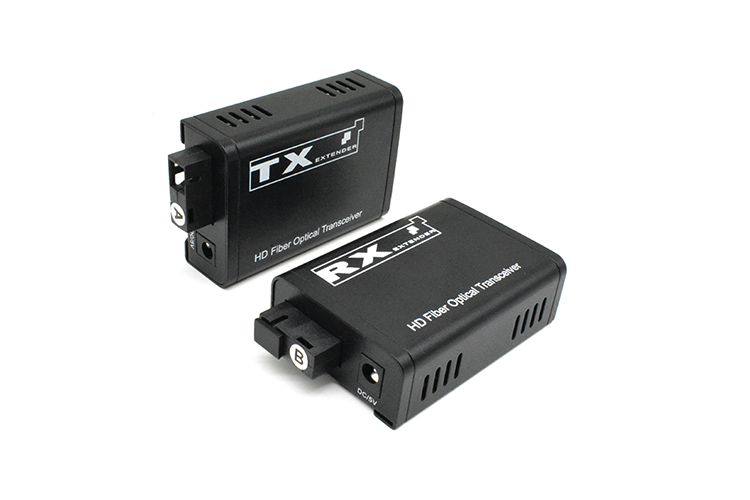

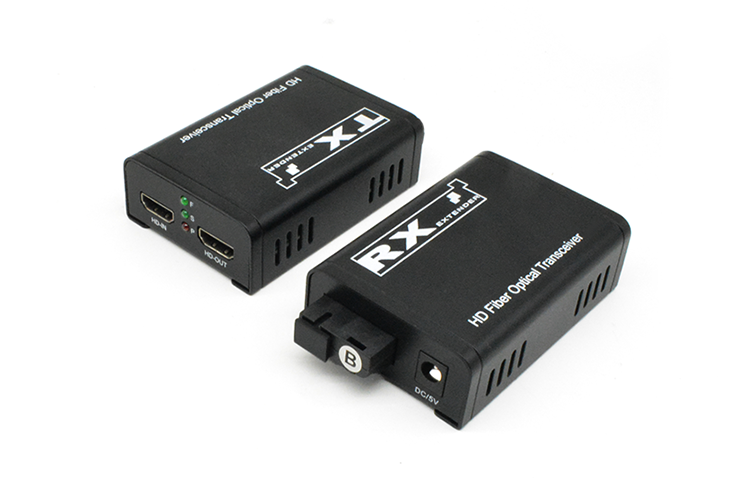

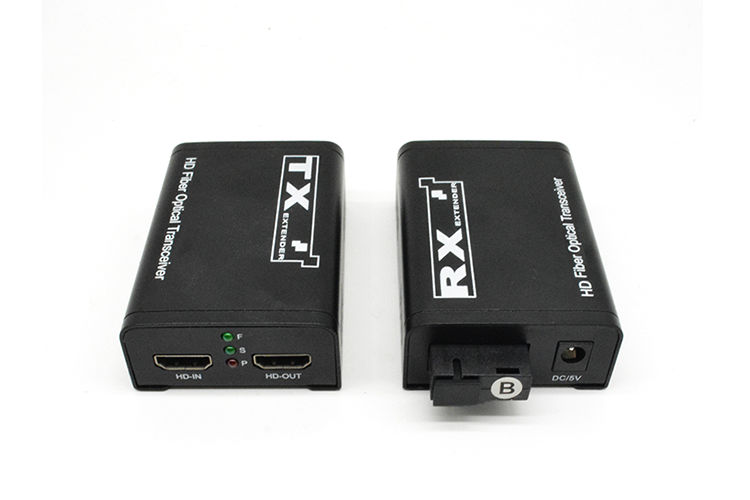

Product Display
Information
Usage

Introduction

The extender M-HF300 provides extension of HD signals long distances over a single Fiber, it supports loop
output and embedded audio input & output.

The extender can use for a wide range of applications requiring long distance transmission of high resolution
with high quality by its good stability and powerful security.

Features

1. Transmits HD video and audio signals up to 3KM over a single Fiber

2. Support video resolution up to 1920×1200P@60Hz, 1600×1200@60Hz

3. Support KVM, to operate remote devices using keyboard and mouse

4. Support embedded audio input and output

5. Compliance with HD 1.3 and HDCP 1.2 standard

6. High compatibility, can auto-match source and display device

7. Built-in automatic adjustment system, make the image smooth, clear and stable

8. Built-in ESD protection system

9. Simple to install, plug and play

Specification

Parameter		Description
Audio	Audio input impedance	10K
	Audio output impedance	600Ω
	Interface mode	Unbalanced interface
	Input output range ratio	1/1
	Frequency response	20HZ-20KHZ
	Audio sampling rate	24bit/96KHZ
	Signal to noise ratio(SNR)	≥75dB
	Audio interface	RCA connector
Optical	Transmission wavelength	TX:1310nm、RX:1550nm
	Optical interface	FC/SC（Default SC）
	Transmitted optical power	Max 10dB/20KM
	Receiving sensitivity	-35@155MB/S
	Optical dynamic range	-39dB~-42dB
	Optical maximum allowable chain loss	25dB
	transmission distance	20KM(single mode)
Technical indicators	Power	DC 5V/1A
	Power dissipation	4.8W@DC5V
	Temperature	Operation temperature: -20 ℃-+80℃
	Humidity	Operation Humidity: 0 - 95% （non-condensing ）
	Mean Time Between Failures（MTBF）	＞one hundred thousand hours

Package

1. HD transmitter x1 pcs

2. HD receiver x1 pcs

3. USB cable x1pcs

4. Power adapter x2 pcs

5. User manual x1 pcs

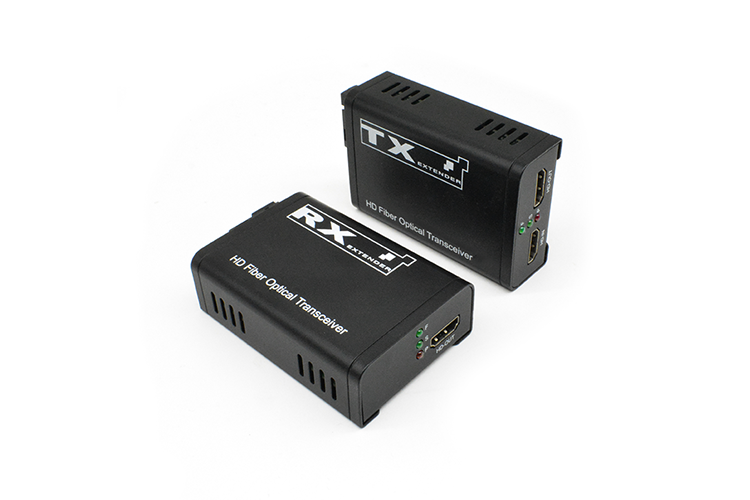

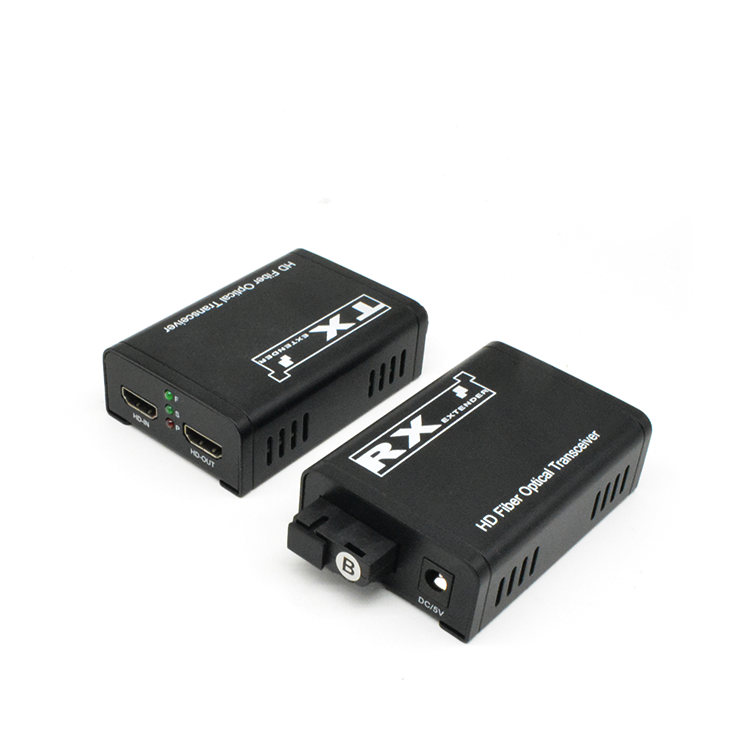

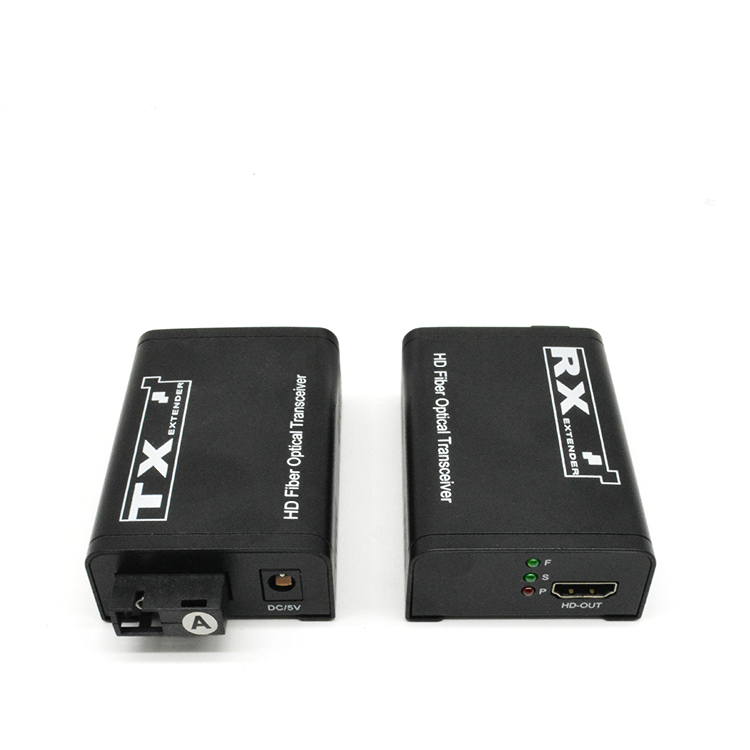

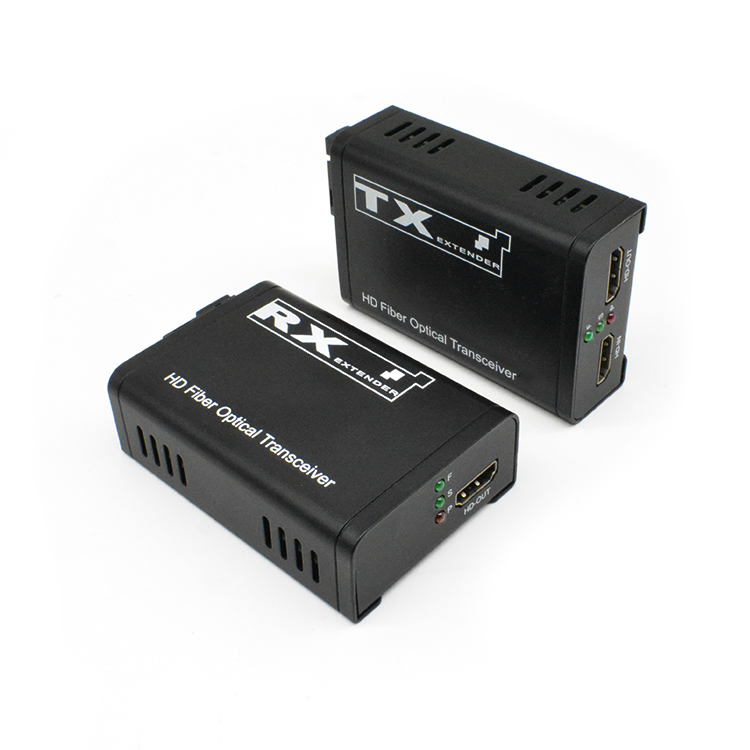

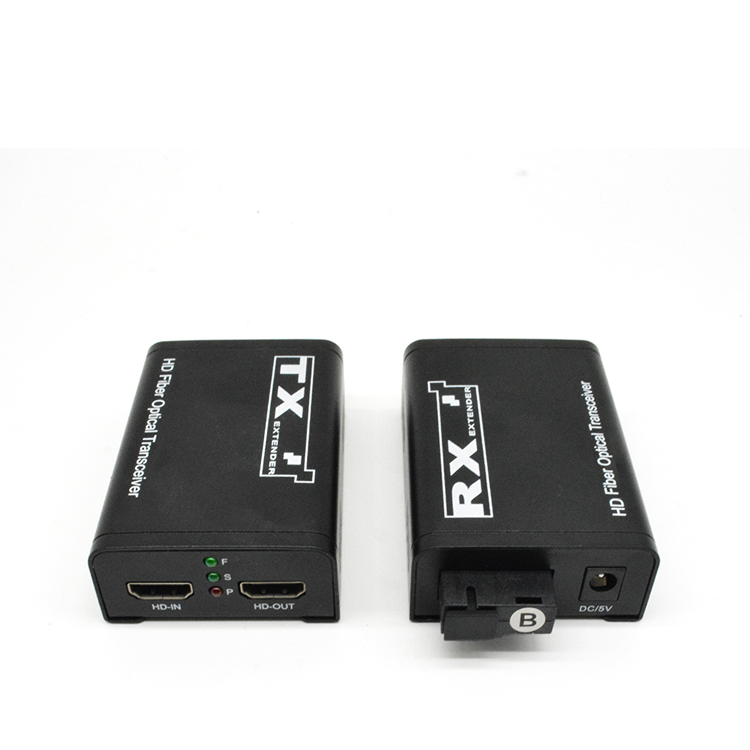

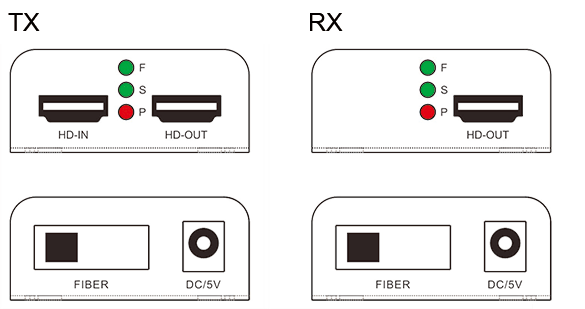

Product Interface

TX: Transmitter

RX: Receiver

Port name	Description
HD IN/OUT	HD signal input/output
Fiber	connect Optical Fiber (SC/FC)
DC/5V	Power adapter socket
A-IN/A-OUT	Audio Input/Output
KVM IN/KVM OUT	Keyboard and Mouse Input/Output
LED indicator	Description
P	Unit power indicator light
S	HD signal indicator light
F	System status indicator light (flashing: in communication)

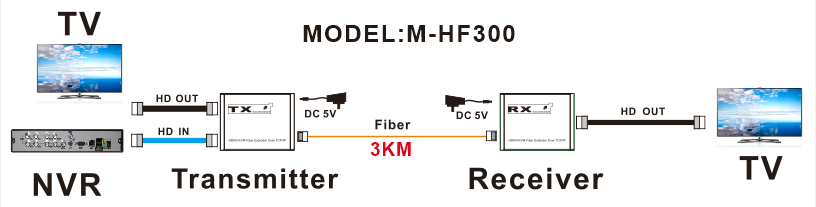

Installation Process

1. HD transmitter x1 pc

2. HD receiver x1 pc

3. Power adapter x2 pcs

4. User manual x1 pc

HD Extender Fiber Extender 3KM
