The extender M-HF300 provides extension of HD signals long distances over a single Fiber, it supports loop output and embedded audio input & output.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
The extender M-HF300 provides extension of HD signals long distances over a single Fiber, it supports loop output and embedded audio input & output.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Transmits HD video and audio signals up to 3KM over a single Fiber
2. Support video resolution up to 1920×1200P@60Hz, 1600×1200@60Hz
3. Support KVM, to operate remote devices using keyboard and mouse
4. Support embedded audio input and output
5. Compliance with HD 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play
Specification
Parameter
Description
Audio
Audio input impedance
10K
Audio output impedance
600Ω
Interface mode
Unbalanced interface
Input output range ratio
1/1
Frequency response
20HZ-20KHZ
Audio sampling rate
24bit/96KHZ
Signal to noise ratio(SNR)
≥75dB
Audio interface
RCA connector
Optical
Transmission wavelength
TX:1310nm、RX:1550nm
Optical interface
FC/SC（Default SC）
Transmitted optical power
Max 10dB/20KM
Receiving sensitivity
-35@155MB/S
Optical dynamic range
-39dB~-42dB
Optical maximum allowable chain loss
25dB
transmission distance
20KM(single mode)
Technical indicators
Power
DC 5V/1A
Power dissipation
4.8W@DC5V
Temperature
Operation temperature: -20 ℃-+80℃
Humidity
Operation Humidity: 0 - 95% （non-condensing ）
Mean Time Between Failures（MTBF）
＞one hundred thousand hours

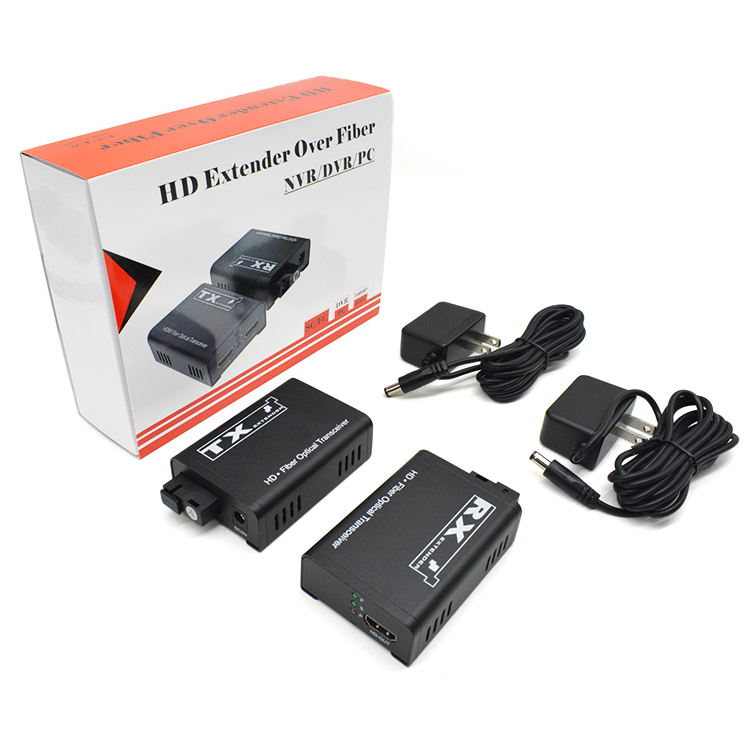

Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. USB cable x1 pc
4. Power adapter x2 pcs
5. User manual x1 pc

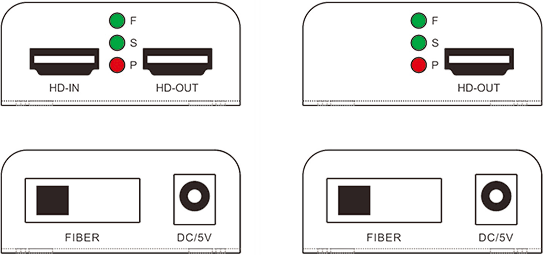

Product Interface
TX (Transmitter) RX (Receiver)
Port name
Description
HD IN/OUT
HD signal input/output
Fiber
Connect Optical Fiber (SC/FC)
DC/5V
Power adapter socket
A-IN/A-OUT
Audio Input/Output
KVM IN/KVM OUT
Keyboard and Mouse Input/Output
LED indicator
Description
P
Unit power indicator light
S
HD signal indicator light
F
System status indicator light (flashing: in communication)
Installation Process
1. Connect the HD input port of transmitter to the HD output port of the video source with HD cable
2. Connect the HD output port of receiver to the display device with HD cable
3. Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber
4. Power on Transmitter and Receiver. When the indicator lights are on (when P, S is always on and F flashes quickly, it is working normally.)
