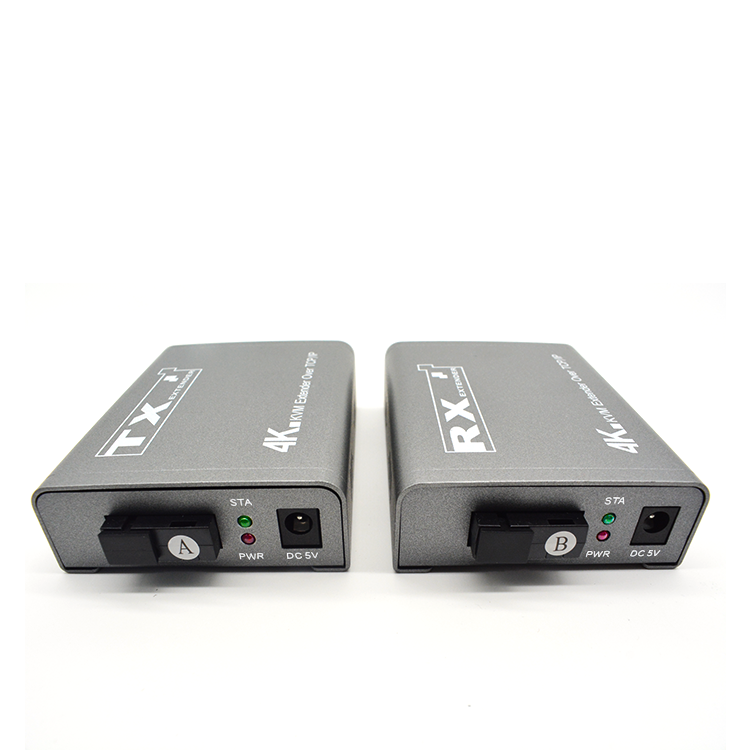

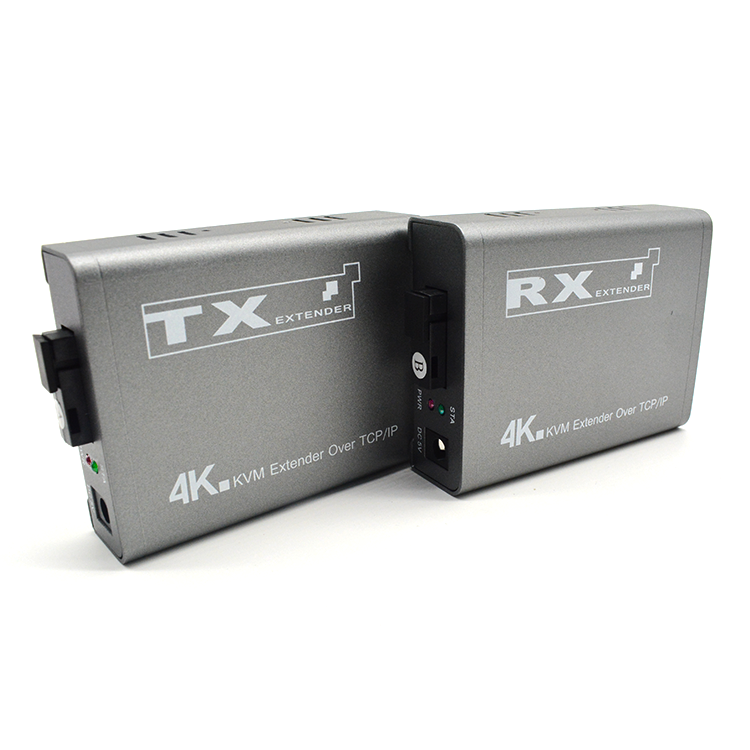

M-HF100U-4K HD+KVM Fiber Extender

5 0 Reviews
The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution up to 4K@30Hz, KVM and IR signal transmission, embedded audio output.

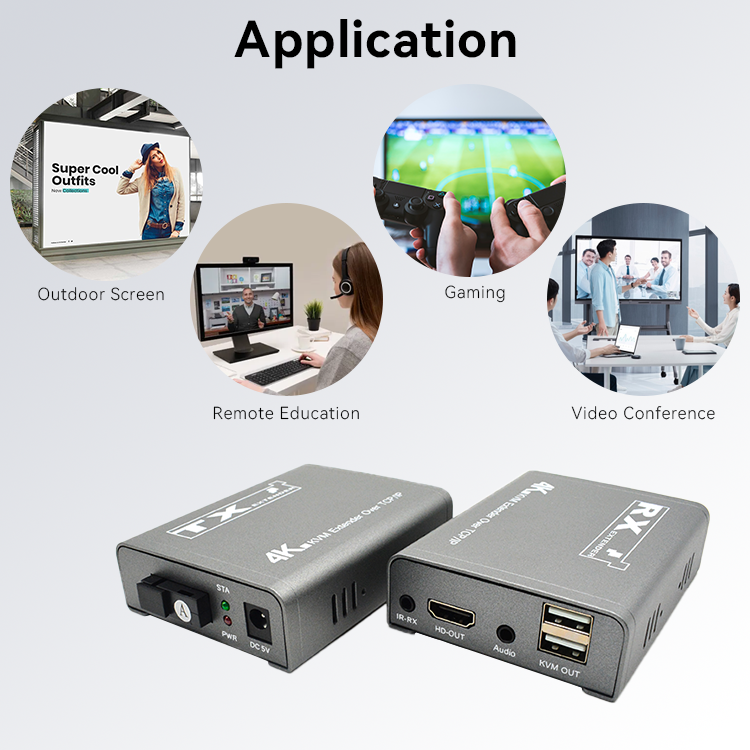

The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Price: $ 80.29  -  81.47
IR:
with IR
without IR
Availability:
Quantity:

  • M-HF100U-4K


Introduction

The extender provides extension of HD signals long distances over a single Fiber, it supports high resolution
up to 4K@30Hz, KVM and IR signal transmission, embedded audio output.

The extender can use for a wide range of applications requiring long distance transmission of high resolution
with high quality by its good stability and powerful security.

Features

1. Transmits HD video and audio signals up to 20KM over a single Fiber

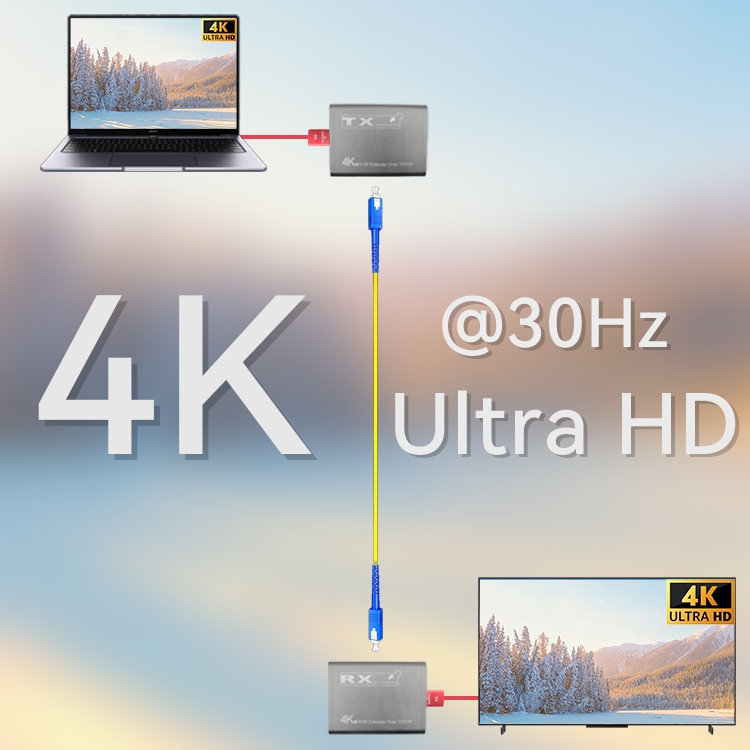

2. Support video resolution up to 4K@30Hz

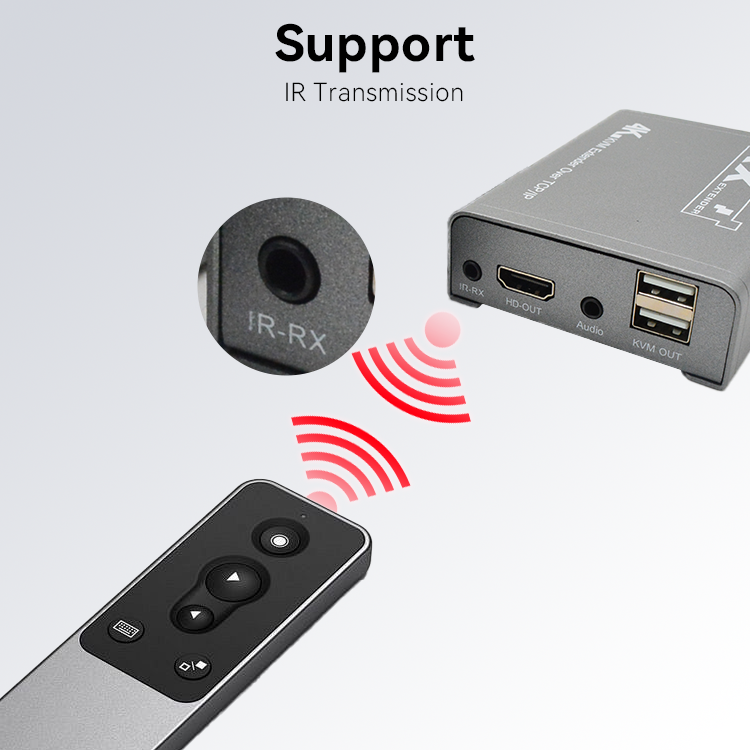

3. Support IR signal transmission(20KHz~60KHz)

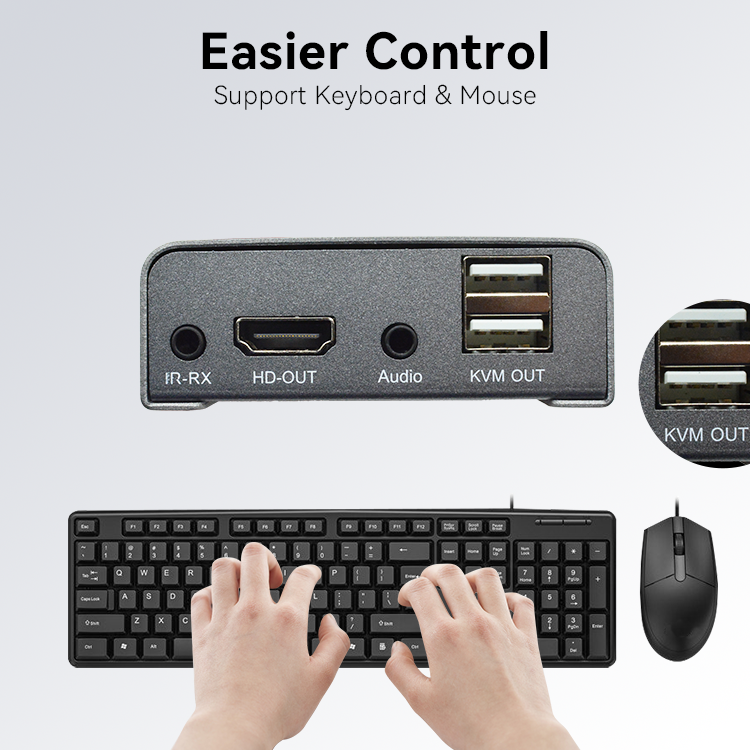

4. Support keyboard and mouse

5. Support one-way embedded independent audio output

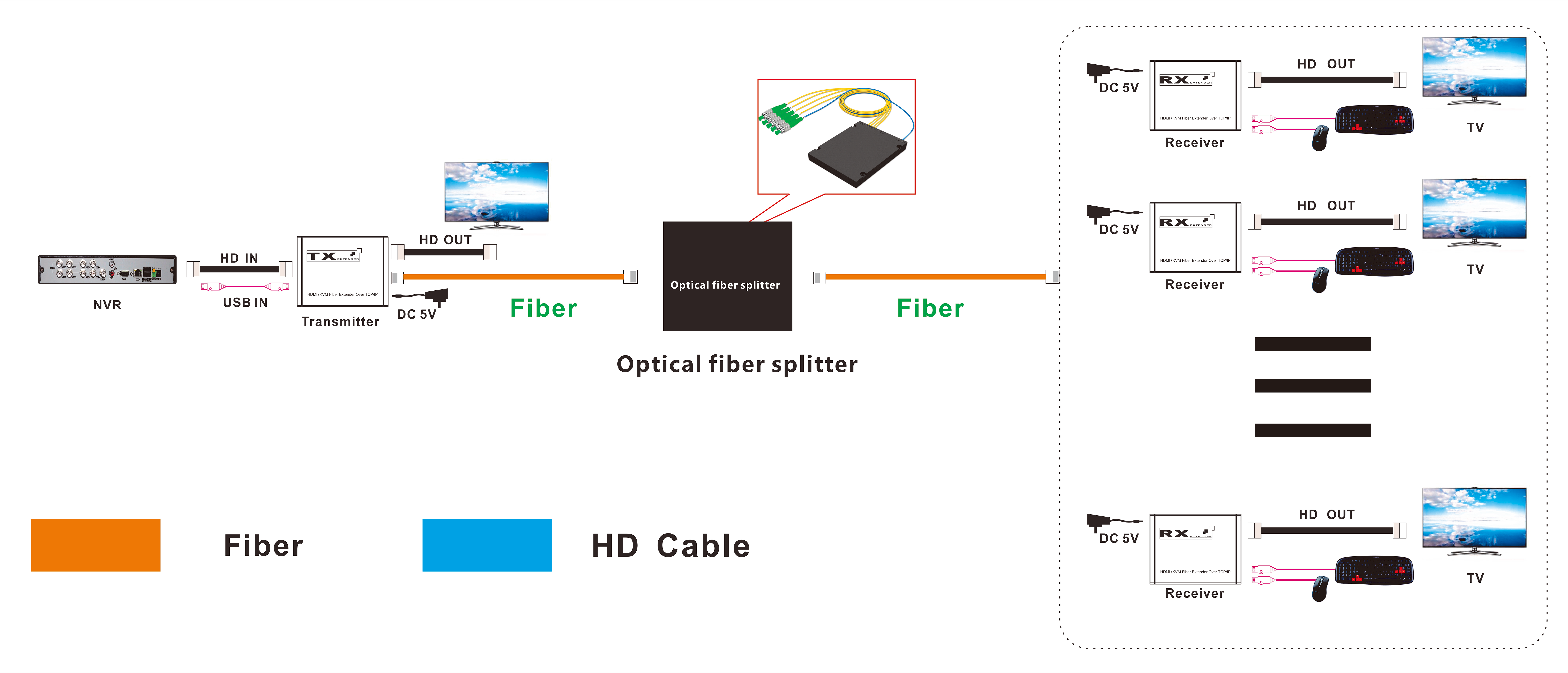

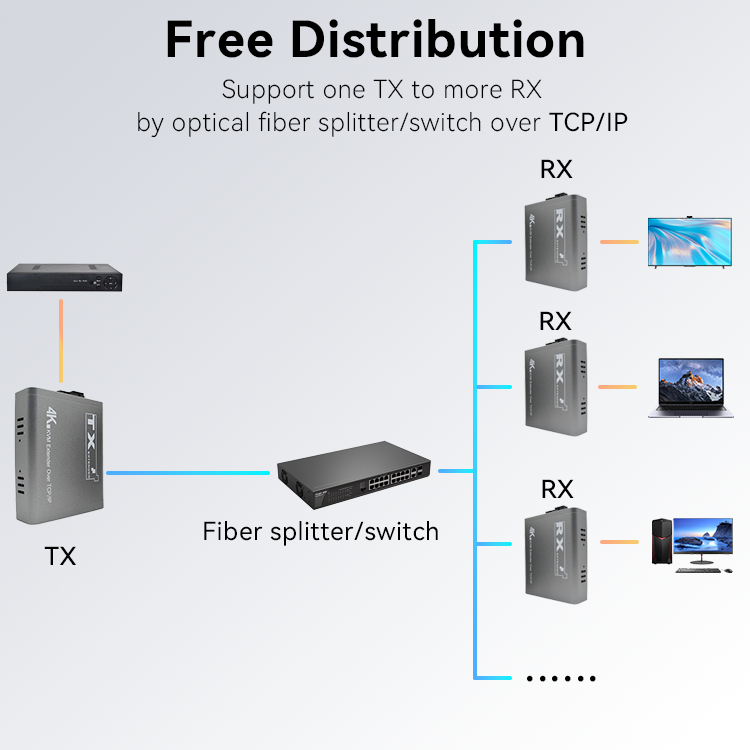

6. Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution
    function is realized

7. Compliance with HD 1.3 and HDCP 1.2 standard

8. High compatibility, can auto-match source and display device

9. Built-in automatic adjustment system, make the image smooth, clear and stable

10. Built-in ESD protection system

11. Simple to install, plug and play

Specification

Description

Parameter

Video

Standards

HD 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

4K@30Hz

Connector

HD-A

Impedance

100Ω

USB

Interface

PC: Type B USB interface; connect to pc;

K/M: connect USB keyboard and mouse;

USB Signal

HID Signal

IR

Interface

3.5mm seat

Signal direction

Unidirectional

IR frequency

20-60kHz

Audio

Interface

3.5mm seat

Signal model

Embedded unidirectional stereo

Fiber

Interface

SC/FC

Fiber Model

Single mode

wavelength

Single mode 1310nm；1550nm

bandwidth

6.25Gbps

Transmission distance

Default standard 20KM, MAX up to 80KM

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

97*73*26mm

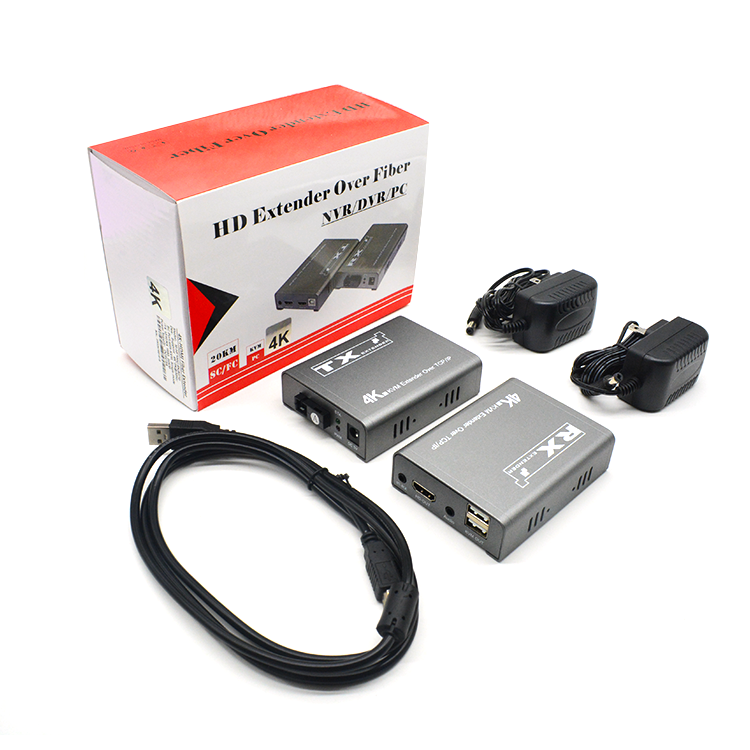

Package


1. HD transmitter     x1 pc

2. HD receiver           x1 pc

3. USB Cable              x1 pc

4. Power adapter      x2 pcs

5. IR TX/RX terminal  x1 set (optional)

6. User manual          x1 pc

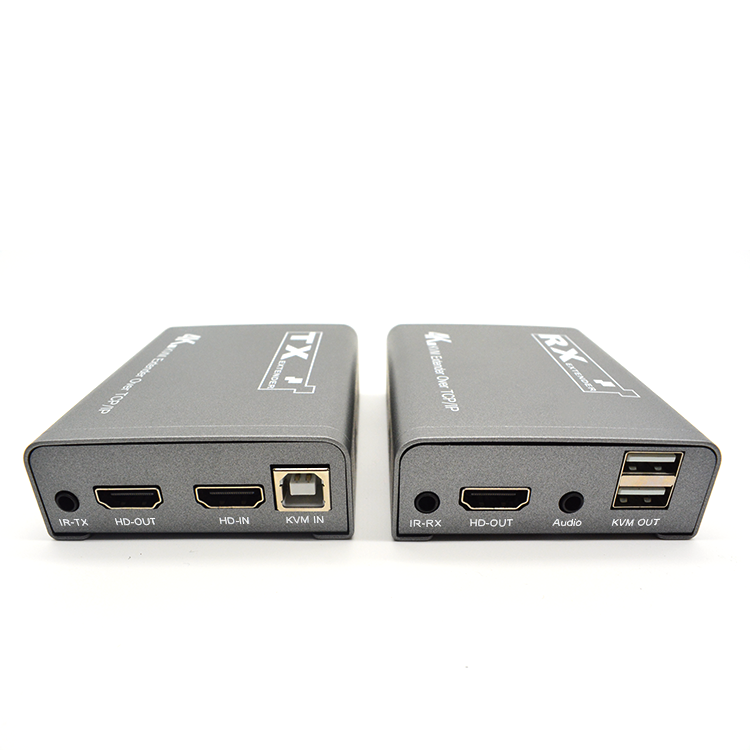

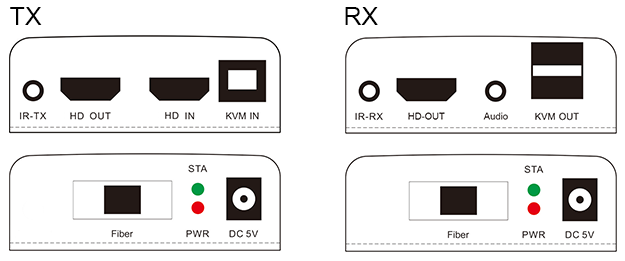

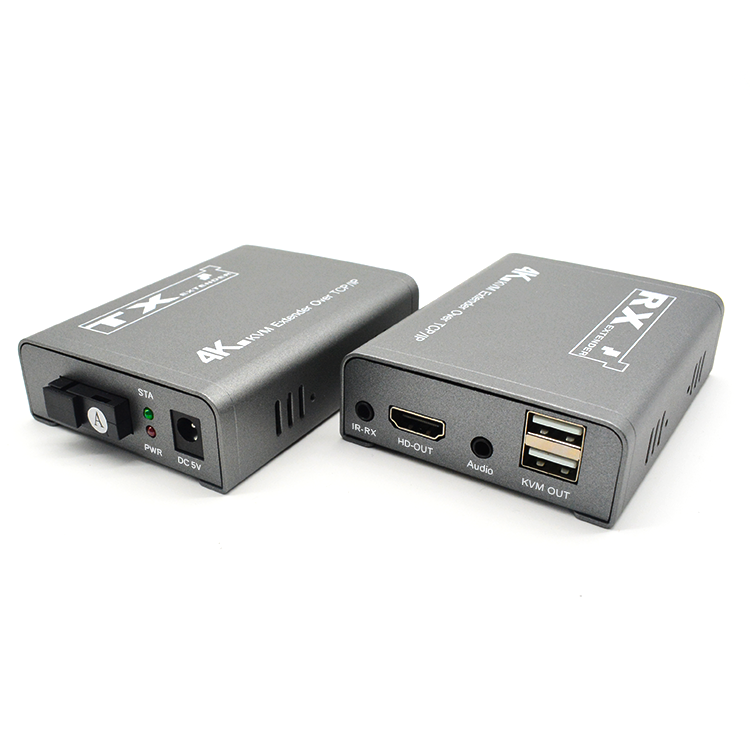

Product Interface


TX: Transmitter

RX: Receiver

Port name

Description

HDMI IN/OUT

HD signal input/output

KVM IN/OUT

USB signal input/output

Fiber

Connect Optical Fiber (SC/FC)

IR TX/RX

IR signal input/output

Audio

3.5mm audio input/output

DC/5V

Power adapter socket

LED indicator

Description

PWR

Unit power indicator

STA

HD signal indicator

Installation Process



1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an HD cable between the HD input port of transmitter and the HD output port of the video source

3. Connect the HD output port of receiver to the display device with HD cable, Connect the transmitter
    Fiber port to the receiver Fiber port using a single Optical fiber

4. Connect transmitter PC IN port to PC using mini USB cable

5. Connect USB keyboard and mouse to Receiver K/M port

6. Connect the audio input/output with a 3.5mm audio cable

7. Power on Transmitter and Receiver
