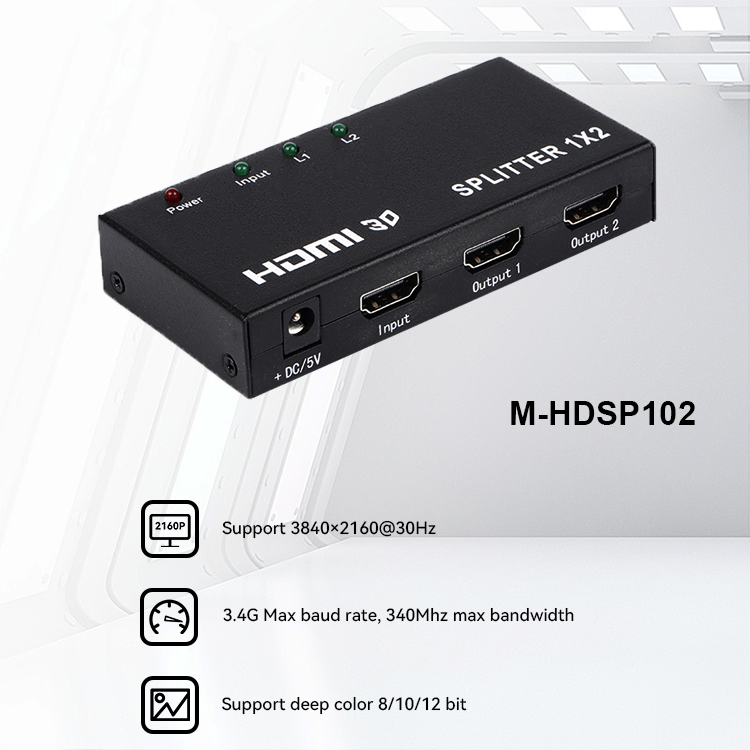

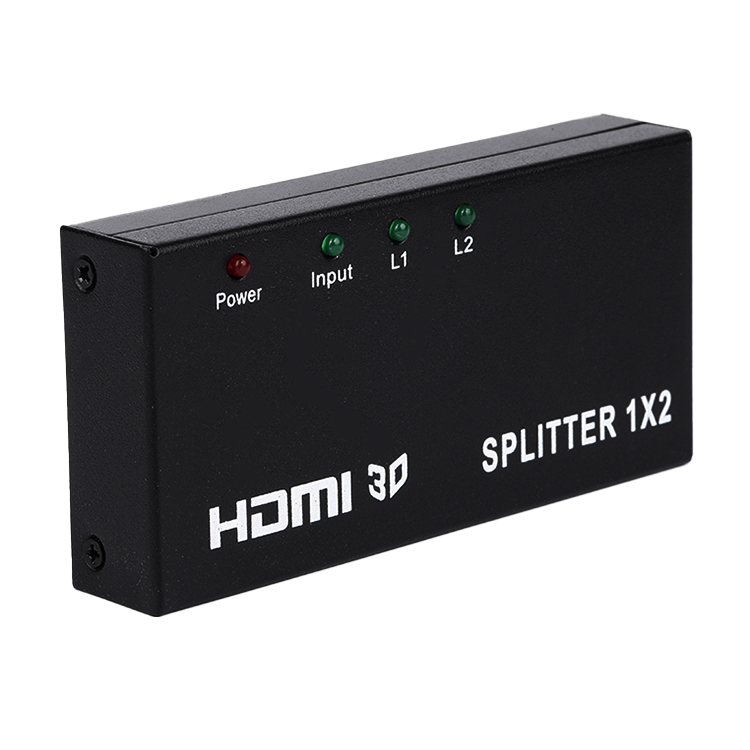

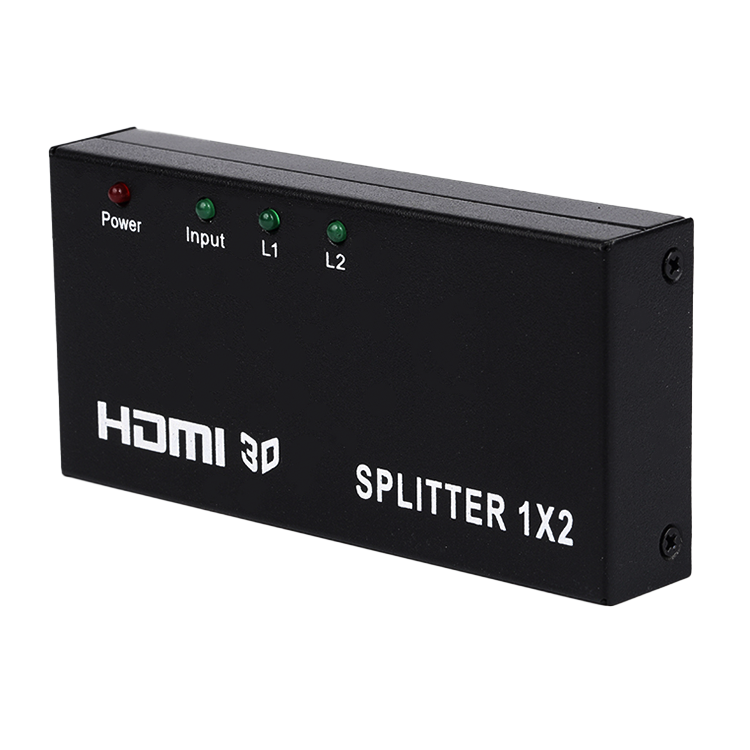

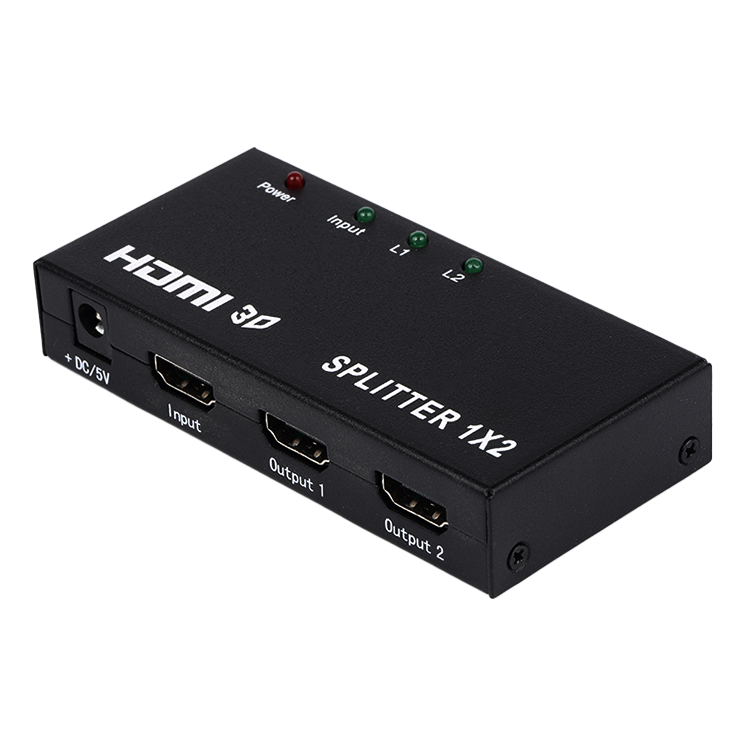

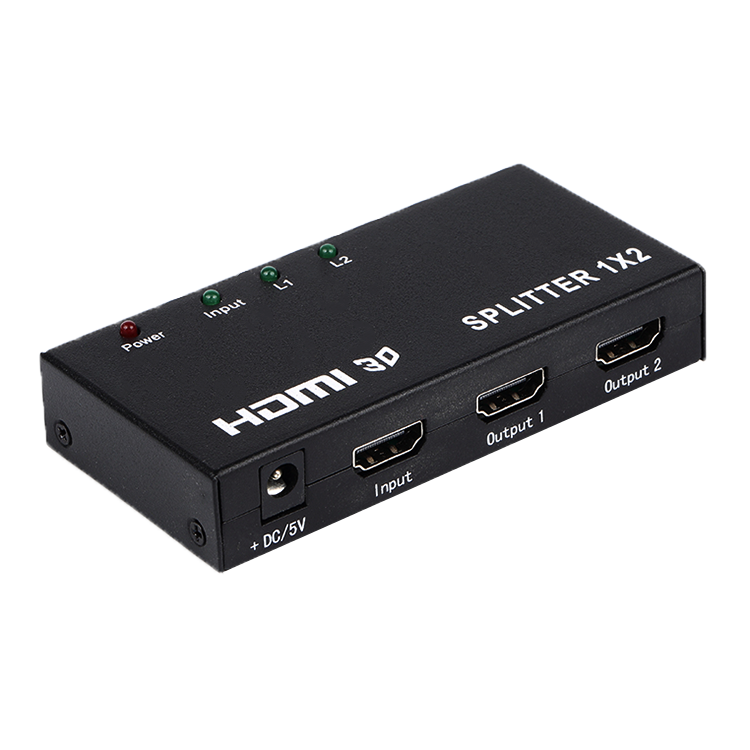

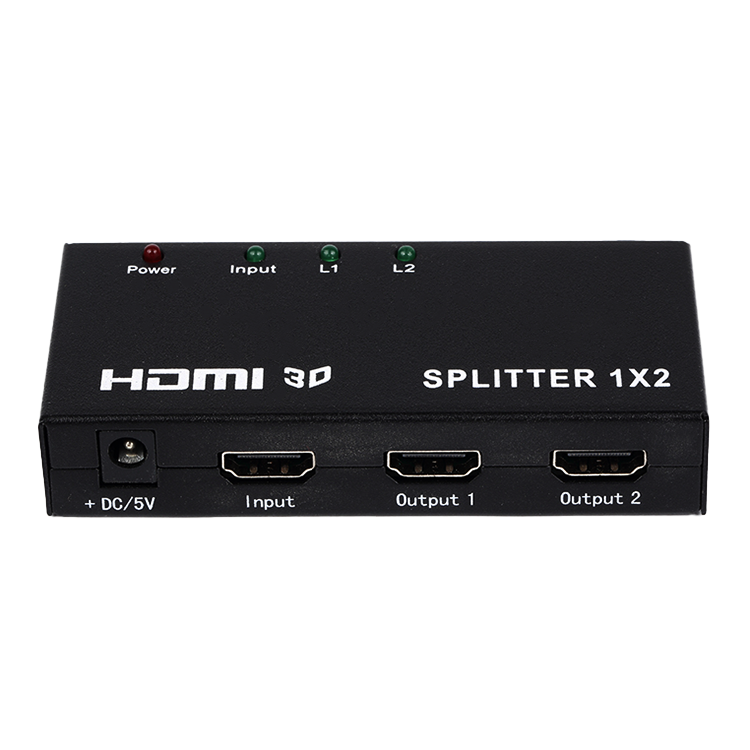

M-HDSP102 4K 1x2 HD Splitter

5 0 Reviews

The 1x2 HD Splitters uses a single HD source, accessing to multiple HD sinks.It allows one HD device to be split easily to 2 HD compatible monitors or projectors.

In addition,it can be placed at the end of a long HD cable to regenerate the HD signal. The resolution of this HD splitter can be up to 3840×2160@30Hz.
Availability:
Quantity:

  • M-HDSP102


Introduction


The 1x2 HD Splitters uses a single HD source,accessing to multiple HD sinks. It allows one HD device to be split
easily to 2 HD compatible monitors or projectors.

In addition,it can be placed at the end of a long HD cable to regenerate the HD signal. The resolution of this HD
splitter can be up to 3840×2160@30Hz.

Features

1. Support  HD1.4b

2. Support Full 3D

3. Support HD resolution up to 3840×2160/30Hz

4. Support the max baud rate of 3.4G and max bandwidth of 340Mhz

5. Support deep color 8/10/12bit

6. Support input up to B meters AWG26 HD standard cable length, output up to 8 meters AWG26 HD standard cable length

7. Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box

8. 5V/1Apower  adapter

Specification

HD version ………………………………………………………………………  HD 1.4b

HD resolution ……………………………………………………................  up to 3840×2160/30Hz

Support video format………………………………………………….......  8/10/12bit Deep color

Support audio format………………………....................................  DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………….…………..  340MHz

Max baud rate…………………………………………………………………..  3.4Gbps

Input cable distance……………………………………........................  8mAWG26 HD standard cable

Output cable distance…………………………………….....................  8mAWG26 HD standard cable

HD input……………………………………………….………………………….  1HD

HD output…………………………………………………………………………  2HD

Max working current………………………………………….…………….  500mA

Specifications of power adapter……........................................  input AC(50Hz,60Hz)100V-240V;output: DC5V/1A

Operating Temperature range………………………………………….  (-15℃to+55℃)

Operating Humidity range………………………………....................  5 to 90%RH(No Condensation)

Dimension(LxWxH)………………………………………………………......  105x50×20(mm)

Weight……………………………………………………………………………….  120g

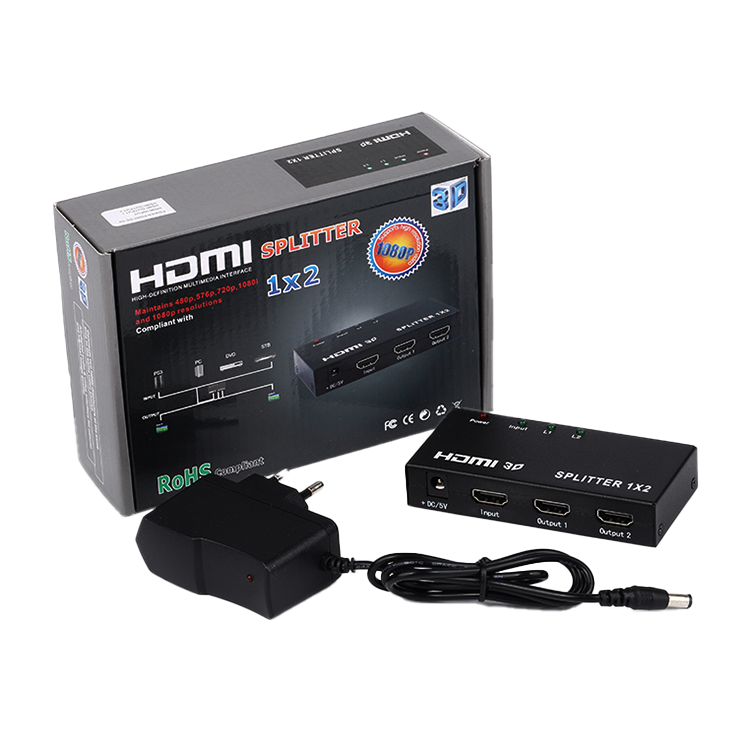

Package


1.HD splitter            x1 pc

2.Power adapter     x1 pc

3.User  manual       x1 pc

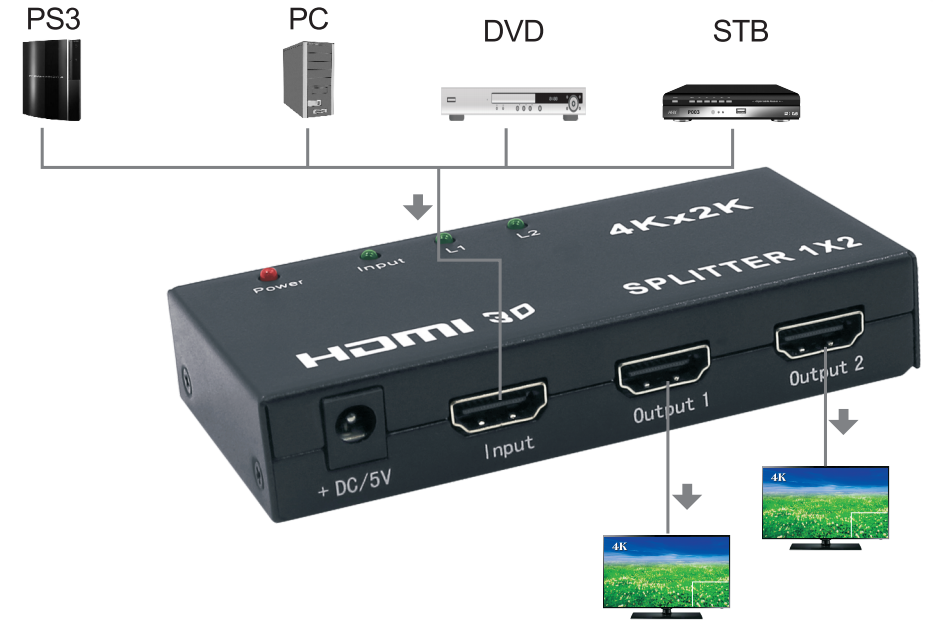

Installation Process


1. Connect 1 HD cable from HD source devices into HD Splitter input.

2. Connect 2 HD cables from displayers (monitors or projectors)into the HD Splitter outputs.

3. Connect 5V power supply to the HD 1x2 Splitter.
