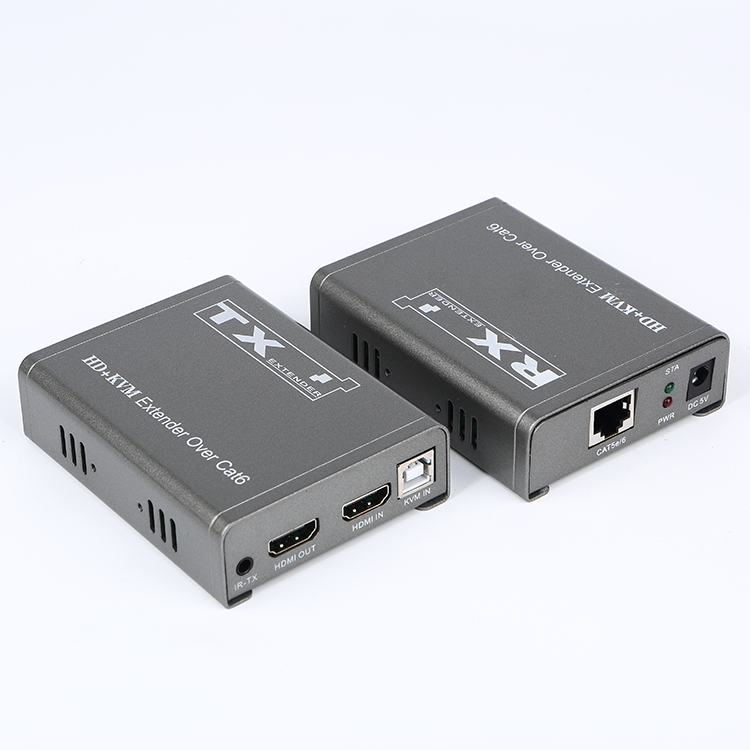

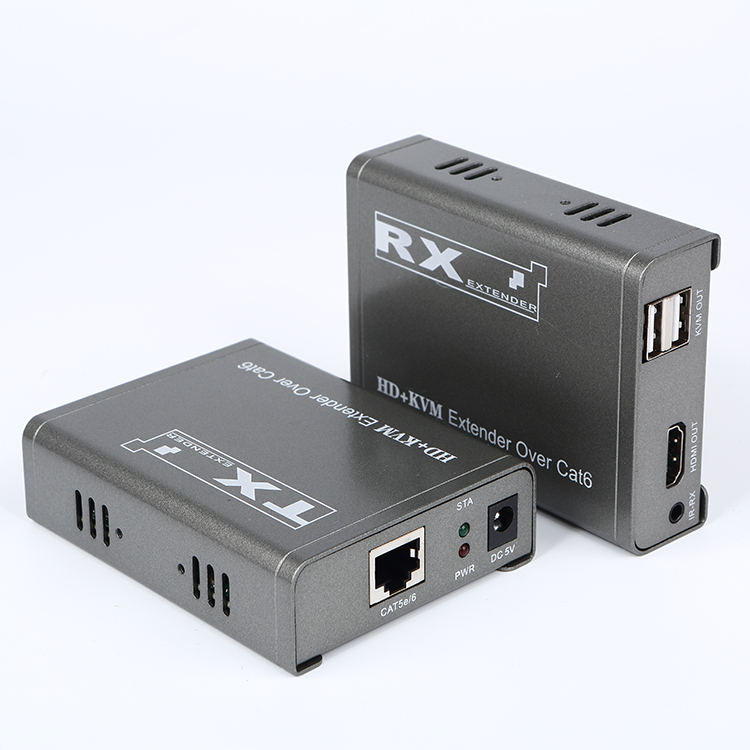

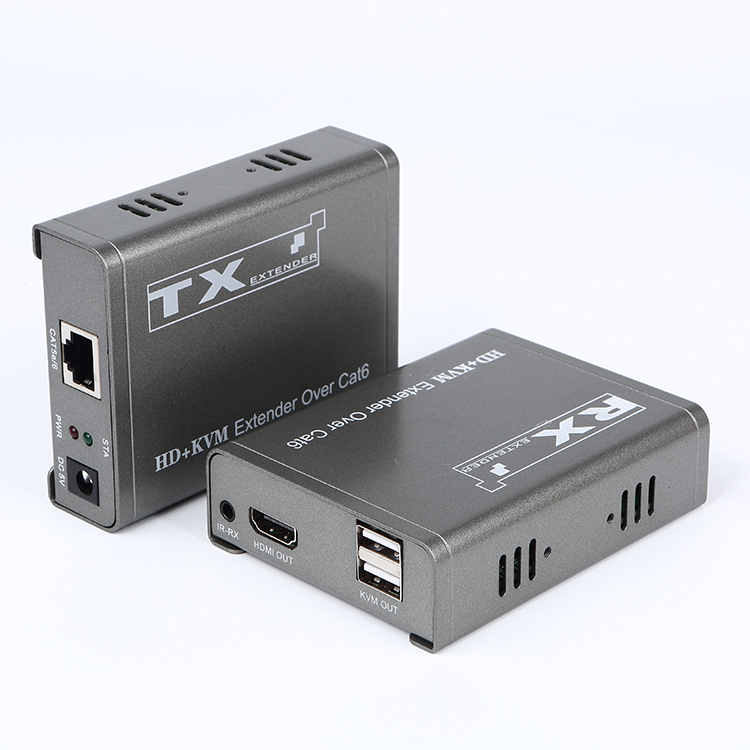

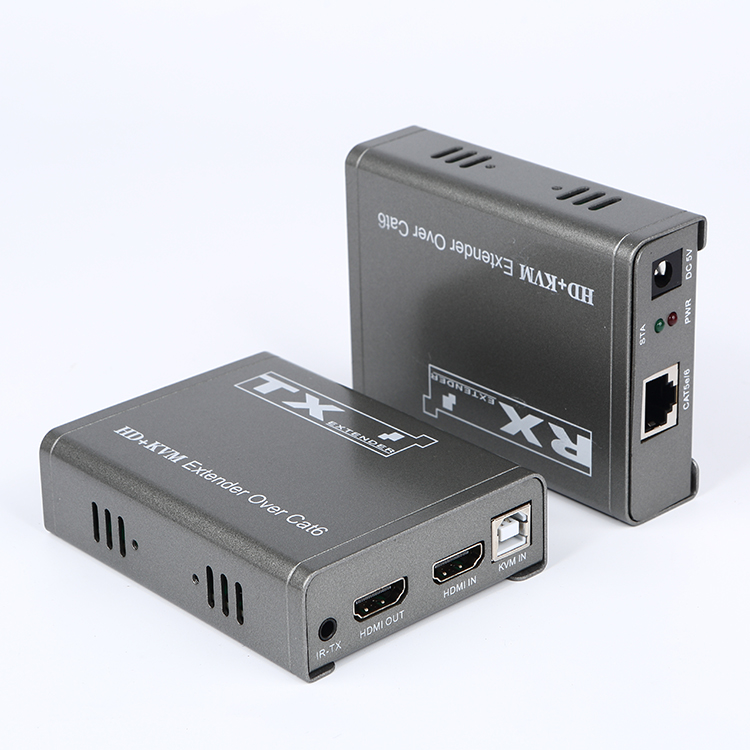

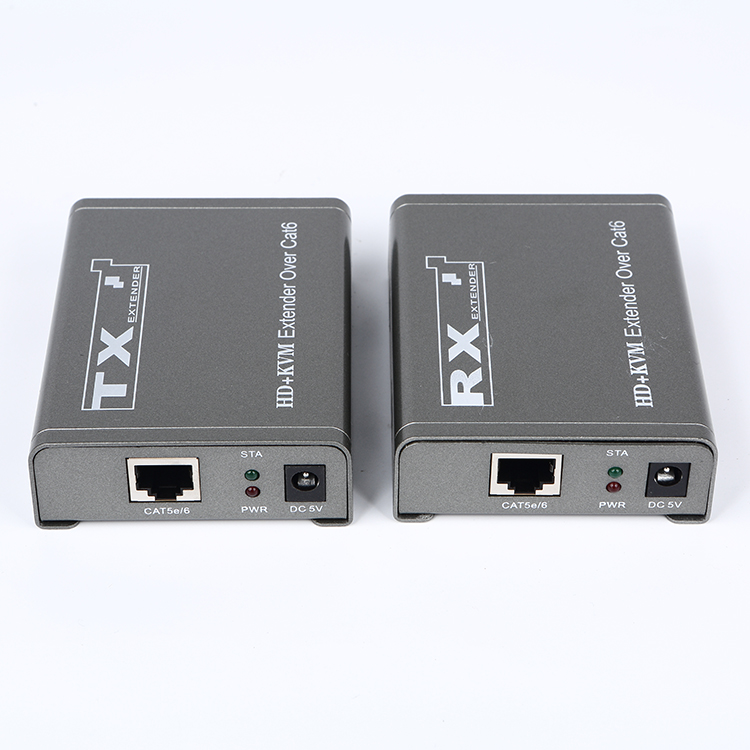

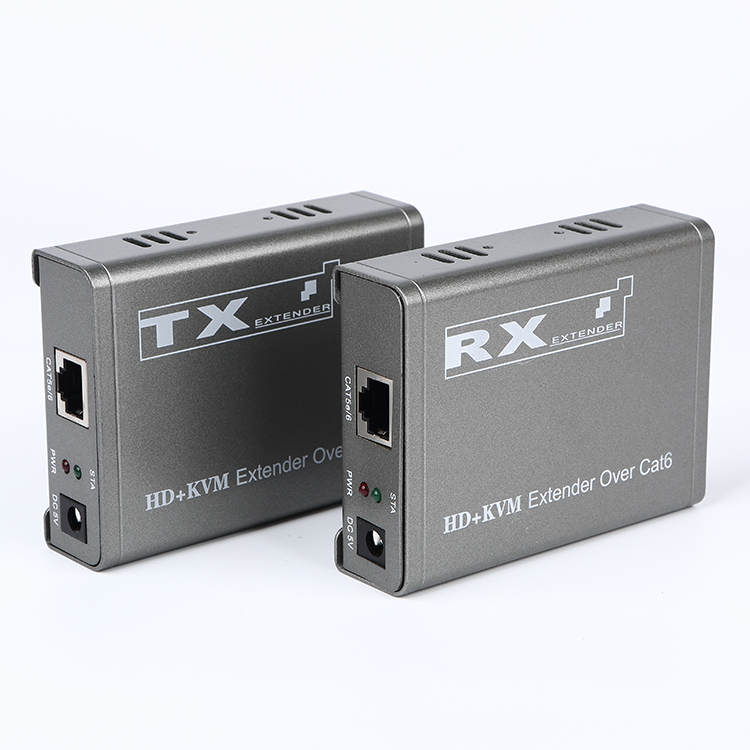

M-HD60U
Introduction
The HD KVM Extender use single Cat-6 cables to transmit high definition signal up to 60 meters, and can achieve 1080P, for cutting down cost, support KVM control and IR function.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1.Support EDID; support HD 1.3；compatible with HDCP1.2
2.Support video input/output : 1080p/1080i/720p/576p/480p/480i@24/50/60Hz
3.Signal transmission: Single Cat-6 cable up to 60 meters
4.Support IR function
5.Support keyboard and mouse
6.Support uncompressed audio transmission, as LPCM
7.Automatic identification various display modes
8.Built in automatic equalization system, the picture is smooth, clear and stable
9.Built in ESD protection circuit, plug and play
10.No loss of quality
Specification
Transmission distance | Up to 60 meters |
HD Input/Output | 1080p/1080i/720p/576p/480p/480i@24/50/60Hz |
Support audio format input/output | DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD |
IR control | Unidirectional, 3.5mm, 38KHz |
KVM control | USB IN: USB-B Signal input |
USB-OUT: USB-A standard interface | |
Max transmission bandwidth | 6.75Gbps |
Input Video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TTL) |
Max working current | 400mA |
HD cable distance | ≤15m AWG26 HD 1.3 standard cable |
Operating Temperature range | -15°C~75°C |
Operating Humidity range | 5%-90%RH (No Condensation) |
Dimension (L x W x H) | 95*73*26mm |
Note:
In order to achieve better transmission quality image, please use the CAT-6 cable.
The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.
If the product can not achieve the transmission distance of 60 meters, please check the wire quality.

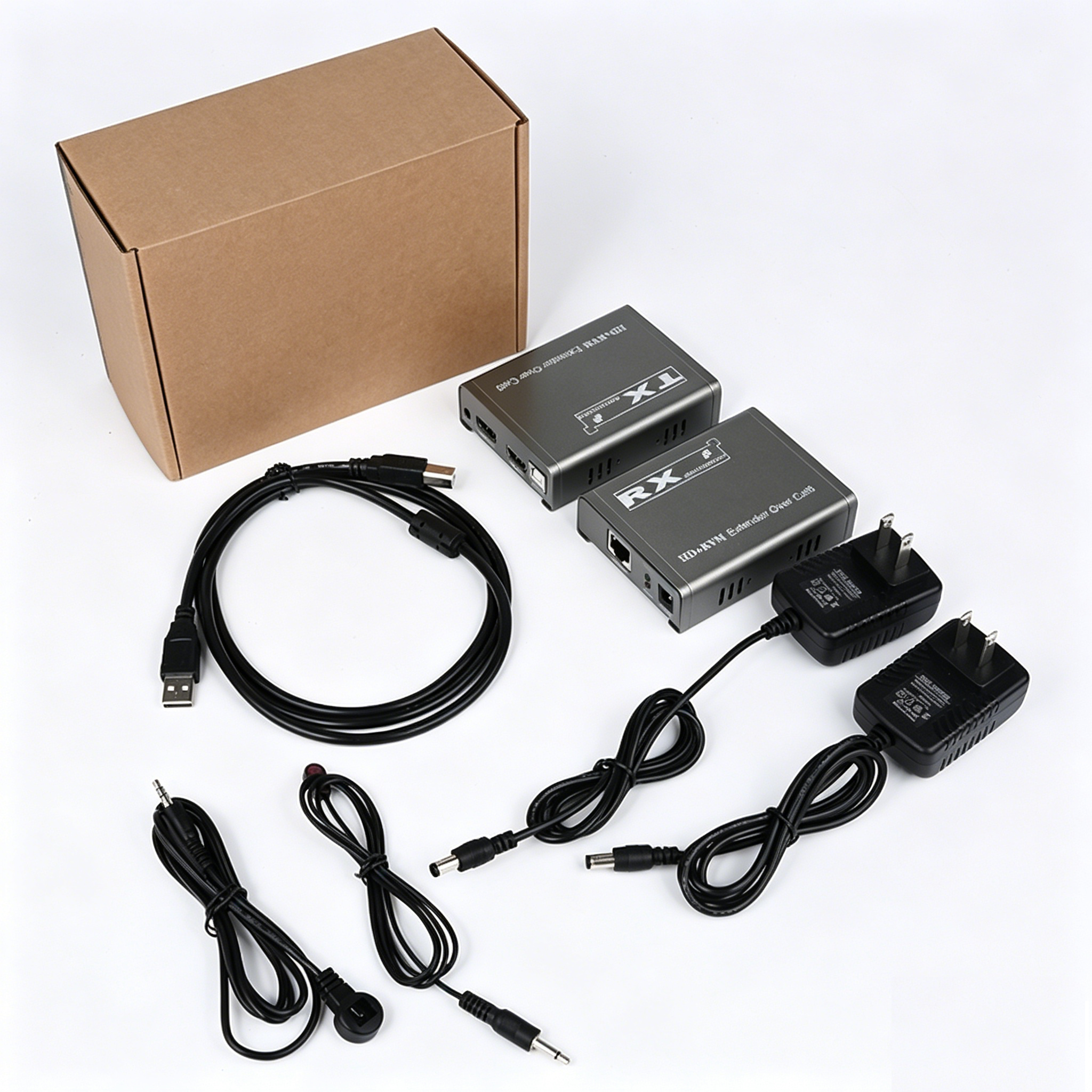

Package
HD transmitter ……………………….……. 1 pcs
HD receiver …………………………………..1 pcs
USB-B Cable ………………………………....... 1 pcs
IR Cable ……………………………….......…......1 set
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs

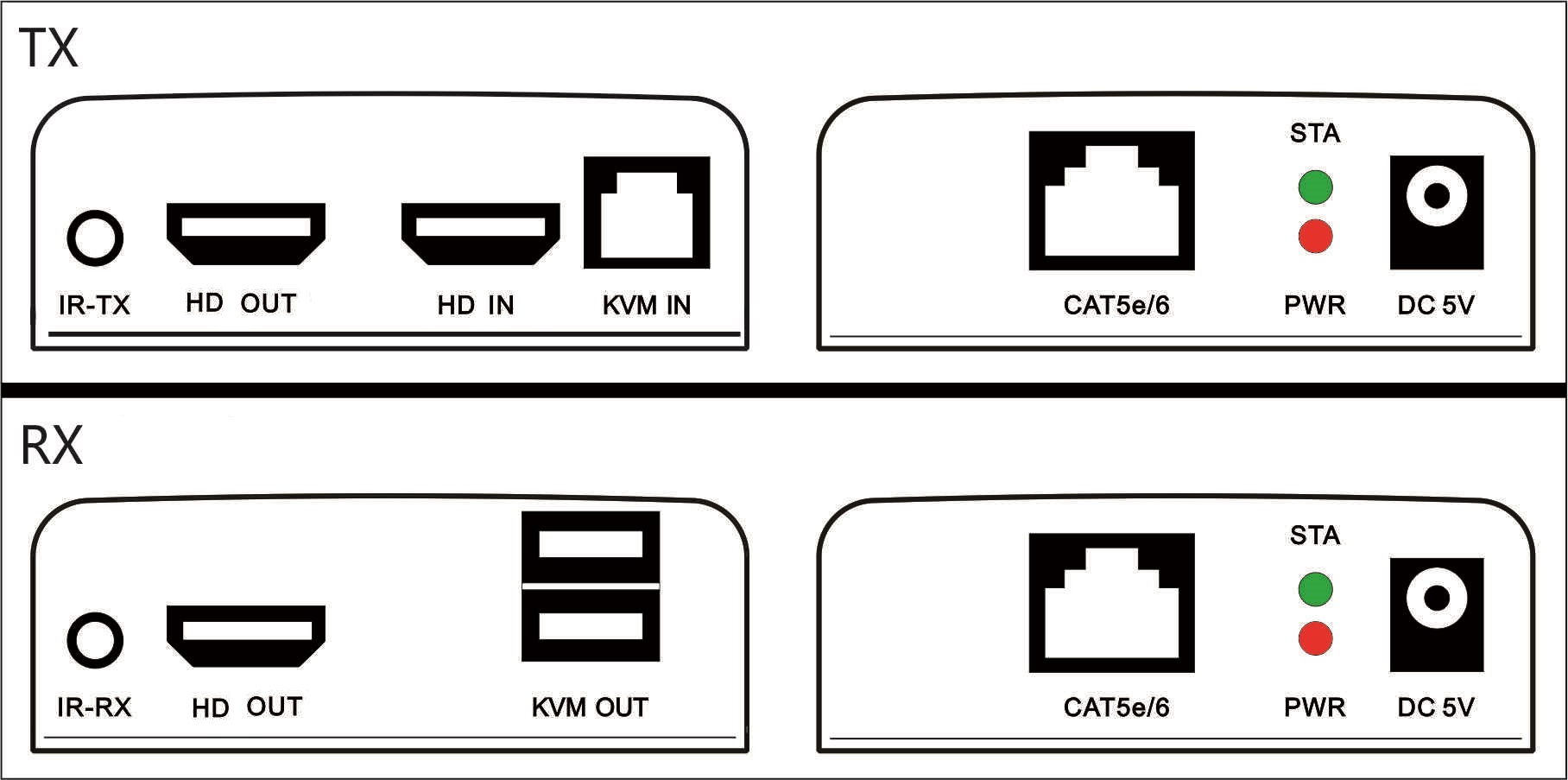

Product Interface
TX: Transmitter
RX: Receiver
Port name | Description |
Input/Output | HD signal input/output |
CAT6 | Ethernet interface |
USB IN/OUT | USB input/output port |
IR TX/RX | IR input/output port |
DC/5V | Power adapter socket |
LED indicator | Description |
STA | Video signal connection indicator |
PWR | System power indicator |
Installation Process
1. Connect one HD cable between source device and TX of HD KVM Extender
2. Connect one HD cable between display equipment and RX of HD KVM Extender
3. Connect USB signal source to the transmitter of HD KVM Extender
4. Connect keyboard and mouse to the receiver of HD KVM Extender
5. Connect IR-TX with IR transmitting line or IR-RX with IR receiving line
6. Connect single cat-6 cables between TX and RX
7. Connect 5V power supply to the HD RX&TX Extender

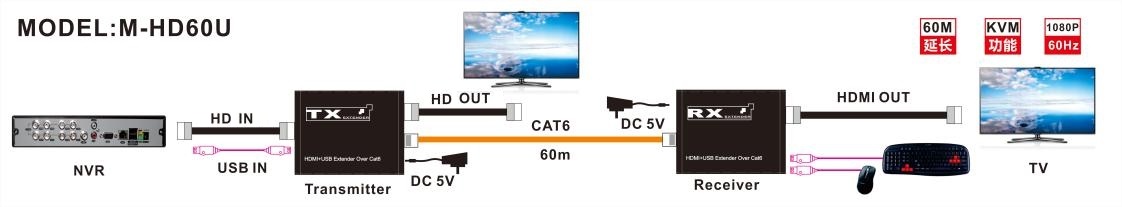

Diagram
