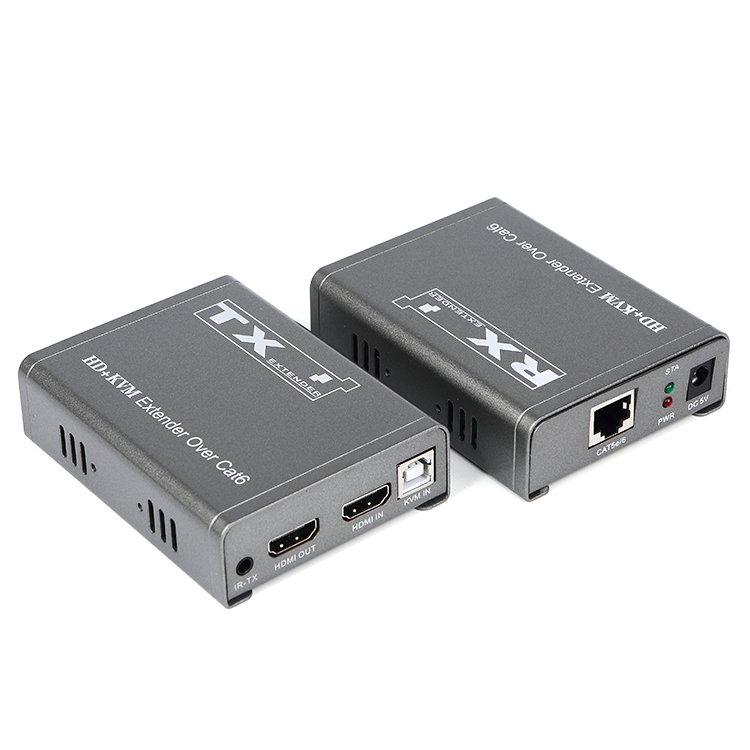

M-HD60U 1080P HD KVM+IR Extender over CAT6

5 0 Reviews

This compact KVM extender extends signals up to 60 meters over a single Cat‑6 cable, supports uncompressed HD audio, keyboard‑mouse control, IR remote, EDID, and ESD protection. Plug‑and‑play, driver‑free, ideal for conference rooms, data centers, training rooms, wholesale and bulk orders.

Price: $ 28.68 / Pair

Price: $ 0 / Pair

Price: $ 28.68 / Pair

Price: $ 0 / Pair

Availability:

Quantity:



Buy Now Add to Cart

Model:
M-HD60U

Product Display
Information
Usage

Introduction

The HD KVM Extender use single Cat-6 cables to transmit high definition signal up to 60 meters, and can
achieve 1080P, for cutting down cost, support KVM control and IR function.

Our devices offers solutions for noise, space and security concerns, data center control, information
distribution, conference room presentation, school and corporate training environments.

Features

1.Support EDID; support HD 1.3；compatible with HDCP1.2

2.Support video input/output : 1080p/1080i/720p/576p/480p/480i@24/50/60Hz

3.Signal transmission: Single Cat-6 cable up to 60 meters

4.Support IR function

5.Support keyboard and mouse

6.Support uncompressed audio transmission, as LPCM

7.Automatic identification various display modes

8.Built in automatic equalization system, the picture is smooth, clear and stable

9.Built in ESD protection circuit, plug and play

10.No loss of quality

Specification

Transmission distance	Up to 60 meters
HD Input/Output	1080p/1080i/720p/576p/480p/480i@24/50/60Hz
Support audio format input/output	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
IR control	Unidirectional, 3.5mm, 38KHz
KVM control	USB IN: USB-B Signal input
KVM control	USB-OUT: USB-A standard interface
Max transmission bandwidth	6.75Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TTL)
Max working current	400mA
HD cable distance	≤15m AWG26 HD 1.3 standard cable
Operating Temperature range	-15°C~75°C
Operating Humidity range	5%-90%RH (No Condensation)
Dimension (L x W x H)	957326mm

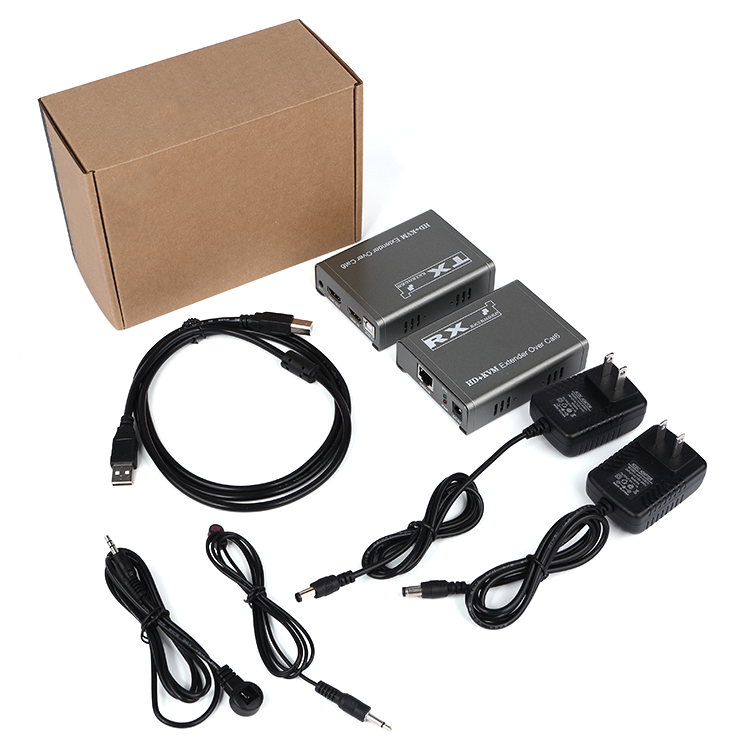

Package

1. HD transmitter x1 pc

2. HD receiver x1 pc

3. USB-B Cable x1 pc

4. IR Cable x1 set

5. Power adapter x2 pcs

6. User manual x1 pc

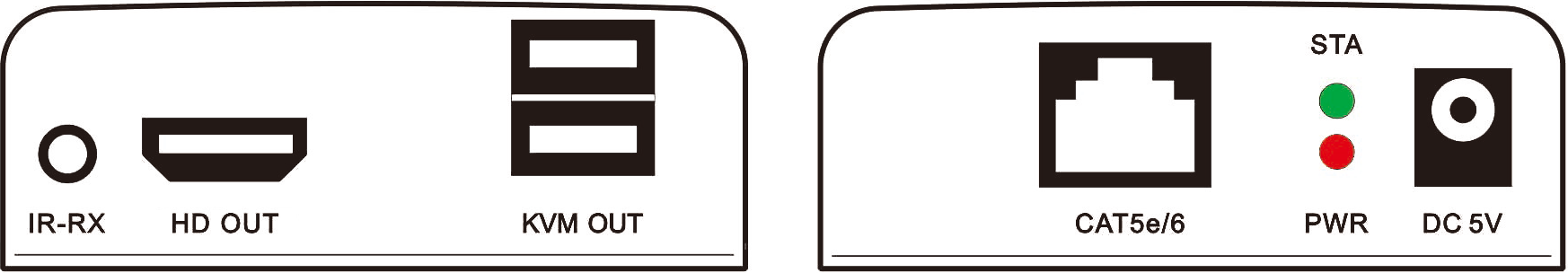

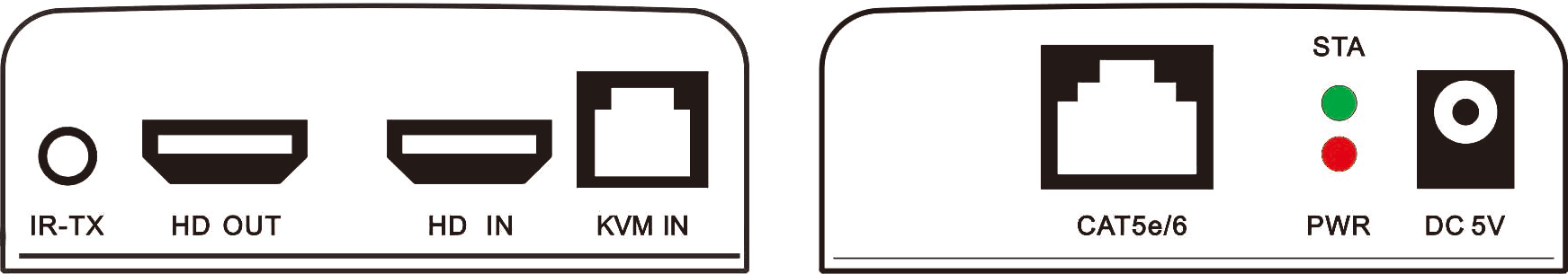

Product Interface

TX: Transmitter

RX: Receiver

Port name	Description
Input/Output	HD signal input/output
CAT6	Ethernet interface
USB IN/OUT	USB input/output port
IR TX/RX	IR input/output port
DC/5V	Power adapter socket
LED indicator	Description
STA	Video signal connection indicator
PWR	System power indicator

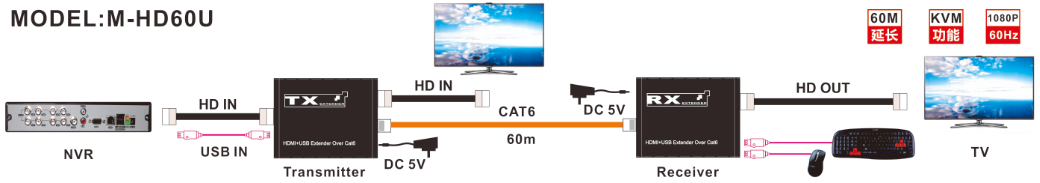

Installation Process

1. Connect one HD cable between source device and TX of HD KVM Extender

2. Connect one HD cable between display equipment and RX of HD KVM Extender

3. Connect USB signal source to the transmitter of HD KVM Extender

4. Connect keyboard and mouse to the receiver of HD KVM Extender

5. Connect IR-TX with IR transmitting line or IR-RX with IR receiving line

6. Connect single cat-6 cables between TX and RX

7. Connect 5V power supply to the HD RX&TX Extender

Note:

In order to achieve better transmission quality image, please use the CAT-6 cable.

The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.

If the product can not achieve the transmission distance of 60 meters, please check the wire quality.
