This HD Extender allows you to extend your HD signal over standard Network cable.While HD cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative.
This HD Extender enables you to extend HD signal to remote display unit to a maximum of 60 meters over Ethernet cable while maintaining your remote controller active (from the display unit location).
This HD Extender allows you to extend your HD signal over standard Network cable.While HD cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative.
This HD Extender enables you to extend HD signal to remote display unit to a maximum of 60 meters over Ethernet cable while maintaining your remote controller active (from the display unit location).

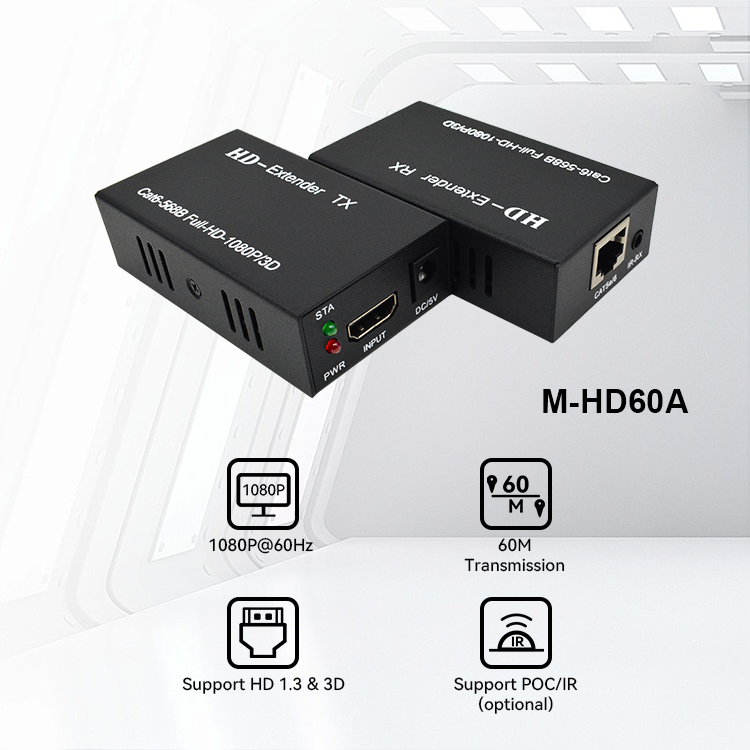

Features
1. Transmits HD signal up to 40m distance over single Cat5e and up to 60m over single cat6 cable
2. HD 1.3 & 3D Support
3. The network line conforms to the standard of IEEE-568B
4. Support video resolution up to 1080P@60Hz
5. Support audio format: DTS-HD / Dolby- true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
7. DC5V power supply is included
8. Support POC/IR(Optional)
Specification
Parameter
Description
Video
Standard
HD 1.3; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920X1080@60Hz, 3D
Connector
HD-A
Impedance
100Ω
Ethernet
Interface
RJ45
Transmission distance
CAT6---60m
IR(Optional)
Interface
3.5mm earphone Jack
Frequency
38KHz, Unidirectional transmission
Other
Power supply
The power adapter: DC 5V/1A
Power consumption
MAX 3W
Operating Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
81*45*23mm
Package

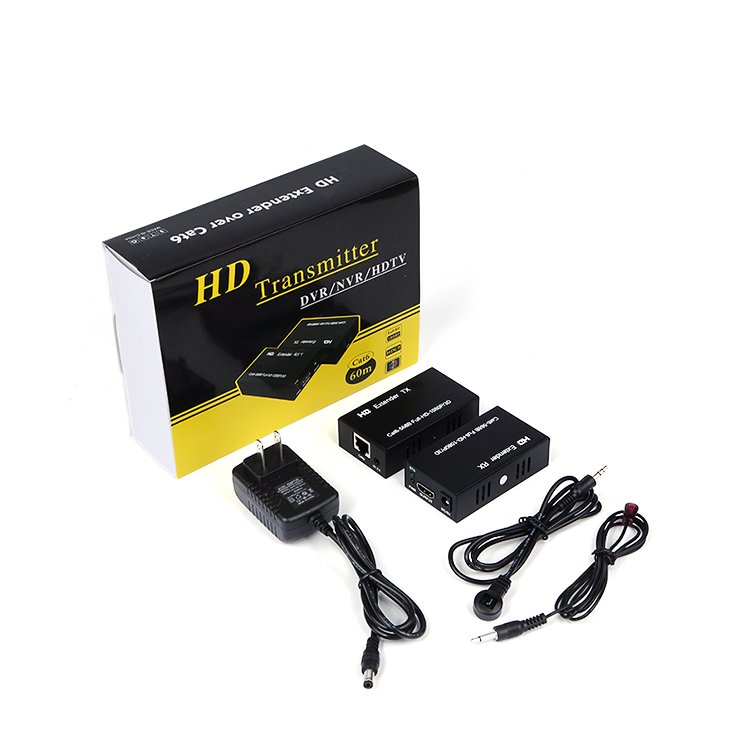

1. HD transmitter unit ×1 pc
2. HD receiver unit ×1 pc
3. Power adapter × 2 pcs (1pc Optional)
4. IR cable × 1set (Optional)
5. User manual ×1 pc

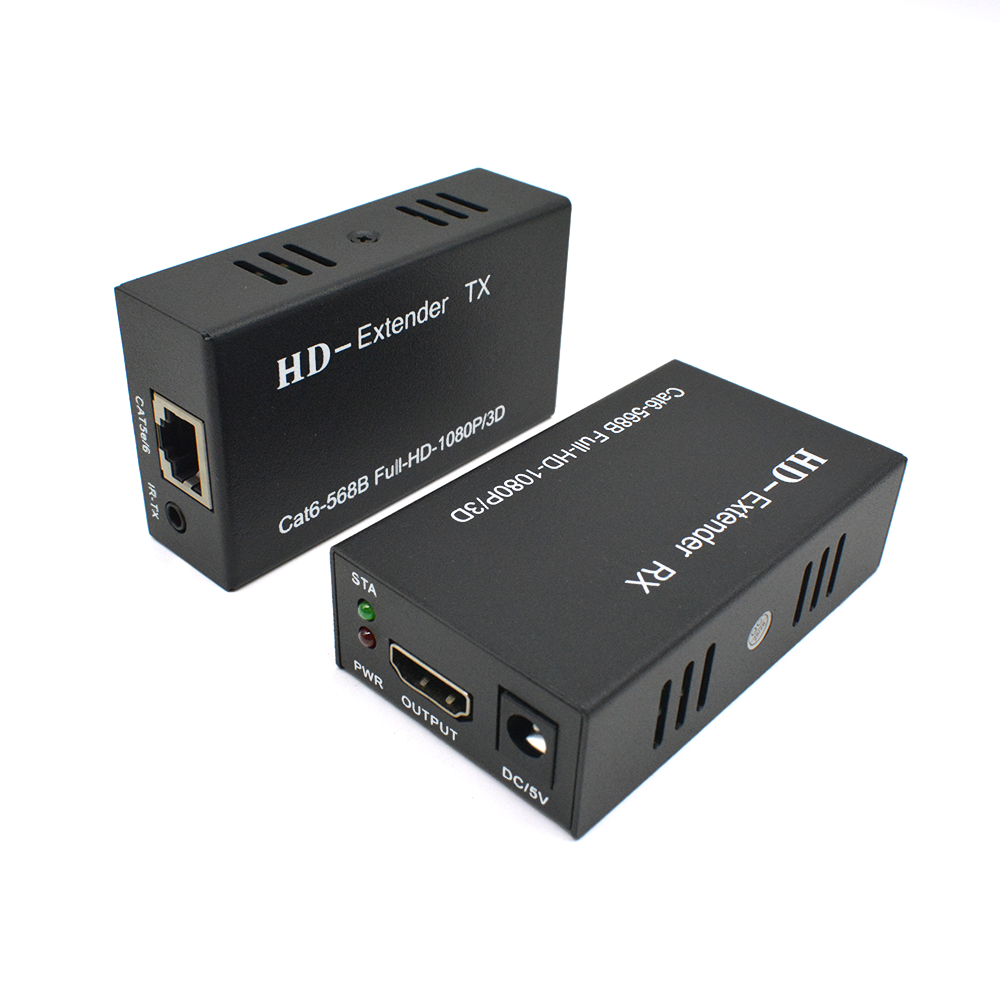

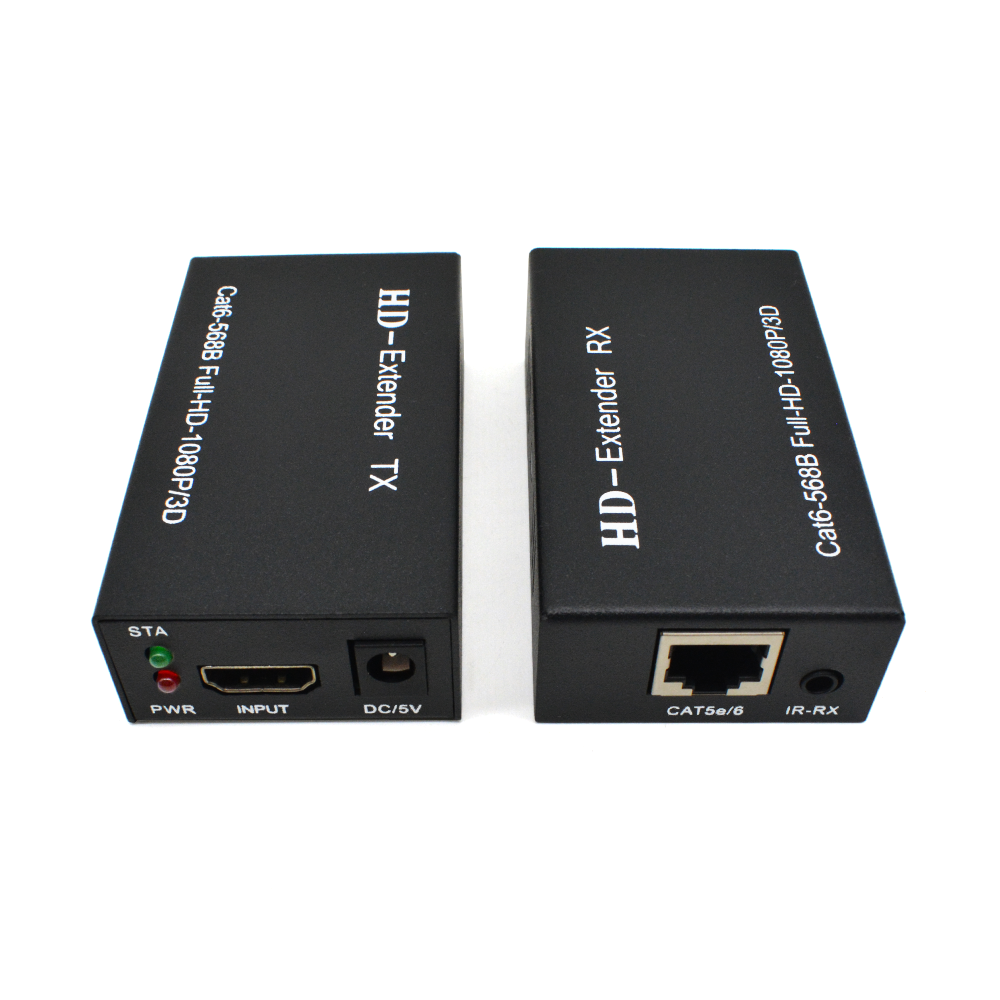

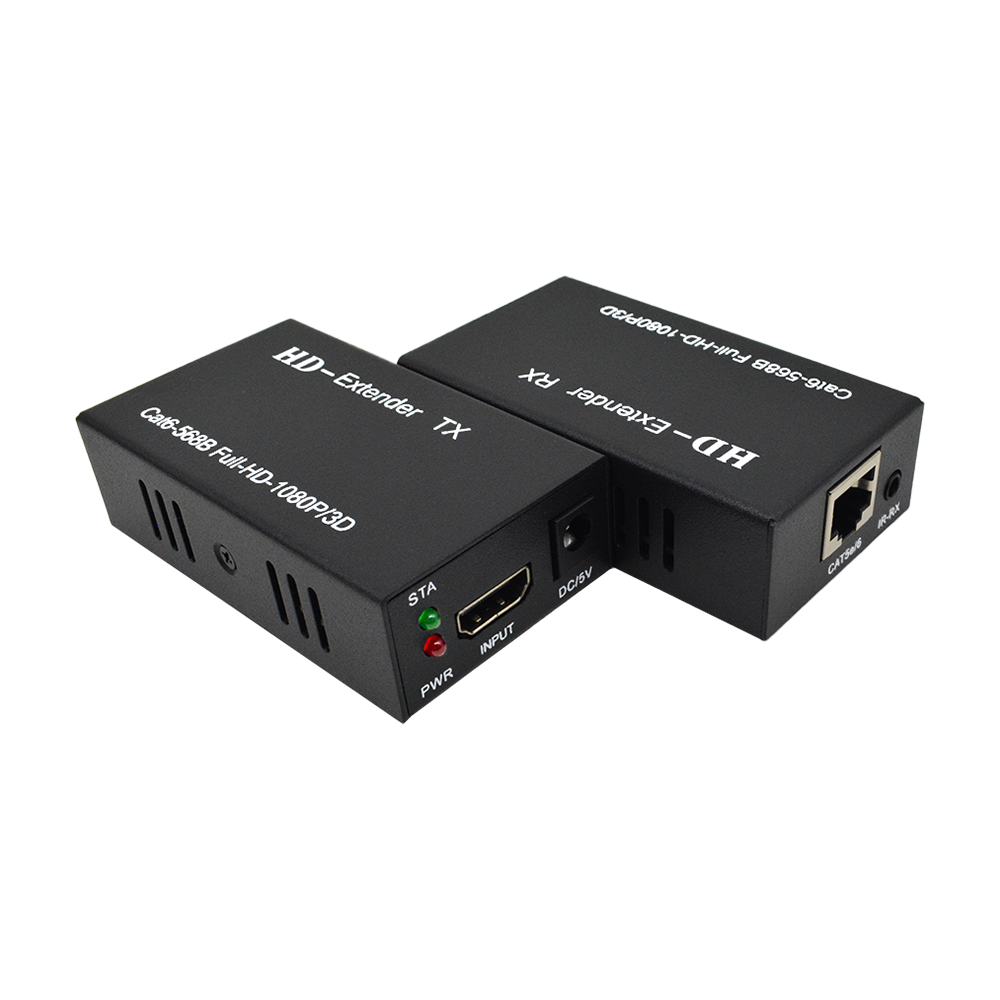

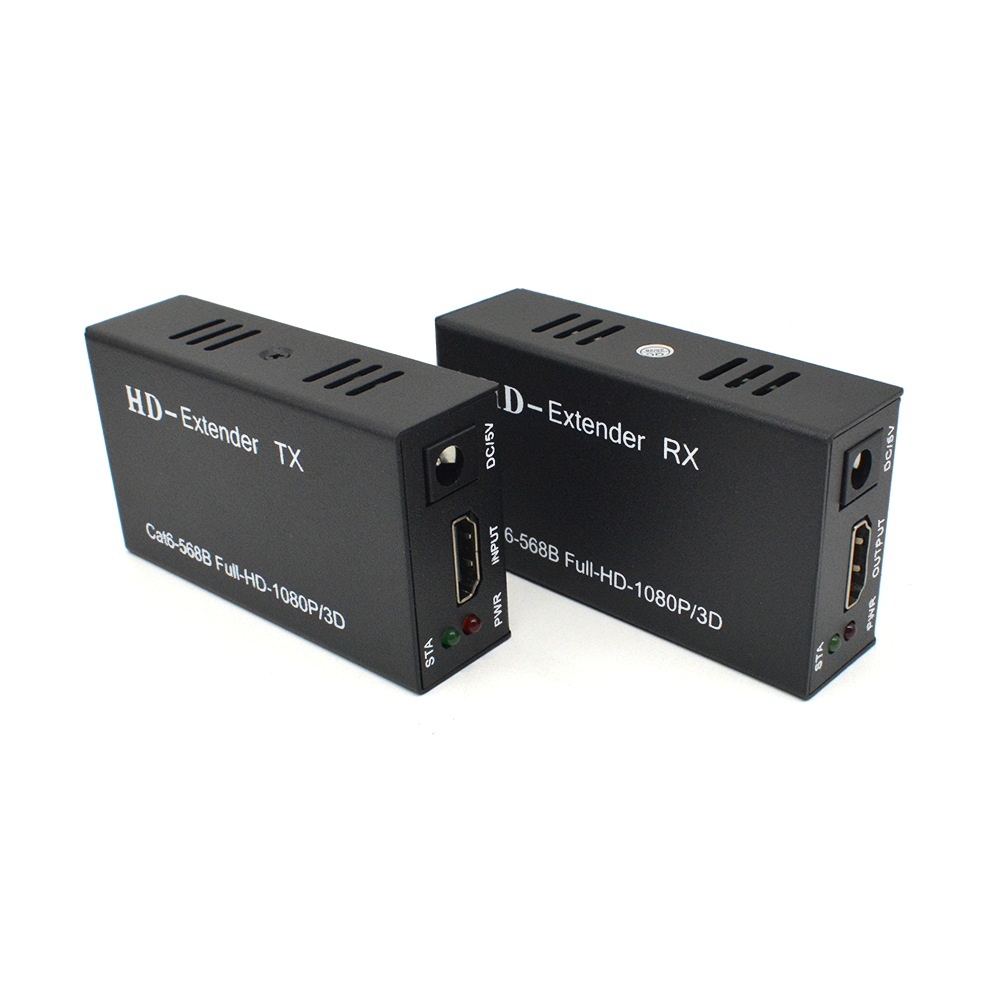

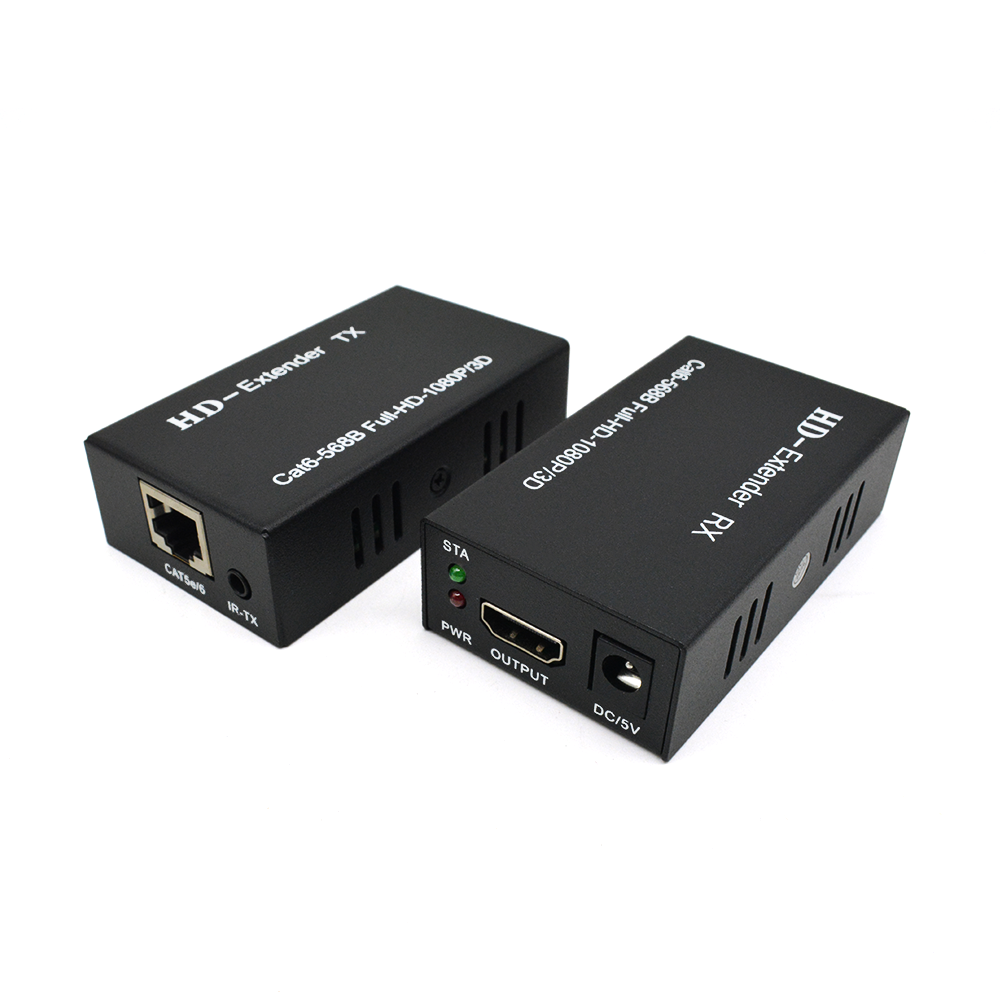

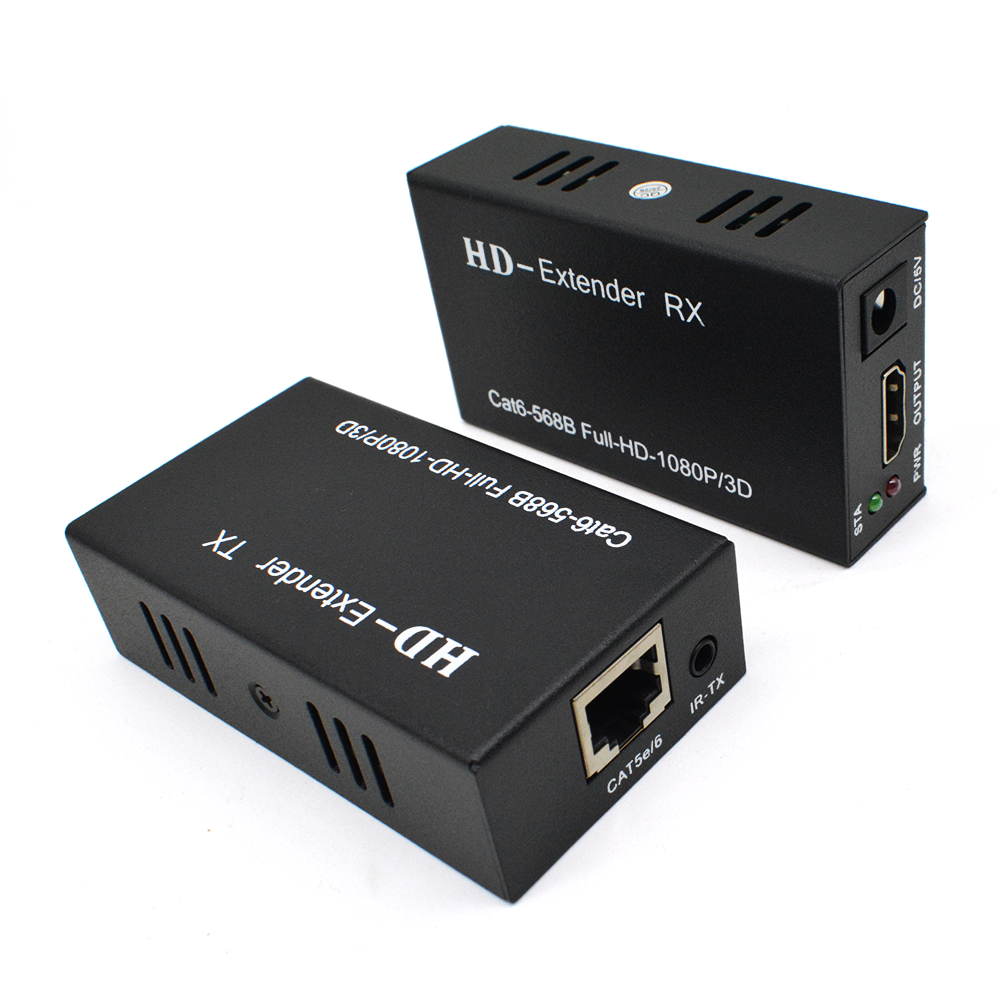

Product Interface
TX RX
TX: Transmitter
RX: Receiver

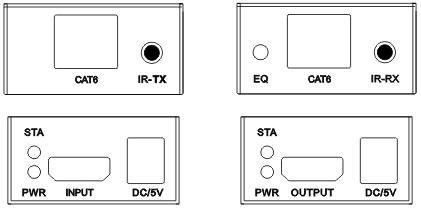

Port name
Description
HD IN/OUT
HD signal input/output
CAT6
RJ45 port;
EQ
EQ read, connect sender and receiver, press 3 seconds to copy completed
(Note: If no learning, the factory length and resolution will be defaulted.)
IR-TX/IR-RX
Infrared transmission function
DC/5V
Power adapter socket
LED indicator
Description
PWR
System power indicator
STA
HD signal indicator

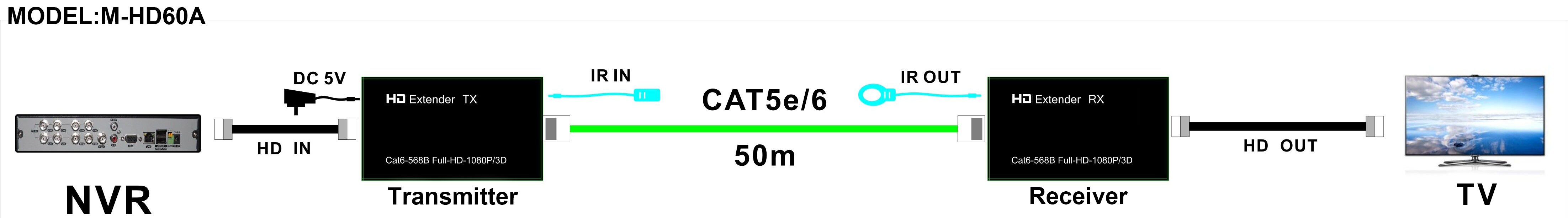

Installation Process
1. Connect the provided DC/5V power supply to the power socket of Tx (Transmitter) and Rx(Receiver) units
2. Connect the Rx unit to the display device by HD cable
3. Connect the Tx unit to the video source device by HD cable
4. Connect between the Tx and Rx units using Cat6 cable
5. Turn on the source device
6. If no playing, please study by “EQ” button
7. If you change your display unit or cable length, please re-study by “EQ” button. (Repeat process 6)
Note:
1. If no playing, the factory length and resolution will be defaulted, please press EQ 3seconds
2. Distance may be affected by the cable quality and length
