This compact video extension kit adopts stable transmission design, supports up to 60 meters long‑distance signal transmission via single CAT6 cable, delivers clear 1080P high‑definition picture and uncompressed audio output.
Built‑in ESD protection and automatic equalization ensure stable and smooth signal, EDID and HDCP1.2 compatibility bring wide application scenarios.
Plug‑and‑play structure requires no driver, suitable for conference rooms, training centers and home entertainment. It comes with transmitter, receiver and power adapters, ready to use out of box.
Used for a pair extension of this HD CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, for cutting down cost.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1.Support EDID; support HDMI 1.3；compatible with HDCP1.2
2. Support video input/output : 1080p/1080i/720p/576p/480p/480i@24/50/60Hz
3. Signal transmission: Single Cat-6 cable up to 60 meters
4. Support uncompressed audio transmission, as LPCM
5. Automatic identification various display modes
6. Built in automatic equalization system, the picture is smooth, clear and stable
7. Built in ESD protection circuit, plug and play
8. No loss of quality
Specification
No loss of quality
Up to 60 meters
HD Input/Output
1080p/1080i/720p/576p/576i/480p/480i@24/50/60Hz
Support audio format Input/Output
DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth
6.75Gbps
Input Video signal
0.5~1.5Volts p-p
Output DDC signal
5Volts p-p (TTL)
HD cable distance
≤15m AWG26 HDMI 1.3 standard cable
Max working current
400mA
Power adapter format
DC5V/1 A
Operating Temperature range
(-15 to +75°C)
Operating Humidity range
5 to 90%RH (No Condensation)
Dimension (L x W x H)
81*53*26 (mm)
Note:
In order to achieve better transmission quality image, please use the CAT-6 cable.
The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.
If the product can not achieve the transmission distance of 60 meters, please check the wire quality.

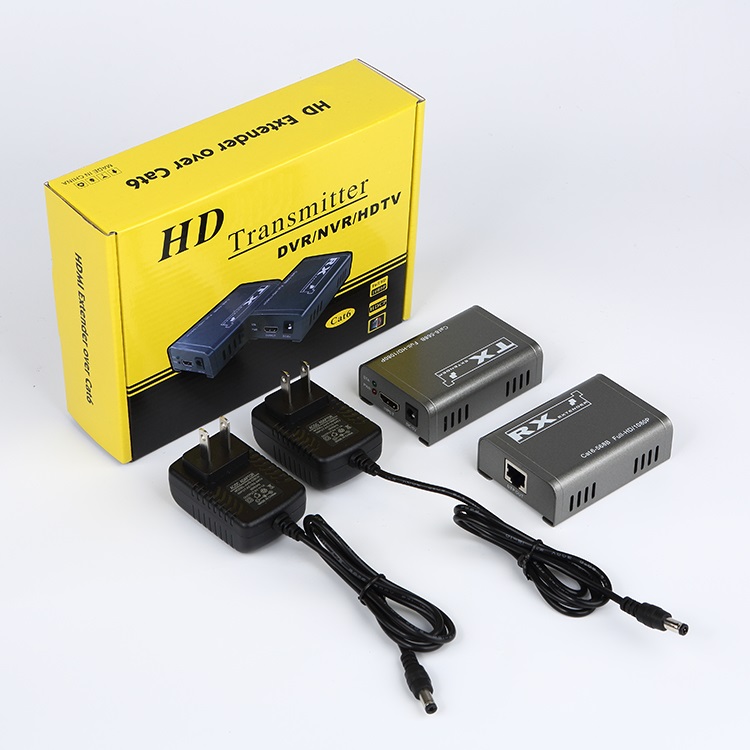

Package
HD transmitter ……………………….……. 1 pc
HD receiver …………………………………..1 pc
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pc

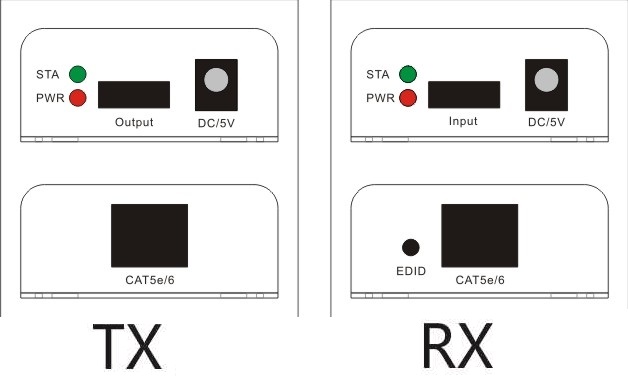

Product Interface
TX: Transmitter
RX: Receiver

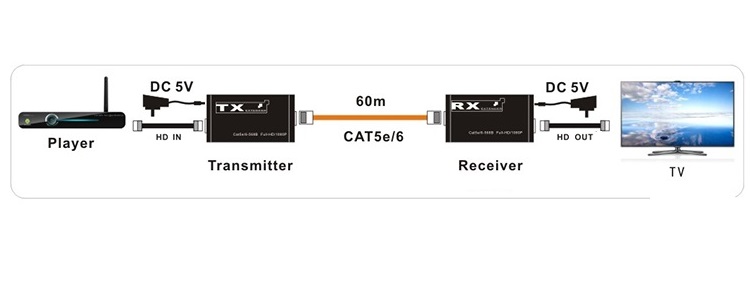

Installation Process
1. Connect one HD 1.3 cable up to 15 meters between source device and TX Extender.
2. Connect one HD 1.3 cable up to 15 meters between sink device and RX Extender
3. Connect single cat-6 cables up to 60 meters instead of HD cable between TX and RX
4. Connect 5V power supply to the HD CAT6 RX&TX Extender
The M-SD200A fiber extender transmits 4K/12G SDI signal over long distances via a single fiber, support 16-channel embedded audio synchronization function; The multi-rate 12G-SDI interface is compatible with all SD, HD and Ultra HD formats and devices, up to 2160P@60Hz, including Class A and Class B devices. The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low cost optical cable widely used in computer networks to transmit SDI.
The device has excellent image processing and output capabilities, enabling signal transmission smoother and more stable, it is a reliable, high-performance, Efficient 4K/12G-SDI signal extension method.
M-HW200Pro Wireless HD Extender transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. It can also be equipped with mobile batteries to make transmission easier. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI signal extension mode.
M-HFK20U transmits high-definition video signals over long distances through optical fiber, supports KVM or RS232 function, and can operate remote devices using keyboard and mouse or RS232. This product transmits HDMI high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, it supports KVM signal or RS232(optional), independent audio transmission, and supports local loop output, which reduces costs for users while ensuring signal stability. This model has a built-in learning EDID function, which greatly improves the compatibility of the device.
This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.
The HD extender provides extension of HD signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
The HD Splitter 1x4 uses a single HD source, accessing to multiple HD sinks.The splitter allows one HD device to be split easily to two HD compatible monitors or projectors. The splitter can also be placed at the end of a long HD cable to regenerate the HD signal. The HD Resolution up to 3840x2160/30Hz.
This DVI Extender allows you to extend your DVI signal over standard Network cable. While DVI cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative. This DVI Extender enables you to extend DVI signal to remote display unit to a maximum of 30 meters over Ethernet cable.
The HD to AHD/TVI/CVI video converter can convert HD video Signal to AHD/TVI/CVI output by digital processing. It makes the video signal more compatible with monitoring/matrix devices, resulting in clearer and more stable images.
This converter converts HD signals to AHD/TVI/CVI signals, which are connected to monitoring/matrix/LCD TV through AHD/TVI/CVI interfaces. It is easy to operate and can achieve high-definition lossless transmission up to 400 meters using 75-3 coaxial lines, breaking the transmission limit of existing high-definition video transmission technologies. It can achieve low-cost, long-distance, no delay, high efficiency, anti-interference, and easy to implement million pixel high-definition video transmission.
M-AF04 digital four-way audio optical transmitter can use one optical fiber to transmit four-way audio signals. Audio signal adopts 24bit / 96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission.
This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.
M-XLRB-2 digital one-way audio transmitter can use one Cat6 to transmit one-way bi-directional audio signals, one-to-many distributed audio can also be achieved through switch. Audio signal adopts 24bit / 96KHz digital sampling to ensure high fidelity transmission; All digital optical transmission channels ensure high-quality signal transmission.
This product can be applied to game console high fidelity audio equipment, TV box, hi-fi home theater, large screen projection video conference, public video broadcasting system, remote multimedia education, teaching and medical system, military field, flat panel video media advertising demonstration, etc.
The extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
ShenZhen MYBOX Technology Co., Ltd, is a R&D oriented designer and manufacturer for high denition Video & Audio data transmission equipment over UTP(Unshielded Twisted Pair).
