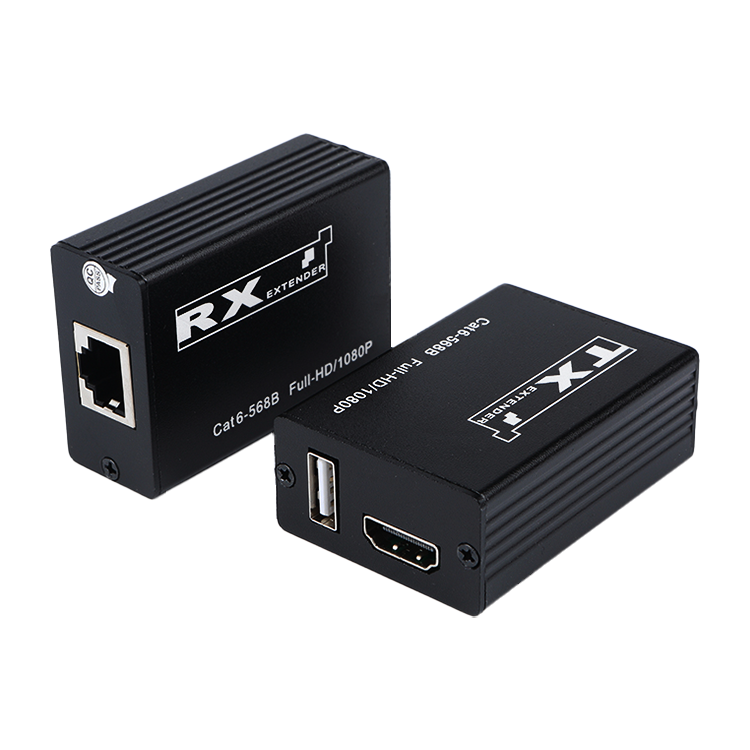

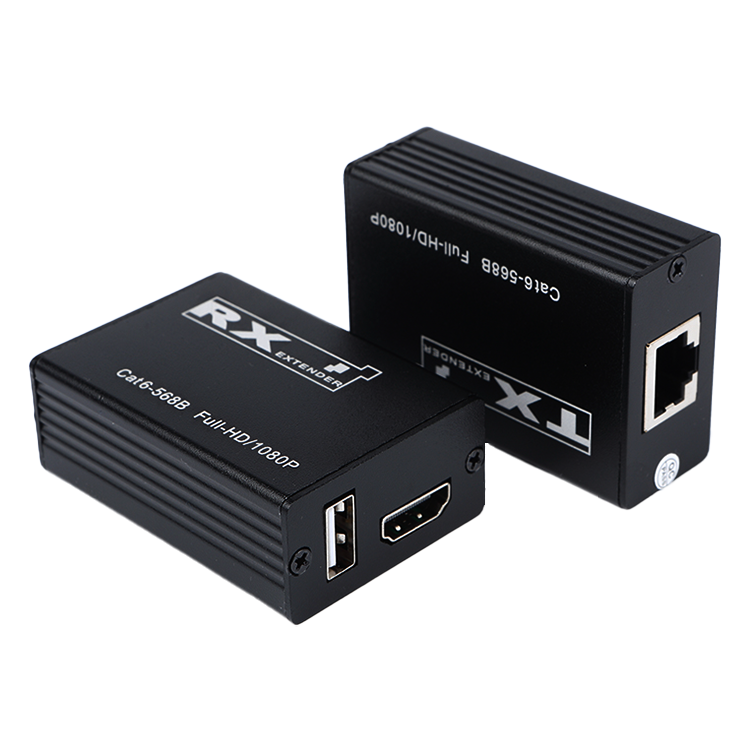

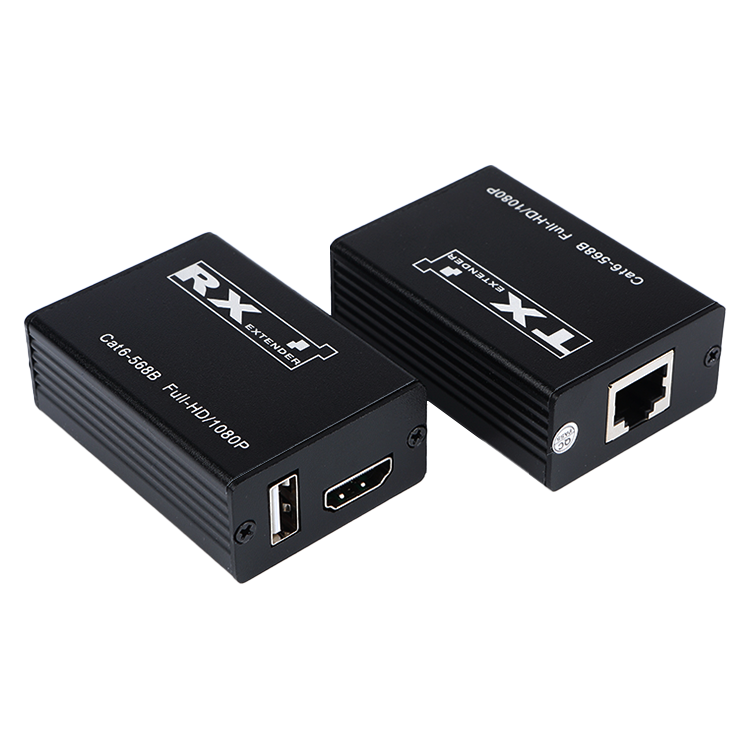

Used for a pair extension of this HD Cat6 cable to extend HD signal up to 30 meters, and can achieve 1080P, which not only broke the HD cable transmission length limitations, but also more convenient and flexible.
This model has KVM function, which can cost savings for more customers. We designed this extender specifically for CCTV, such as: DVR, NVR hard disk video recorder.
Used for a pair extension of this HD Cat6 cable to extend HD signal up to 30 meters, and can achieve 1080P, which not only broke the HD cable transmission length limitations, but also more convenient and flexible, support KVM function, cost savings for more customers

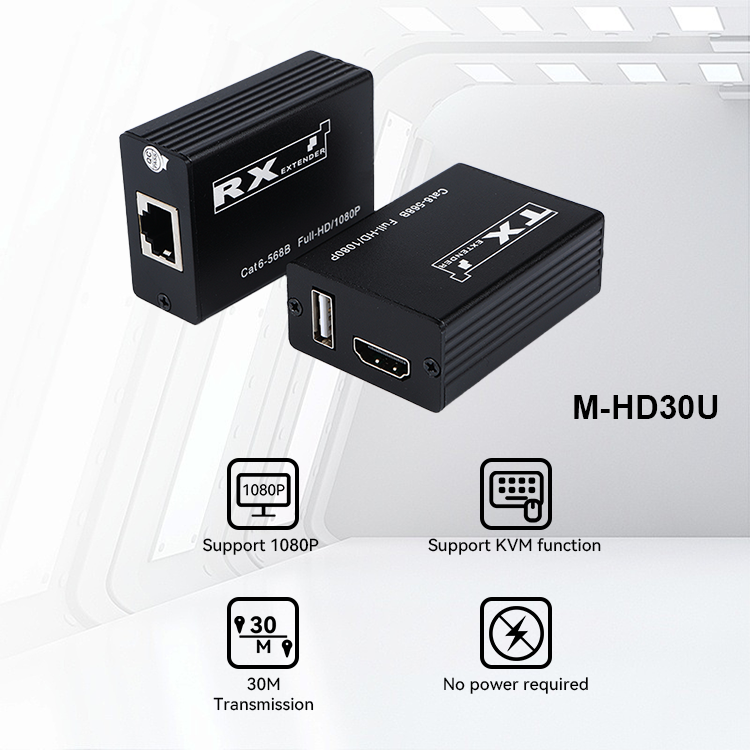

Features
1. Support 1080P, supports 165MHz/165Gbps single channel (4.95Gbps all channels) bandwidth
2. Support KVM function (optional model function)
3. Single cat6(recommended) cable can up to 30 meters, the resolution can up to 1080P
4. Follow the standard of IEEE-568B
5. No power required
6. Plug and play
7. No loss of quality

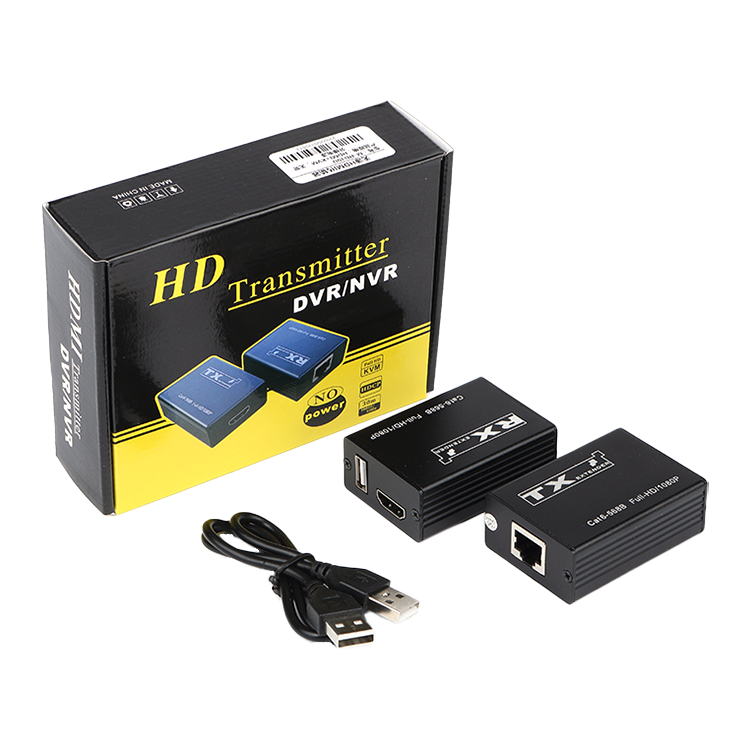

Package

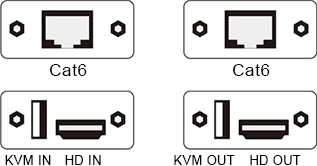

Product Interface

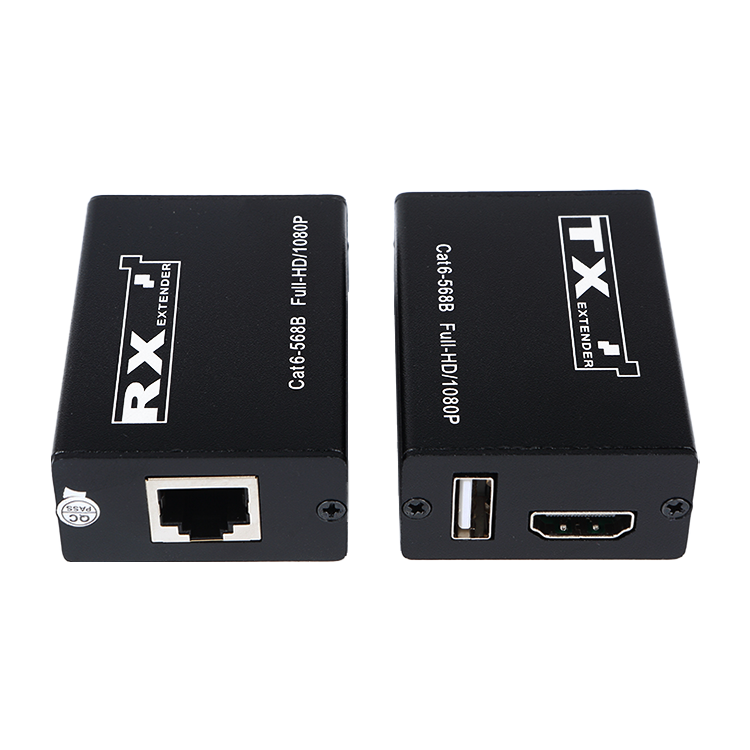

TX (Transmitter) RX (Receiver)
Installation Process
1. Plug the sender of the HD extender into the HD signal source, such as: CCTV, DVR, NVR hard disk video recorder.
2. Connect one Cat6 cable to the sender and the receiver.
3. Plug the receiver of the HD extender into the HD display, such as: HD-LCD.
4. (Optional model function) Connect the KVM port of TX to the signal source (for example, DVR, NVR) with USB cable, and connect the KVM port of RX to the wired mouse
