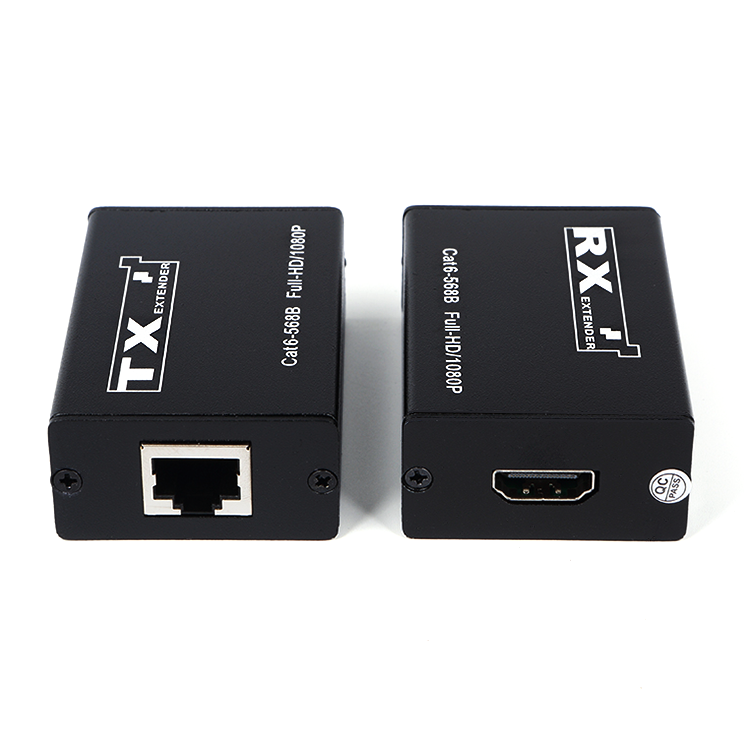

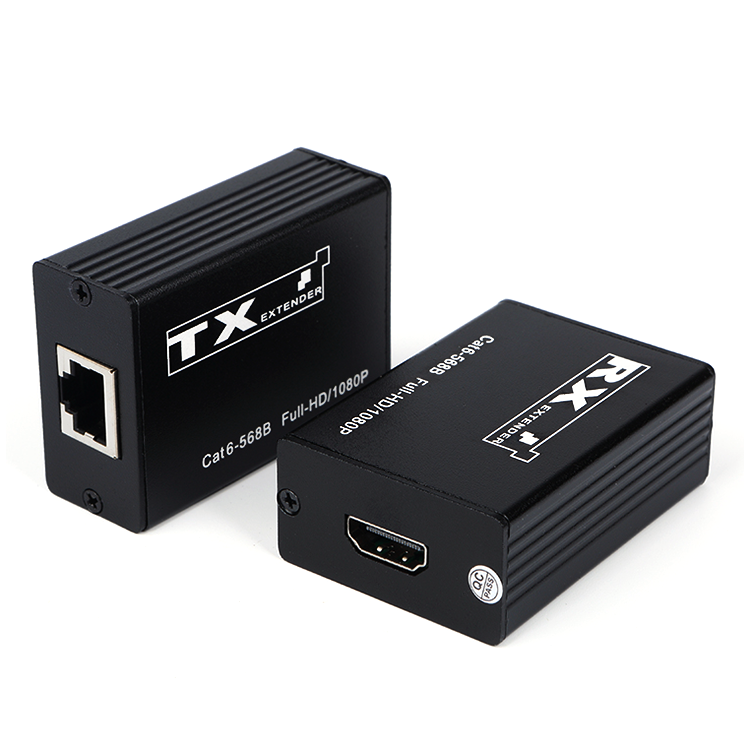

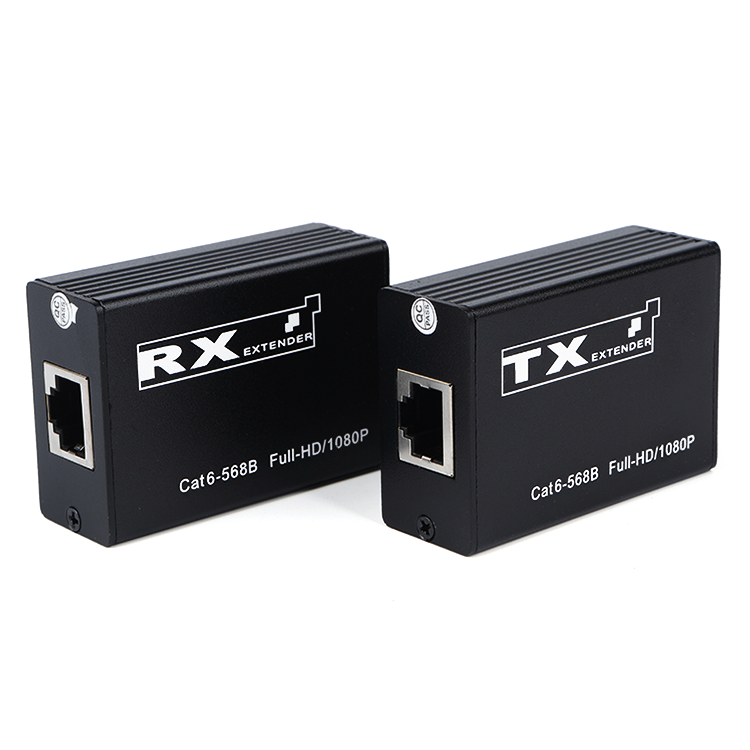

M-HD30 30m 1080P HD Extender Cat6 Cable Plug Play No Power for Security System
51 Reviews
This M-HD30 High-Definition extender is crafted with durable Metal housing for long-term use, featuring a compact, plug-and-play design that requires no external power supply or driver installation. It supports 1080P@60Hz full HD video transmission up to 30 meters via a single Cat5e/Cat6 cable, with built-in signal amplification to ensure zero latency and lossless picture quality.
Compatible with HD 1.4 standard and IEEE-568B wiring, it works seamlessly with CCTV, DVR, NVR, set-top boxes, laptops, and other HD-enabled devices. Available in classic black, it supports wholesale and bulk orders for security system integrators, installers, and resellers, with stable performance suitable for both home and commercial monitoring scenarios.
Used for a pair extension of this High-Definition Cat6 cable to extend HD signal up to 30 meters, and can achieve 1080P, which not only broke the HD cable transmission length limitations, but also more convenient and flexible, cost savings for more customers.
We designed this extender specifically for CCTV, such as: DVR, NVR hard disk video recorder.
Features:
1. Support 1080P, supports 165MHz/165Gbps single channel (4.95Gbps all channels) bandwidth
2. Single cat6(recommended) cable can up to 30 meters, the resolution can up to 1080P
3. Follow the standard of IEEE-568B
4. No power required
5. Plug and play
6. No loss of quality

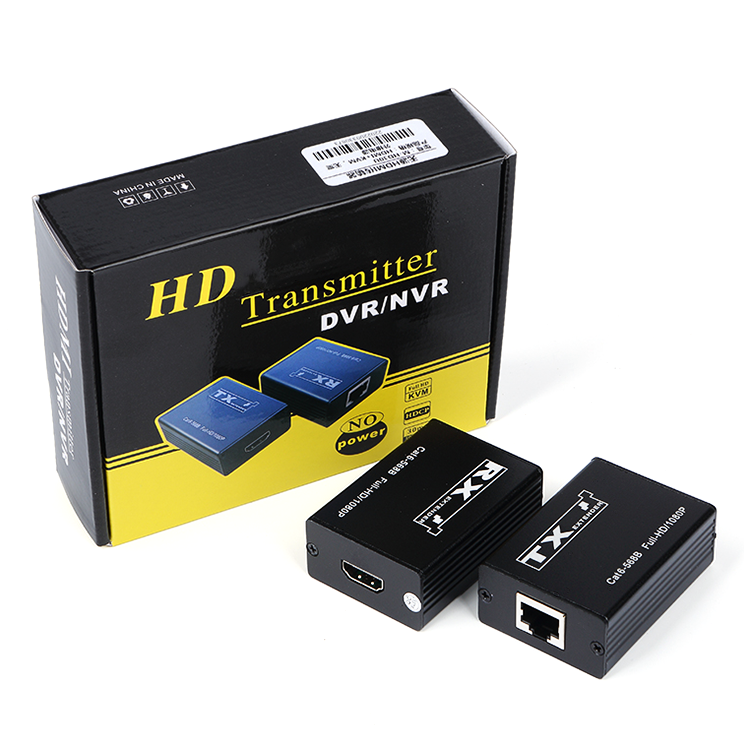

Package
1. HD Extender TX x1 pc
2. HD Extender RX x1 pc

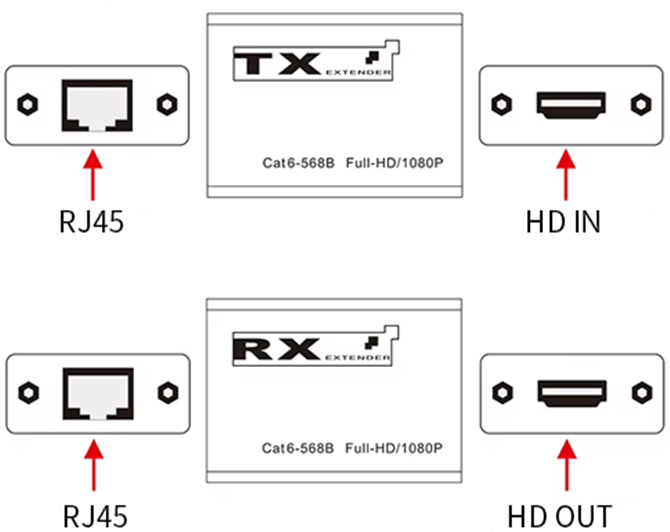

Product Interface
TX: Transmitter
RX: Receiver

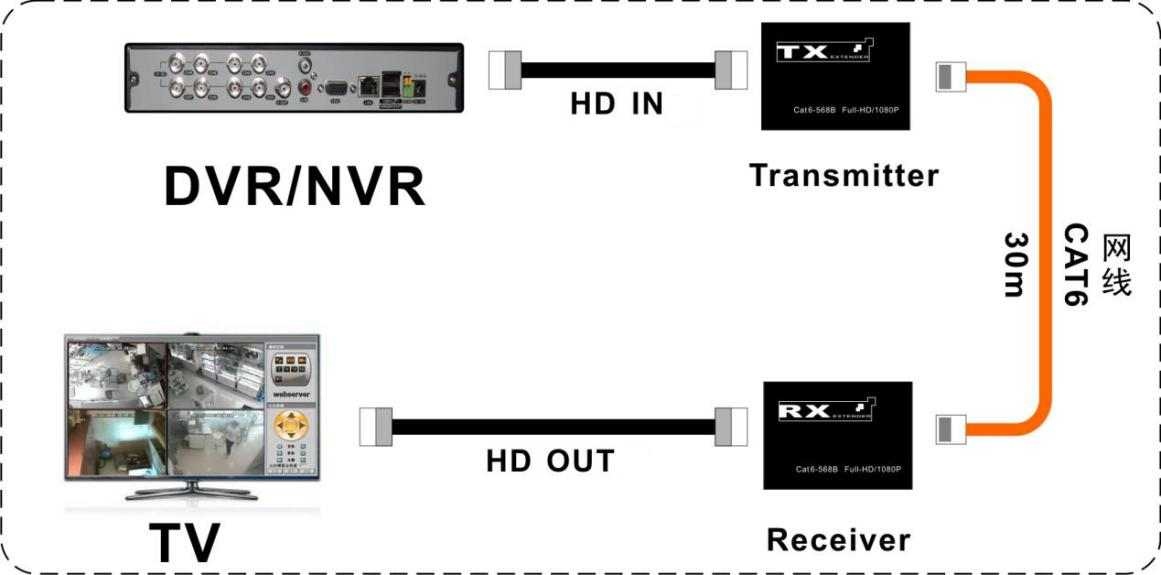

Installation Process
1. Plug the sender of the HD extender into the HD signal source, such as: CCTV, DVR, NVR hard disk video recorder.
2. Connect one Cat6 cable to the sender and the receiver.
3. Plug the receiver of the HD extender into the HD display, such as: HD-LCD.
