M-HD120 100M 1080P IR Extender Over Cat5e/Cat6 Cable Plug and Play HD Signal Transmitter
50 Reviews
This compact HD signal extender adopts sturdy shell, stable performance, easy installation, plug‑and‑play design. It supports 100‑meter 1080P transmission over Cat5e/Cat6 cable, IR control, auto‑matching, ESD protection, and stable signal output. Ideal for engineering, conference rooms and multi‑scene long‑distance transmission. Sold as a complete set with transmitter, receiver, power adapters and accessories.
This HD extender can transmit high definition signal of DVD player, PC and other equipment via Cat5e/6 cable(recommended), support 1080P transmission distance up to 100 meters, support infrared transmission. The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and other places.
Features
1. Support the Max transmit distance: 1080P up to 100M，
2. Support IR transmission
3. High compatibility, can auto-match source and display device
4. Built-in automatic adjustment system, make the image smooth, clear and stable
5. Built-in ESD protection system
6. Simple to install, plug and play
Specification
Parameter
Description
Video
Standards
HD 1.3; HDCP 1.4
Max bandwidth
340MHz, digital
Max baud rate
3×3.4Gbps
Input video signal
0.5-1.5Volts p-p
Output DDC signal
5Volts p-p(TTL)
Max Resolution
1080P@60Hz
Connector
HD-A
IR
Interface
3.5mm seat
Signal direction
Unidirectional
IR frequency
30-60KHz
UTP
Interface
RJ45
Transmission distance
Cat6-1080P: 100M
Other
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
81*43*23mm

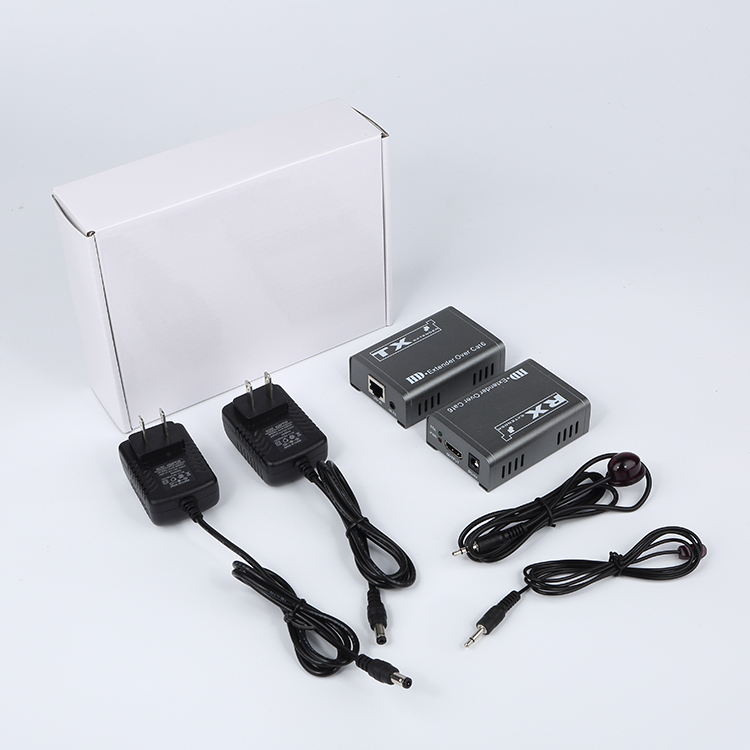

Package
1. HD transmitter x1 pcs
2. HD receiver x1 pcs
3. Power adapter x2 pcs
4. IR TX/RX terminal x 1 set
5. User manual x1 pcs

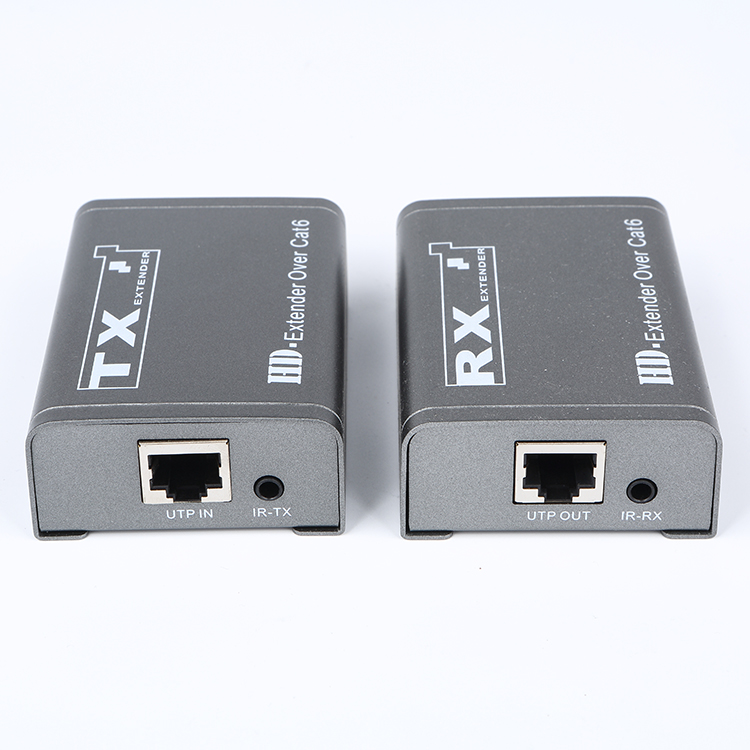

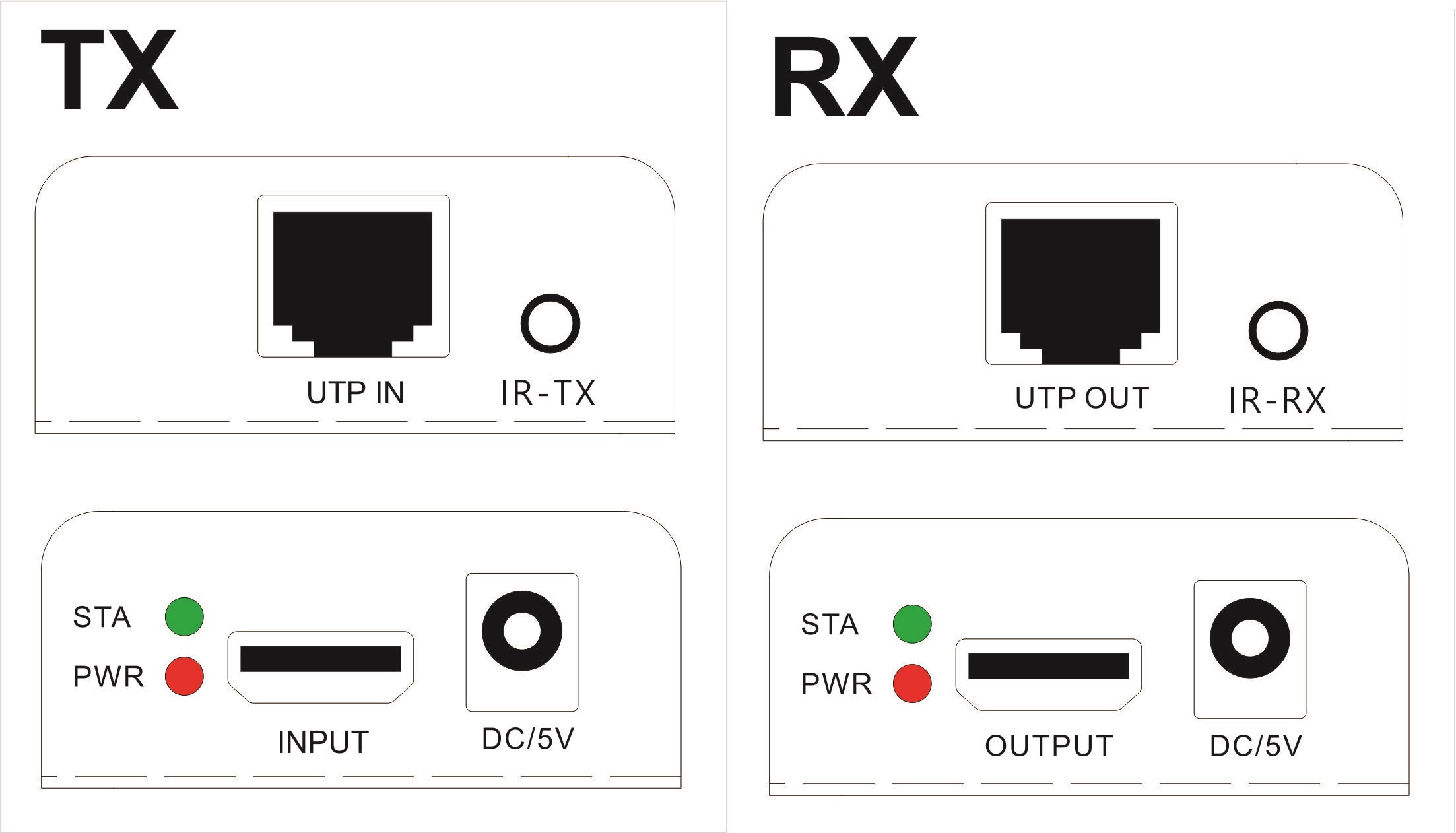

Product Interface
TX: Transmitter
RX: Receiver
Port name
Description
HD IN/OUT
HD signal input/output
Cat5e/6
RJ45 port connect cat5e/cat6
IR TX/RX
IR signal input/output
DC/5V
Power adapter socket
LED indicator
Description
PWR
unit power indicator
STA
HD signal indicator

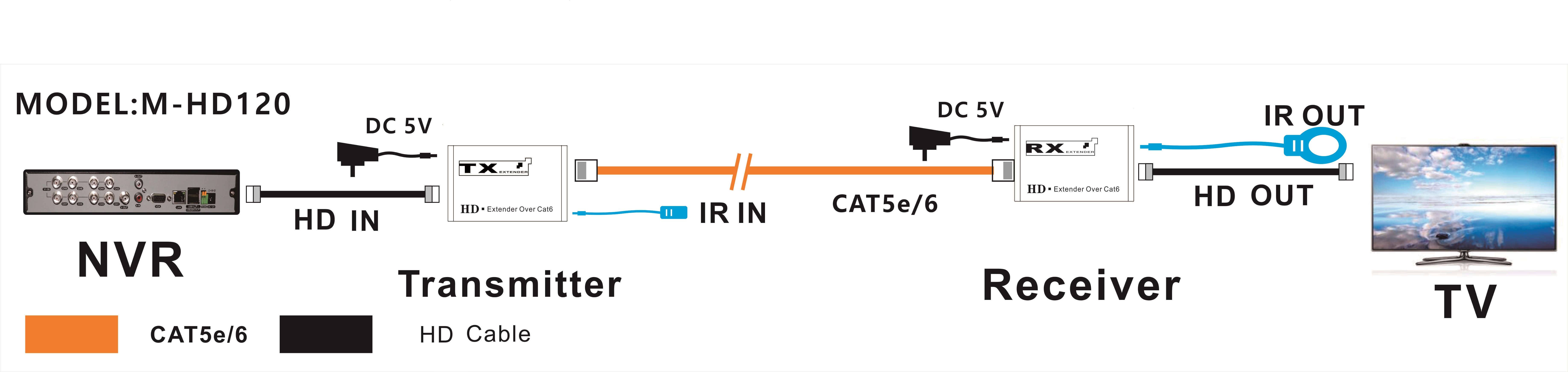

Installation Process
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HD cable between the HD input port of transmitter and the HD output port of the video source
3. Connect the HD output port of receiver to the display device with HD cable
4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
