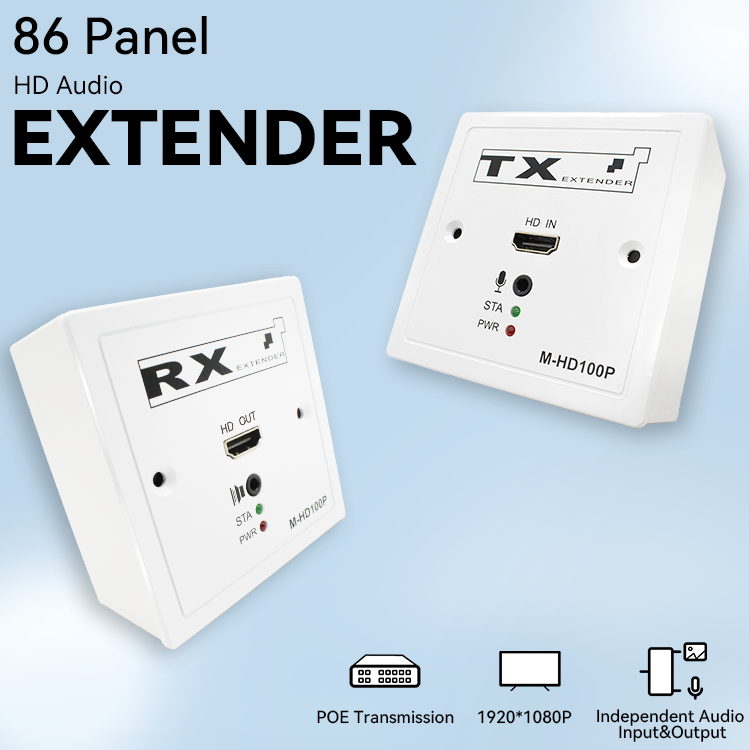

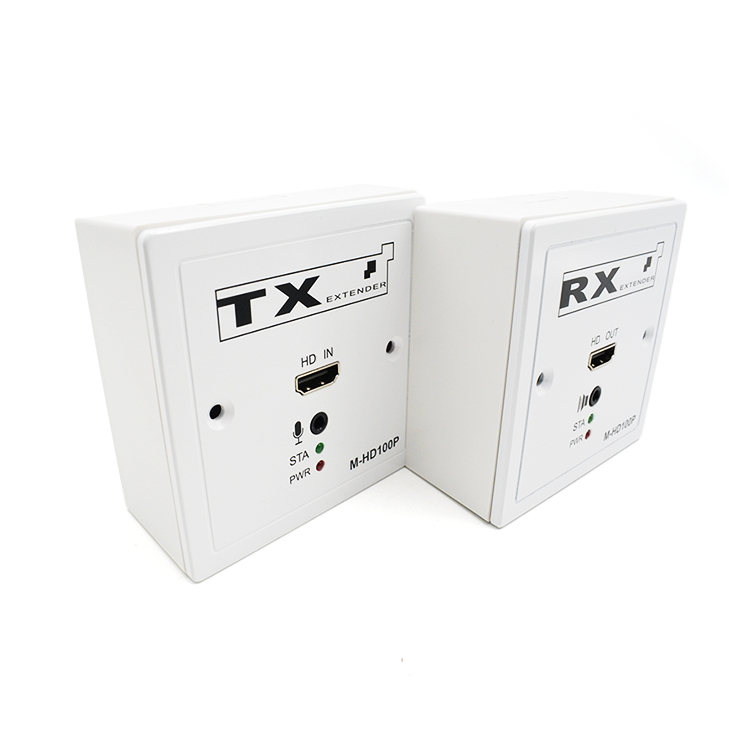

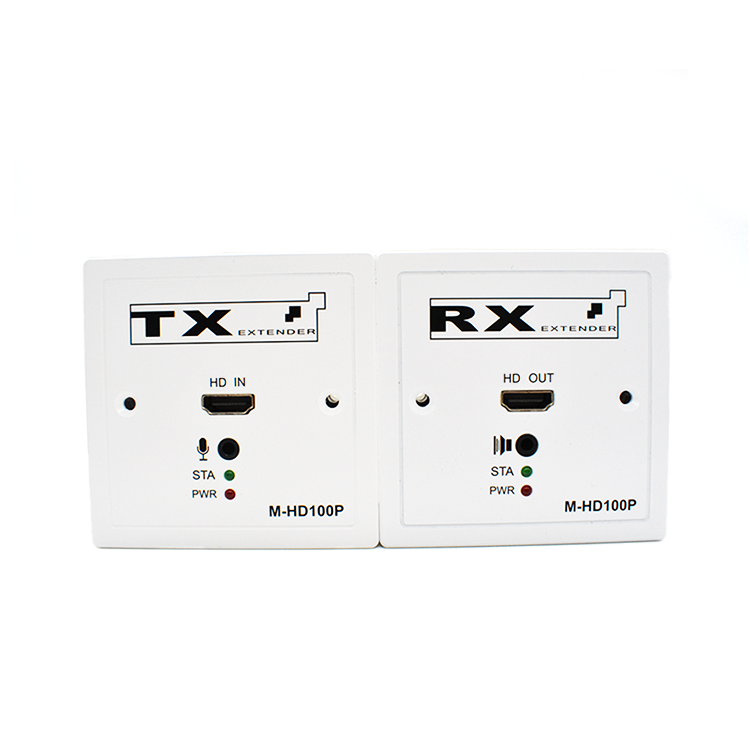

M-HD100P (86 panel) extender adopts H.264 compression coding mode to transmit high-definition video signals over long distances with a single network cable. The sending end supports independent audio input, and the receiving end supports independent audio and video output.
The device can adapt to a variety of complex application environments. It also has excellent image processing and transmission capabilities, making signal transmission more smooth and stable, and is a reliable, high-performance and efficient HDMI signal extension method.
M-HD100P (86 panel) extender adopts H.264 compression coding mode to transmit high-definition video signals over long distances with a single network cable. The sending end supports independent audio input, and the receiving end supports independent audio and video output.
The device can adapt to a variety of complex application environments. It also has excellent image processing and transmission capabilities, making signal transmission more smooth and stable, and is a reliable, high-performance and efficient HD signal extension method.
Features

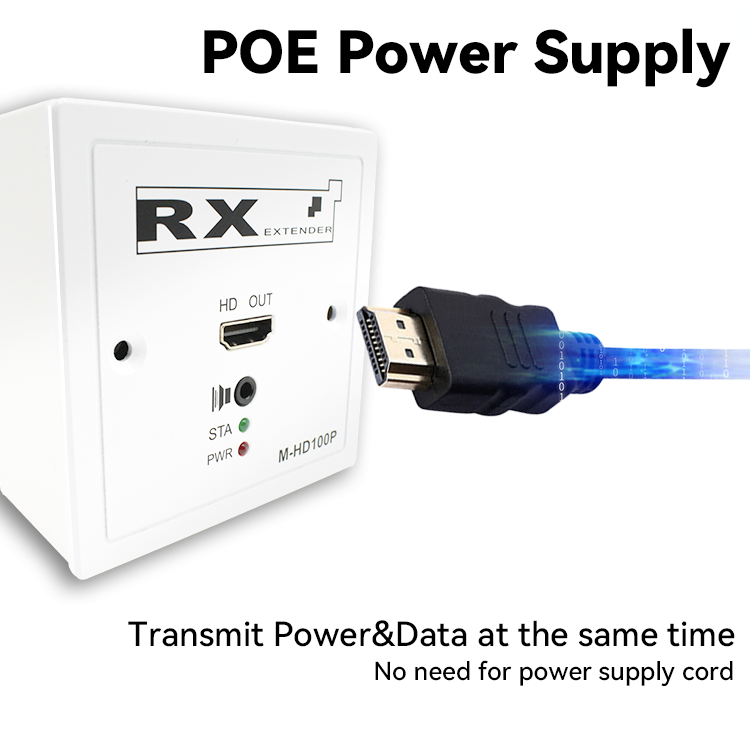

1. H.264 compression coding method is used to transmit HD video and audio signals, which can be connected in series through Power Over Ethernet；
2. HD video signal resolution up to 1920*1080P@60Hz; 1600*1200@60Hz；

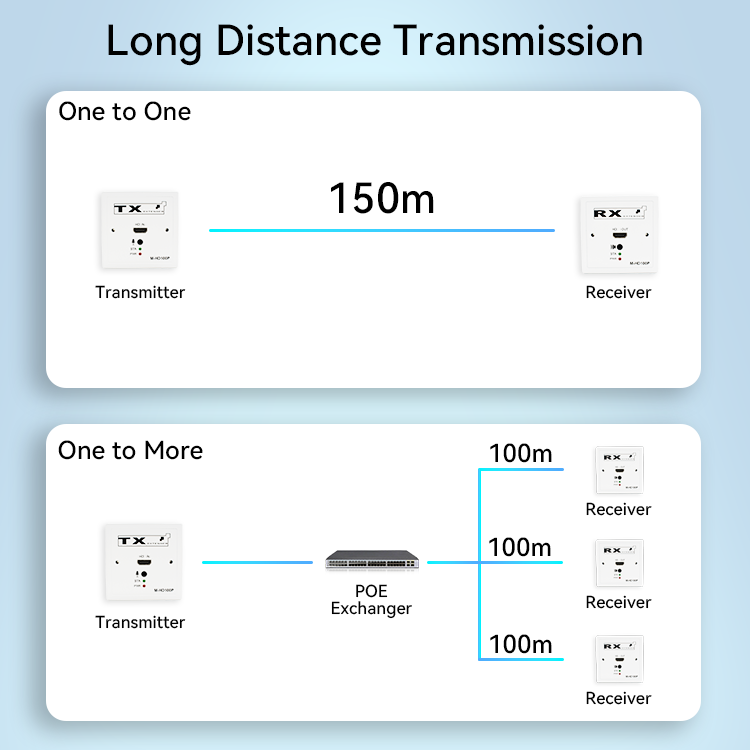

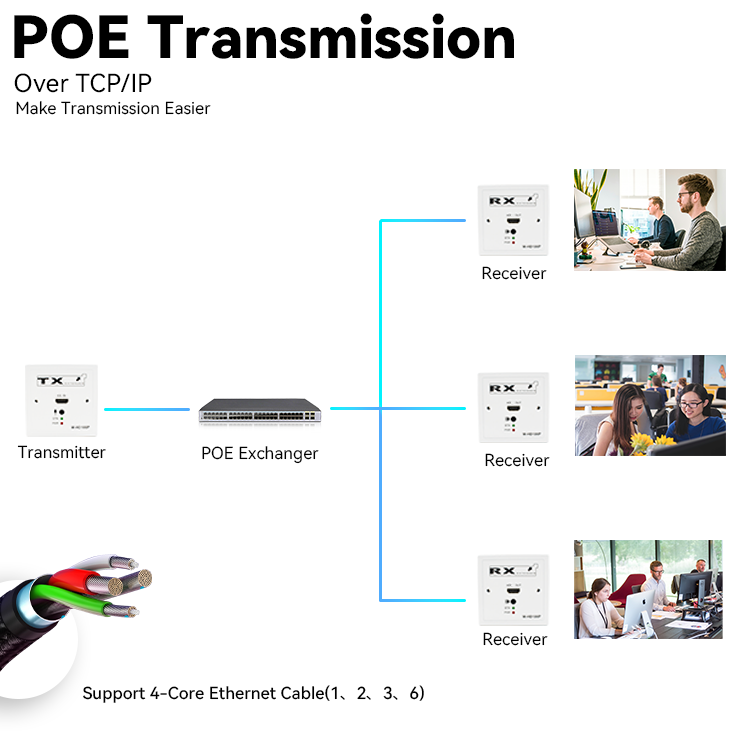

3. The standard TCP/IP protocol, can be combined with Ethernet POE switch to achieve one-to-many applications；

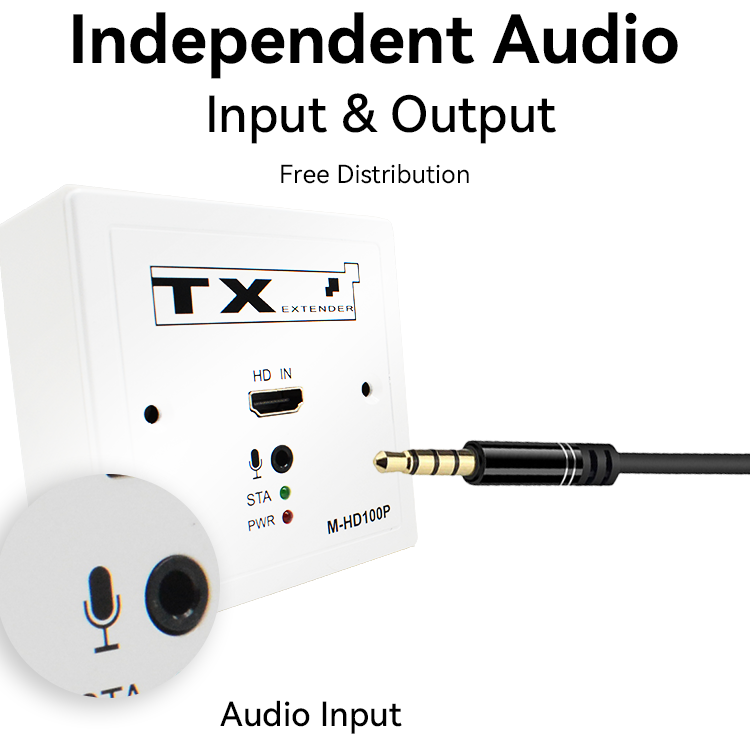

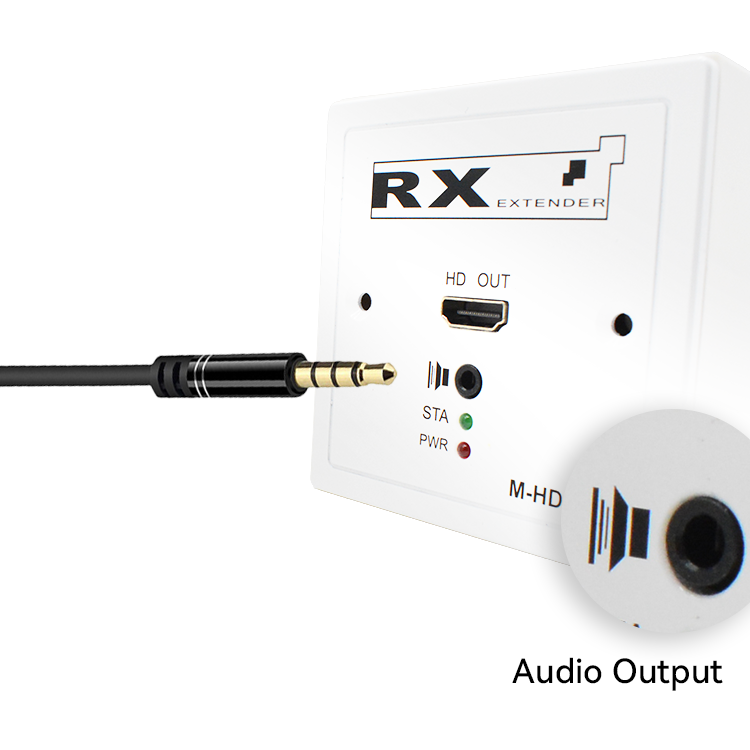

4. Support independent Audio；Video input/output；
5. Compatible with HD 1.3 standard；
6. Conform to HDCP 1.2 standard – high-bandwidth digital content protection technology；
7. Can automatically identify and configure various display modes；
8. Built-in automatic equalization system, the picture is smooth, clear and stable；
9. Built-in ESD electrostatic protection circuit, comprehensive protection system safety；

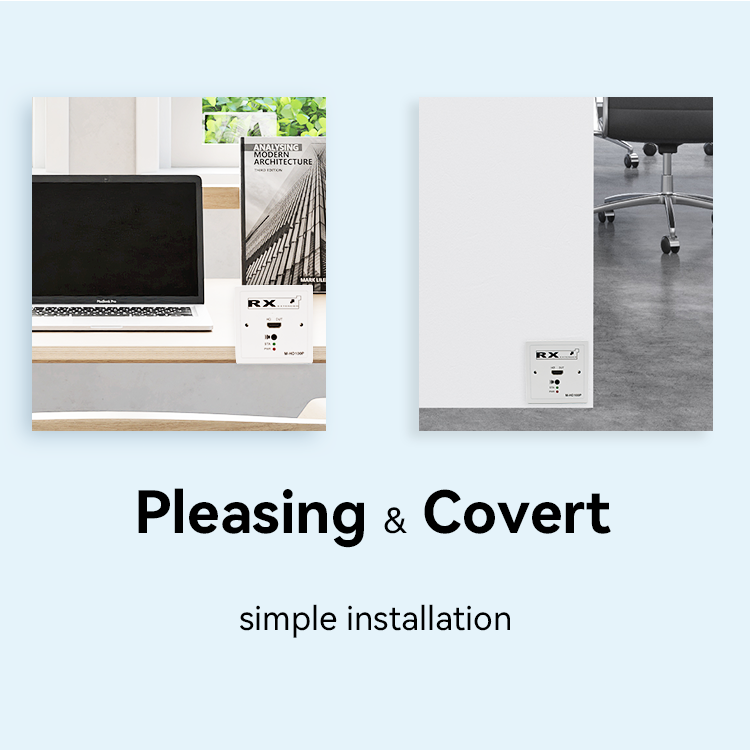

10. Simple and convenient installation, plug and play, no need to set up；

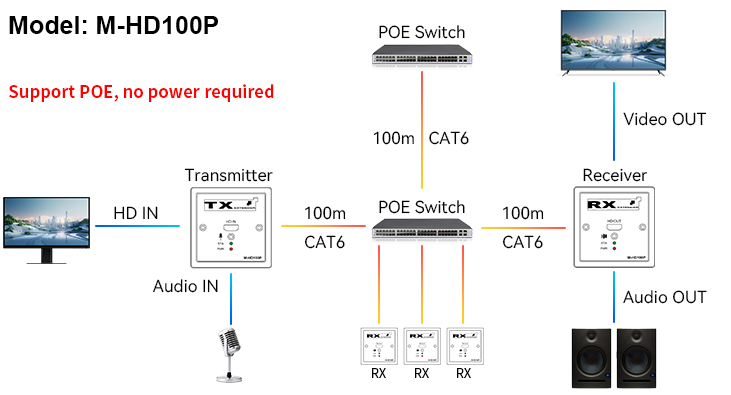

1. Check whether the switch has the POE function；Connect the sending end and the receiving end to the POE port through a network cable；
2. Connect the HD signal source to the sending end of the HDMI extender； Connect the network cable to the POE port of the POE switch；
3. Connect the receiving end of the HD extender to the display device (such as high-definition TV, splicing screen; projector, etc.); at the same time, connect the network cable to the POE interface of the POE switch；

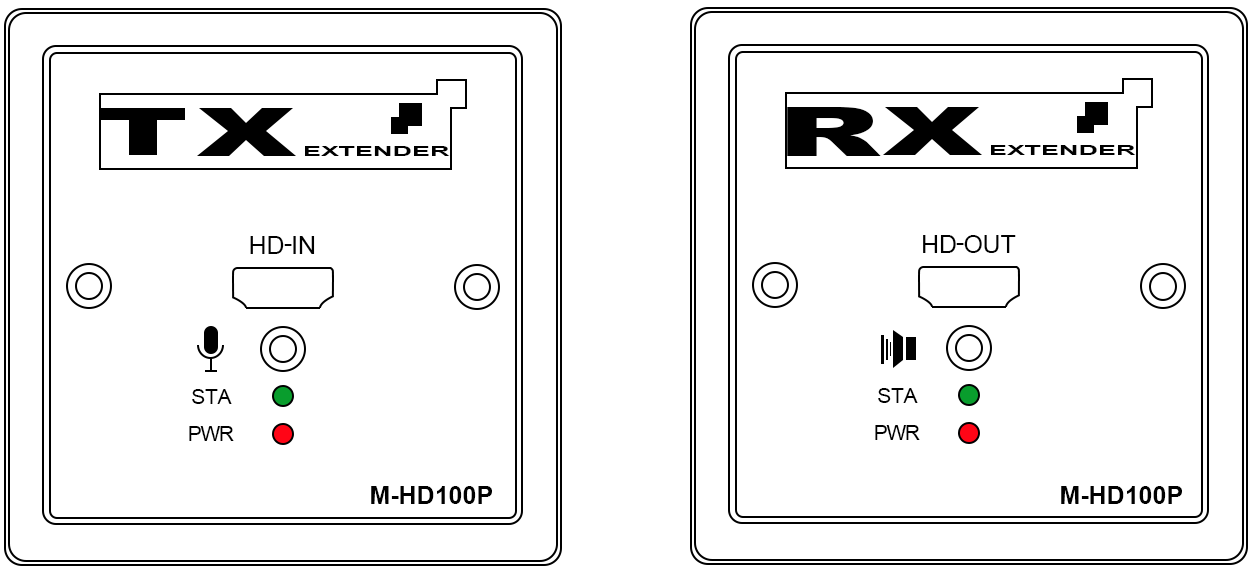

4. Connect the POE switch to the power supply, when the indicator light is on normally (P is always on; S is always on;), the system is running normally；
