M-DAVB
Introduction

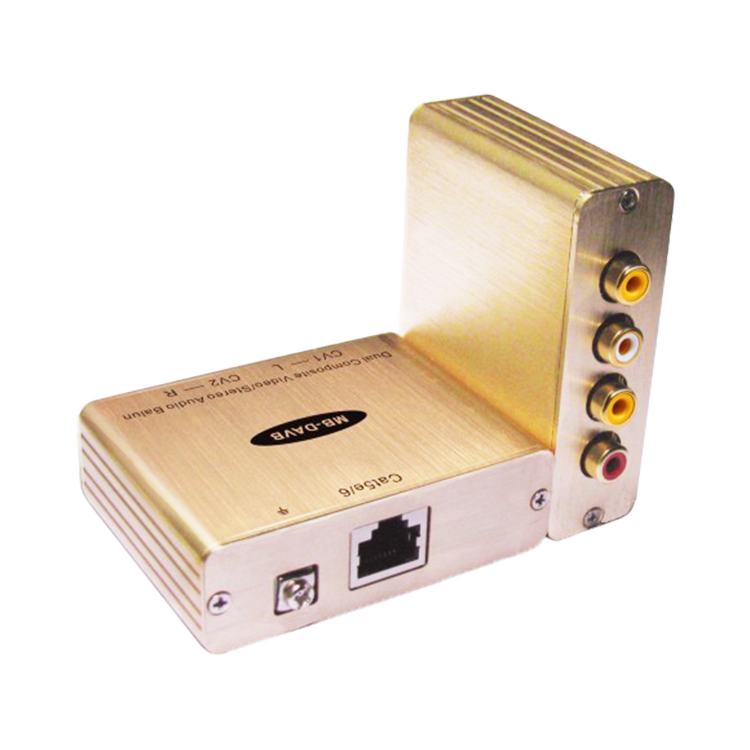

The Dual Audio-Video Balun(M-DAVB) allows up to two composite video signals and up to two unbalanced audio
signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.
Used in pairs, the Dual Audio-Video Balun, allowing audio-video equipment to be connected via space-efficient
and cost-effective Cat5e/6 twisted pair cable for commercial and residential hi-definition (HDTV) video
applications and so on.
Features
Video up to 2,200 feet (670m) via Cat5e/6
Audio up to 3,250 ft (1,000m) via Cat5e/6
20 Hz to 20 kHz audio bandwidth
Cost-efficient cabling
Quicker moves, adds and changes
Specification
Environment | Composite video (NTSC, PAL, SECAM).and Stereo HI-FI audio. | |
Devices | DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment. | |
Transmission | Transparent to the user. | |
Composite video | audio | |
Bandwidth | Video: 60 MHz, 3 dB roll off | 20 Hz to 20 KHz over the distance range |
Maximum Input | 1.1Vp-p | 1.1Vp-p |
Impedance | 75 ohms | 600 ohms min |
Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 6 MHz | Less than 2 dB per pair over the frequency range |
Return Loss | Better than 15 dB over the frequency range | Better than 15 dB over the frequency range |
Common Mode Rejection Ratio | Greater than 40 dB over the frequency range | Greater than 40 dB over the frequency range |
Max. Distance Color via Cat 5E/6 UTP/STP Cable | 2,200 ft (670 m) | 3,250 ft (1,000 m) |
Pin Configuration (RJ45) | Video: Pins 4(R) &5(T) Video: Pins 7(R) &8(T) | Audio 1: Pins 1(R) & 2(T) Audio 2: Pins 3(R) & 6(T) |
Cable: Cat 5E/6 UTP/STP | 24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz | |
Connectors | Three RCA-F connectors: Video (yellow) & stereo audio (red, white) One RJ45 for Cat 5E/6 | |
Temperature | Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing | |
Enclosure | Aluminum alloy | |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) | |
Weight(packaging) | 260g | |
Applications
Classroom video distribution,
Commercial and home audio/video
Systems, hospital video training, video
Conferencing, and video kiosks
Package
1. Audio Balun x2 pcs
2. User Manual x1 pc

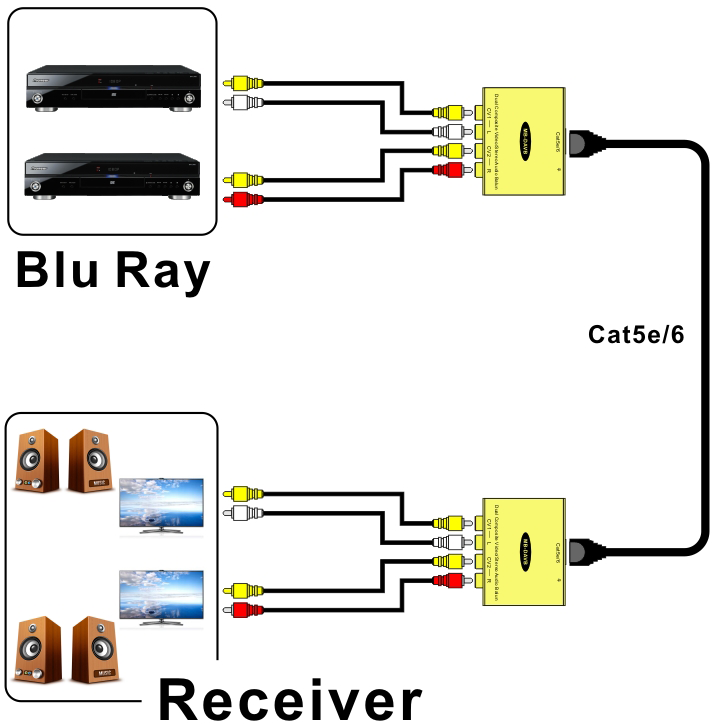

Installation Process
1. Plug the RCA connectors of the transmit Balun into the Video and Audio outputs of the source component you
wish to transmit.
2. Plug the Video and Audio connectors from the receive Balun into your desired input component.
3. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.
