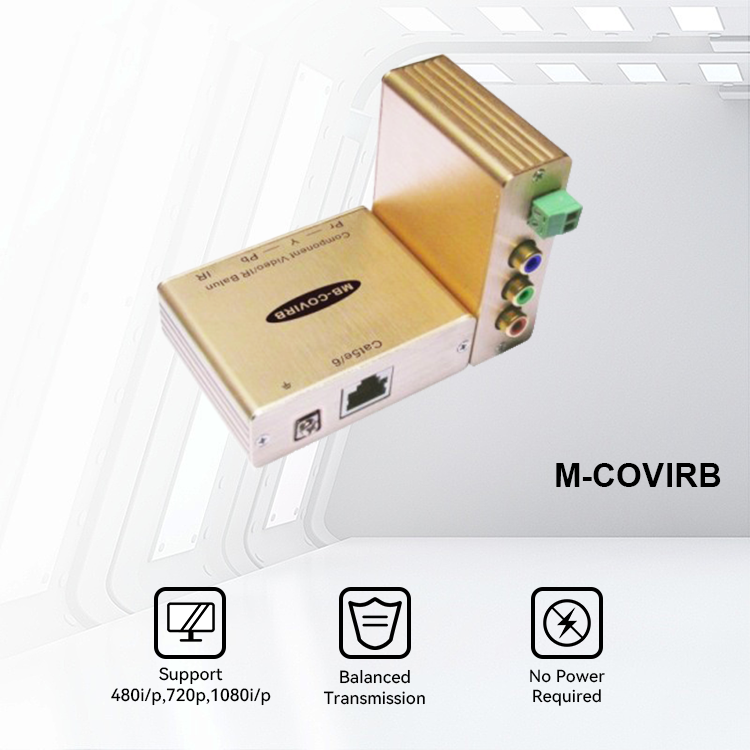

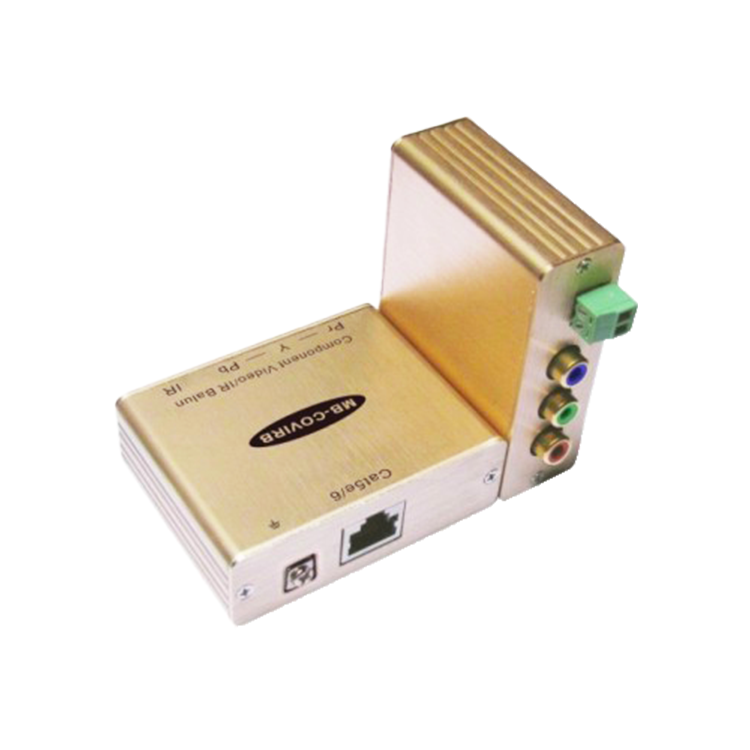

M-COVIRB
Introduction
The Component (YPrPb) HD Video plus IR pass through Balun (M-COVIRB) allows The Component (YPrPb) HD
Video and one IR emitter signal to be transmitted via a single Cat5e/6 cable in a point-to-point connection.
Used in pairs , the Component Video/IR Balun supports 480i/p,720p and 1080i/p video formats or commercial
and residential hi-definition (HDTV) video applications and so on.
Features
Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
Supports 720p, 1080i/p up to 500 ft (152m) via Cat5E/6
IR 2-wire emitter pass-thru on Third twisted pair
Cost-efficient cabling
Quicker moves, adds and changes
Specification
Environment | Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. IR remote |
Devices | DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment. |
Transmission | Transparent to the user. |
Bandwidth | Video: 60 MHz, 3 dB roll off |
Maximum Input | 1.1Vp-p |
Insertion Loss per Pair (Video) | 0.1 dB for 0.1 MHz Gradually increasing to 3.0 dB over the frequency range |
Max. Distance Color via Cat 5E/6 UTP/STP Cable | 480i/p: 1,000 ft (305 m) 720p and 1080i/p: 500 ft (152 m) IR: Please refer to IR vendor specifications |
Cable:Cat 5E/6 UTP/STP | 24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz |
Cable: Coax | Impedance: 75 ohms at 1 MHz |
Connectors | Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr) One 2-pole terminal block for IR emitter pass-through RJ45 for twisted pair |
Pin Configuration Reverse polarity sensitive | Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 3(R) & 6(T) Blue (Pb):Pins 1(R) & 2(T) IR Pass-Thru: Pins 4(R) & 5(T) |
Temperature | Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing |
Enclosure | Aluminum alloy |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) |
Weight(packaging) | 260g |
Applications
Classroom video
Distribution, commercial and homevideo
Systems, hospital video training, video
Conferencing, and video kiosks

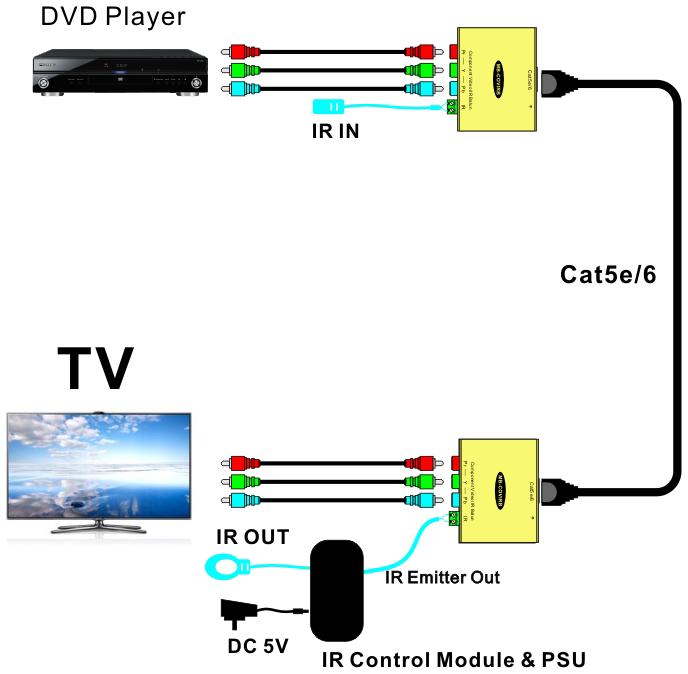

Installation Process
1. Plug the Video RCA connectors of the transmit Balun into the Video output of the source component.
2. Attach your 2 wire powered IR output distribution signal to the 2 conductor screw terminal on the transmit Balun.
3. Plug the Video RCA connectors from the receive Balun into your desired input component.
4. Attach your 2 wire IR emitter to the 2 conductor screw terminal on the receive Balun.
5. Make sure that you follow the polarity recommended by your IR manufacturer.
6. Secure the IR emitter to the component you wish to control.
7. Insert the CAT5 cable into both ends of the Baluns.
8. You may use standard EIA 568A/B termination.
