M-ADCon
Introduction
This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts
Coaxial or Tosllnk digital audio signals to analog L/R audio and available for connection to an external device
such as an amplifier via standard RCA-style jacks.
This Converter is small in size and quite easy to install.

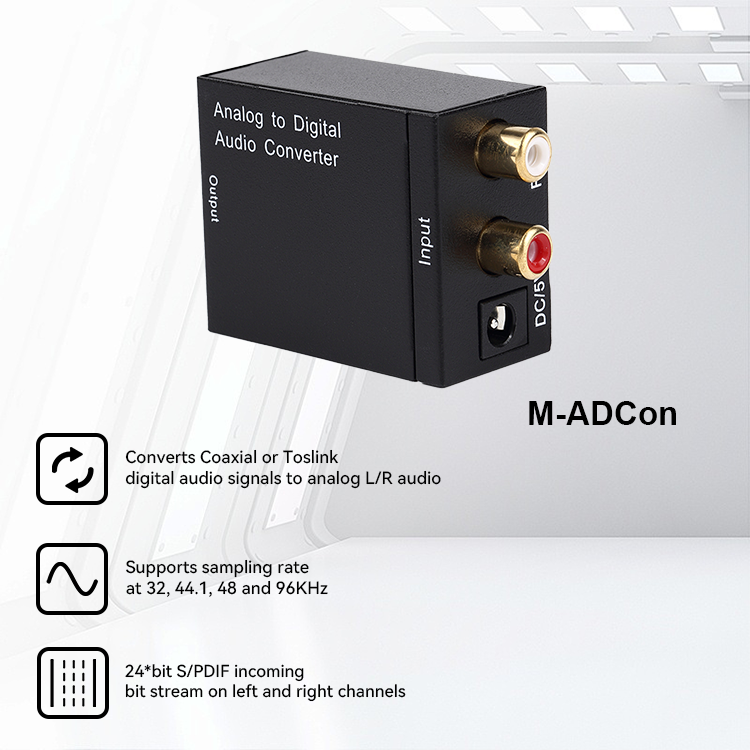

Features
1. Converts Coaxial or Toslink digital audio signals to analog L/R audio
2. Supports sampling rate at 32,44.1, 48 and 96 KHz.
3. 24*bit S/PDIF incoming bit stream on left and right channels
4. Provides electromagnetic-noise-free transmission.
5. Easy to install and simple to operate.
Bluetooth
1. Dual-mode Bluetooth V5.0, compatible with bluetooth V4.2 and V2.1+EDR
2. Support bluetooth Piconet and Scatternet organization protocol
3. Maximum transmitted power 10dBm, support class1, class2, class3
4. Receiving sensitivity (TBD)
5. Support A2DP/AVRCP/HFP/HSP/OPP/HID/SPP/PBAP/GATT/SM protocol
6. Support PLC (Package Loss Concealment)
Specification
Signal Inputs/Output | |
Input Audio | Coaxial or Toslink digital audio |
Output Audio | L/R audio |
Connector | |
Input audio connector | Toslink, 1XRCA(Coaxial) |
Output audio connector | 2XRCA(R/L) |
Sampling rate | 32, 44.1, 48 and 192 KHz |
Mechanical | |
Size(L-W-H) | 51×41×26MM |
Weight(Net) | 78g |
Warranty | |
Limited Warranty | 1 Year Parts and Labor |
Environmental | |
Operating Temperature | 0°C to +70°C |
Operating Humidity | 10% to 85% RH (no condensation) |
Storage Temperature | 10°C to +85°C |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Requirement | |
External Power Supply | 5V DC@2A |
Power Consumption | 0.5 watts (max) |
Regulatory Approvals | |
Converter Unit | FCC, CE, UL |
Power Supply | UL, CE, FCC |
Accessories Adapter | |
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |

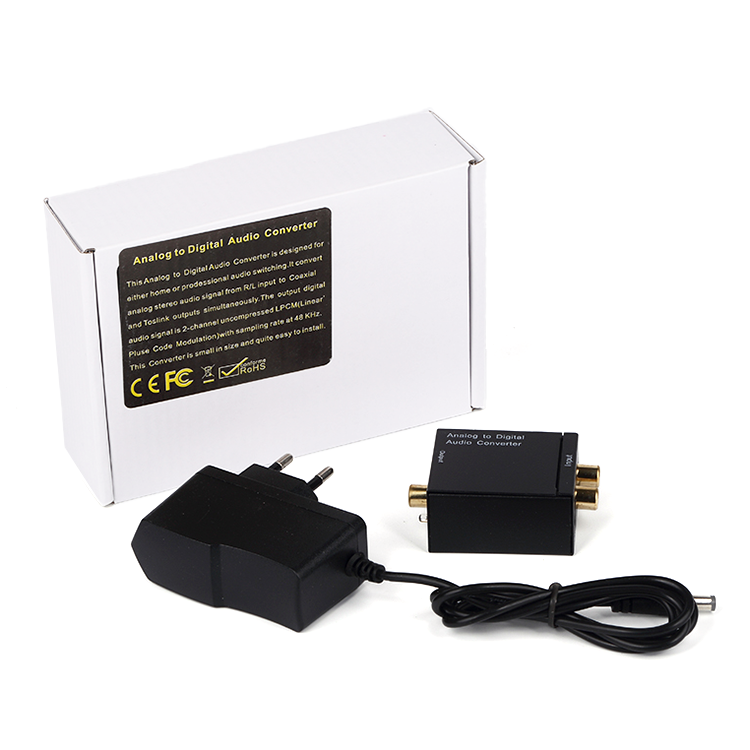

Package
1. Digital to Analog Audio Converter x1 pc
2. 5V DC Power Supply x1 pc
3. User Manual x1 pc

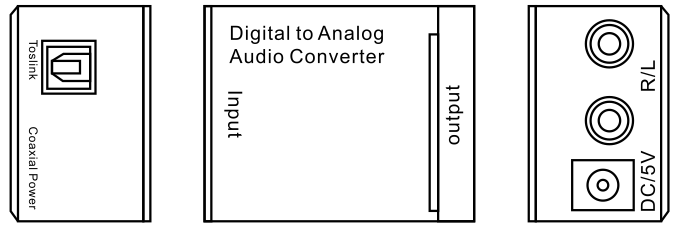

Product Interface

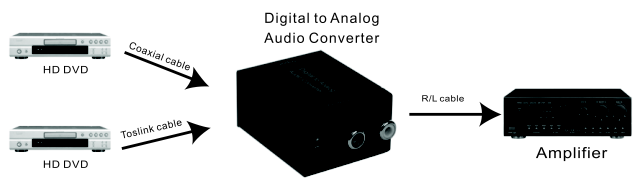

Installation Process
1. Connect the audio source device to the Converter using appropriate or Coaxial cables.
2. Connect the A/V Receivers or Amplifiers to the Converter using appropriate R/L cable.
3. Insert the DC side of 5v power supply into the converter and then connect the AC side
of the power supply into the wall outlet.
Note: When connected to the Toslink and Coaxial cables at the same time, the product
will give priority to Toslink input.
