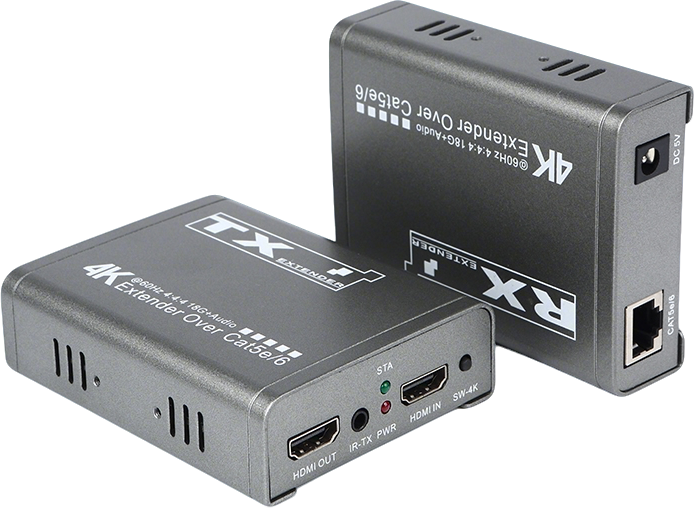

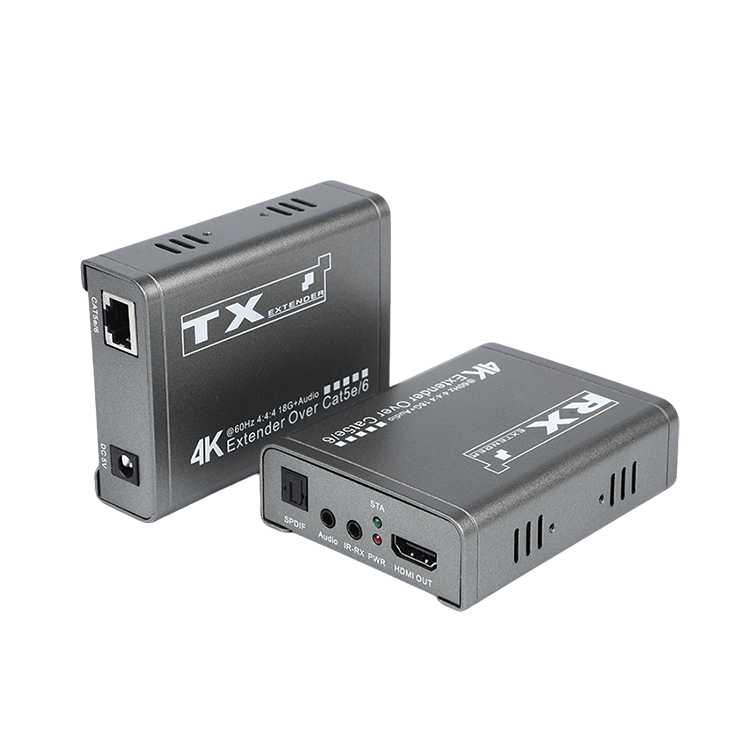

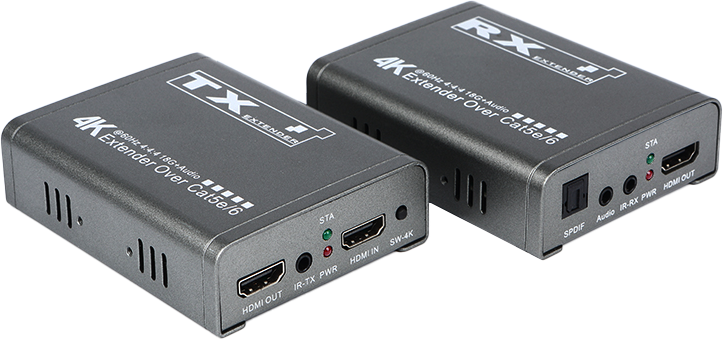

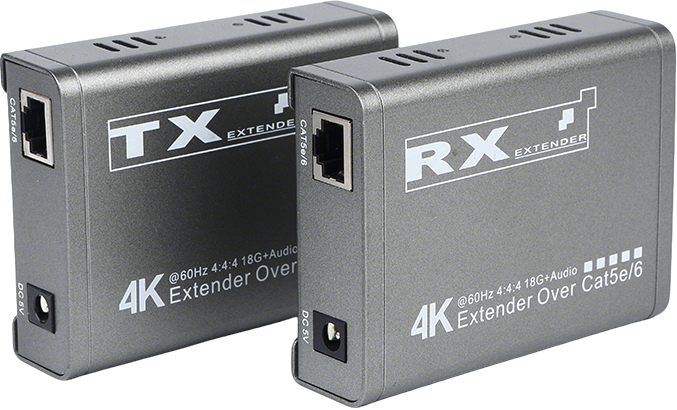

M-HK60 4K Cat5e/6 IR Loop Output Independent Audio HD Extender
50 Reviews
This video extender adopts professional engineering design with stable performance and easy plug-and-play installation. It features built-in ESD protection and automatic image adjustment for clear and smooth signal transmission.
Supporting independent audio output, IR control and loop output, it works with standard Cat5e/6 cables and fits for long-distance signal transmission in meeting rooms, engineering projects and security systems.
The metal structure ensures durable use, and it supports wholesale and bulk order for global commercial clients.
This 4K-HD extender can transmit high definition signal of Blue-Ray DVD player, PC and other equipment via Cat5e/6 cable(recommended).
It supports the highest resolution of 4K×2K@60Hz, 1080P transmission distance up to 60 meters, 4K transmission distance up to 50 meters, supports infrared transmission, loop output, and independent audio.
The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and other places.
Features
1. Support the Max transmit distance: 1080P up to 60M，4K*2K@60Hz up to 50M
2. Bandwidth can be increased to 18Gbps, support the highest resolution up to 4K×2K@60Hz, support YUV4:4:4
3. Support HD 2.0 version
4. Support IR transmission
5. Support loop output
6. Support independent audio(SPDIF and 3.5mm Audio)
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Built-in ESD protection system
10. Simple to install, plug and play
Specification
Parameter
Description
Video
Standards
HD 2.0; HDCP 2.2
Maximum pixel clock
600MHz，digital
Maximum data rate
18Gbps
Max Resolution
3840×2160@60Hz（4K@60Hz）
Connector
HD-A
Impedance
100Ω
Audio
Interface
SPDIF; 3.5mm audio
IR
Interface
3.5mm seat
Signal direction
Unidirectional
IR frequency
30-60KHz
UTP
Interface
RJ45
Transmission distance
1080P: 60M; 4K@60Hz: 50M
Other
Power supply
The power adapter: DC 5V/1A
Power dissipation
MAX 3W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
95*73*26mm

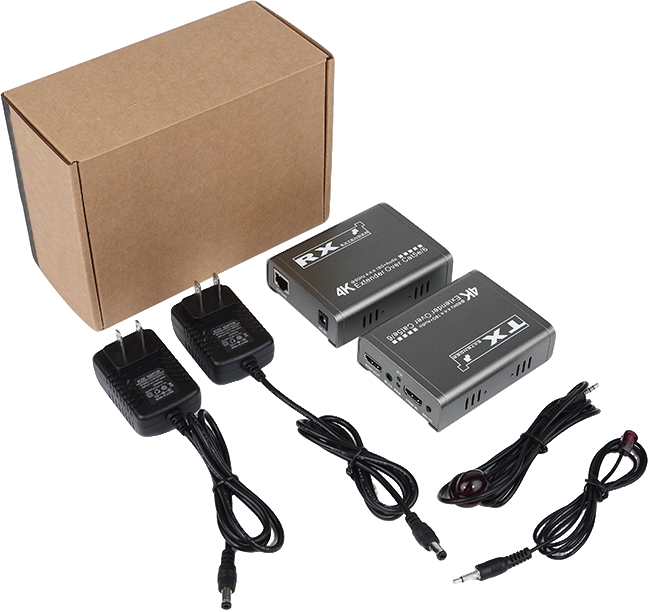

Package
1. HD transmitter x1 pc
2. HD receiver x1 pc
3. Power adapter x2 pcs
4. IR TX/RX terminal x1 set
5. User manual x1 pc

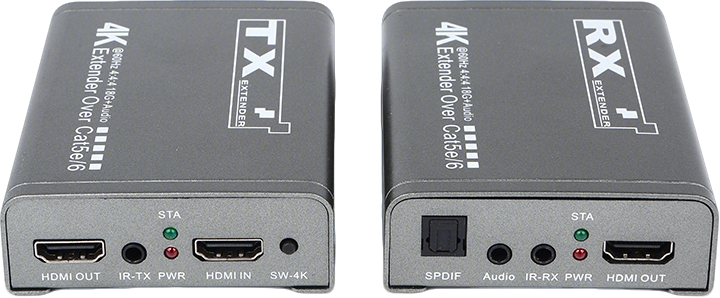

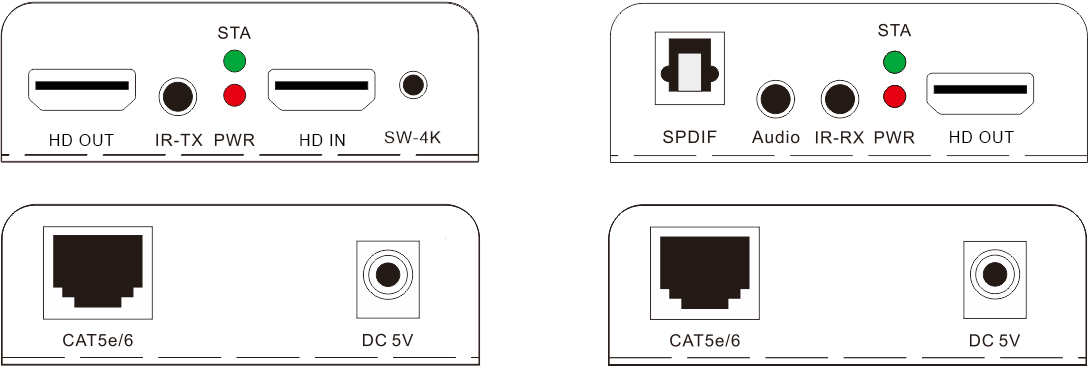

Product Interface
TX (Transmitter) RX (Receiver)
Port name
Description
HD IN/OUT
HD signal input/output
Cat5e/6
RJ45 port connect cat5e/cat6
IR TX/RX
IR signal input/output
SPDIF
Optical audio port
AUDIO
3.5mm audio port
SW-4K
Switch 4K
DC/5V
Power adapter socket
LED indicator
Description
PWR
unit power indicator
STA
HD signal indicator
Installation Process
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HD cable between the HD input port of transmitter and the HD output port of the video source
3. Connect the HD output port of receiver to the display device with HD cable
4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.
