【M-HK200U】4K TCP/IP KVM Multi-in Multi-out Cat5e/6 HD Extender
50 Reviews
This HD extender adopts the standard Ethernet TCP/IP protocol, with H.265 technology made of a high quality network extender.
It has long distance transmission of high-definition audio and video signals through a single network cableand and can be achieved by Ethernet network one-to-many, many-to-many, many-to-one applications, at the same time, the attached infrared extension function makes remote control more convenient.
The device has excellent image processing and transmission capabilities, so that the signal transmission is more smooth and stable, is a cost-effective HD signal network extension transmission mode.
This HD extender adopts the standard Ethernet TCP/IP protocol and is a high quality network extender made with H.265 technology.
It can transmit HD audio and video signals over long distances through a single network cable, and can achieve one-to-many, many-to-may, many-to-one with the help of Ethernet network, and the attached infrared expansion function makes long-distance control more convenient.
This device has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a cost-effective way to extend HD signal network transmission.
Features
1. Transmit HD video and video signals over long distances up to 150 meters via network cable
2. HD video signal resolution up to 3840*2160@30Hz;
3. Using H.265 technology to compress and decompress video, effectively improve the transmission efficiency, ensure the smooth playback;
4. Compatible with HD 1.4 standard；
5. Comply with HDCP 1.4 standard - high bandwidth digital content protection technology；
6. Support wide-band 20~60KHz external remote infrared expansion, which can easily control remote devices;
7. Support KVM, mouse, and keyboard control;
8. Support 1 to 1 . 1 to many; multi-in and multi - out transmission for different requirements；
9. Ability to automatically identify and configure various display modes
11. Built-in ESD electrostatic protection circuit to protect system safety in all aspects
12. Simple and convenient installation, plug and play, no setup required
Specification
Parameter
Description
Video
Standards
HD 1.4; HDCP 1.4
Pixel bandwidth
225MHz，full-digital
Interface Width
total bandwidth10.2Gbps
Max support resolution
3840*2160@30Hz and downward compatibility
Port
HD-A port
Impedance
100Ω
Recommended max HD input/output distance
Less than 5 meters, at 3840*2160@30Hz
infrared
Port
3.5mm stereo audio socket
Signal direction
Unidirectional transmission
Signal Type
Digital signal
Input level carrier frequency
Broadband20~60KHz
KVM
Port
PC terminal：USB-B microusb
Keyboard and mouse：USB-Astandard interface
Network port
Port
Standard RJ45 port
Recommended max transmission distance
Cat5e - 130meters； Cat6 network cable - 150meters
Other
Power
power adapter：DC 5/1A
Power dissipation
MAX 8W
Temperature
Operation temperature：-5℃ ~ +70℃
Humidity
Operation Humidity：5% ~ 90%
Dimensions
105*71*26mm
Warranty
1 year free warranty

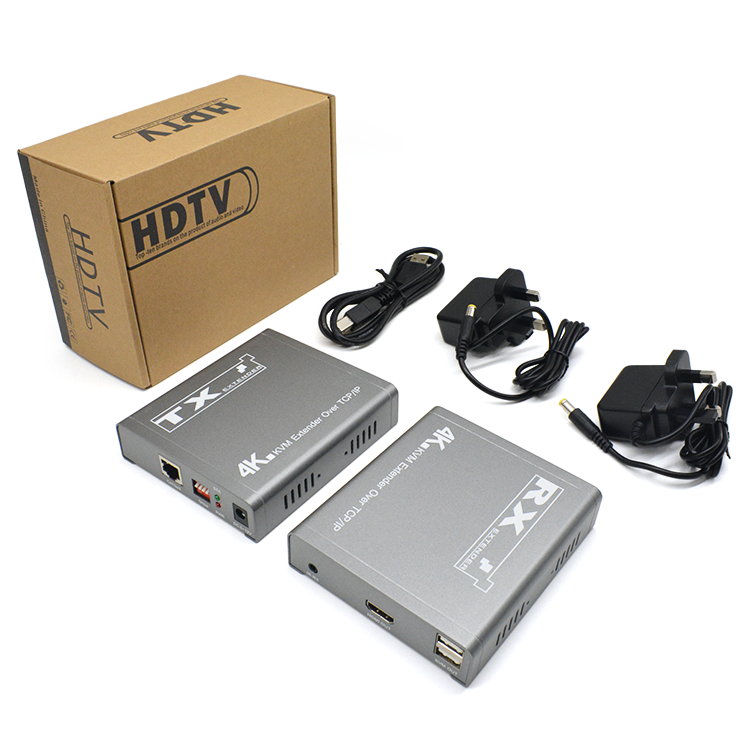

Package
1. HD extender transmitter x1 pc
2. HD extender receiver x1 pc
3. Power adapter x2 pcs
4. USB Cable x1 pc
5. Instruction manual x1 pc
Product Interface
Port name
Description
HD IN/OUT
HD Signal input/output
IR IN/OUT
Infrared input/output
UTP
Network port
DC 5~12V
Power adapter input
RESET
System reset button, long press 5 seconds to restore the default value
LED indicator
Description
STATUS
System status indicator(On: Operating normally, blinking: communicating)
POWER
POWER LED
Installation Process
1. Connect the HD signal source to the HD extender transmitter.
2. Connect the HD extender receiver to the display device (e.g. HD TV, splice screen, etc.)
3. Use Class 5 network cables or Class 6 network cables to connect the network interface between the transmitter and the receiver.
4. Configure the infrared back control function: Connect the infrared transmitting line to the transmitting end of the extender, and connect the infrared receiving line to the receiving end of the extender. Align the infrared transmitting head with the infrared receiving port of the device to be controlled.
5. Connect the sending end and the receiving end to the power supply. When the indicator lights on normally, the system runs normally.
