Introduction

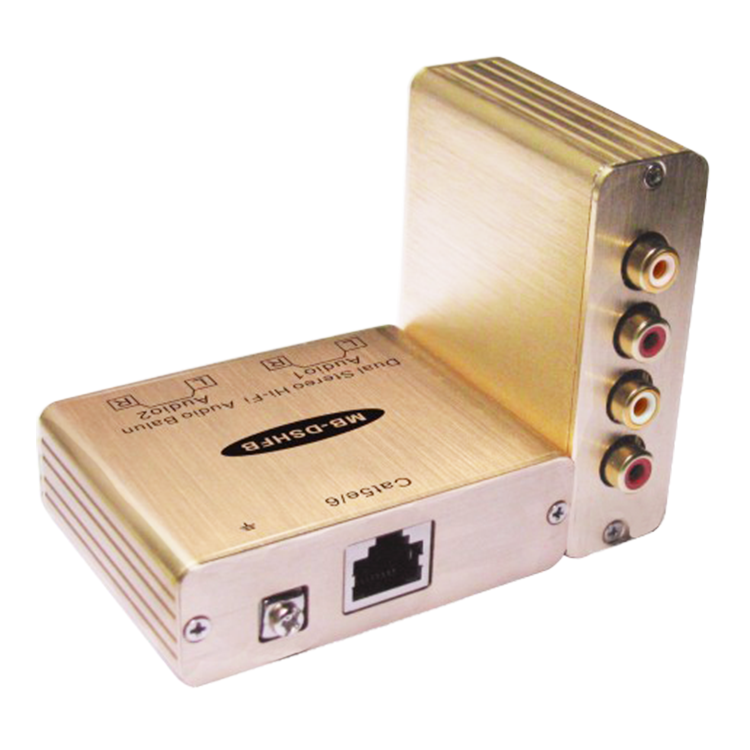

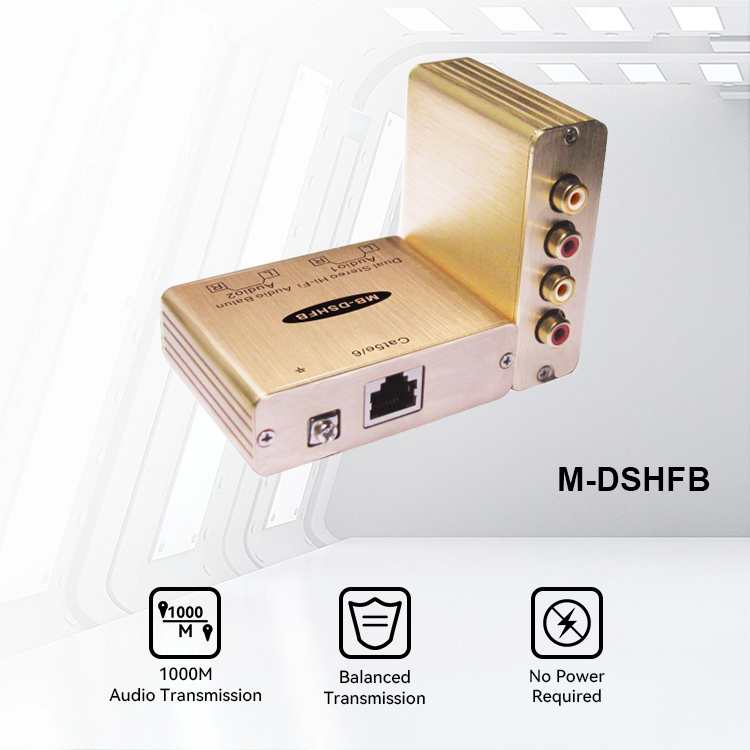

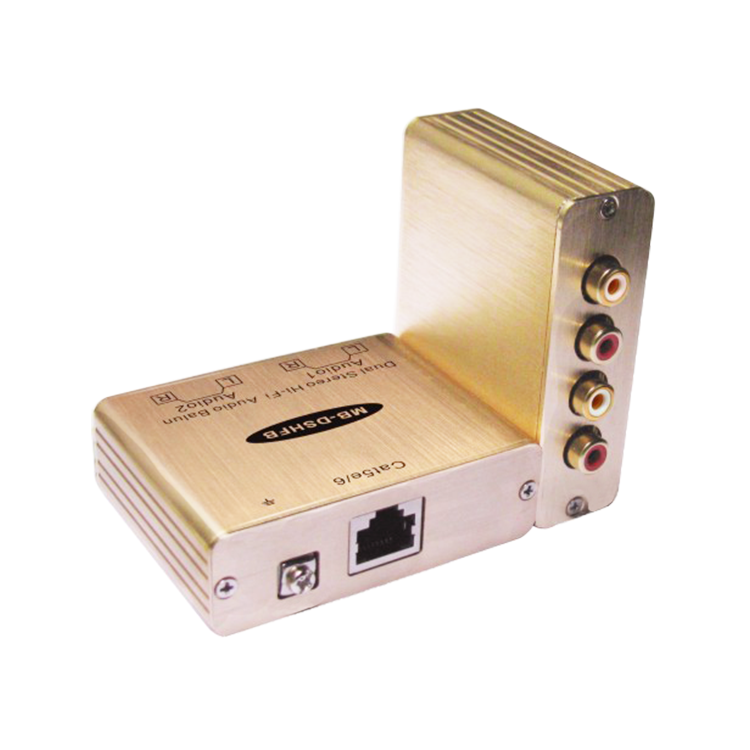

The Dual Stereo Hi-Fi Audio Balun(M-DSHFB) allows unbalanced line level stereo analogue audio to be transmitted
via Category 5/5e/6 unshielded copper twisted pair (UTP) in a point-to-point connection.
The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Balun allows audio equipment to be connected ormoved within a structured
cabling environment.
Features
20 Hz to 20 KHz bandwidth
Cost-efficient cabling
Up to 3025ft (1,000m) via Cat5e/6 UTP
Quicker moves, adds and changes
Specification
Environment | Line level unbalanced analog stereo audio |
Devices | DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment |
Transmission | Transparent to the user. |
3dB Bandwidth | 20 Hz to 20 KHz over the distance range |
Maximum Input | 1.1Vp-p |
Insertion Loss per balun pair | Less than 2 dB over the frequency range. |
Common Mode Rejection | Greater than 60 dB @ 1KHz Greater than 40 dB over the frequency and distance range |
THD | Maximum 0.007% @ 1 KHz over distance range |
Audio Source Impedance | 100 ohms maximum |
Audio Receiver Impedance | 10 k ohms minimum |
Max. Distance – Cat5e/6 UTP | 3025ft (1,000m) |
Pin Configuration (RJ45) EIA 568 A or B | Audio 1 (White): pins 1[R] & 2 [T] Audio 3 (White): pins 4[R] &5 [T] Audio 2 (Red): pins 3 [R] & 6 [T] Audio 4 (Red): pins 7 [R] & 8 [T] |
Cable – UTP | 24AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz |
Connectors | Four RCA -F connectors :audio(white,red,white,red) One RJ45 for twisted pair |
Temperature | Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing |
Enclosure | Aluminum alloy |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) |
Weight(packaging) | 250g |
Applications
Boardroom systems, classroom training,
Auditoriums, custom home installations and intercom systems.
Package
1. Audio Balun x2 pcs
2. User Manual x1 pc

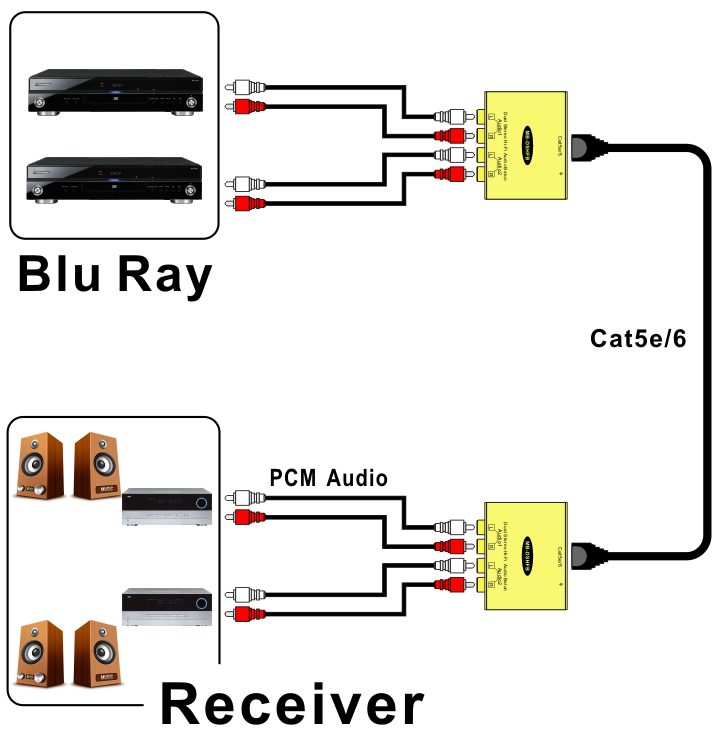

Installation Process
1. Plug the left and right RCA connectors of the transmit Balun into the audio output of the source component.
2. plug the left and right RCA connectors from the receive Balun into your desired input component.
3. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B Termination.
