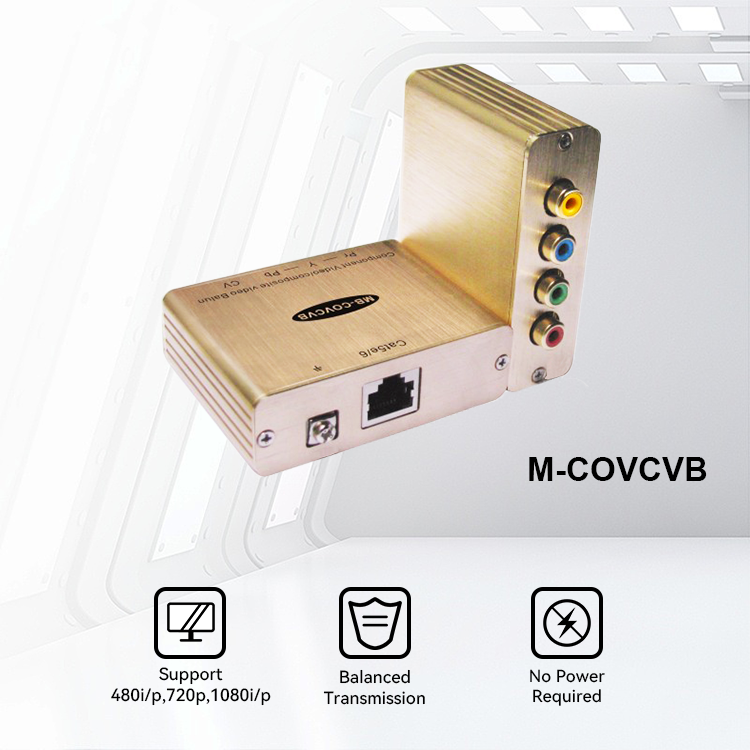

M-COVCVB

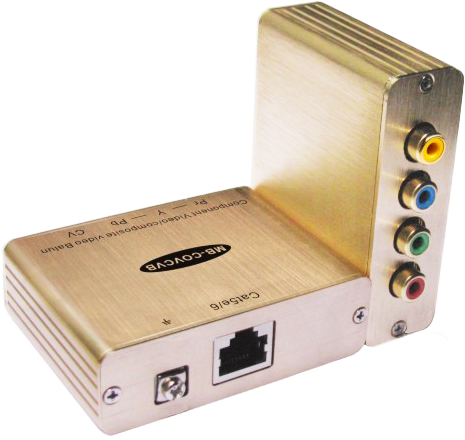

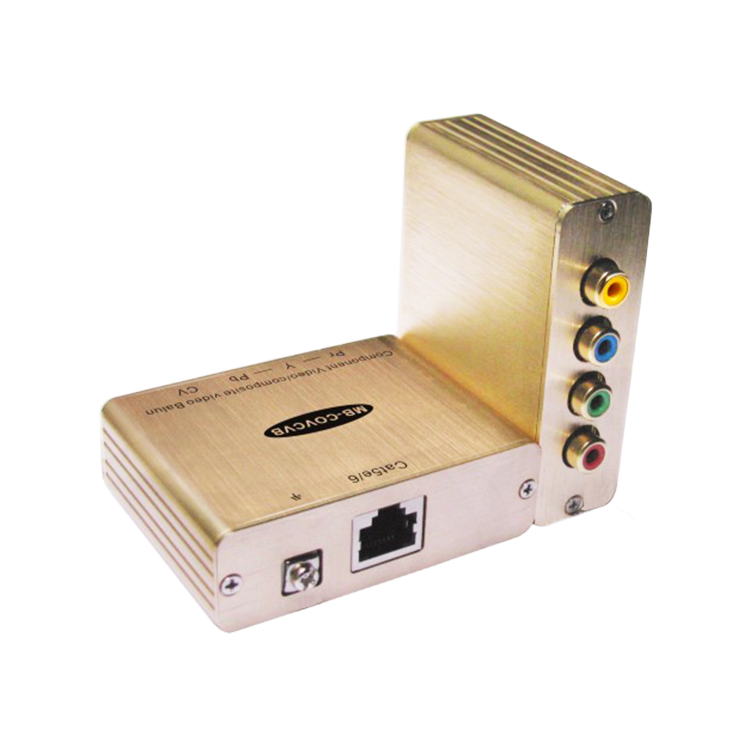

Introduction
The Component Video/composite Video Balun (MB-COVCVB) allows one component video (YPbPr or RGB) signal
and one composite video signal to be transmitted via one Category 5e/6 twisted pair cable for more
cost-efficient cabling.
Used in pairs , the Component Video/Analog Audio Balun supports 480i/p,720p and 1080i/p video formats for
commercial and residential hi-definition (HDTV) video applications and so on.
Features
Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
Composite Video up to 2,200 feet (670m) via Cat5e/6
Cost-efficient cabling
Quicker moves, adds and changes
Specification
Environment | Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. .Composite video (NTSC, PAL, SECAM) | |
Devices | DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment. | |
Transmission | Transparent to the user. | |
Composite video | Component Video | |
Bandwidth | Video: 60 MHz, 3 dB roll off | Video: 6 MHz, 3 dB roll off |
Maximum Input | 1.1Vp-p | 1.1Vp-p |
Impedance | 75 ohms | 75 ohms |
Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 6 MHz | 0.1 dB for 0.1 MHz Gradually increasing to 3.0 dB over the frequency range |
Return Loss | Better than 15 dB over the frequency range | Better than 15 dB over the frequency range |
Common Mode Rejection Ratio | Greater than 40 dB over the frequency range | Greater than 40 dB over the frequency range |
Max. Distance Color via Cat 5E/6 UTP/STP Cable | 2,200 ft (670 m) | 480i/p: 1,000 ft (305 m) 720p and 1080i/p: 500 ft (152 m) |
Pin Configuration (RJ45) | Video: Pins 4(R) &5(T) | Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 3(R) & 6(T) Blue (Pb):Pins 1(R) & 2(T) |
Cable: Cat 5E/6 UTP/STP | 24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz | |
Connectors | Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr) One RCA-F connector for Composite video RJ45 for twisted pair | |
Temperature | Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing | |
Enclosure | Aluminum alloy | |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) | |
Weight(packaging) | 260g | |
Applications
Rental & staging, venues
Camcorder connections
Mobile video production
Podium presentation systems.
Installation Process

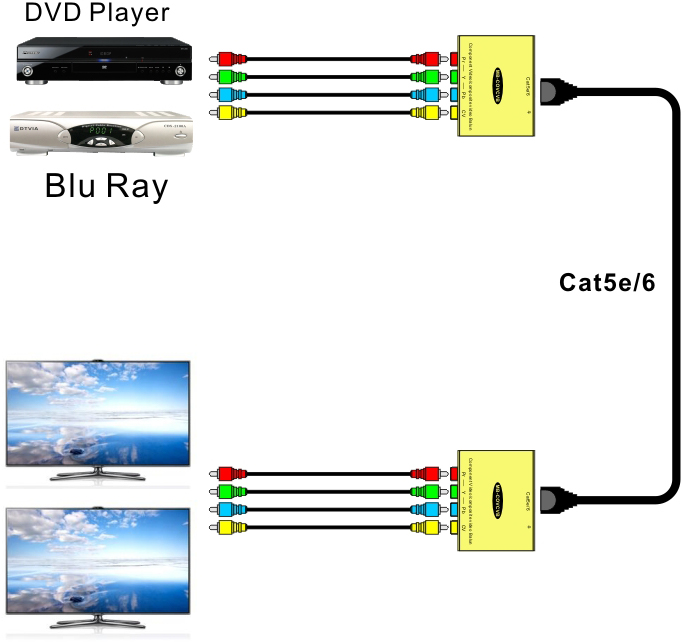

1. Plug the RCA connectors of the transmit Balun into the Video outputs of the source component you wish to transmit.
2. Plug the Video andAudio connectors from the receive Balun into your desired input component.
3. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.
