M-SD100 the fiber extender transmits 3G/HD-SDI video signals over a long distance through a single fiber cable, and supports 8-channel embedded audio synchronization function; It can be equipped with mobile battery(optional) and adapt to a variety of complex application environments.
The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high performance and efficient 3G/HD-SDI signal extension mode.

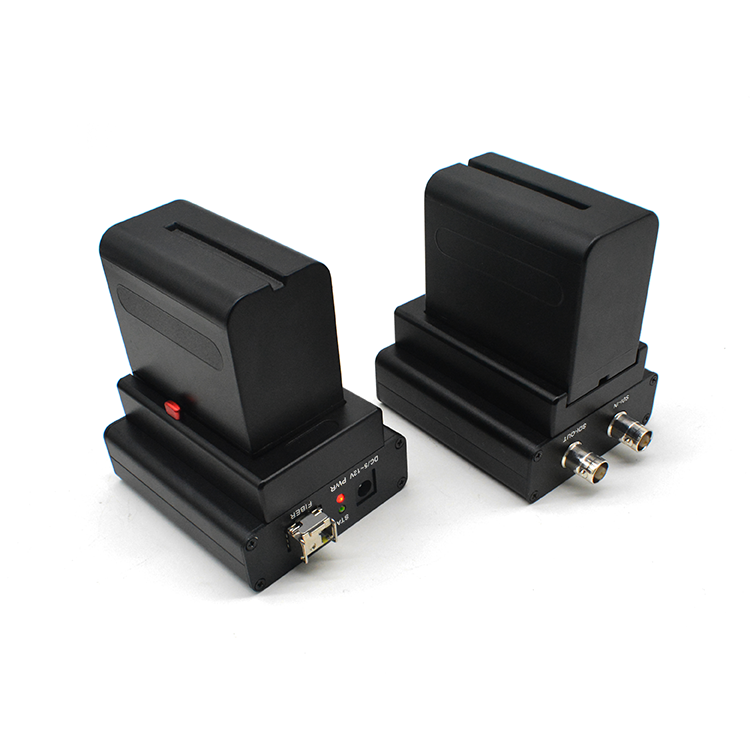

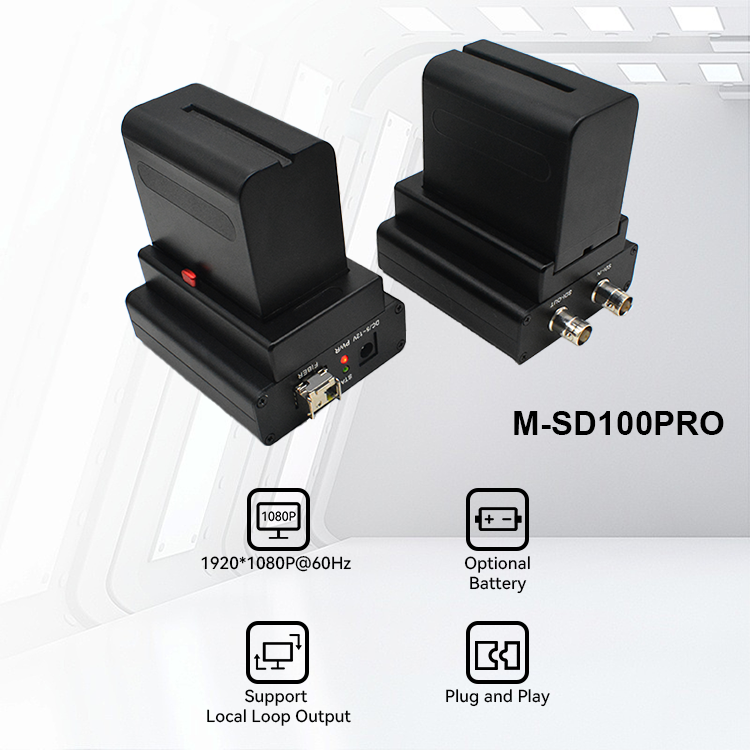

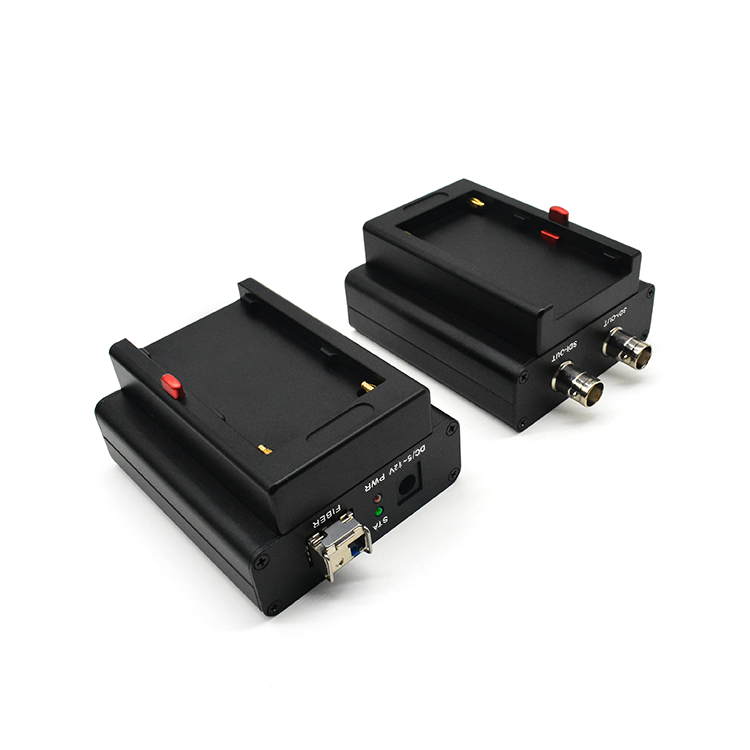

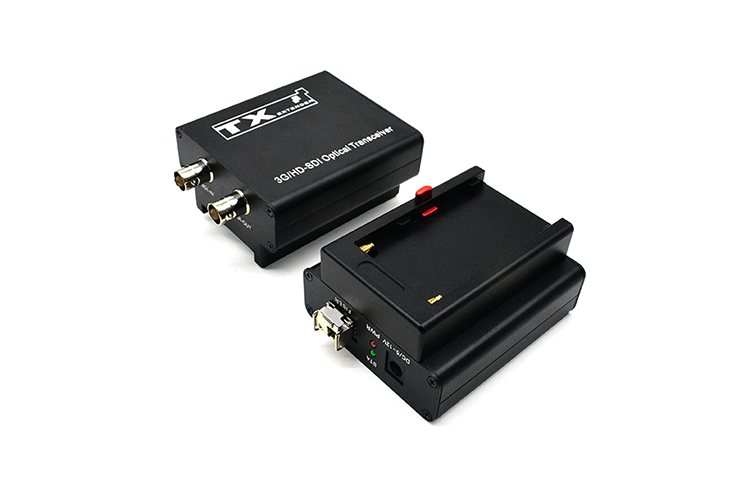

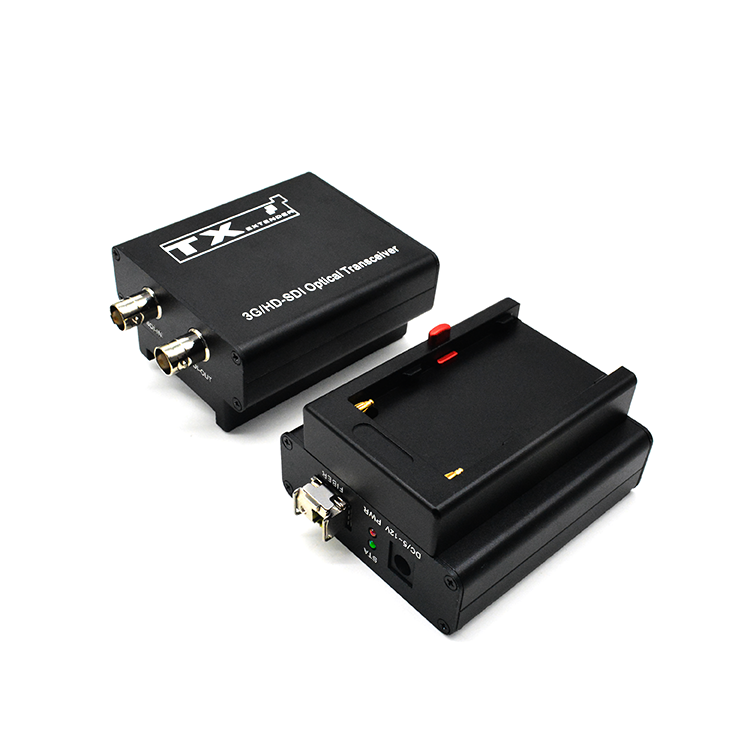

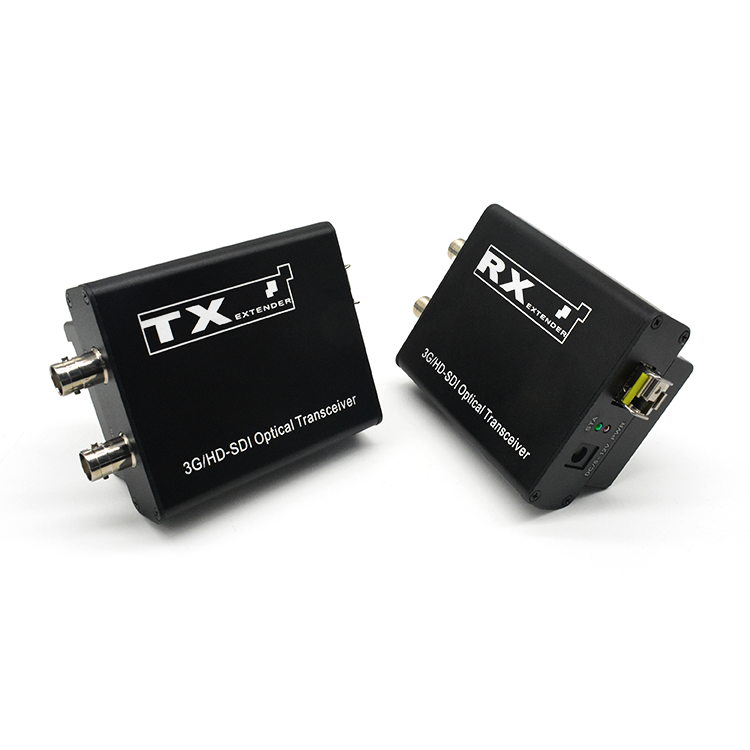

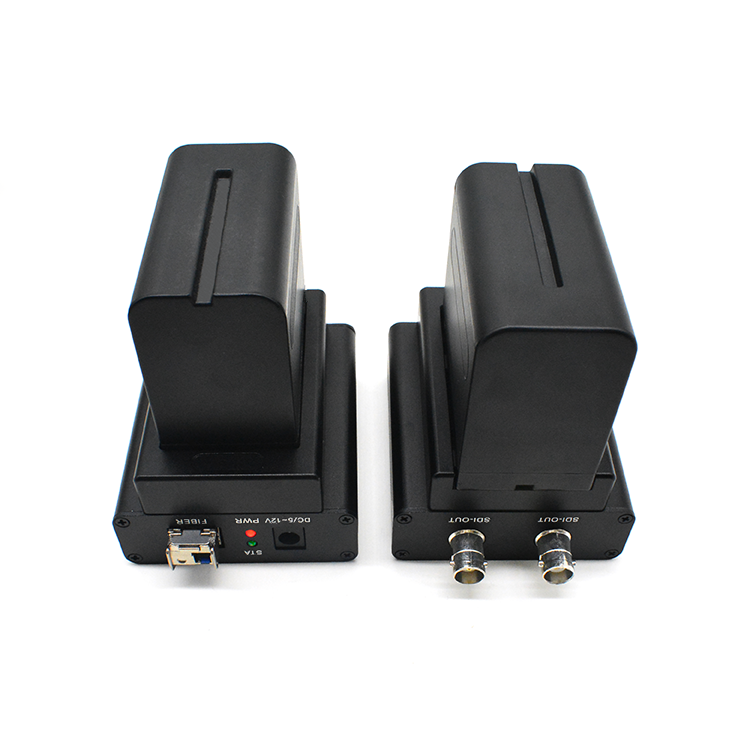

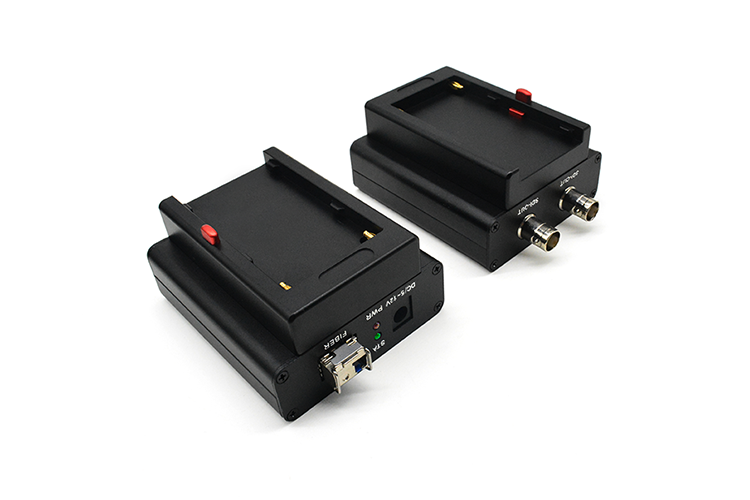

M-SD100PRO transmits 3G/HD-SDI video signals over a long distance through a single fiber cable, and supports 8-channel embedded audio synchronization function; It can be equipped with mobile battery (optional) and adapt to a variety of complex application environments.
The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high performance and efficient 3G/HD-SDI signal extension mode.
Features
1. Long distance transmission of 3G/HD-SDI video and audio signals through optical fiber, up to 3-20KM (default 3KM)
2. HD video signal resolution up to 1920*1080P@60Hz

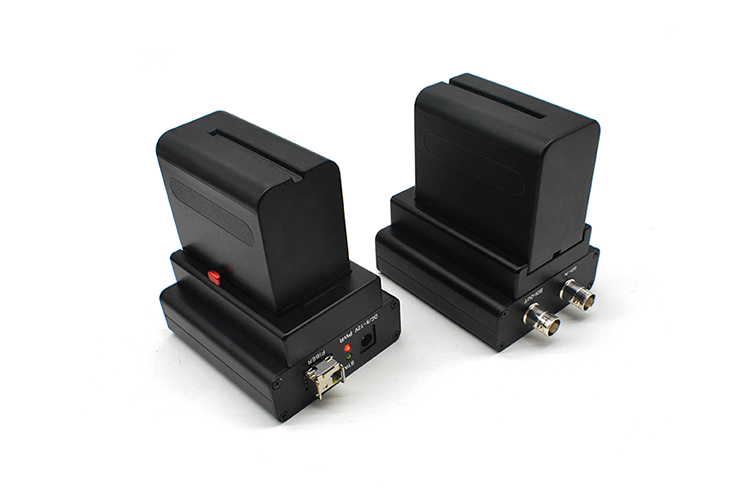

3. Can be equipped with mobile battery (optional)
4. Support all digital lossless transmission, 8-channel embedded audio and video synchronous transmission
5. Support local output, the remote end support two-way synchronous output
6. Support PAL/NTSC, strong compatibility, able to automatically identify and configure various display modes
7. Support plug and play and hot plug
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Built-in ESD protection system
10. Simple to install, plug and play
Specification
Parameter
Description
Video
Technical Norms
SMPTE standard
Video bit rate
MAX 3.2 GB/Second
Interface
BNC
Input/output cable specification
≤150m（Belden 1694A cable standard）
Video input/output impedance
75Ω
Video input / output voltage
1Vpp; Min: 0.5Vpp/ Max: 1.5Vpp
Differential gain (10% ~ 90% APL)
<1%
SDI resolution
625/25 PAL
525/29.97NTSC, 525/23.98 NTSC
720P@50, 720P@59.94
1080i@23/24/30/50/59.94, 1080P@23.98/24/30/50/60
Support SDI specification
270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI）
SMPTE424M 3Gb/s serial
interface(3G-SDI)
Fiber
Optical fiber interface
LC
Fiber type
Single mode single fiber
wavelength
Single mode 1310nm；1550nm
Max transmission distance
Default: 3KM；Max: 20KM
Other
Power
DC 5~12V/1A
Power Consumption
MAX 5W
Temperature
Operating temperature: -20℃ ~ +70℃
Humidity
Operating humidity: 0 ~ 90%
Mean time between failures
≥100000hours
Size
82*57*27mm

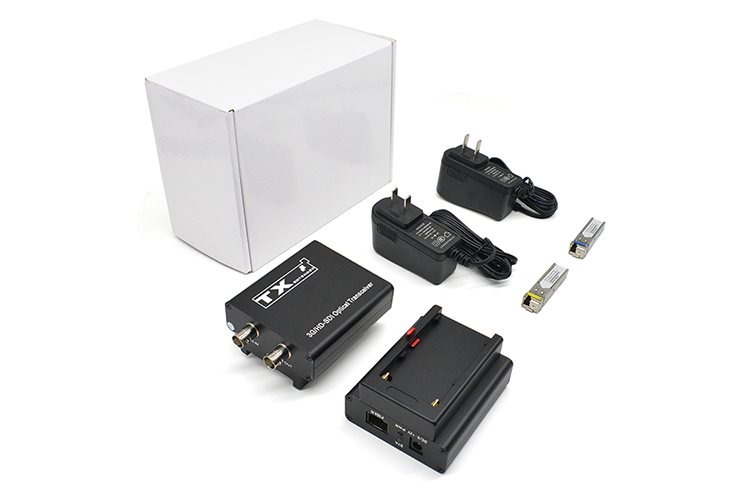

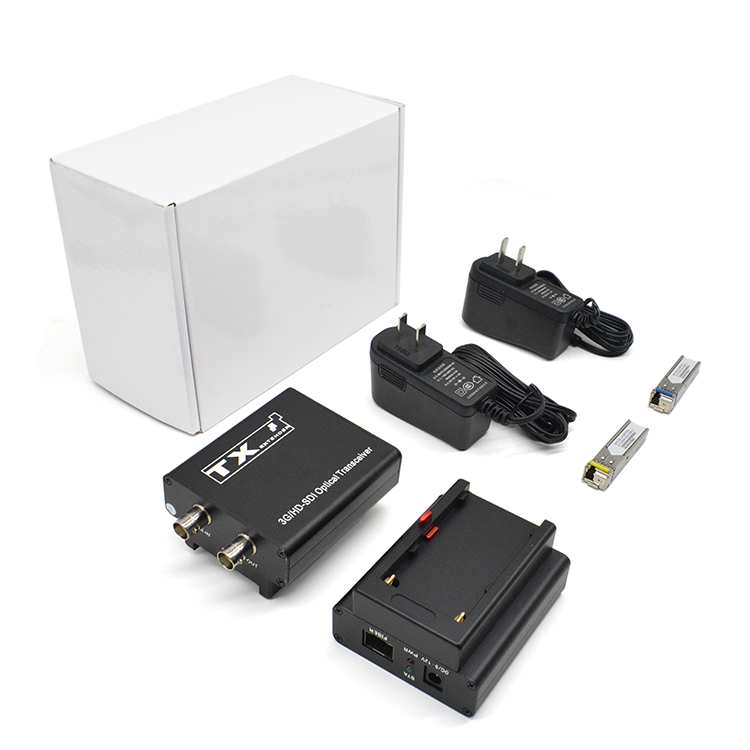

Package
1. SDI extender TX x1pc
2. SDI extender RX x1pc
3. Power adapter x2pcs
4. User manual x1 pc

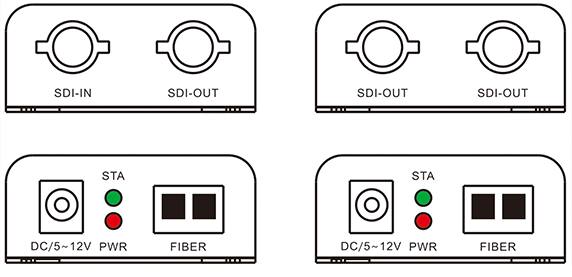

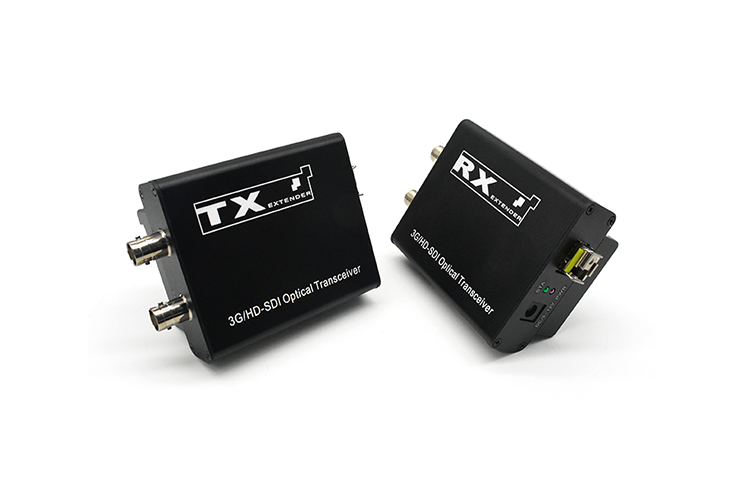

Product Interface
TXRX
TX: Transmitter
RX: Receiver
Port name
Description
SDI IN/OUT
SDI signal input/output
Fiber
Fiber Interface（LC）
DC/5~12V
Power adapter socket
LED indicator
Description
PWR
Unit power indicator
STA
SDI signal indicator

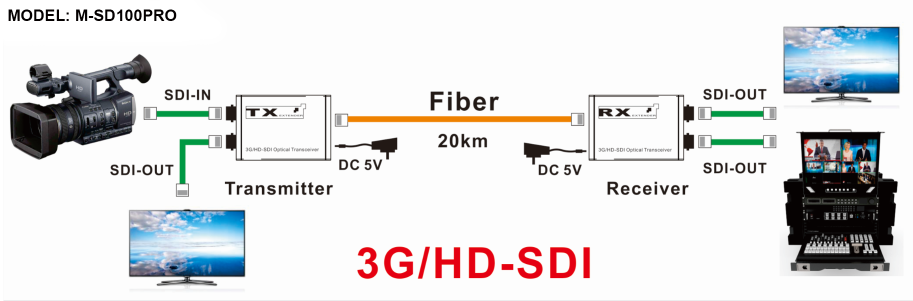

Installation Process
1. Connect the SDI signal source to the input(SDI IN) of the TX
2. Connect the RX to the display device (such as SDI matrix, live broadcast, monitor, etc.)
3. Connect the optical fiber interface between the TX and the RX with single mode fiber cable
4. Connect the provided DC/5V(12V) power supplies to the power socket of the TX and the RX
Troubleshooting
1. The red light (PWR) is not bright or the brightness is low, Check whether the power adapter is normal
2. When TX green light (STA) is not on; Check the signal source; The green light stays on indicates regular work
3. RX green light (STA) is not on, check whether the optical fiber module of the TX contacts normally; The green light (STA) is not on when there is no signal from the TX; Long light indicates that TX and RX work normally
4. If there is no image on the display, check whether the display selects the correct channel input
