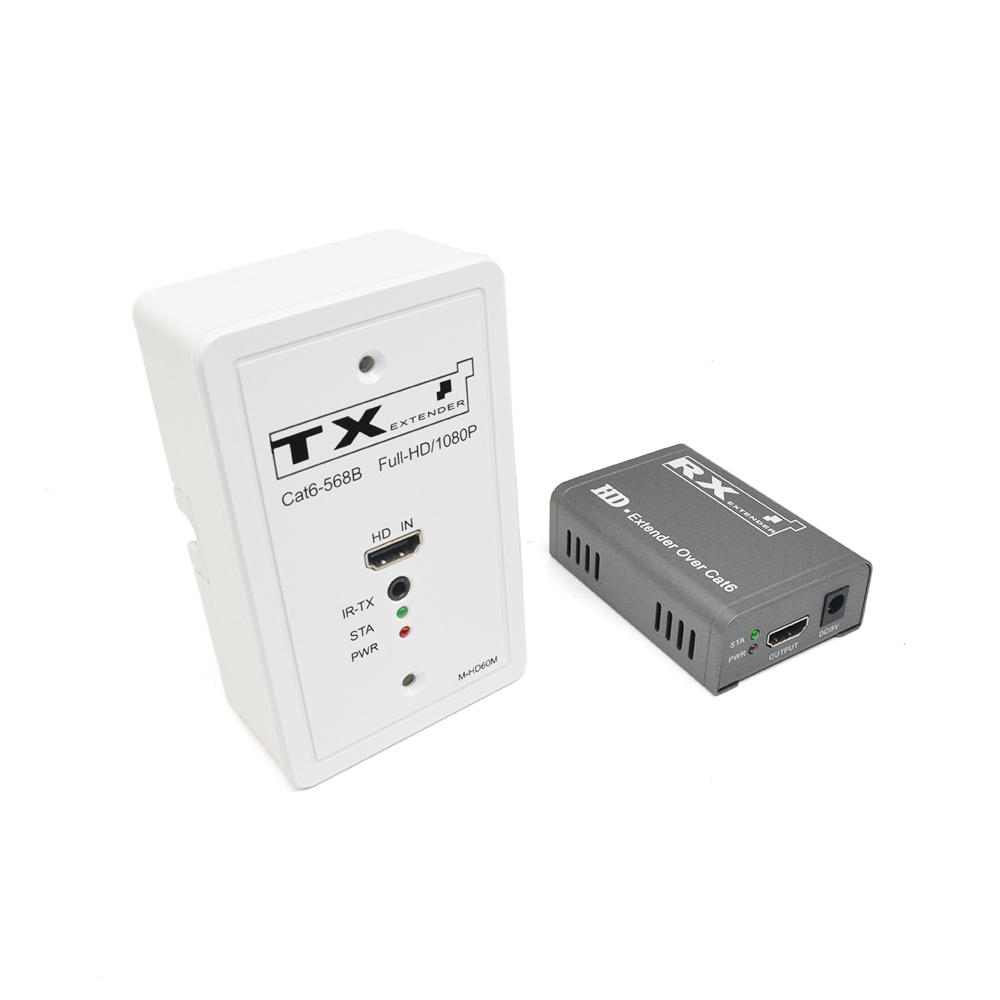

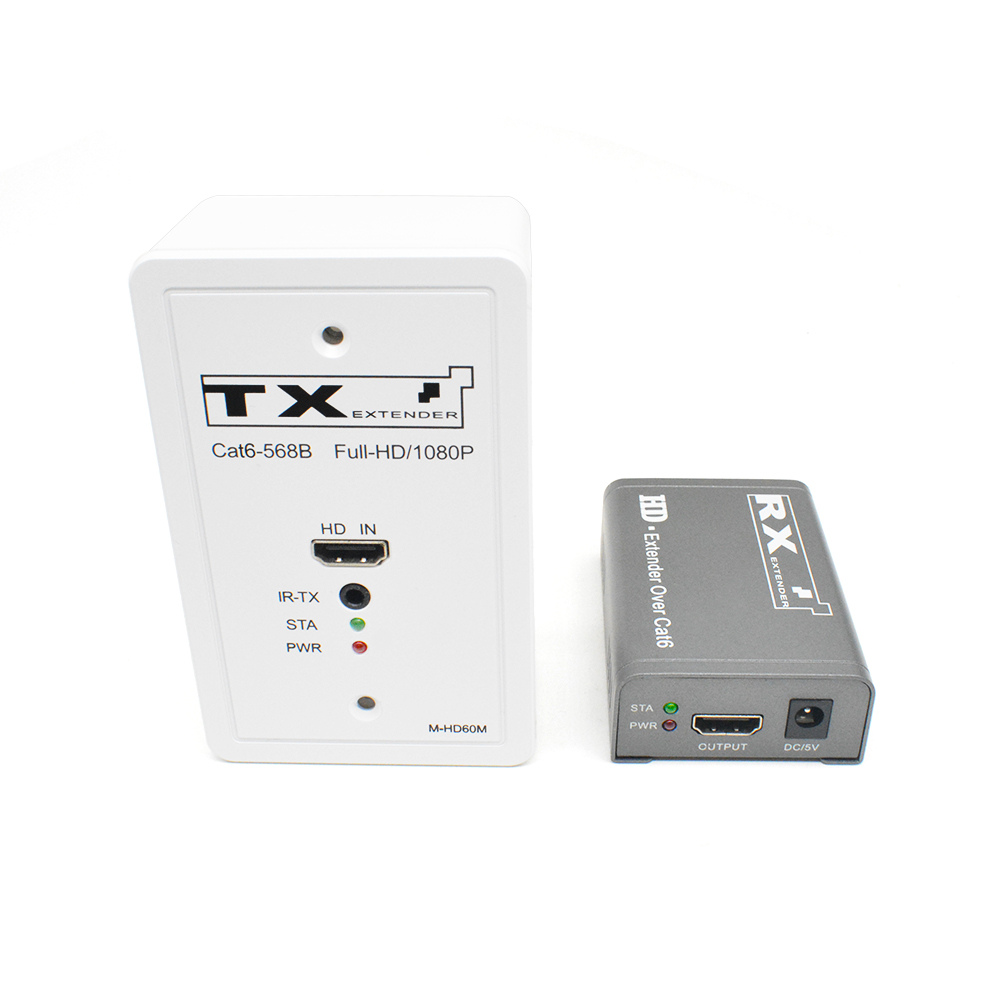

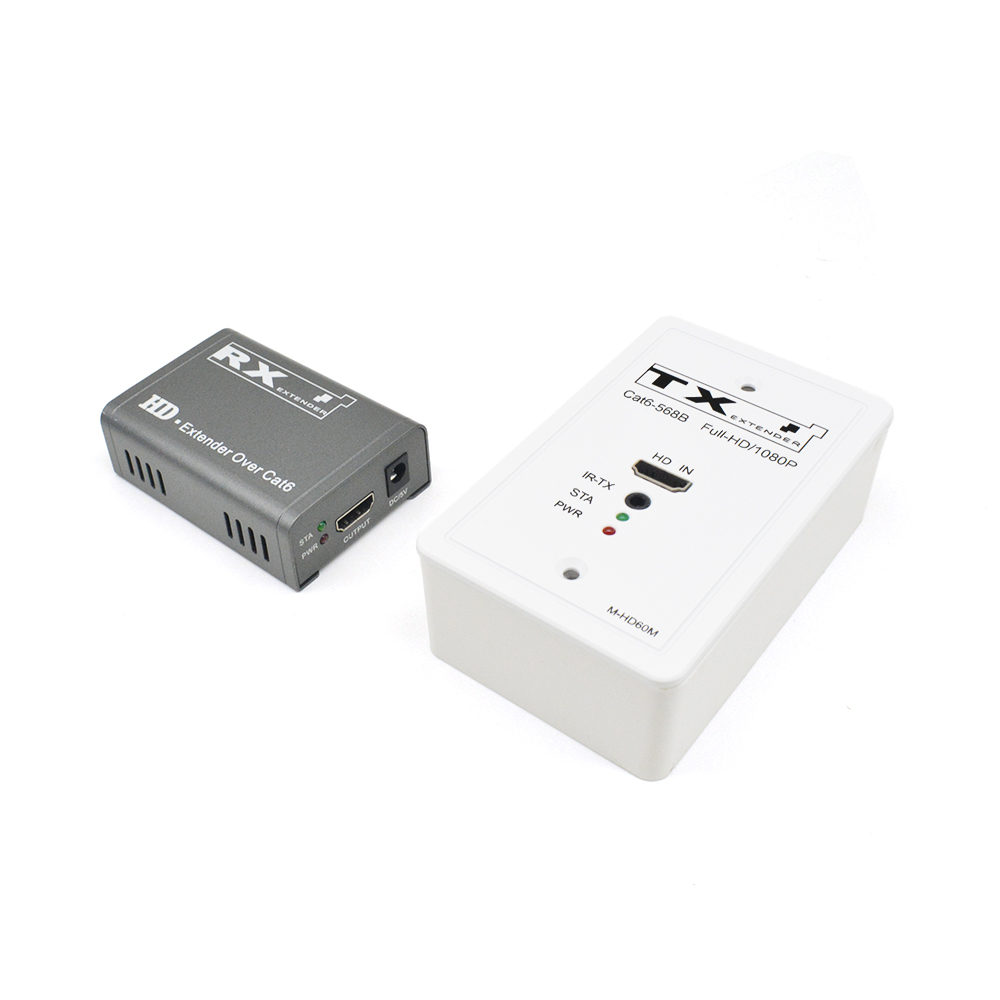

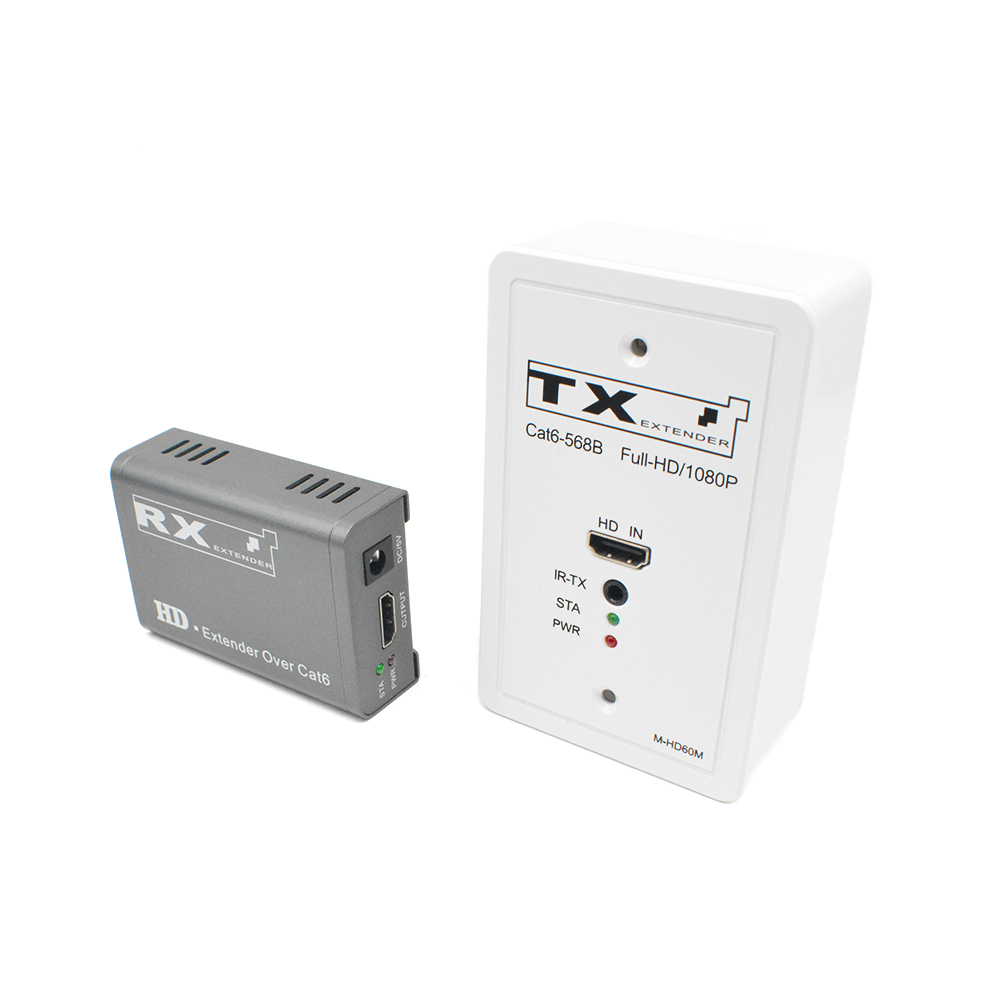

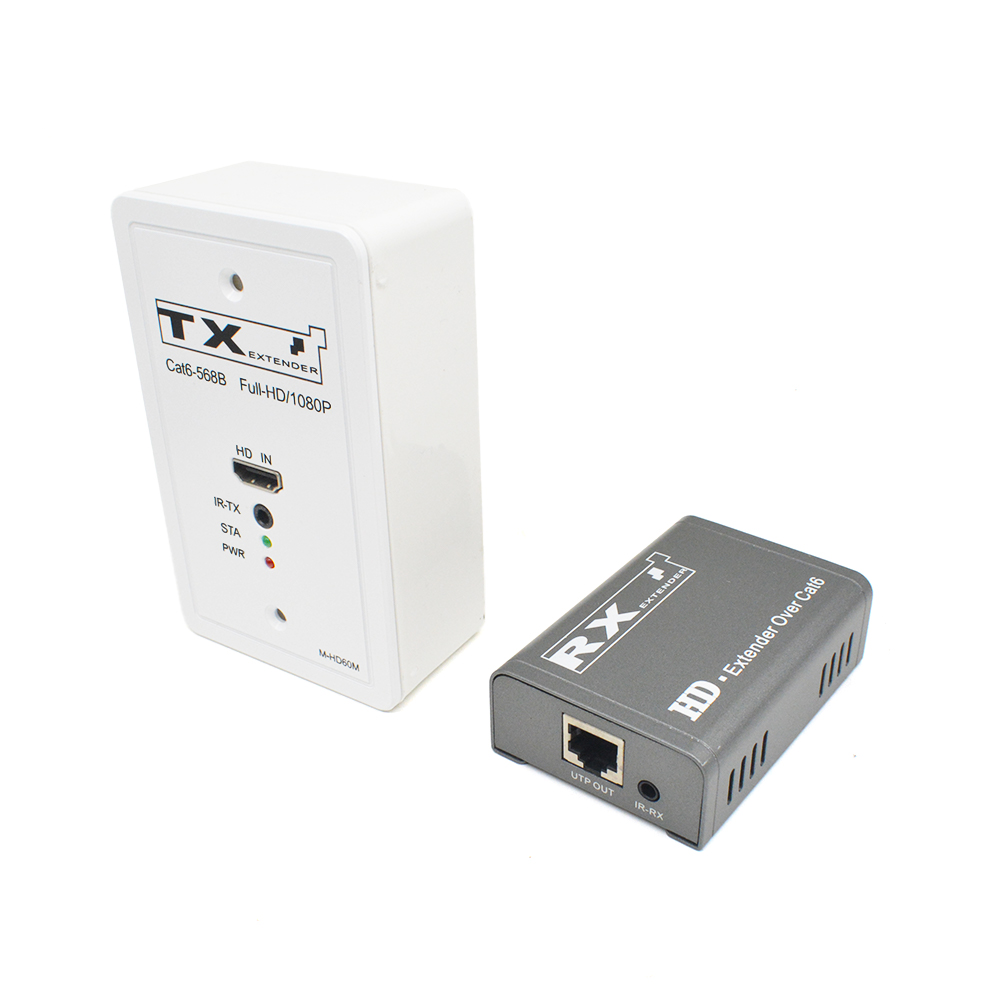

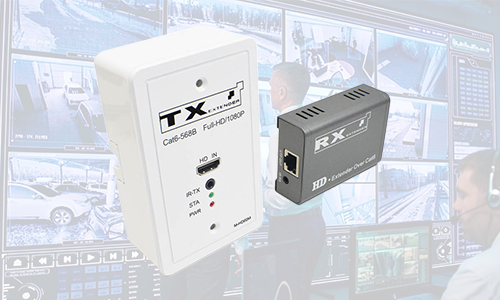

M-HD60M 120-Type Wall Plate POC IR Cat5e/6 HD Extender

5 0 Reviews

This 1080P@60Hz 120-Type Single Gang Wall Plate(117.6*72.8mm) HD Extender allows you to extend your HD signal over standard Network cable.

M-HD60M is a HD Extender with IR control so you can control your HD source from the receiver location with ease. It also supports POC power supply so only one power supply is needed at the receiver(RX) side(the transmitter can be powered by the receiver).

This Wall Plate Extender enables you to extend HD signal to remote display unit to a maximum of 60 meters over Ethernet cable while maintaining your remote controller active (from the display unit location).

While HD cables are expensive, inconvenient to wire and suffer from very limited transmission distances, this extender can offer you a convenient, plug and play HD extension solution.

Price: $ 31.39
Availability:
Quantity:

  • M-HD60M




120-type HDMI wall plate extender applied in security monitoring room, lecture hall, corporate conference room, and server rack networking.

M-HD60M

120-Type Panel HD Extender


■ 1920*1080P@60Hz

■ 60M transmission

■ Support IR transmission

■ Support POC

■ Support HD 1.3

■ Dimension: 117.6*72.8mm

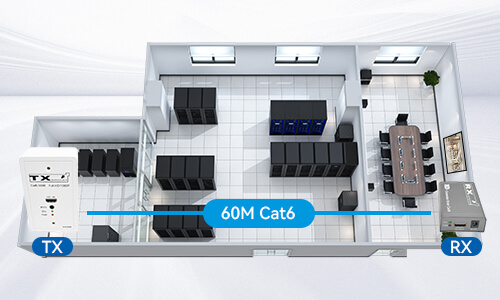

60M Transmission


 Transmits HD signal up to 40m distance over single Cat5e and up to 60m over single Cat6 cable


60m-hdmi-transmission-over-cat6-with-wall-plate-extenders


wall-outlet-hdmi-extender-supports-1080p-hd-resolution

1080P Full HD Resolution


Support video resolution up to 1080P@60Hz

Maximum data rate up to 6.75Gbps, and the special format is used to compress and decompress the video, improve the transmission efficiency and make the playback more smooth

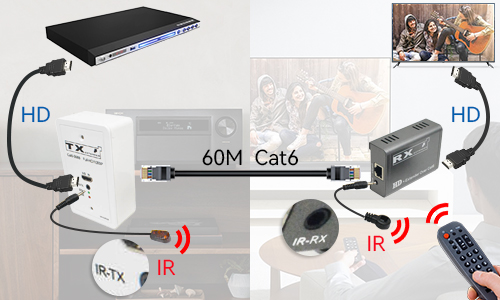

IR Transmission

Easily control a DVD player, TV Box or other HD video sources at the display side. (IR cables are optional)


120-type-hdmi-extender-with-ir-infrared-transmission


120-type-hdmi-extender-with-ir-infrared-transmission

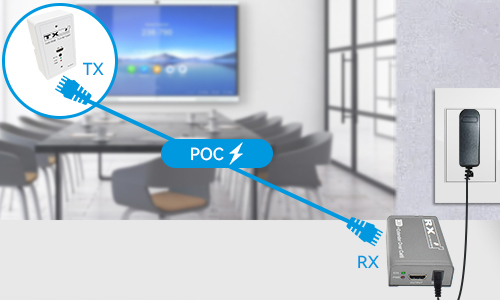

POC Power Supply

Power the receiver(RX), then the power and data signals can be transmitted simultaneously through a single network cable so the transmitter(TX) doesn't need an extra power adapter. This offers more convenience in installation and cabling.

Support HD 1.3 Standard

High compatibility, can automatically identify various display modes. And the built-in automatic adjustment system can make the image smooth, clear and stable


high-compatibility-hdmi-extender-support-hd1.3


hdmi-wall-plate-extender-application-scenarios

Wide Application

Suitable for Monitoring computer rooms, Lecture halls, Engineering projects and others


Introduction

This 120-Type Wall Plate HD Extender (117.6*72.8mm) allows you to extend your HD signal(1080P@60Hz) over standard
Network cable.

It supports POC power supply so only one power supply is needed at the receiver(RX) side(the transmitter
can be powered by the transmitter). It offers you more convenience in installation at the display zone.

This HD Extender also supports IR control, which lest you operate your HD source from the receiver
location remotely, providing convenient access without needing to be near the transmitter.

This Wall Plate Extender enables you to extend HD signal to remote display unit to a maximum of 60 meters over
Ethernet cable while maintaining your remote controller active (from the display unit location).

Features

1. Transmits HD signal up to 40m distance over single Cat5e and up to 60m over single Cat6 cable

2. Support video resolution up to 1080P@60Hz

3. The special format is used to compress and decompress the video, improve the transmission efficiency and
     make the playback more smooth

4. Support HD 1.3

5. Support POC

6. Support IR transmission

7. Support audio format: DTS-HD / Dolby- true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD

8. High compatibility, can auto-match source and display device

9. Built-in automatic adjustment system, make the image smooth, clear and stable

10. Built-in ESD protection system

11. Simple to install, plug and play

Specification

Parameter

Description

Video

Standard

HD 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080@60Hz, 3D

Connector

HD-A

Impedance

100Ω

Ethernet

Interface

RJ45

Transmission distance

CAT6---60m

IR

Interface

3.5mm earphone Jack

Frequency

38KHz, Unidirectional transmission

Other

Power supply

The power adapter: DC 5V/1A

Power consumption

MAX 3W

Operating Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension (L x W x H)

117.6*72.8mm

Application

▪Home theater HD wall outlet

▪Conference room HD extension wall plate

▪NVR long distance extension for monitoring system

▪Hide HD cables in wall over long distance

Package

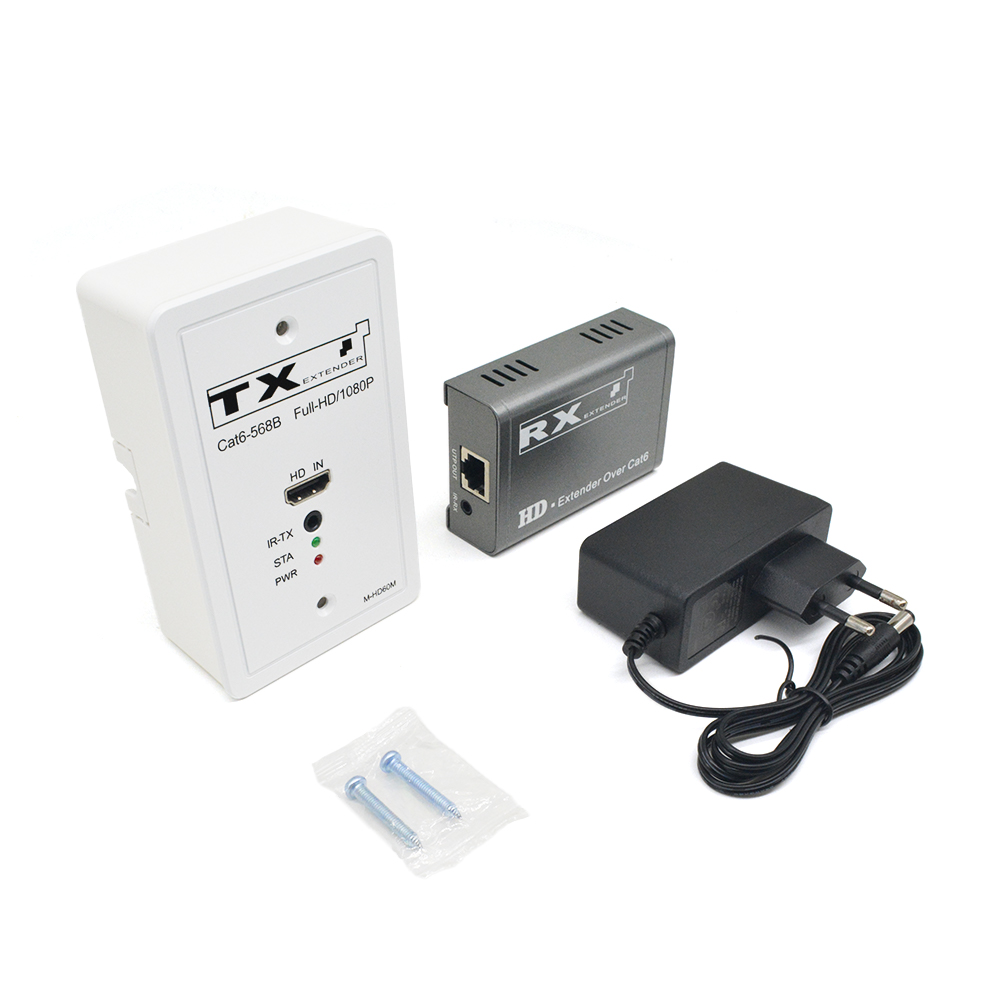

Package of M-HD60M, including 1 transmitter, 1 receiver, 1 power adapter and 2 screws

1. HD transmitter unit ×1 pc

2. HD receiver unit ×1 pc

3. Power adapter ×1 pc

4. IR cable ×1 set

5. Mounting screws ×2 pcs

6. User manual ×1 pc

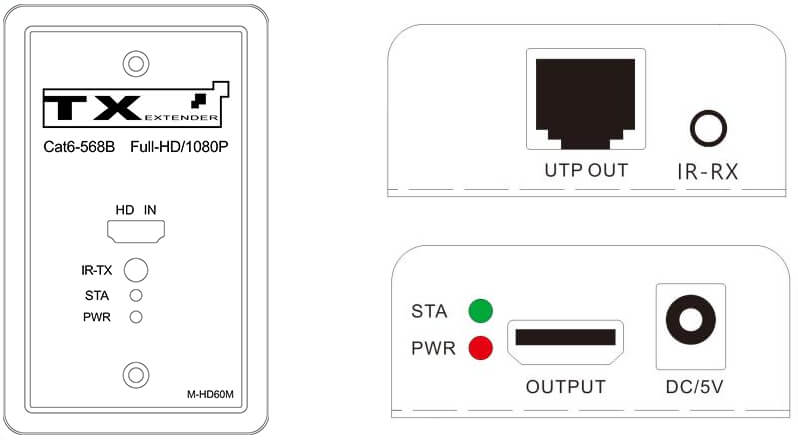

Product Interface

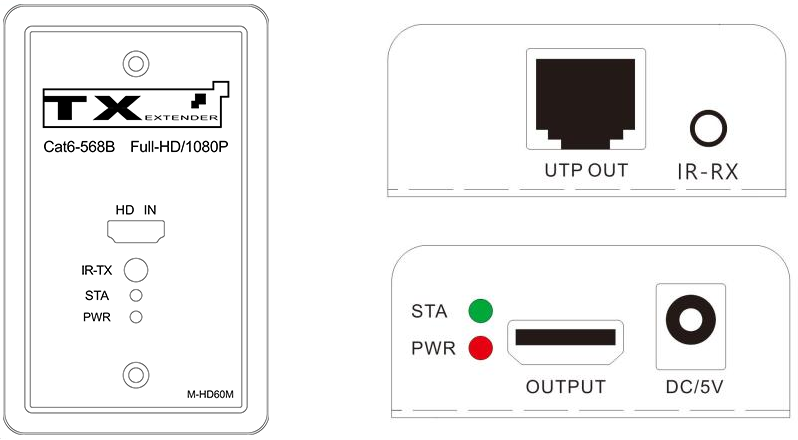

TX (Transmitter)                                     RX (Receiver)

Interface panel of M-HD60M showing HD port, IR jack, RJ45 Ethernet Port and LED indicators

Port name

Description

HD IN/OUT

HD signal input/output

CAT6

RJ45 port;

IR-TX/IR-RX

Infrared transmission function

DC/5V

Power adapter socket

LED indicator

Description

PWR

System power indicator

STA

HD signal indicator

Installation Process

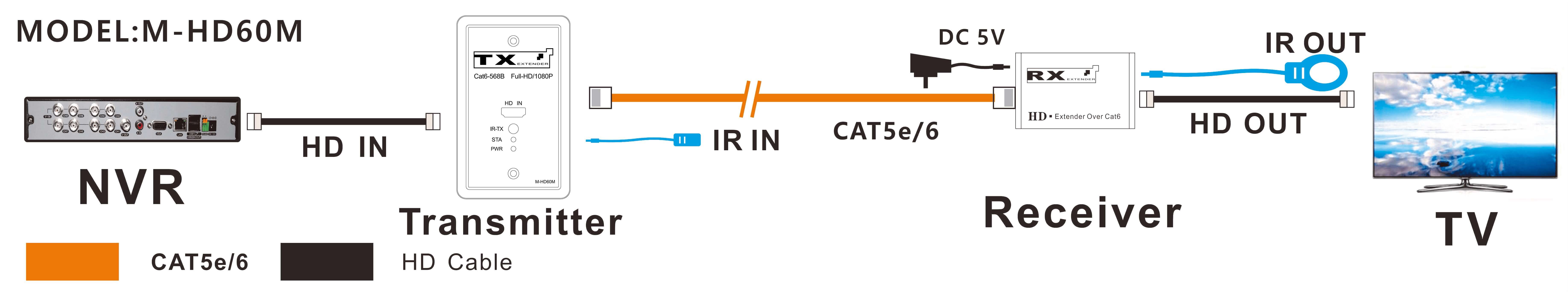

a connection diagram shows how the wall-plate hdmi extender work

1. Connect the Tx unit to the video source device by HD cable

2. Connect the Rx unit to the display device by HD cable

3. Connect between the Tx and Rx units using Cat6 cable

4. Connect IR-TX with IR transmitting line or IR-RX with IR Receiving line

5. Connect 5V power supply to the HD RX Extender
