Introduction

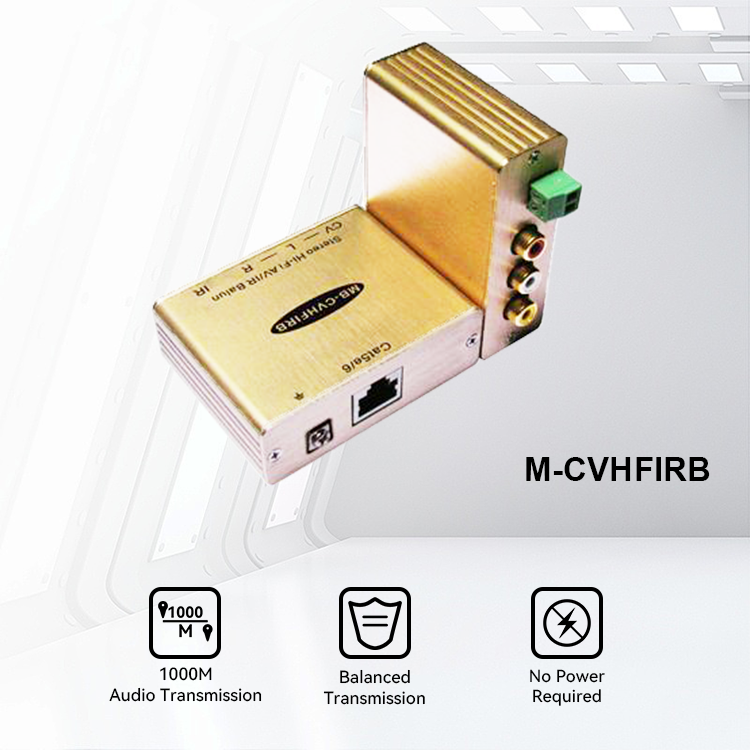

The Composite Video, Stereo Hi-Fi Audio / IR Pass-Thru Balun (CVHFIRB) allows one composite
video, one stereo audio and one IR emitter signal to be transmitted via a single Cat5e/6 cable in
a point-to-point connection.

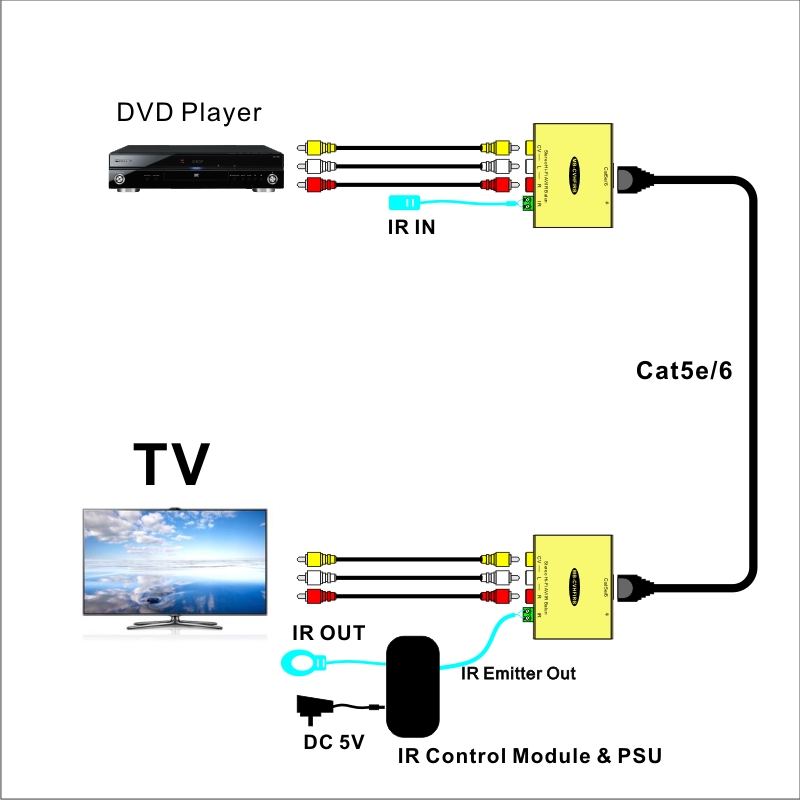

The Composite Video,Stereo Hi-Fi audio / IR Pass-Thru Balun works in pairs. Some of the applications
are classroom video distribution, commercial and home audio/video systems, hospital video training,
video conferencing, and video kiosks
Features
Video up to 2,200 feet (670m) via Cat5e/6
Audio up to 3,250 ft (1,000m) via Cat5e/6
20 Hz to 20 kHz audio bandwidth
IR 2-wire emitter pass-thru on Third twisted pair
Cost-efficient cabling
Quicker moves, adds and changes
Specification
Environment | Composite video (NTSC, PAL, SECAM). Line level analog audio. IR remote. |
Devices | DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment. |
Transmission | Transparent to the user. |
Composite video | Audio |
Bandwidth | Video: 60 MHz, 3 dB roll off | 20 Hz to 20 KHz over the distance range |
Maximum Input | 1.1Vp-p | 1.1Vp-p |
Impedance | 75 ohms | 600 ohms min |
Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 6 MHz | Less than 2 dB per pair over the frequency range |
Return Loss | Better than 15 dB over the frequency range | Better than 15 dB over the frequency range |
Common Mode Rejection Ratio | Greater than 40 dB over the frequency range | Greater than 40 dB over the frequency range |
Max. Distance Color via Cat 5E/6 UTP/STP Cable | 2,200 ft (670 m) | 3,250 ft (1,000m) |
Pin Configuration (RJ45) | Video: Pins 4(R) & 5(T) IR : Pins 3(R) & 6(T) | Audio 1: Pins 1(R) &2(T) Audio 2: Pins 7(R) & 8(T) |
Cable: Cat 5E/6 UTP/STP | 24 AWG or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft Attenuation: 6.6 dB/1,000 ft at 1 MHz |
Connectors | Three RCA-F connectors: Video (yellow) & stereo audio (red, white) One (1) 2-pole terminal block for IR emitter pass-through One (1) RJ45 for Cat 5E/6 |
Temperature | Operating: 0° to 55°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing |
Enclosure | Aluminum alloy |
Dimensions(packaging) | 155mm*80mm*30mm (including one pair of Balun) |
Weight(packaging) | 260g |
