HD to AHD/TVI/CVI Converter
【M-AHD2.2】

I. Introduction
The HDMI to AHD/TVI/CVI video converter can convert HDMI video Signal to AHD/TVI/CVI output by digital processing. It makes the video signal more compatible with monitoring/matrix devices, resulting in clearer and more stable images.

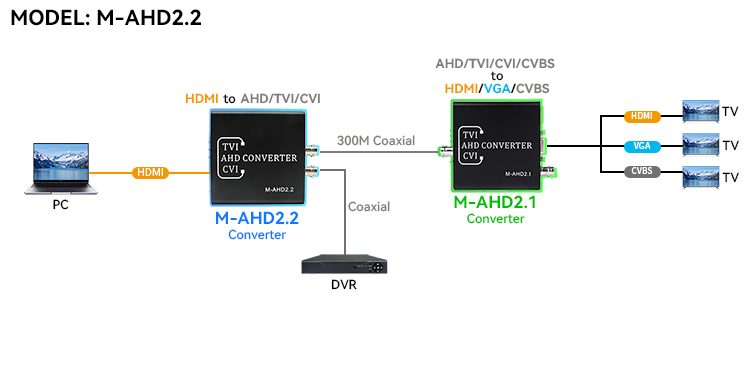

This converter converts HDMI signals to AHD/TVI/CVI signals, which are connected to monitoring/matrix/LCD TV through AHD/TVI/CVI interfaces. It is easy to operate and can achieve high-definition lossless transmission up to 400 meters using 75-3 coaxial lines, breaking the transmission limit of existing high-definition video transmission technologies. It can achieve low-cost, long-distance, no delay, high efficiency, anti-interference, and easy to implement million pixel high-definition video transmission.

II. Function Introduction
1. Using advanced brightness color separation, signal filtering, and 3D noise reduction technology, the image is clearer and the image restoration is better
2. No delay: The data is transmitted to the backend without encoding or compression, fully real-time, high fidelity
3. Convert HDMI signals to coaxial high-definition AHD/TVI/CVI signals
4. Input format: HDMI 1.4, supported 1080P@50/60Hz resolution and backward compatibility
5. AHD/TVI/CVI output support 1080P@25/30, 720P@25/30/50/60
6. Default AHD 1080P@30Hz signal output
7. Supports both NTSC/PAL Video inputs –Automatic detection
8. Compatible with HDCP, HDMI1.4; Compatible with analog devices (including distributors, matrices, etc.)

III. Features:
1. Converts HDMI signal to  AHD/TVI/CVI
2. Provide high-definition analog signal AHD/TVI/CVI output interface
3. Provide high-definition digital signal HDMI（ 1080P@60Hz ）Input interface
4. Provide power adapter DC5V~12V/1A
5. Supports AHD/TVI/CVI signals up to 400 meters
6. Smooth video output without signal loss, screen deviation, or screen shake
7. The product is used for professional broadcasting rooms, with easy installation (no software or driver installation)
8. Thermal conduction design, meeting the requirement of 7-day×24-hour online operation
9. Supports operating temperatures ranging: -30℃~110℃

Note: Distance may be affected by the cable quality and length

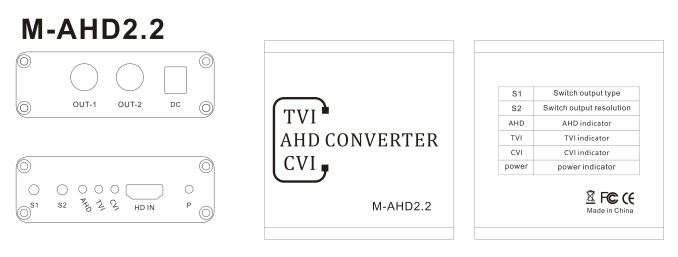

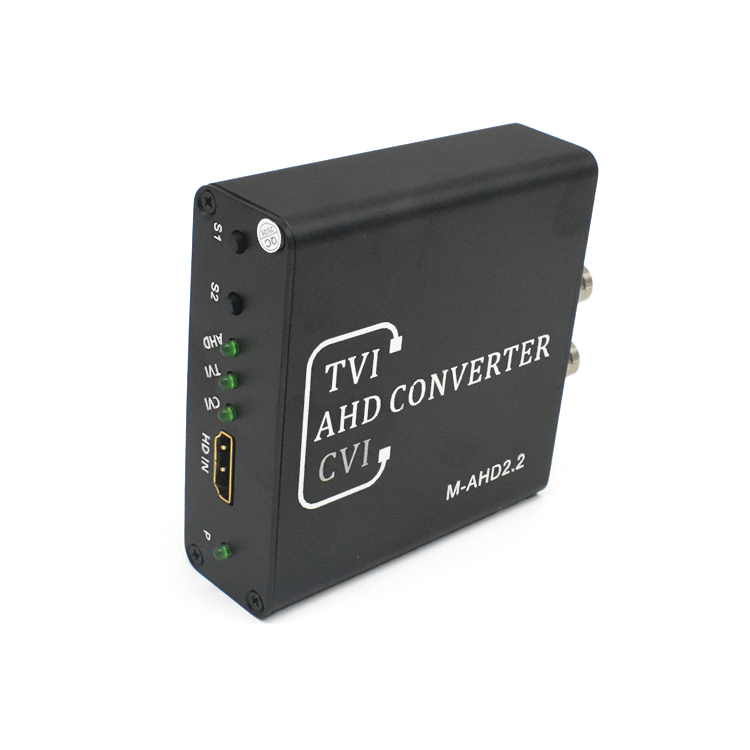

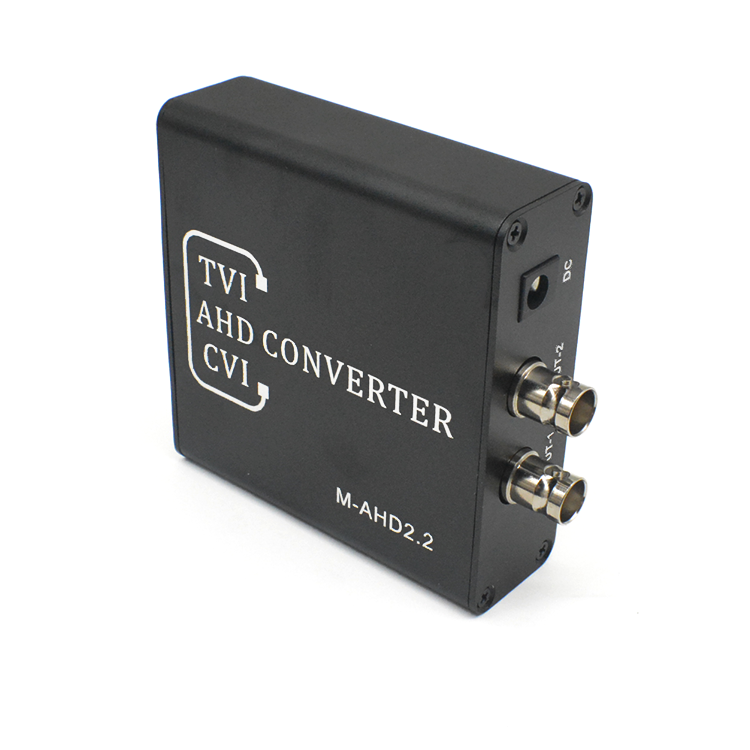

IV. Product interface:

V. Installation Process:

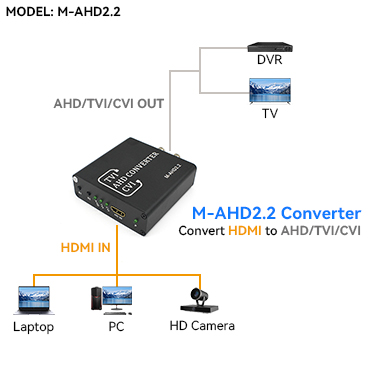

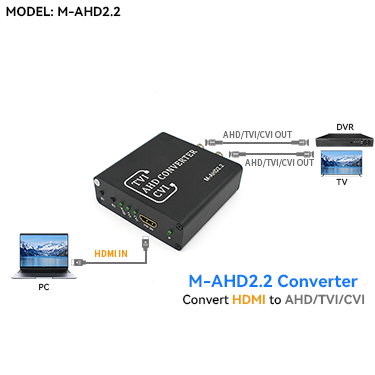

1. Connect the HDMI Source to the converter input using HDMI cable
2. Connect the converter to the AHD/TVI/CVI display
3. Connect the converter to power source using the supplied power supply
4. Use the S1/S2 button to switch between outputs and resolutions

Ⅵ. Package
1. Converter x1pcs
2. Power 5V x1pcs
3. User Manual x1pcs
