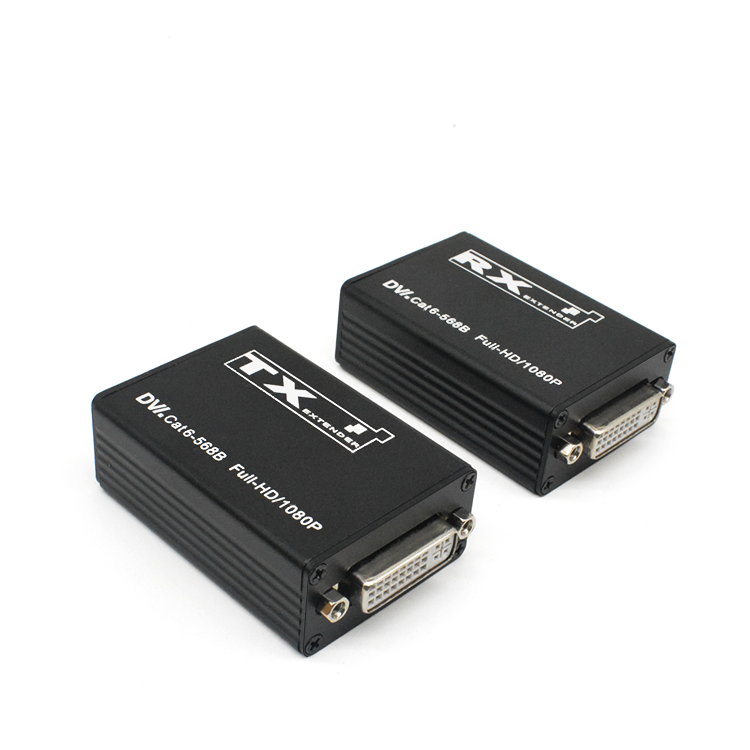

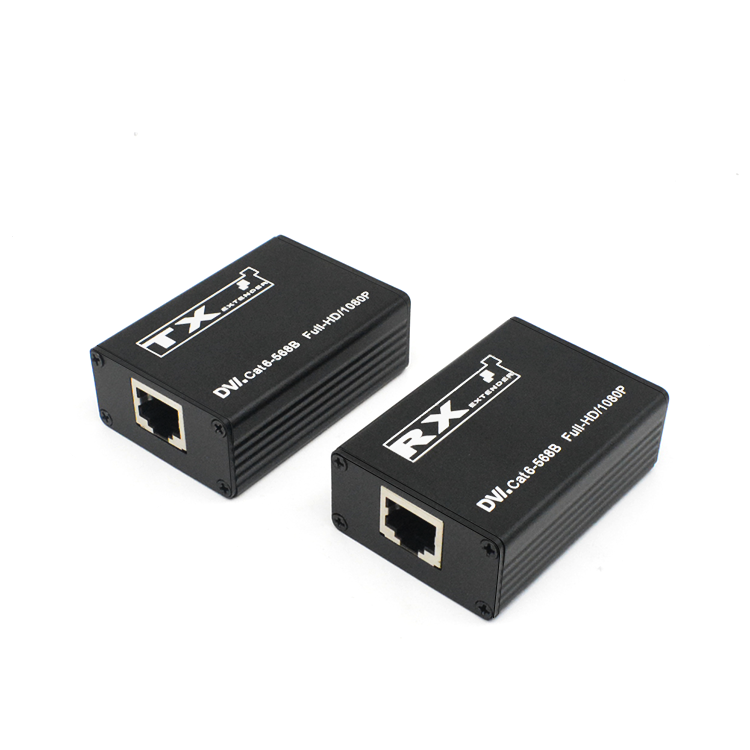

DVI Extender
【M-D30】

I. Introduction

This DVI Extender allows you to extend your DVI signal over standard Network cable.
While DVI cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative.
This DVI Extender enables you to extend DVI signal to remote display unit to a maximum of 30 meters over Ethernet cable.

II. Features

1. Transmits DVI signal up to 10m distance over single Cat5e and up to 30m over single cat6 cable
2. Support uncompressed audio transmission, such as LPCM
3. With the IEEE-568B standard
4. No power required

Note: Distance may be affected by the cable quality

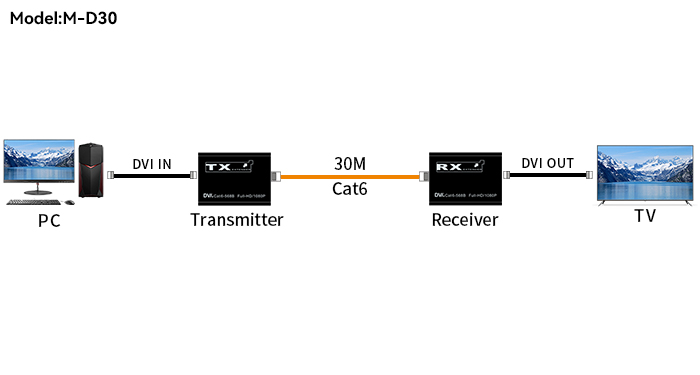

Ⅲ. Installation Process:
1. Connect the TX unit to the source device by DVI cable (no more than 5M)
2. Connect the RX unit to the display device by DVI cable (no more than 5M)
3. Connect between the TX and RX units using Cat5e/6 cable Up to 10M-30M.
4. Turn on the source device

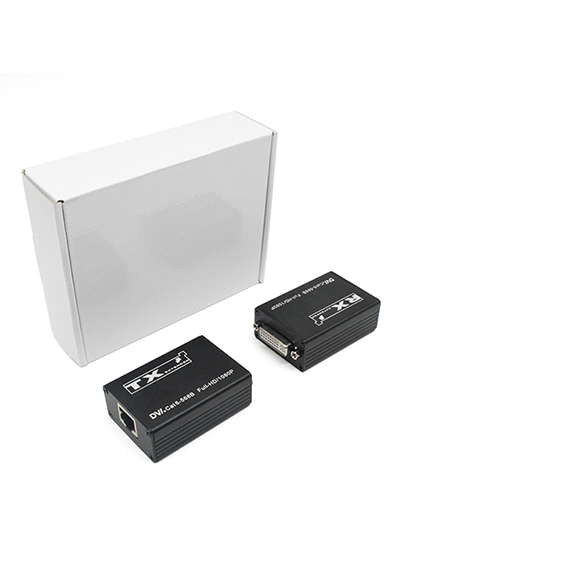

IV. Package Contents:
 1. DVI transmitter unit ×1 pcs
 2. DVI receiver unit ×1 pcs
