8 ports HDMI Extender
【M-HD608】

I. Introduction
This 8-channel HDMI extender extends high-definition signals up to 50 meters via eight CAT 6E network cables and supports 1080P resolution. It not only breaks the transmission length limit of HDMI cables but also offers greater convenience and flexibility, and for cutting down cost.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

II. Features
1. Support EDID; support HDMI 1.3；compatible with HDCP1.2
2. Support video resolution up to 1920*1080P@60Hz
3. Supports 3D; supports POC / IR function (optional)
4. Signal transmission: Single Cat-6 cable up to 60 meters
5. Support uncompressed audio transmission, as LPCM
6. Automatic identification various display modes
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play

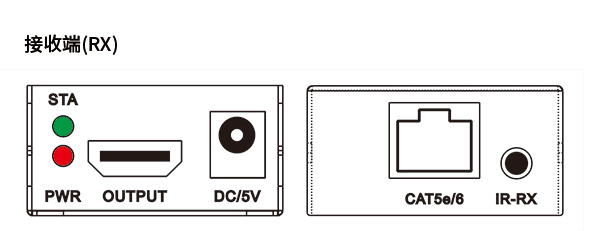

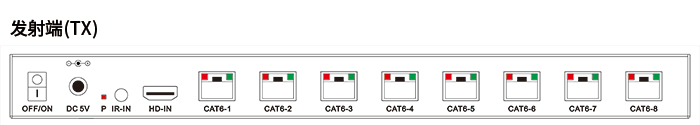

III. Product interface pictures

IV. Specification

Note:
1. In order to achieve better transmission quality image, please use the Cat6
cable.
2. The low quality of the cable, can not achieve the best effect of video
Transmission and transmission distance.
3.If the product can not achieve the transmission distance of 50 meters,
please check the wire quality.

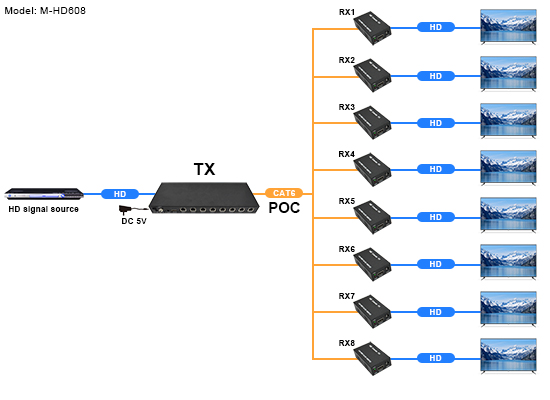

V. Installation Process

1. Connect one HDMI 1.3 cable between source device and TX
2. Connect one HDMI 1.3 cable between sink device and RX
3. Connect single cat-6 cables up to 50 meters instead of HDMI cable between TX and RX
4. Power on Transmitter and Receiver

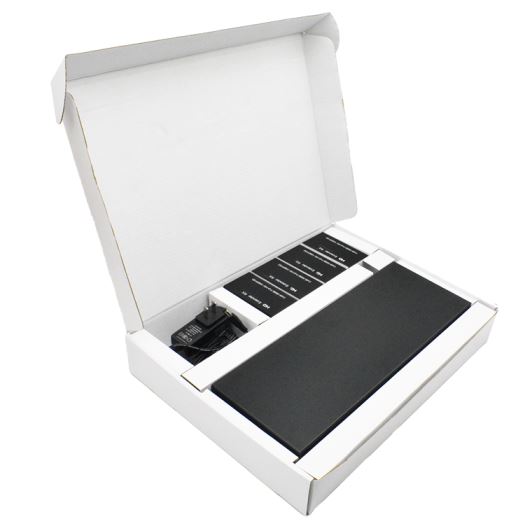

VI. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x8 pcs
3. Power adapter x2 pcs
4. IR TX x 1 pcs(optional)
5. IR RX x8 pcs(optional)
6. User manual x1 pcs
