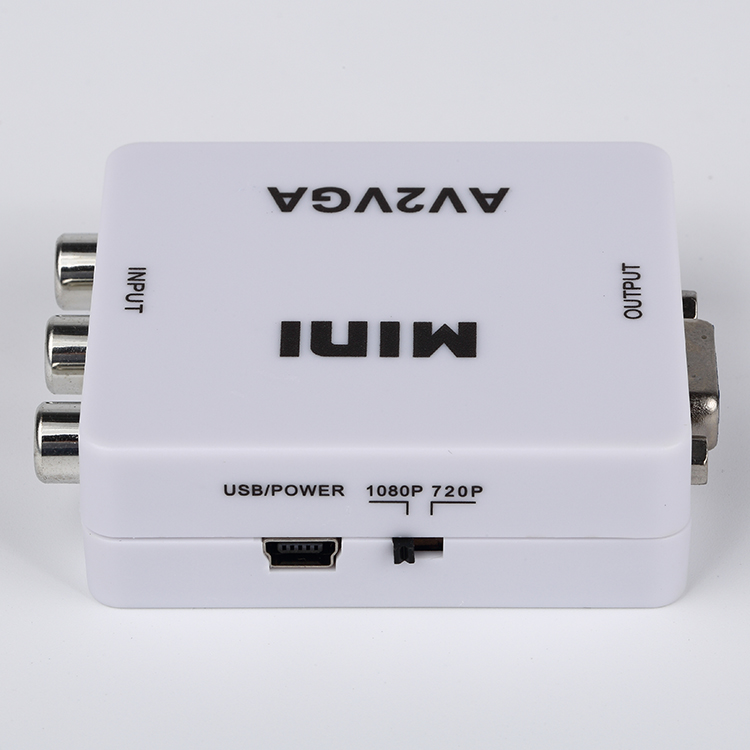

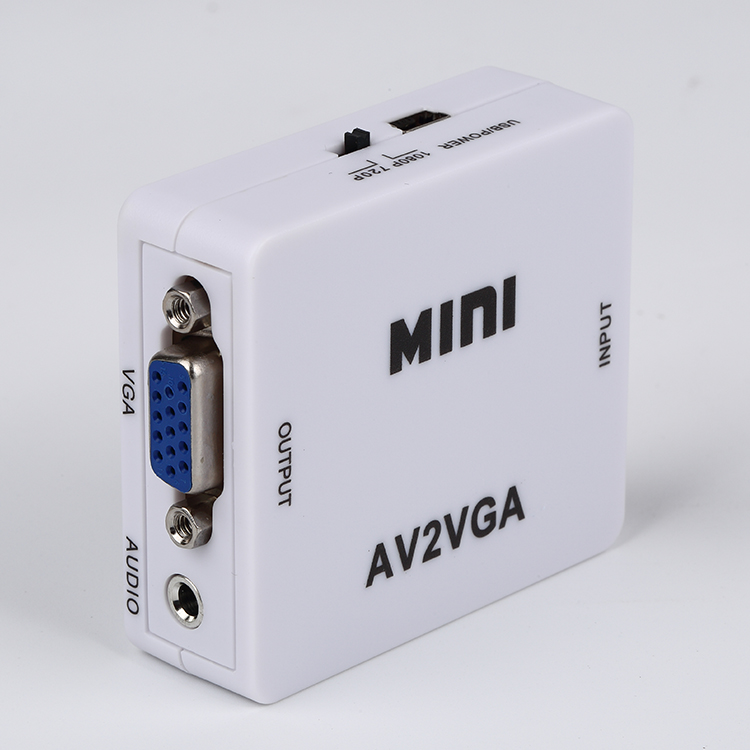

AV to VGA Converter(mini)
【M-AVCon】

1.Automatically detect and convert PC input image to NTSC, PAL 2.Support high resolution PC input up to SXGA(@60Hz). 3. Support resolution :640x480 at 60 fps; 800x600 60fps, 75fps; 1024x768 60fps, 75fps1280x720, 60fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768, 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x105060fps; 1600x120060fps; 1920x108060/s;

Product Information：

1.0 Features

1. Automatically detect and convert PC input image to NTSC, PAL

2. Support high resolution PC input up to SXGA(@60Hz).

3. Support resolution :640x480 at 60 fps; 800x600 60fps, 75fps; 1024x768 60fps, 75fps1280x720, 60fps; 1280x768 60 fps, 75 fps; 1280x1024 60 fps, 75 fps; 1360x768, 60 fps; 1400x1050 60 fps; 1440x900 60 fps; 1680x105060fps; 1600x120060fps; 1920x108060/ s;

2.0 SPECIFICATIONS

1.Frequency bandwidth 165MHZ

2. Enter port 1XVGA

3. The output port is 1XAV

4.USB power supply

5.ESD protection human body model

±8kV(air gap discharge)

±kv(contact discharge)

6. Operating temperature 0°C~40°C/32 F~104°F

7. Storage temperature -20°C to 60 °C /-4 F to 140°F

8 Relative humidity 20~90%RH(non-condensing)

9. Power consumption (Maximum)2.5W(maximum)

10. Size (mm)66(D)x55(W)X20(H)

11. Weight (g)80

3.0 Product parameter

Product name	VGA to AV converter
Connector type	VGA to AV
Resolution:	1080P
Output device:	DVD, PS4, PC, Projector, HD TV, etc
function	Automatically detects PC input images and converts them to NTSC, PAL
Features:	Mini size, portableL

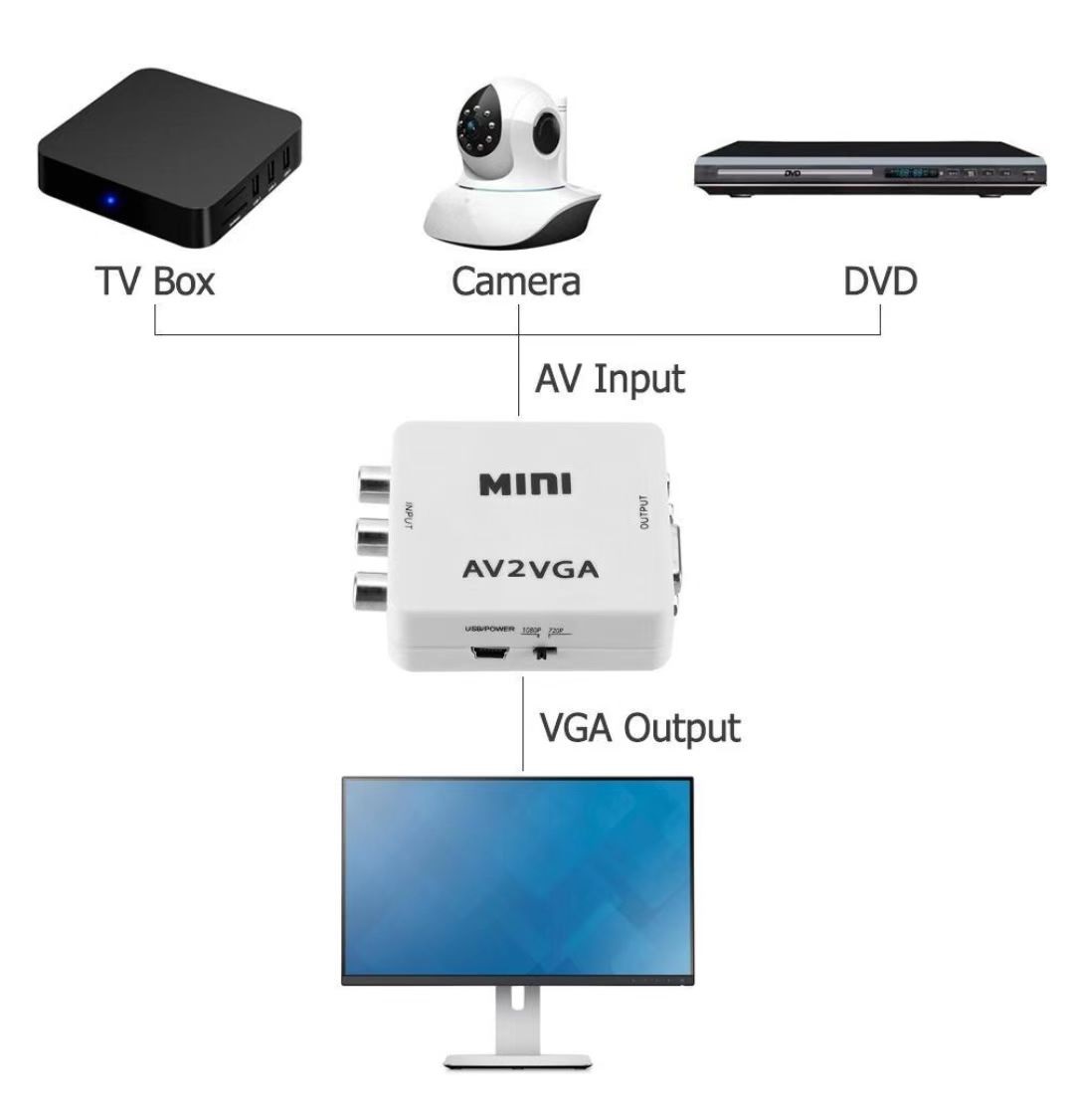

4.0 CONNECTION DIAGRAM

UP:VGA to AV Converter
(plastic case)
