60meters HDMI Extender

I. Introduction

This HDMI Extender allows you to extend your HDMI signal over standard Network cable.

While HDMI cables are expensive, inconvenient to wire and suffer from very limited transmission distances – Ethernet cables offers a wonderful alternative.

This HDMI Extender enables you to extend HDMI signal to remote display unit to a maximum of 60 meters over Ethernet cable while maintaining your remote controller active (from the display unit location).

II. Features:

1. Transmits HDMI signal up to 40m distance over single Cat5e and up to 60m over single cat6 cable

2. HDMI 1.3 & 3D Support

3. The network line conforms to the standard of IEEE-568B

4. Support video resolution up to 1080P@60Hz

5. Support audio format: DTS-HD / Dolby- true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD

7. DC5V power supply is included

8. Support POC/IR(Optional)

Note: 1. If no playing, the factory length and resolution will be defaulted, please press EQ 3seconds

2. Distance may be affected by the cable quality and length

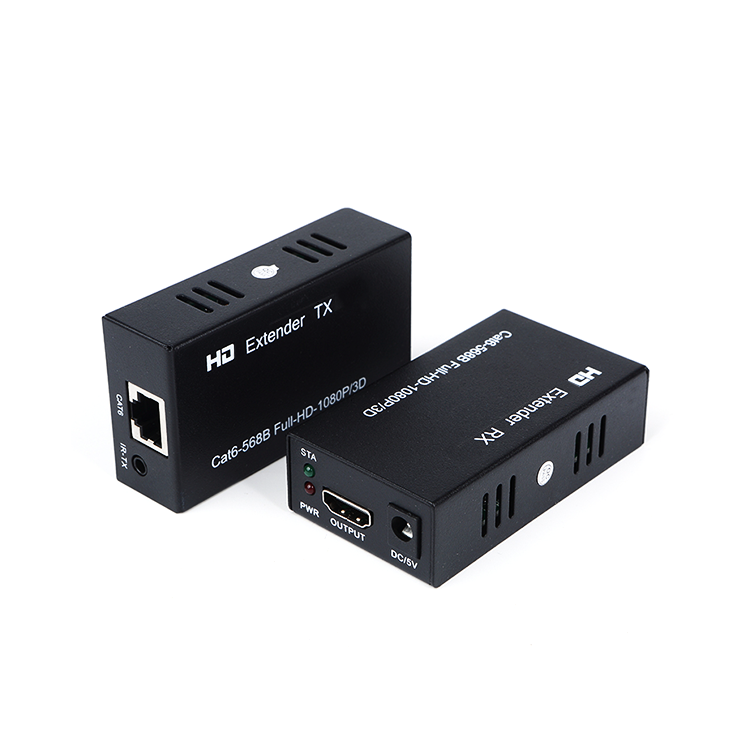

III. Product interface pictures

IV. Specification

V. Installation Process:

1. Connect the provided DC/5V power supply to the power socket of  Tx (Transmitter) and Rx(Receiver) units

2. Connect the Rx unit to the display device by HDMI cable

3. Connect the Tx unit to the video source device by HDMI cable

4. Connect between the Tx and Rx units using Cat6 cable

5. Turn on the source device

6. If no playing, please study by “EQ” button

7. If you change your display unit or cable length, please re-study by “EQ” button. (Repeat process 6)

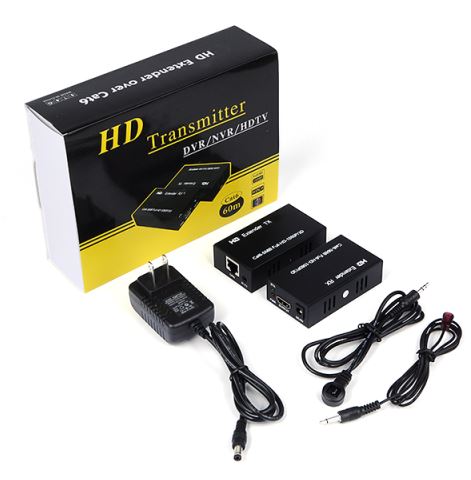

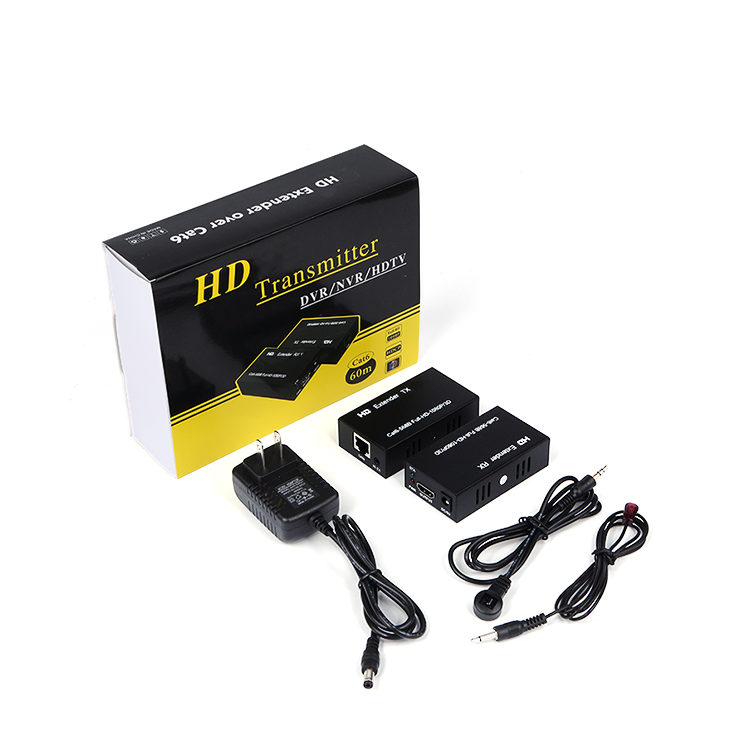

VI. Package Contents:

1. HDMI transmitter unit ×1 pcs

2. HDMI receiver unit ×1 pcs

3. Power adapter × 2 pcs (1pcs Optional)

4. IR cable × 1set (Optional)

5. User manual ×1 pcs
